500 Series 110° Screw-Adjustable Self-Closing European Hinge

from $1.76

Dependable spring-assisted door closing with straightforward screw adjustment. This standard-duty concealed hinge suits compatible face-frame or frameless cabinetry when paired with the correct mounting plate.

110° opening; full-overlay or half-overlay configuration.
35 mm cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel; compatible with 400 Series mounting plates.
Limited lifetime manufacturer warranty.

Models and mounting options

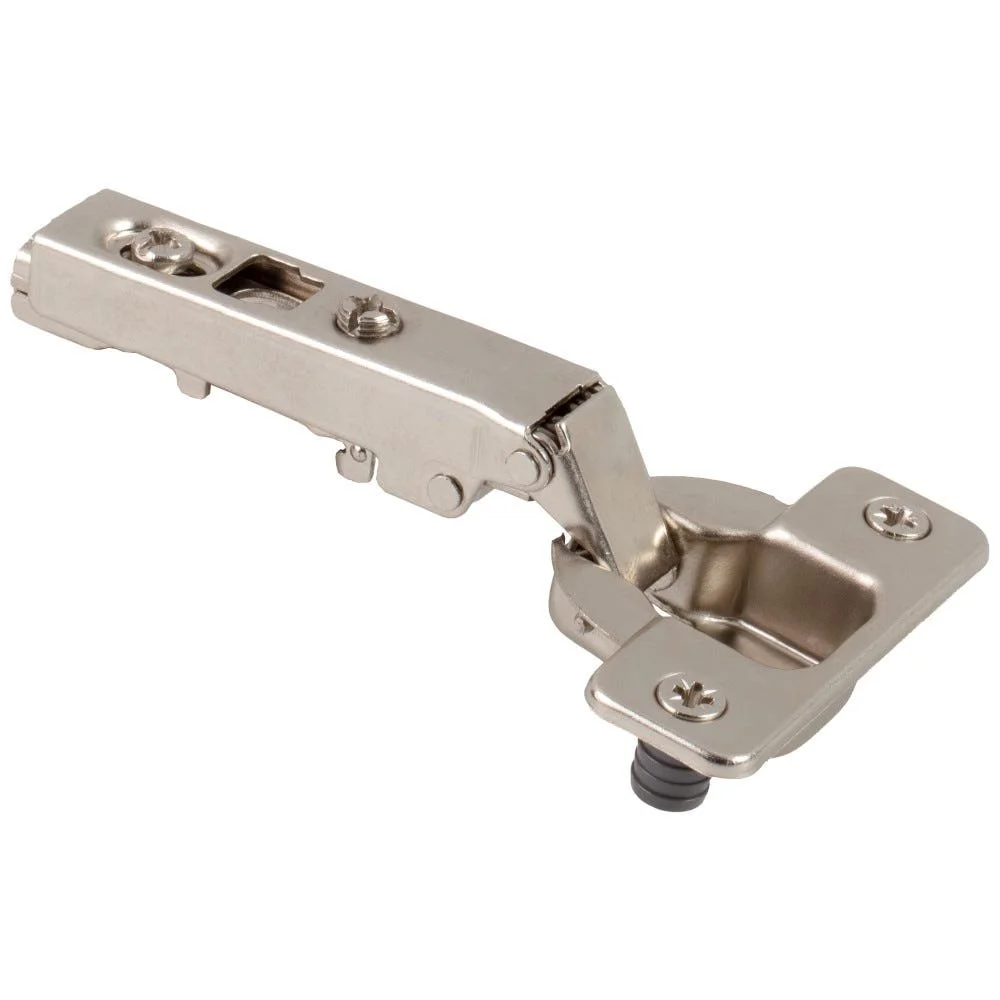

500.0171.75 — Full Overlay, 0 mm crank; Press-in 8 mm dowels; 68.4 mm hinge length.

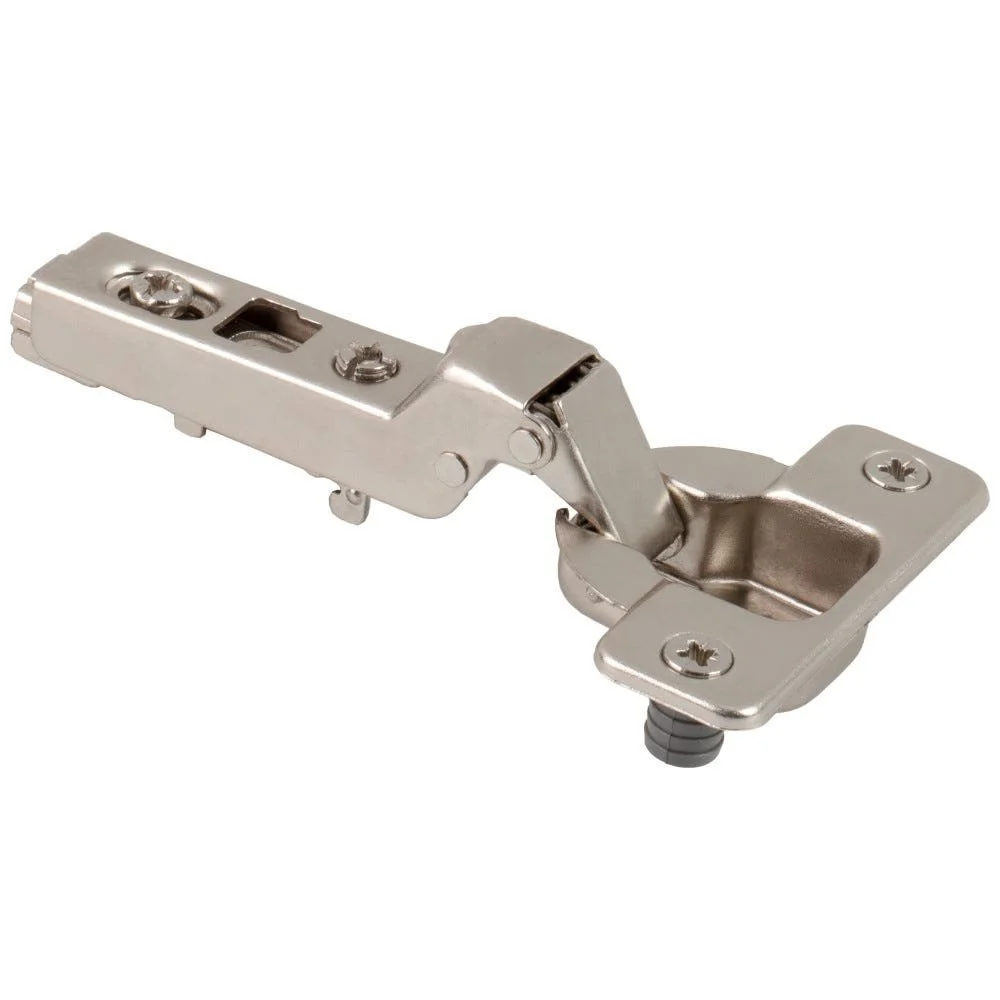

500.0279.75 — Half Overlay, 9 mm crank; Press-in 8 mm dowels; 68.3 mm hinge length.

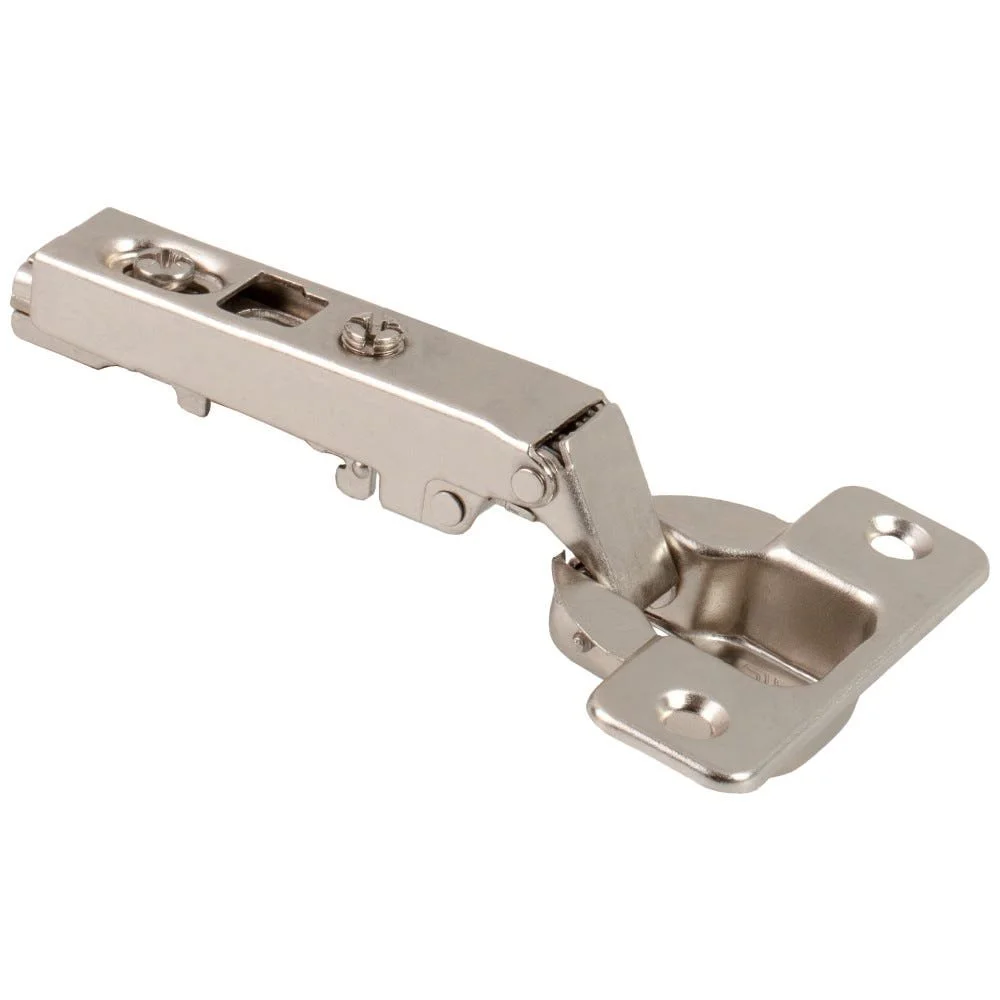

500.0534.75 — Full Overlay, 0 mm crank; Screw-on — no dowels; 68.4 mm hinge length.

Sold individually. Mounting plates are sold separately. Verify the door boring and cabinet application before ordering.
