Give a full-overlay cabinet door a wider opening with this self-closing European hinge. Choose the mounting style that matches your door preparation: press-in 8 mm dowels, screw-on with no dowels, or Easy-Fix dowels.
125° opening; full overlay with a 0 mm crank.
Polished nickel steel construction with self-closing action.
35 mm cup diameter, 11.2 mm cup depth and 45 mm fixing centers.
67 mm hinge length. Use a compatible 400 Series mounting plate, sold separately.
Sold individually. Confirm door thickness, drilling pattern and mounting-plate height before installation.

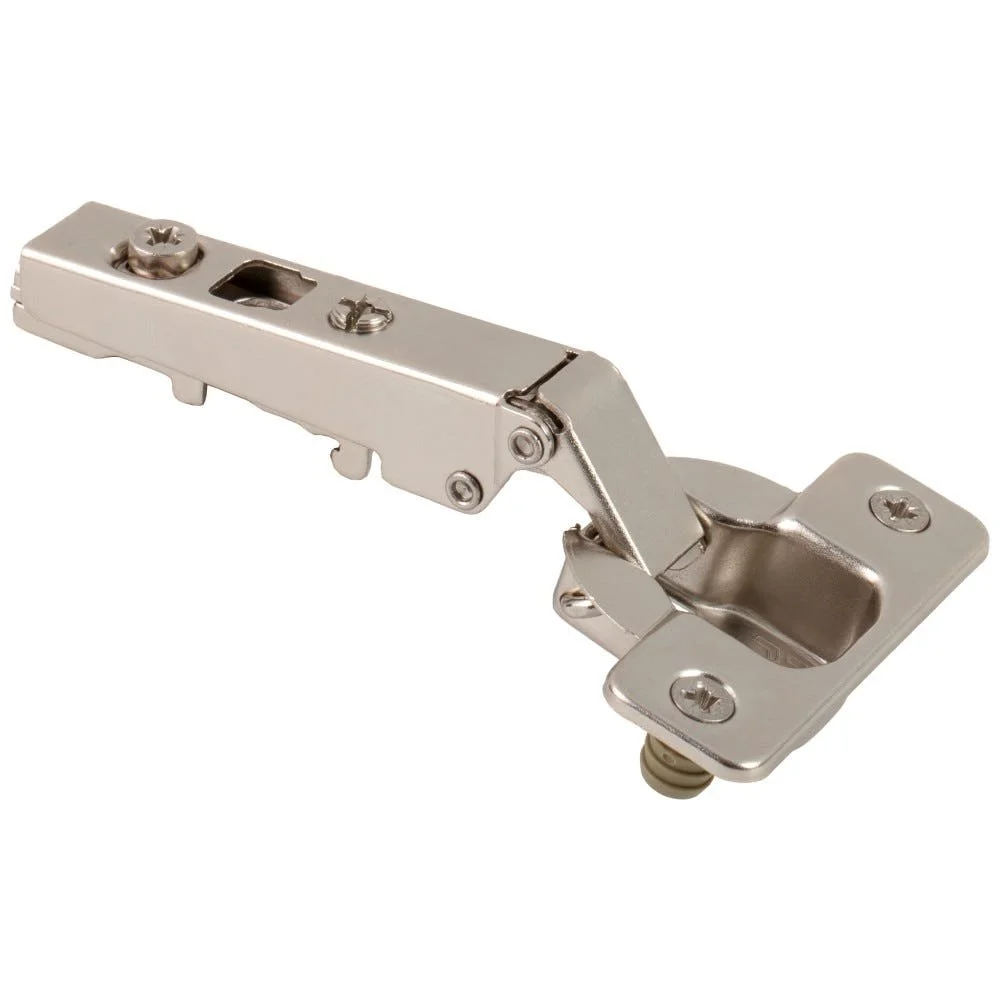

500.0U84.75 — Press-in 8 mm dowels; $2.59 each.

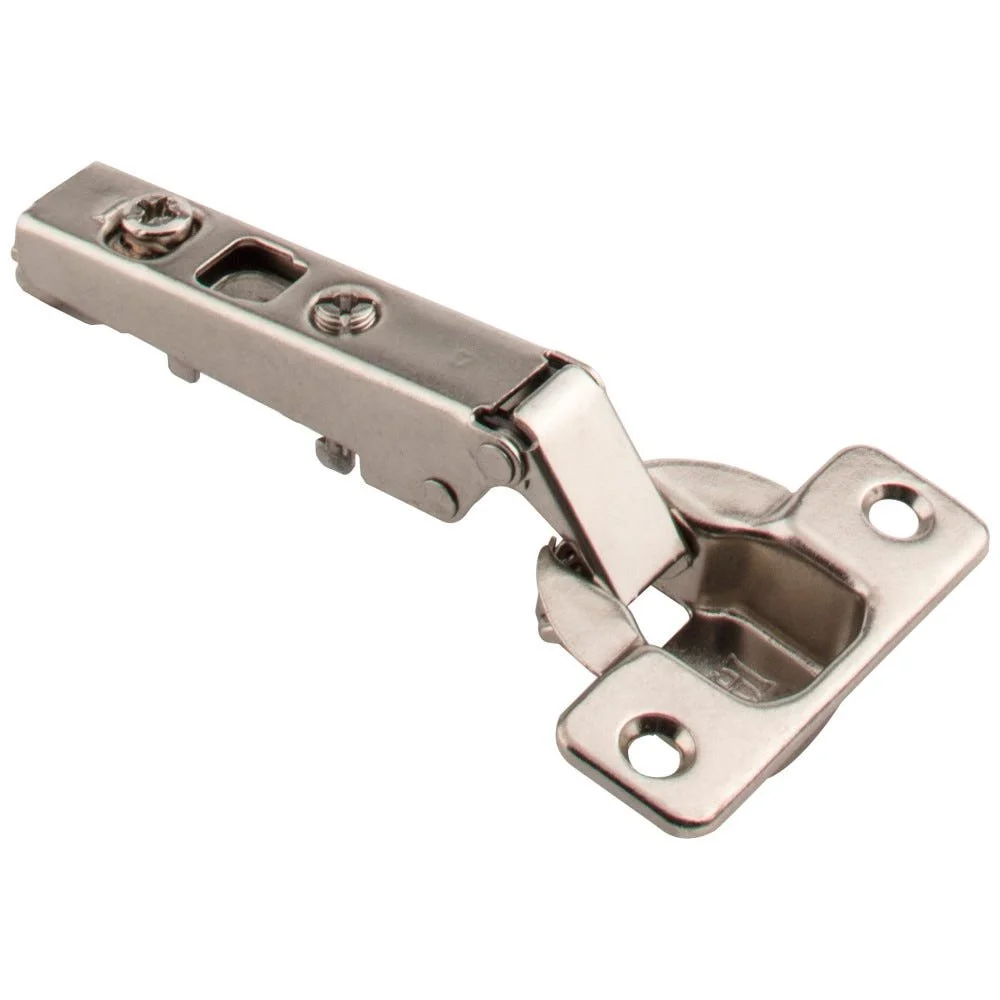

500.0U85.75 — Screw-on — no dowels; $2.23 each.

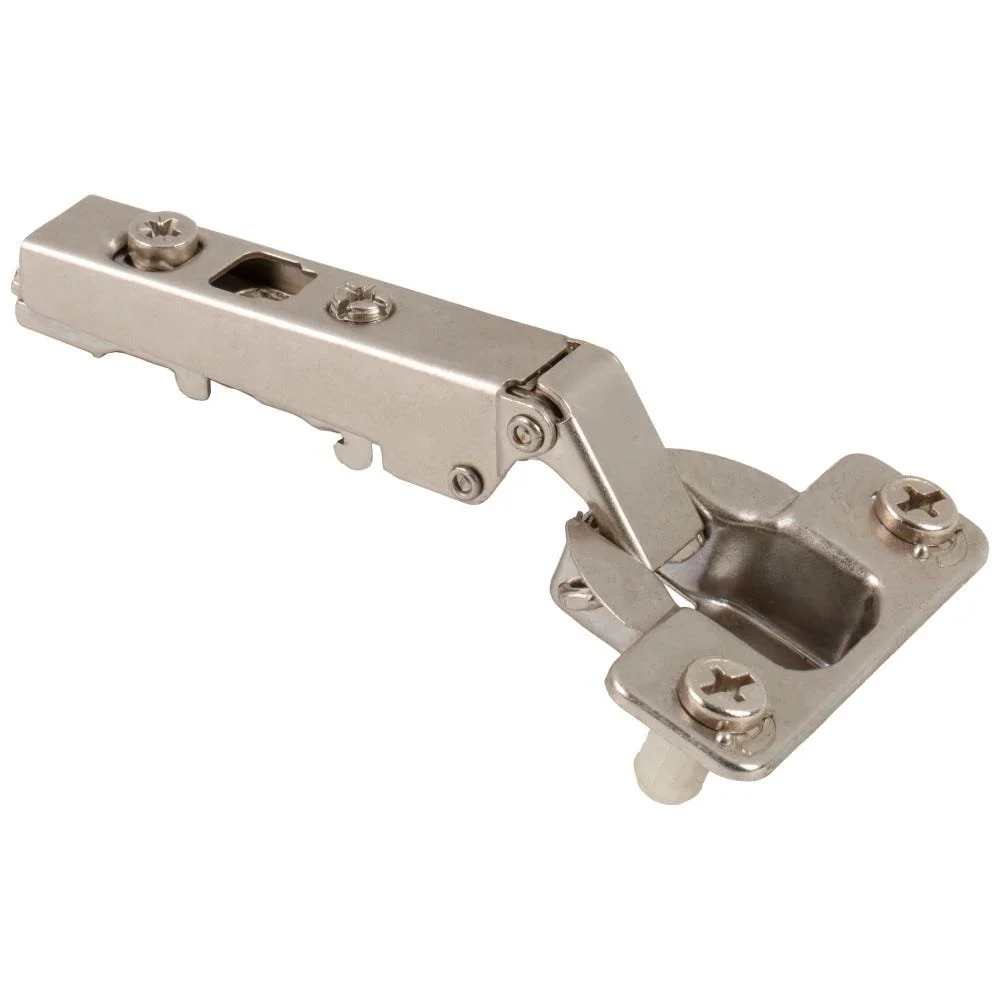

500.0U86.75 — Easy-Fix Dowels; $2.70 each.
Give a full-overlay cabinet door a wider opening with this self-closing European hinge. Choose the mounting style that matches your door preparation: press-in 8 mm dowels, screw-on with no dowels, or Easy-Fix dowels.
125° opening; full overlay with a 0 mm crank.
Polished nickel steel construction with self-closing action.
35 mm cup diameter, 11.2 mm cup depth and 45 mm fixing centers.
67 mm hinge length. Use a compatible 400 Series mounting plate, sold separately.
Sold individually. Confirm door thickness, drilling pattern and mounting-plate height before installation.
500.0U84.75 — Press-in 8 mm dowels; $2.59 each.
500.0U85.75 — Screw-on — no dowels; $2.23 each.
500.0U86.75 — Easy-Fix Dowels; $2.70 each.
