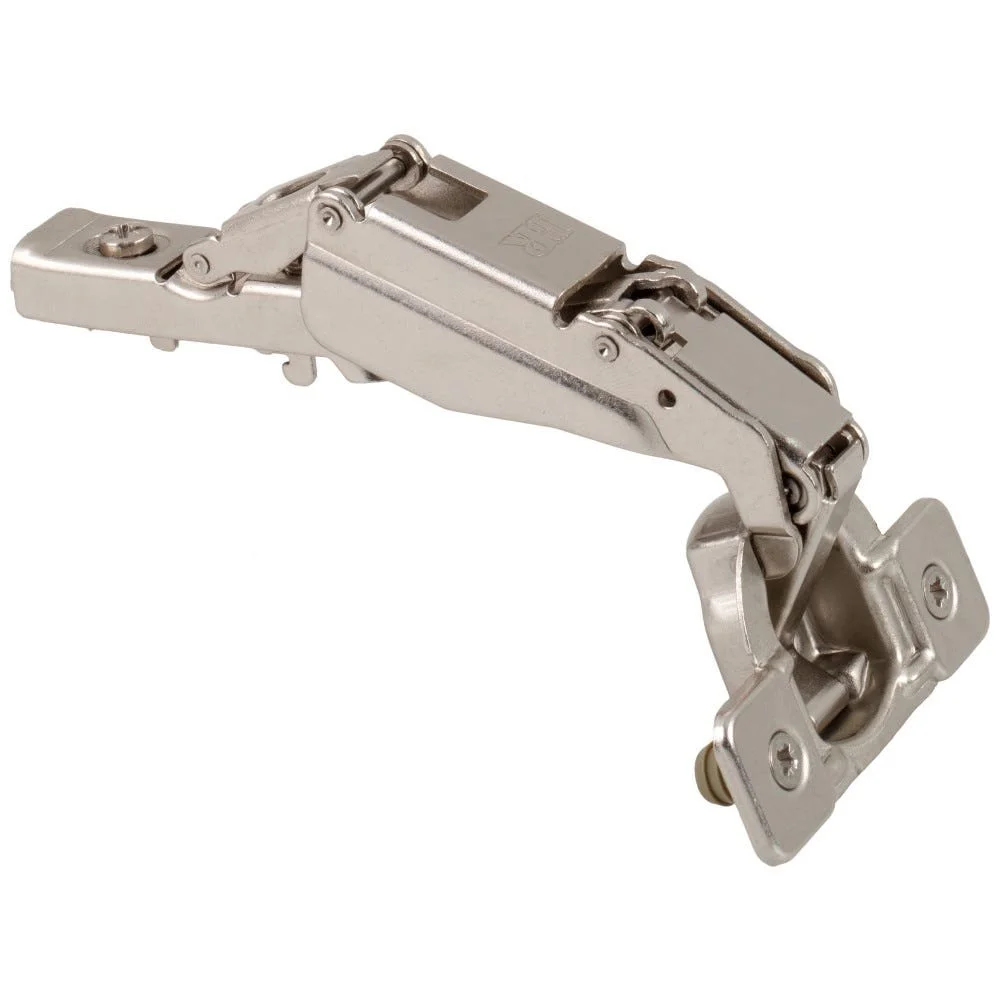

500 Series 170° Wide-Angle Self-Closing Cabinet Hinge

$5.44

Open cabinet doors wide for easier access to the interior. This 170° concealed hinge combines standard-duty self-closing action with cam adjustment for fine alignment.

Exact model: 500.0M73.75; full overlay with a 0 mm crank.
170° opening; press-in installation with 8 mm dowels.
35 mm cup bore, 11.2 mm cup-bore depth and 45 mm mounting centers.
68 mm hinge length; polished nickel steel.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Compatible with 400 Series mounting plates.
Limited lifetime manufacturer warranty.

Sold individually. Mounting plate sold separately. Verify available door clearance, door boring and cabinet application before ordering.
