500 Series 90° Full-Overlay Self-Closing Cabinet Hinge

$1.98

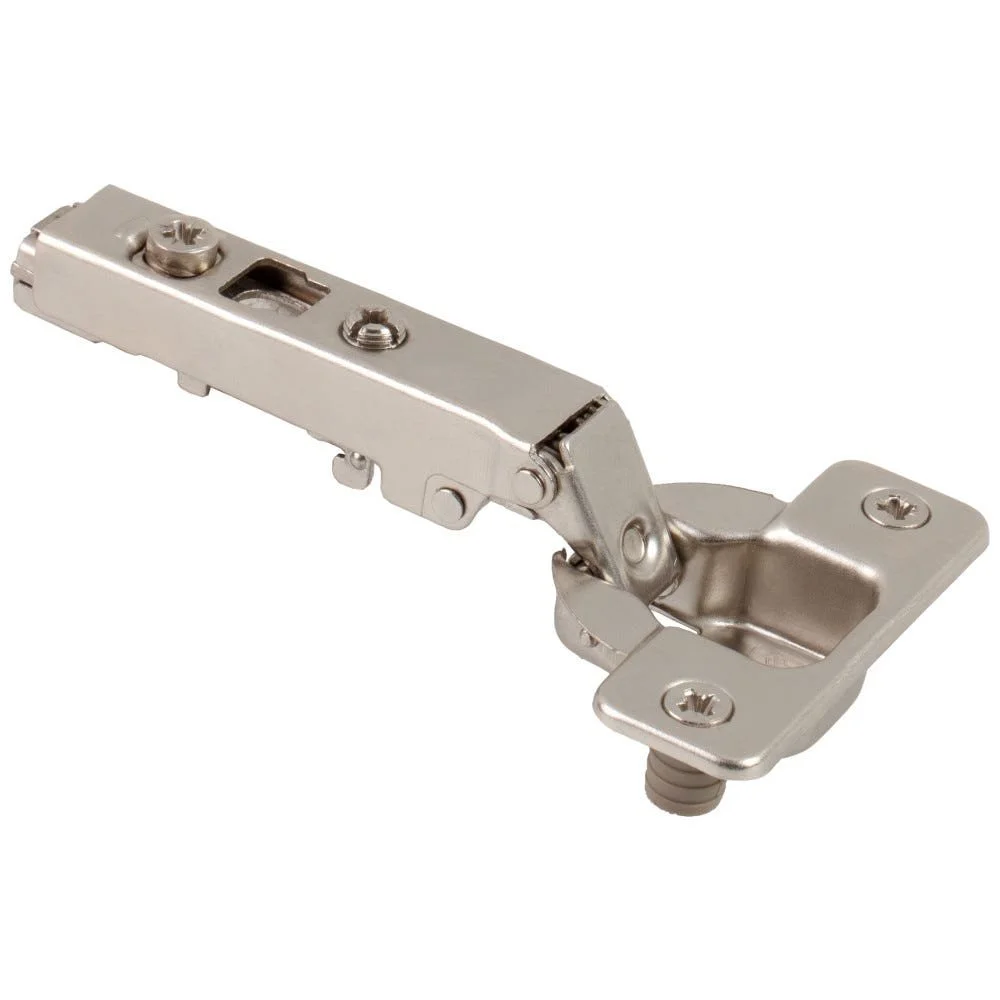

A compact concealed hinge with a 90° opening for compatible full-overlay cabinet doors. Cam adjustment helps fine-tune alignment, and spring-assisted self-closing action brings the door closed.

Exact model: 500.0161.75; full overlay, 0 mm crank.
Press-in installation with 8 mm dowels.
35 mm cup bore, 11.2 mm cup-bore depth and 45 mm mounting centers.
Factory drawing length 68.4 mm; height 15.7 mm.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel; uses compatible 400 Series mounting plates.
Limited lifetime manufacturer warranty.

Sold individually. Mounting plate sold separately. Check the cabinet construction, door boring and plate combination before ordering.
