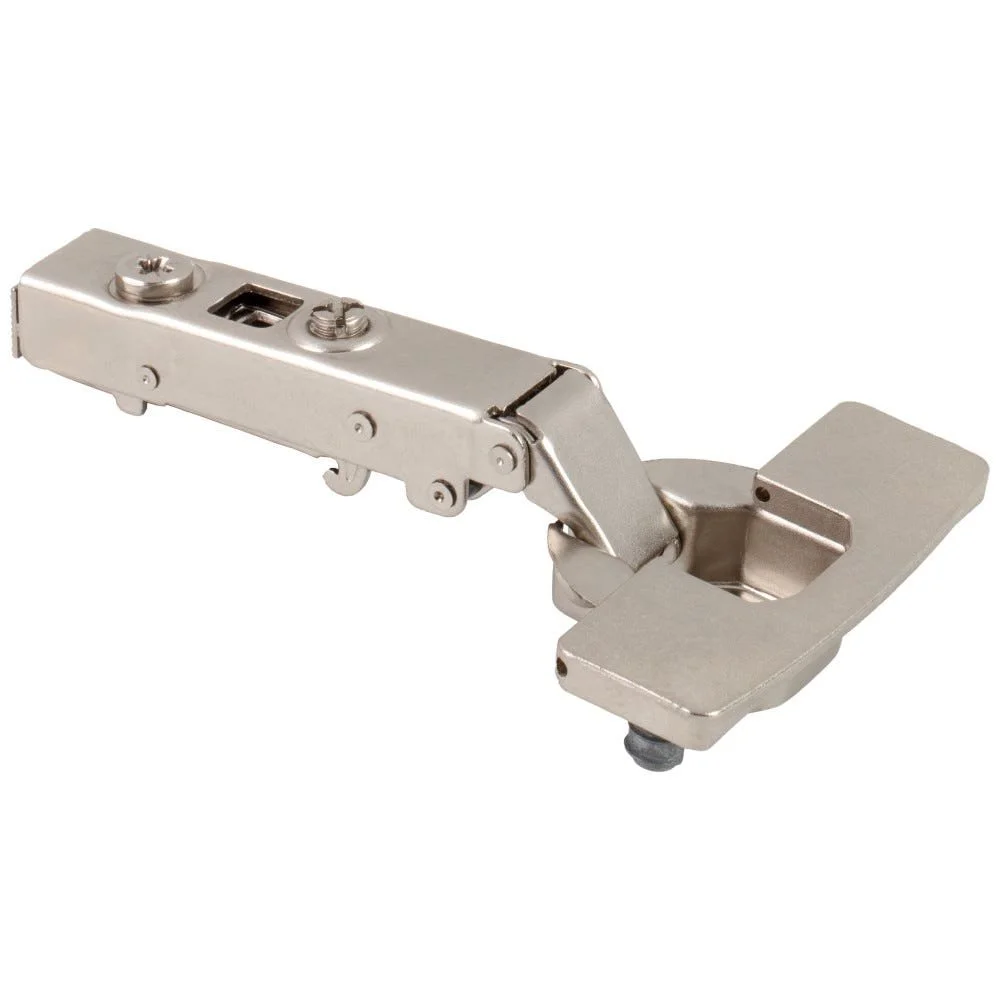

700 Series 110° Full-Overlay Soft-Close Hinge — Lever-Top

$7.13

Give cabinet doors a smooth soft close with a heavy-duty hinge designed for quick installation. Lever-top dowels allow tool-free installation and removal, while anti-sag stacked linkage helps keep the door aligned.

Sold individually. Compatible 600 Series mounting plate required and sold separately.

Specifications

Model: 700.L110.00; nickel-finished steel.
110° opening; full overlay; straight arm with 0 mm crank.
Integrated soft-close action with concealed metal damper and two-stop action.
Lever-top dowels for tool-free installation and removal.
35 mm cup; 11.2 mm cup bore depth; 45 mm mounting centers.
118 mm long × 59 mm wide × 16.5 mm high.
Hinge and compatible plate provide six-way adjustment; overlay ±2 mm and depth +3/−2 mm.
Face-frame or frameless use with the correctly selected mounting plate.
Grade 2 ANSI/BHMA certification; tested to 100,000 cycles; limited lifetime factory warranty.

Confirm door drilling, overlay and plate compatibility before installation. Optional hardware is sold separately from cabinetry.
