700 Series 110° Heavy-Duty Cam-Adjustable Soft-Close European Hinge

from $6.53

A smooth, controlled close and precise door alignment make this concealed steel hinge a practical upgrade for frequently used cabinets. Its heavy-duty spring, all-metal damper and anti-sag linkage support dependable everyday operation.

Choose your door configuration

Select full overlay, half overlay or inset, then choose press-in 8 mm dowels or screw-on mounting without dowels. Sold individually. Compatible 600 Series mounting plates are sold separately; the plate and cabinet construction determine the final door overlay.

110° opening; cam adjustment for accurate alignment.
35 mm hinge cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel finish over steel; suitable for face-frame or frameless applications with the correct plate.
Full and half-overlay hinge length: 68 mm. Inset hinge length: 67.5 mm.
Limited lifetime manufacturer warranty.

Models and options

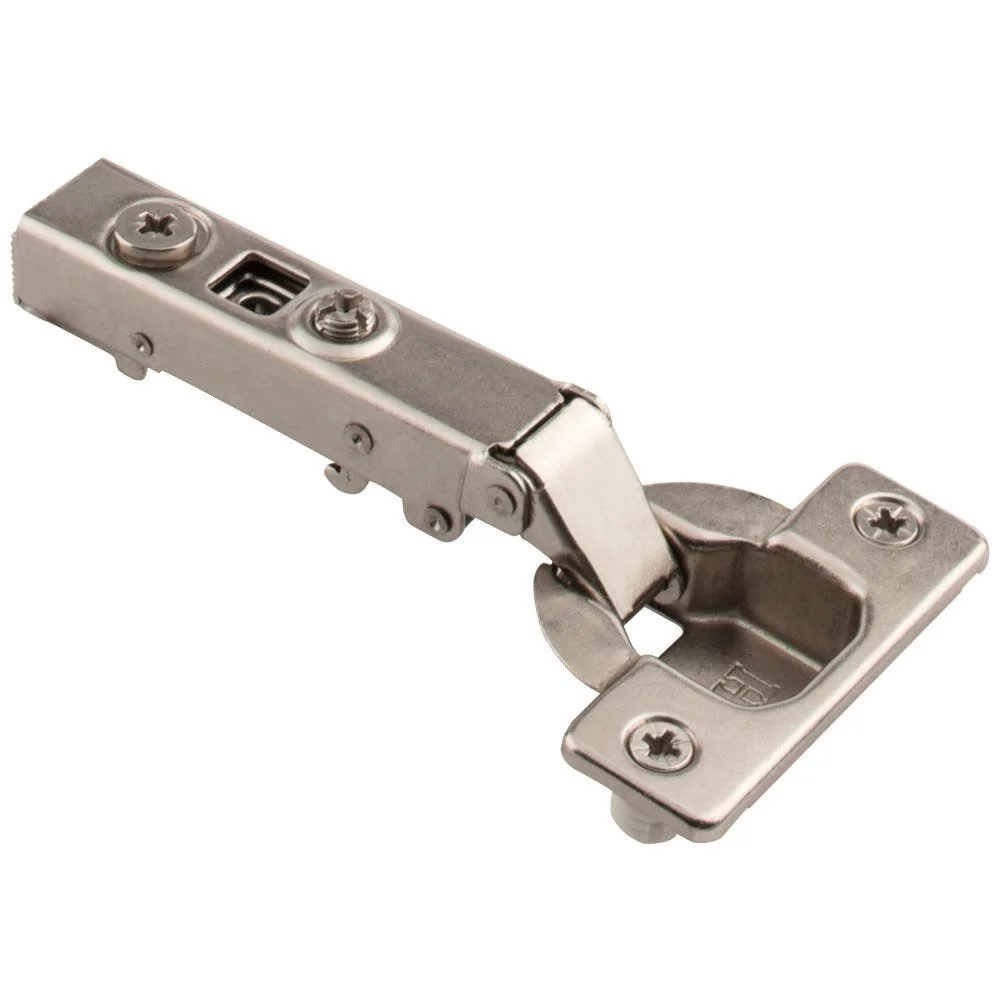

700.0181.25 — Full Overlay, 0 mm crank; Press-in 8 mm dowels.

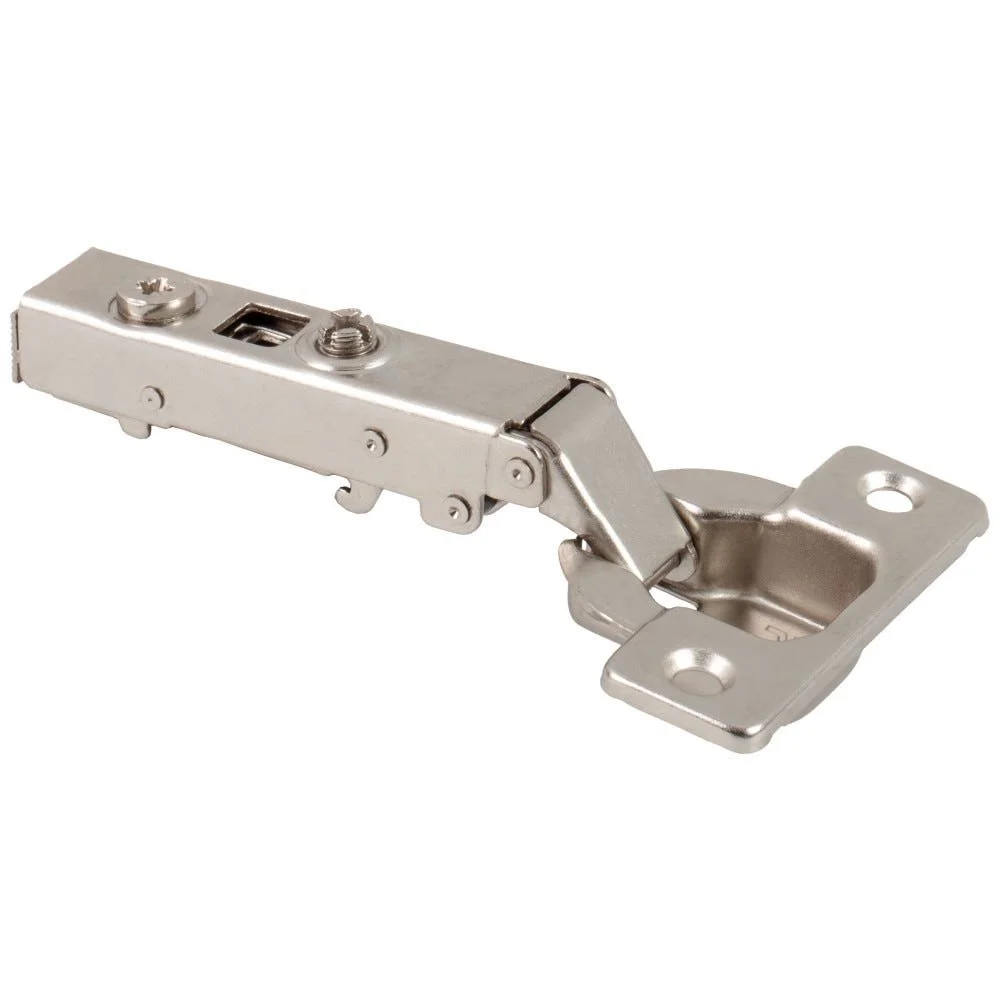

700.0535.25 — Full Overlay, 0 mm crank; Screw-on — no dowels.

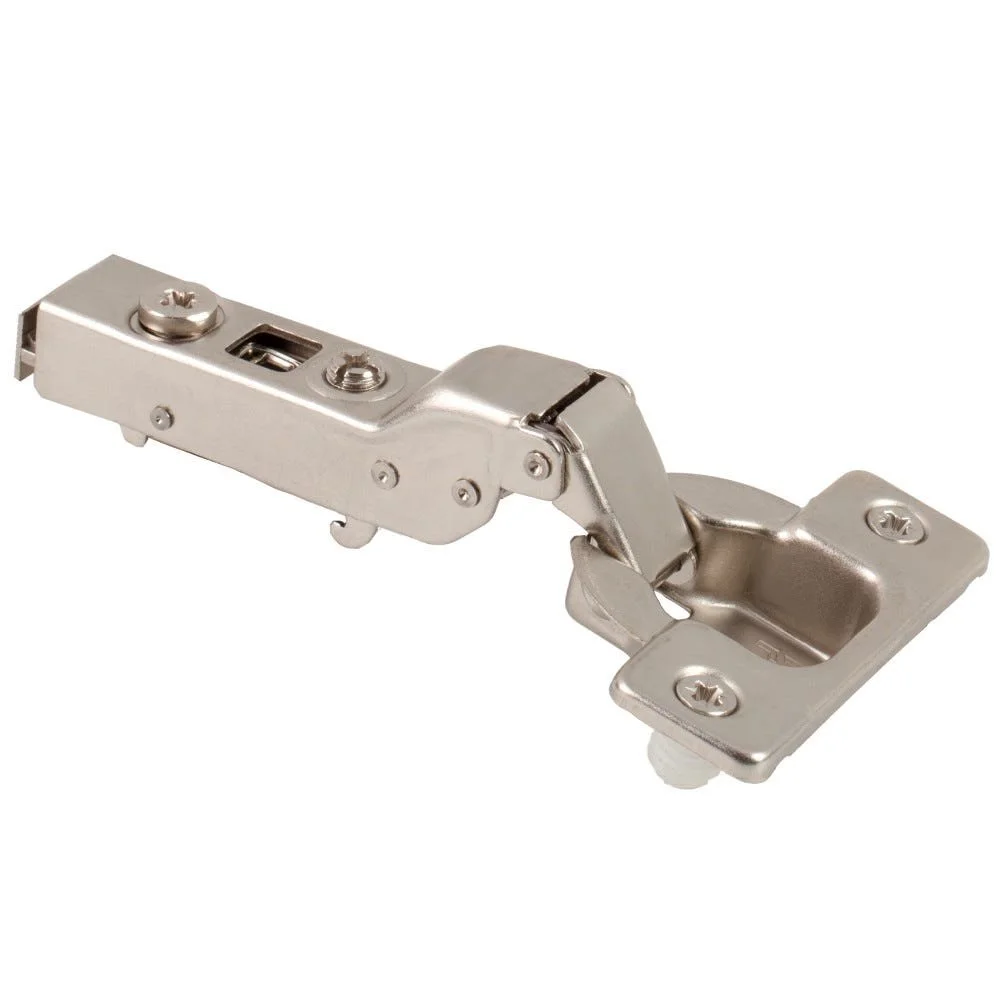

700.0179.25 — Half Overlay, 9 mm crank; Press-in 8 mm dowels.

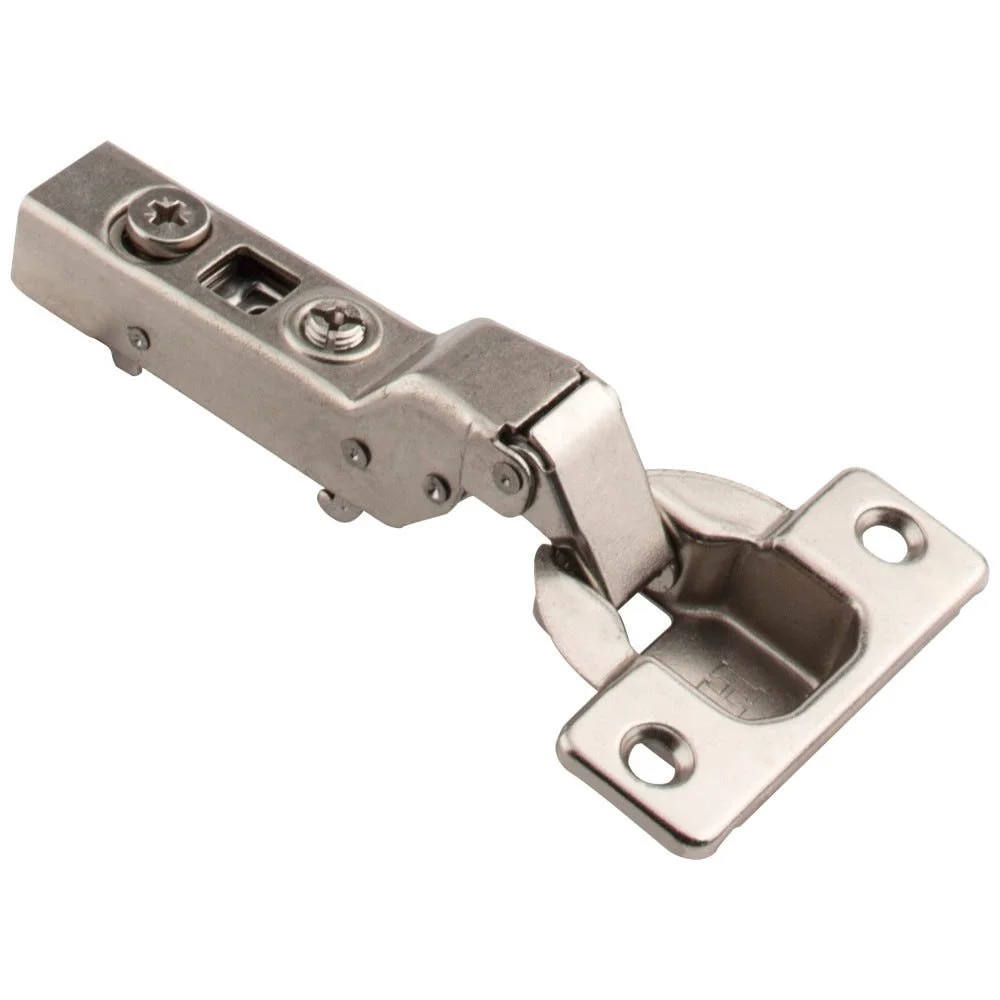

700.0536.25 — Half Overlay, 9 mm crank; Screw-on — no dowels.

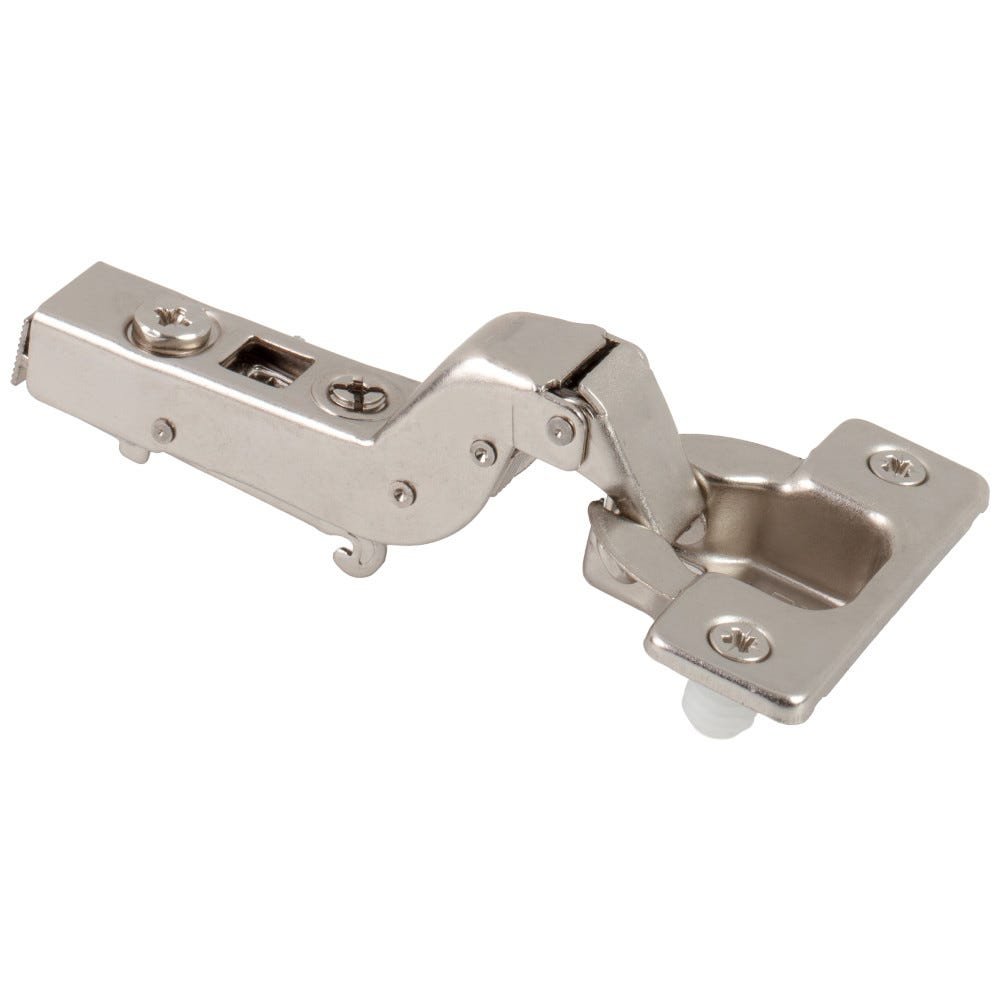

700.0280.25 — Inset, 15 mm crank; Press-in 8 mm dowels.

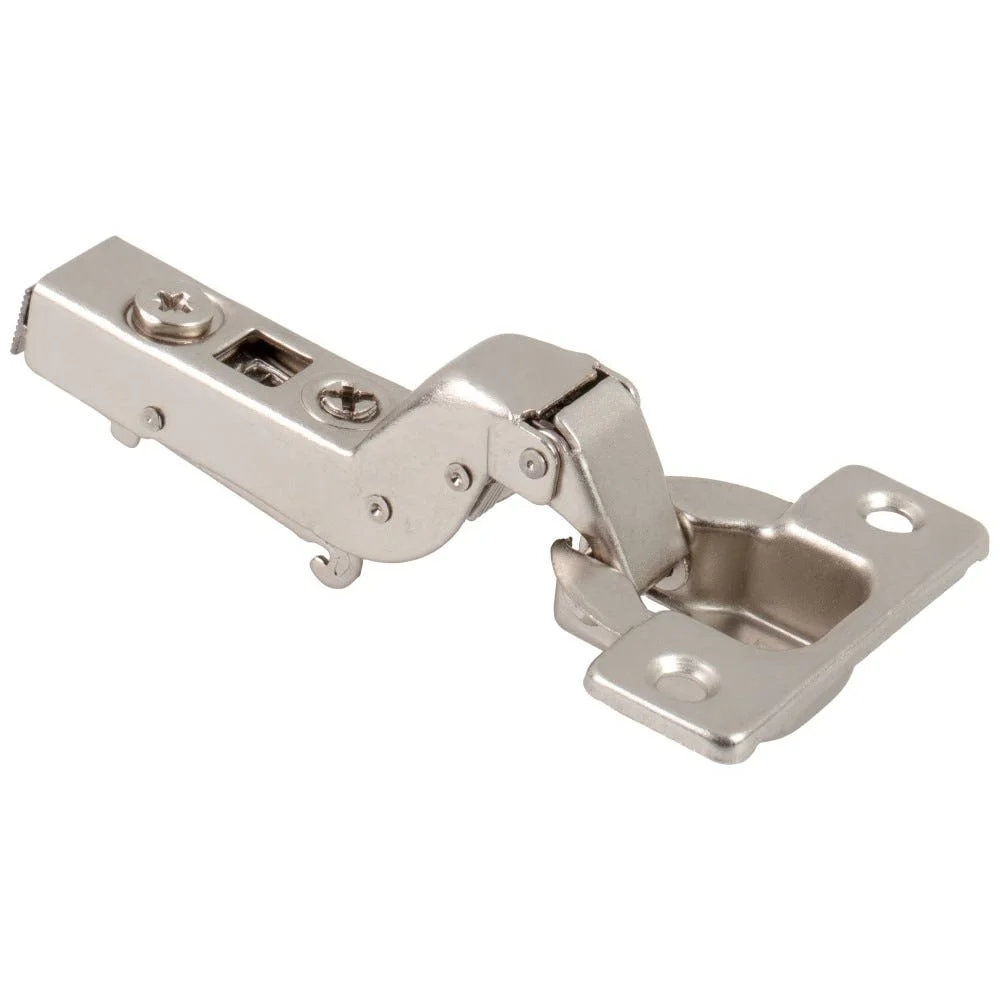

700.0537.25 — Inset, 15 mm crank; Screw-on — no dowels.

Optional components are sold separately. Confirm your door layout, mounting plate and boring dimensions before ordering.
