A generous 125° opening gives you comfortable access to cabinet contents, while the concealed all-metal damper brings the door to a controlled soft close. Choose the installation style that matches your shop or project.
Full overlay, 0 mm crank; cam adjustment.
35 mm hinge cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
Hinge length: 68 mm.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel with a heavy-duty spring and anti-sag linkage.
Compatible with 600 Series plates for suitable face-frame or frameless cabinets.
Limited lifetime manufacturer warranty.

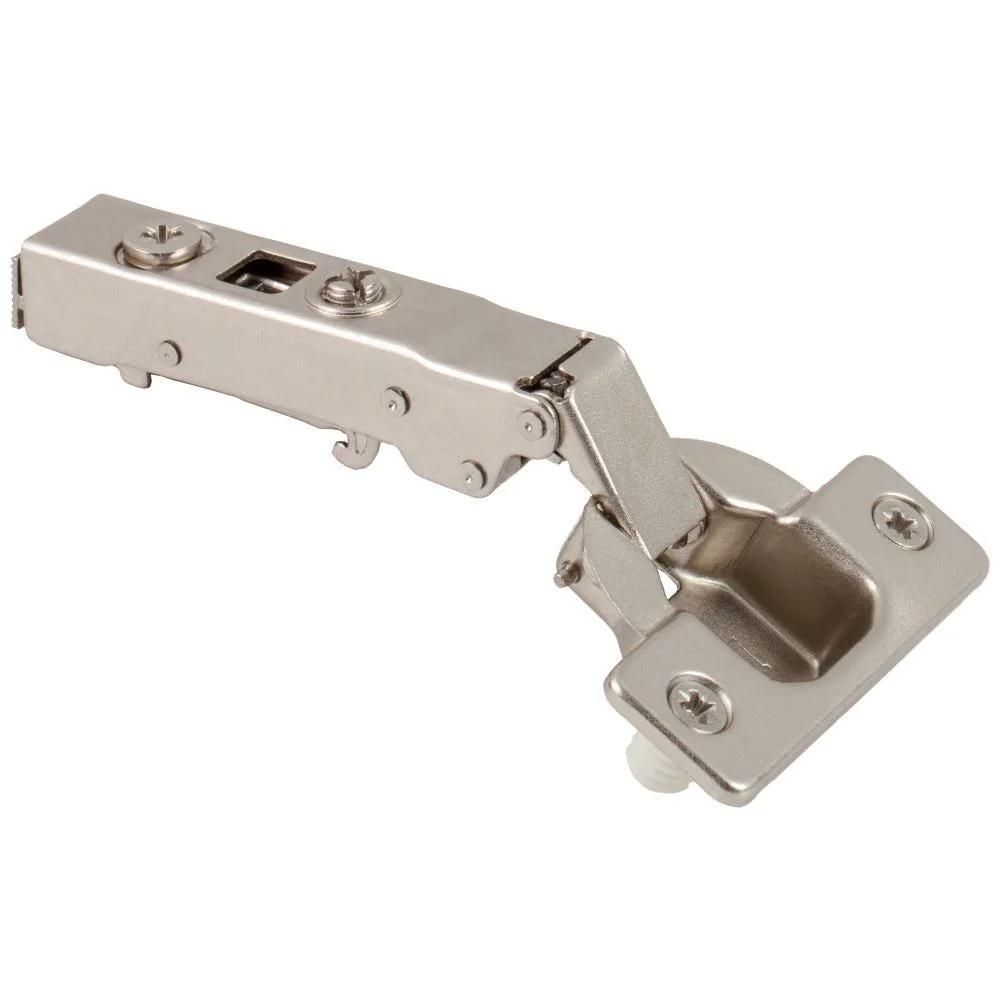

700.0U84.05 — Press-in 8 mm dowels.

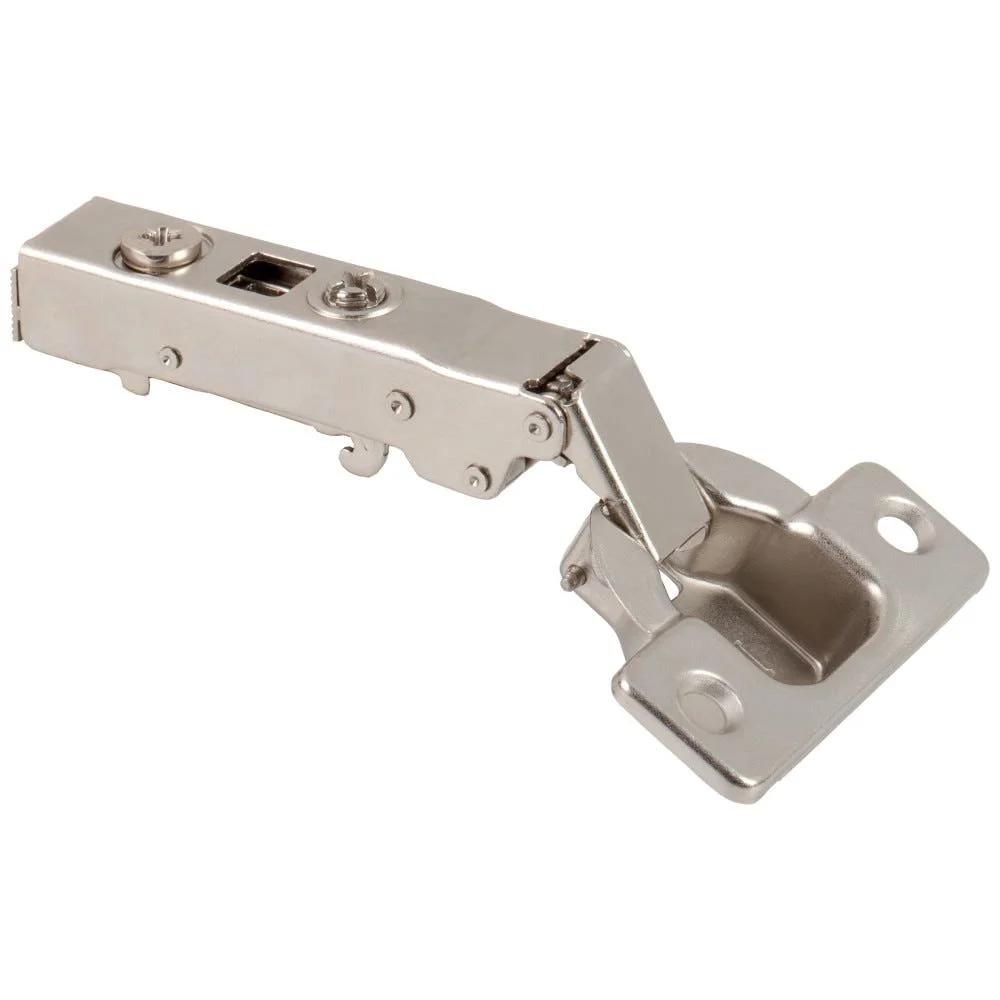

700.0U85.05 — Screw-on — no dowels.

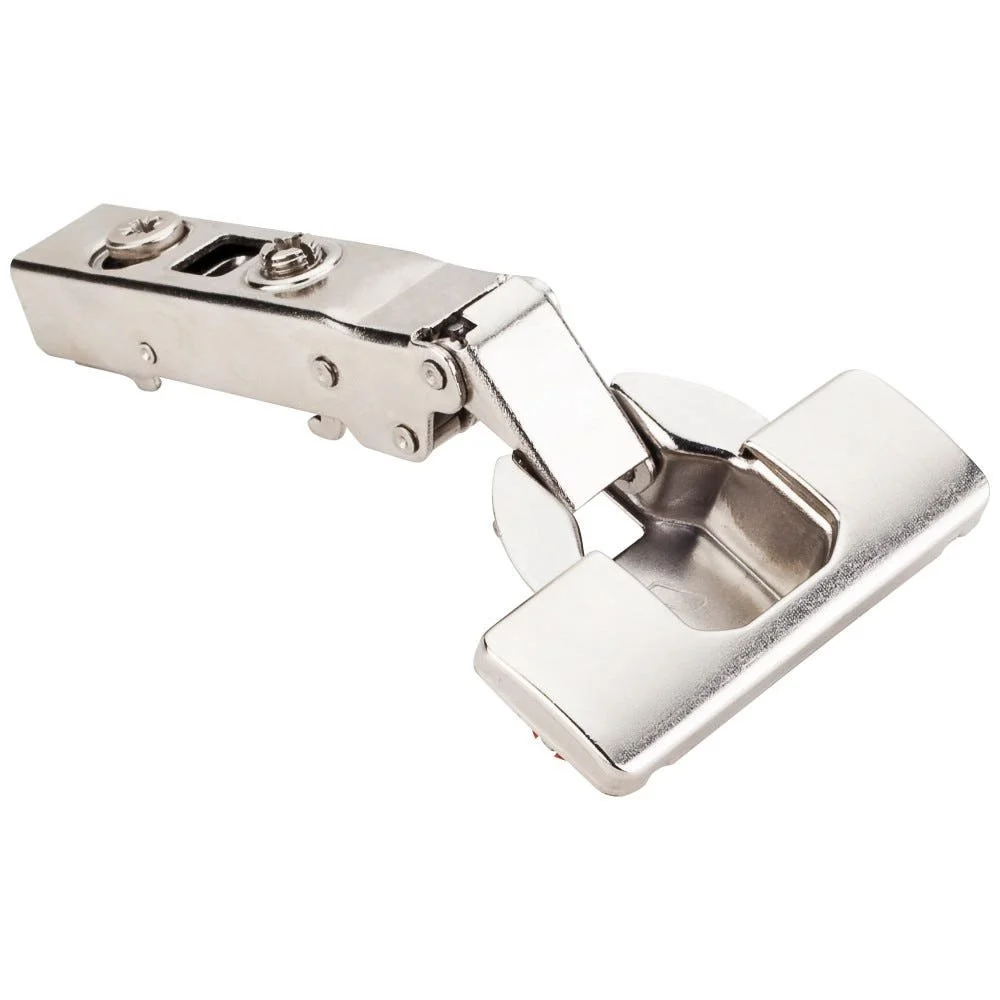

700.0U86.05 — Easy-Fix Dowels with Cover.

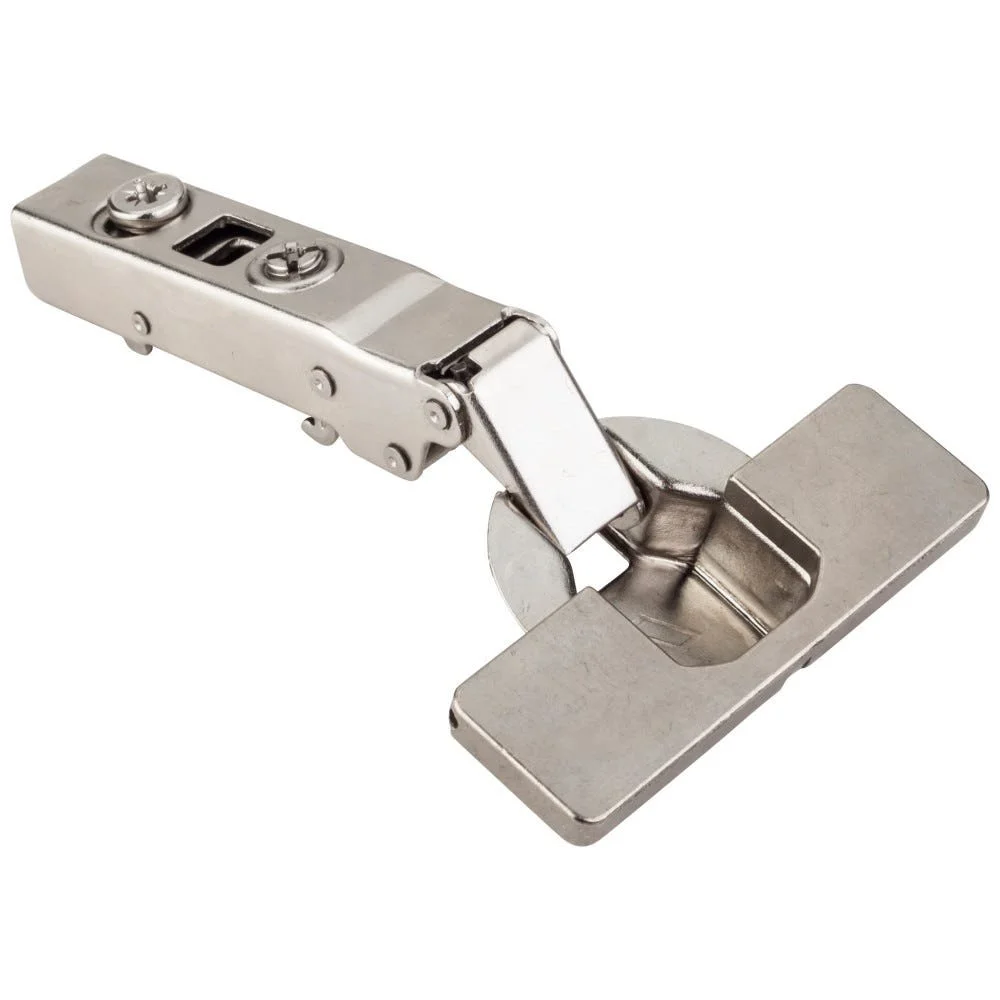

700.0U94.05 — Lever-Top Dowels.
Sold individually. Mounting plates and other optional components are sold separately. Confirm the required mounting style, plate and door boring before ordering.
