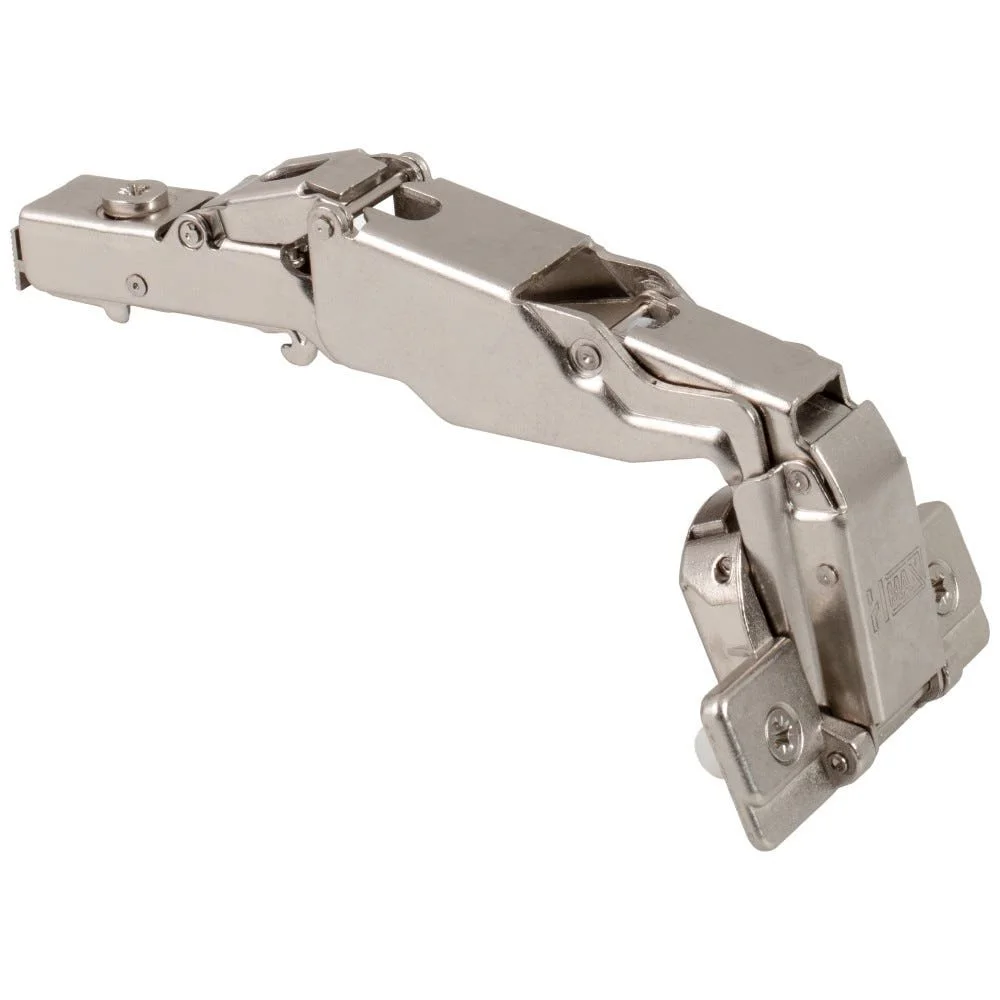

700 Series 165° Wide-Angle Soft-Close Cabinet Hinge

$20.38

Open a cabinet door wide for easier access while keeping a smooth, controlled close. This heavy-duty concealed hinge combines a 165° opening with cam adjustment and an anti-sag linkage for dependable alignment.

Exact model 700.0M73.05; sold individually.
Full overlay with 0 mm crank and 165° opening.
35 mm hinge cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
Press-in 8 mm dowels; 68.5 mm hinge length.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel with a heavy-duty spring and concealed all-metal damper.
Compatible with 600 Series plates for suitable face-frame or frameless cabinets.
Limited lifetime manufacturer warranty.

Mounting plate and other optional components are sold separately. Confirm door clearances, boring and the correct plate before ordering.
