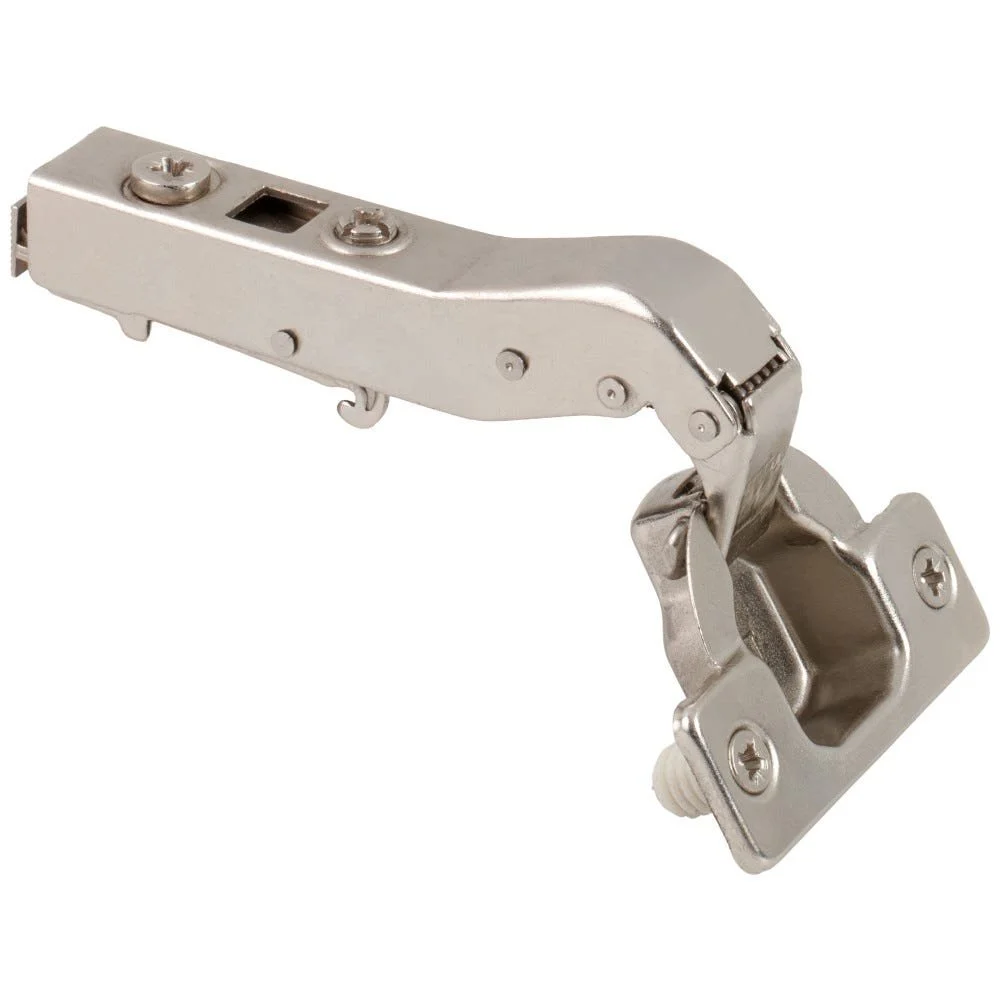

700 Series 45° Corner-Cabinet Soft-Close Hinge

$11.34

Bring a controlled soft close to an angled corner cabinet with this heavy-duty concealed steel hinge. Its cam adjustment and compatible mounting plate help fine-tune the door position.

Designed for a 45° corner-cabinet application; the door opens 105°. Match the cabinet geometry and plate to the installation drawing.

Exact model: 700.0N20.05; sold individually.
Inside-corner configuration; 18 mm crank.
35 mm cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
Press-in 8 mm dowels; hinge length 67 mm.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel; heavy-duty spring and all-metal concealed damper.
Compatible with 600 Series mounting plates, sold separately.
Limited lifetime manufacturer warranty.

Suitable for compatible face-frame or frameless applications. Confirm the cabinet angle, door boring and mounting plate before ordering.
