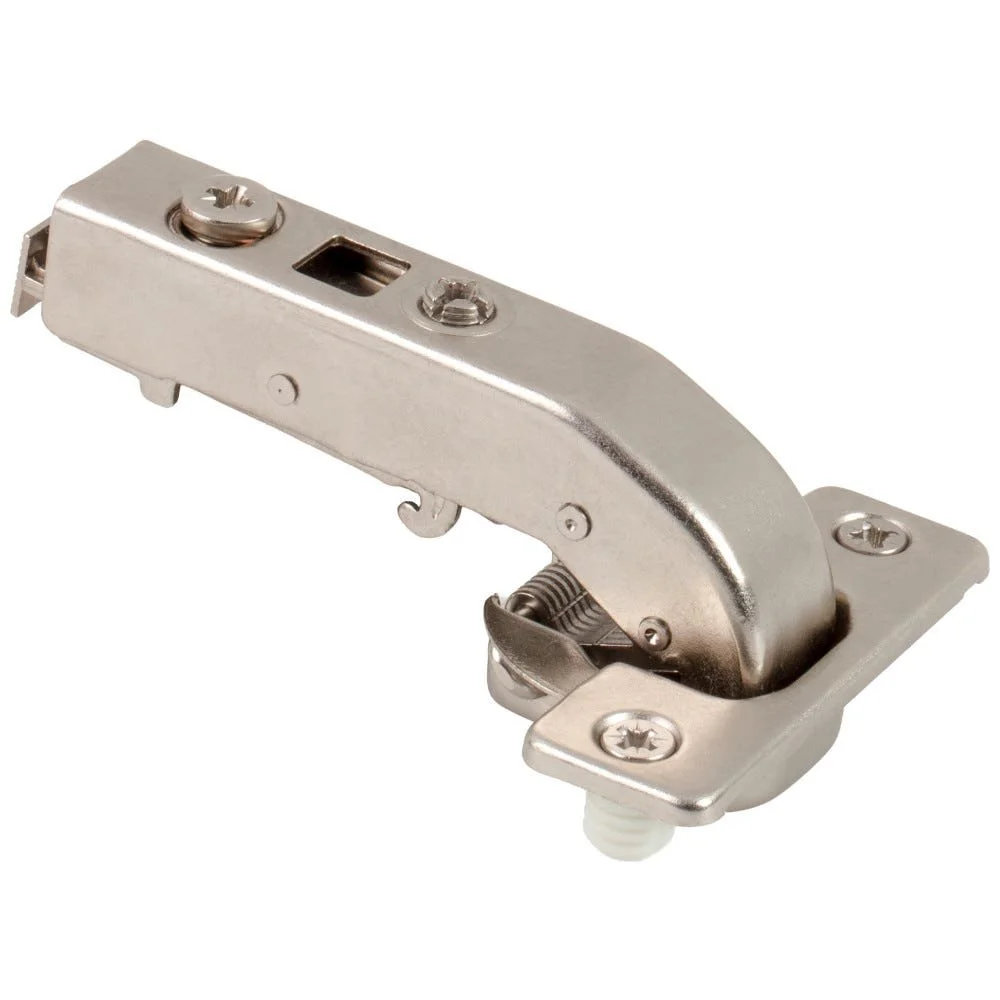

700 Series 90° Blind-Corner Inset Soft-Close Hinge

$11.34

Keep a blind-corner cabinet door easy to operate with a heavy-duty concealed hinge, a controlled soft close and cam adjustment for precise alignment.

For a 90° blind-corner inset application; the door-opening angle is 105°. This specialized configuration is different from a standard full-overlay hinge.

Exact model 700.0N24.05; sold individually.
Blind-corner inset configuration with 0 mm crank.
35 mm cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
Press-in 8 mm dowels; 87 mm hinge length.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel with a heavy-duty spring, anti-sag linkage and concealed metal damper.
Compatible with 600 Series mounting plates, sold separately.
Limited lifetime manufacturer warranty.

Confirm the cabinet geometry, door boring and correct plate before ordering. Optional installation components are sold separately.
