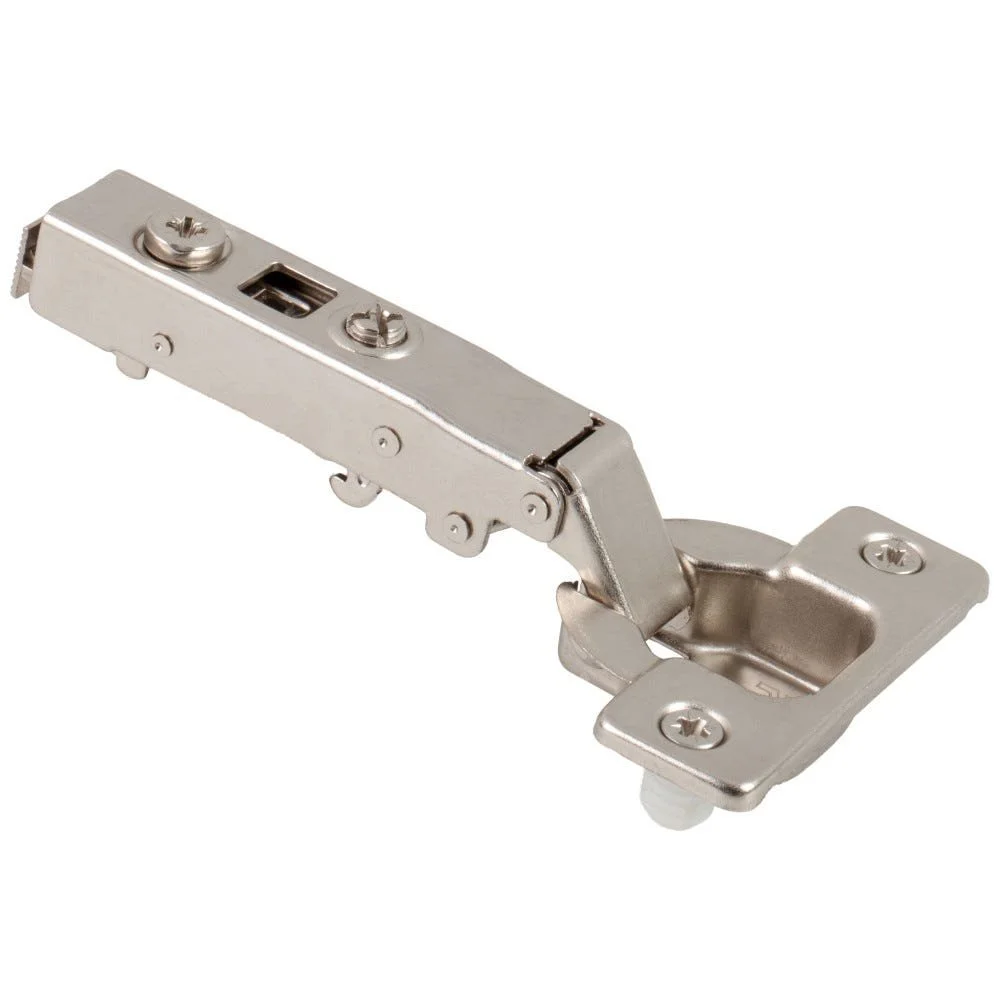

700 Series 90° Full-Overlay Soft-Close Hinge

$5.60

Use a smooth-closing concealed hinge where a 90° opening suits the cabinet layout. A heavy-duty spring, anti-sag stacked linkage and concealed metal damper provide controlled movement and dependable alignment.

Sold individually. Compatible 600 Series mounting plate required and sold separately.

Specifications

Model: 700.0161.25.
Full overlay; straight arm with 0 mm crank; 90° opening.
Press-in installation with 8 mm dowels.
35 mm cup diameter; 11.2 mm bore depth; 45 mm mounting centers; 68 mm overall length.
Cold-rolled steel with polished nickel finish.
Soft-close operation with two-stop action.
Hinge and compatible plate provide six-way adjustment: overlay ±2 mm; depth +3/−2 mm.
Suitable for face-frame or frameless cabinetry with the appropriate plate.
Grade 2 ANSI/BHMA certification; rated for 100,000+ cycles; limited lifetime factory warranty.

Confirm door drilling, overlay and clearances before installation. Optional hardware is sold separately from cabinetry.
