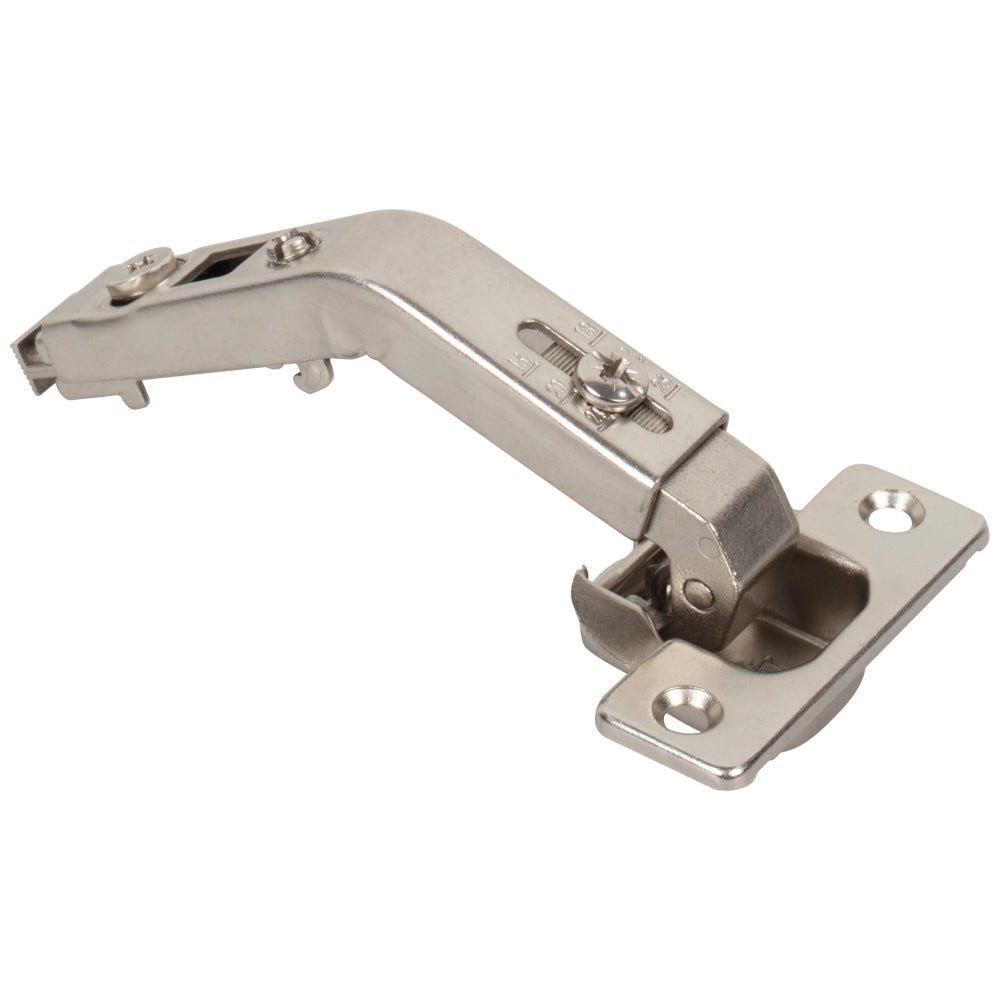

A heavy-duty concealed hinge for a folding pie-corner cabinet door arrangement. Cam adjustment helps align the adjoining doors, with self-closing action and compatibility with 600 Series mounting plates.
Exact model: 725.0U22.05; 105° pie-corner hinge.
Screw-on installation without dowels; polished nickel finish.

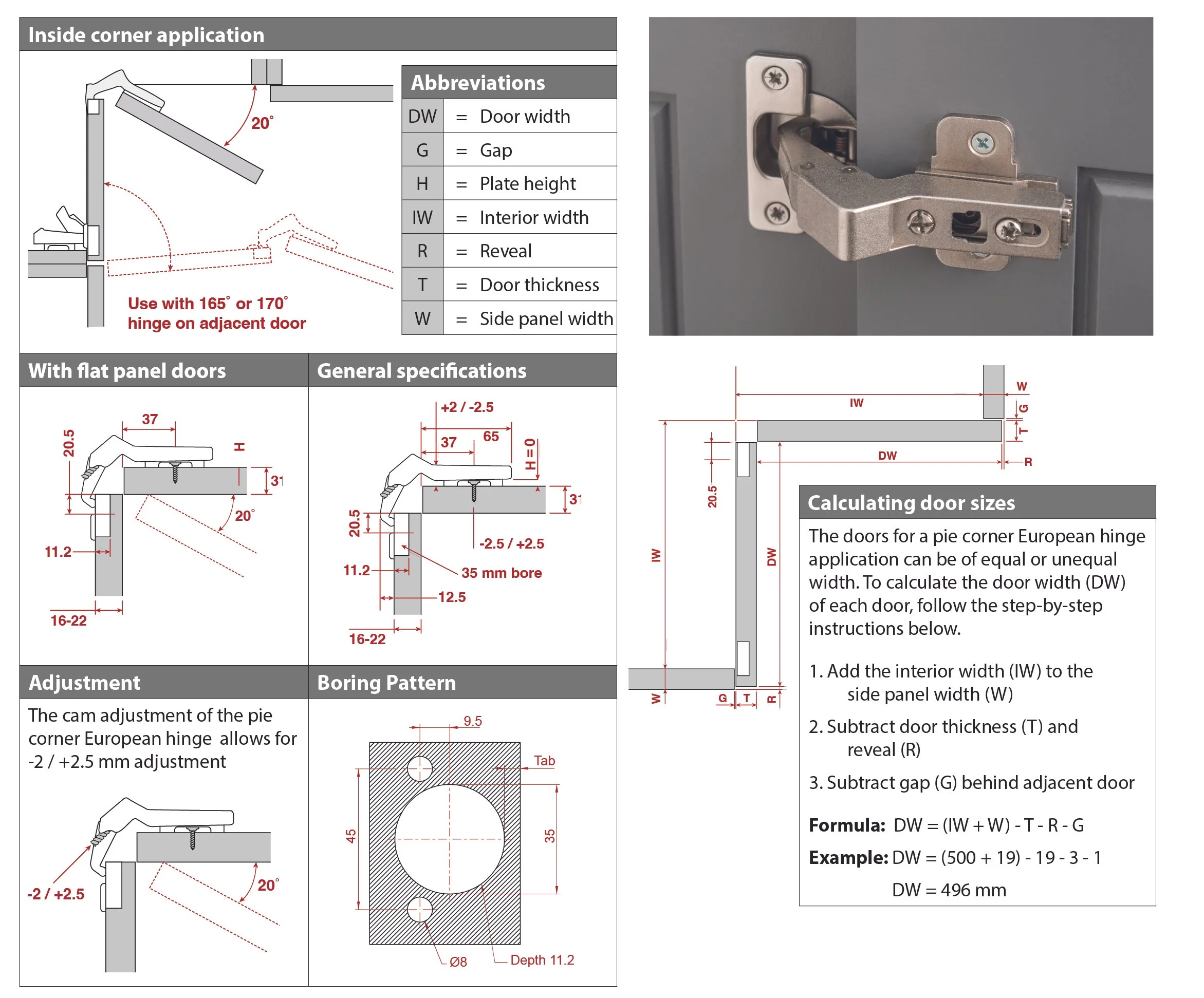

Factory application drawing specifies a 35 mm cup bore, 11.2 mm bore depth and 45 mm boring centers.
Factory drawing shows use with a 165° or 170° hinge on the adjacent door.
Steel construction; limited lifetime manufacturer warranty.
Sold individually. Mounting plates and adjacent-door hinges are sold separately. Review the included application diagram and verify the door geometry before ordering.
A heavy-duty concealed hinge for a folding pie-corner cabinet door arrangement. Cam adjustment helps align the adjoining doors, with self-closing action and compatibility with 600 Series mounting plates.
Exact model: 725.0U22.05; 105° pie-corner hinge.
Screw-on installation without dowels; polished nickel finish.
Factory application drawing specifies a 35 mm cup bore, 11.2 mm bore depth and 45 mm boring centers.
Factory drawing shows use with a 165° or 170° hinge on the adjacent door.
Steel construction; limited lifetime manufacturer warranty.
Sold individually. Mounting plates and adjacent-door hinges are sold separately. Review the included application diagram and verify the door geometry before ordering.
