A sturdy concealed hinge for full-overlay cabinet doors, combining a heavy-duty closing spring with screw adjustment for door alignment. Choose the mounting method that matches your cabinet project.
Self-closing spring action; no integrated soft-close damper.
110° opening; full overlay with 0 mm crank.
35 mm hinge cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
68 mm hinge length; polished nickel steel.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Compatible with 600 Series mounting plates for suitable face-frame or frameless cabinets.
Limited lifetime manufacturer warranty.

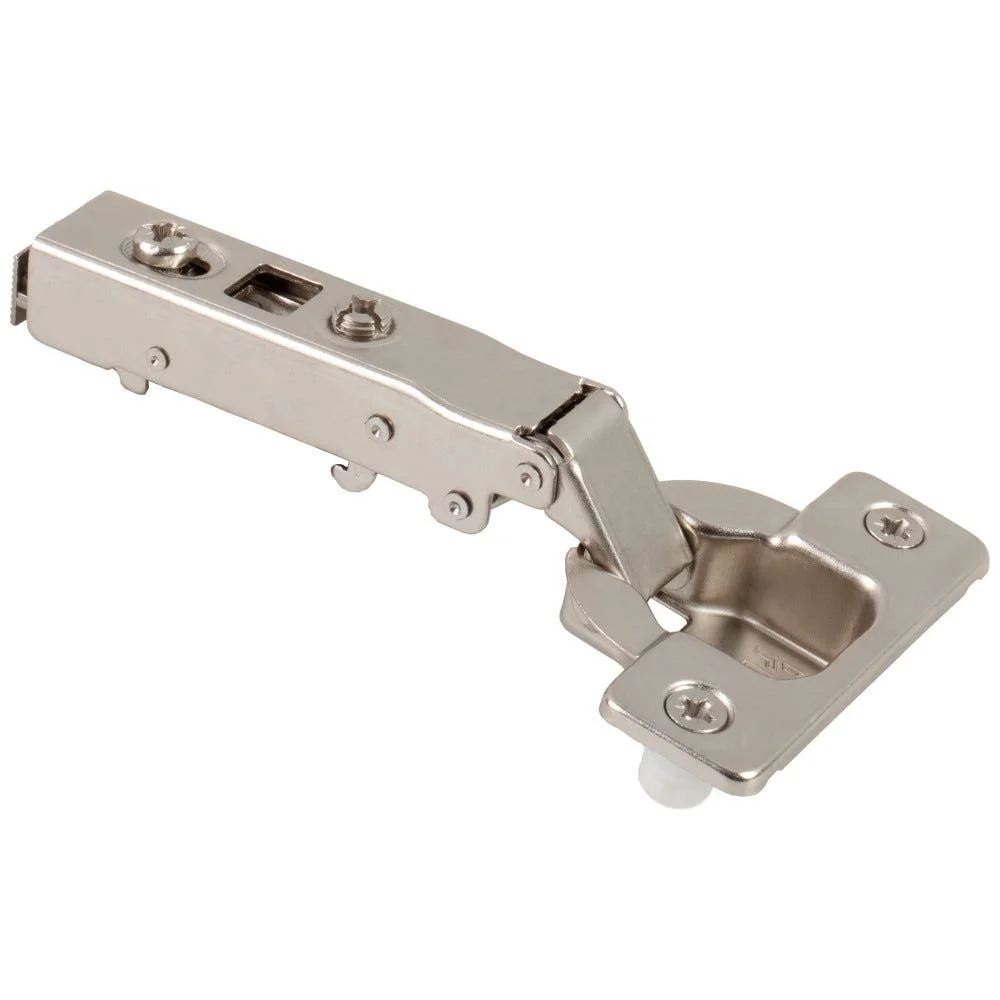

725.0171.25 — Press-in 8 mm dowels.

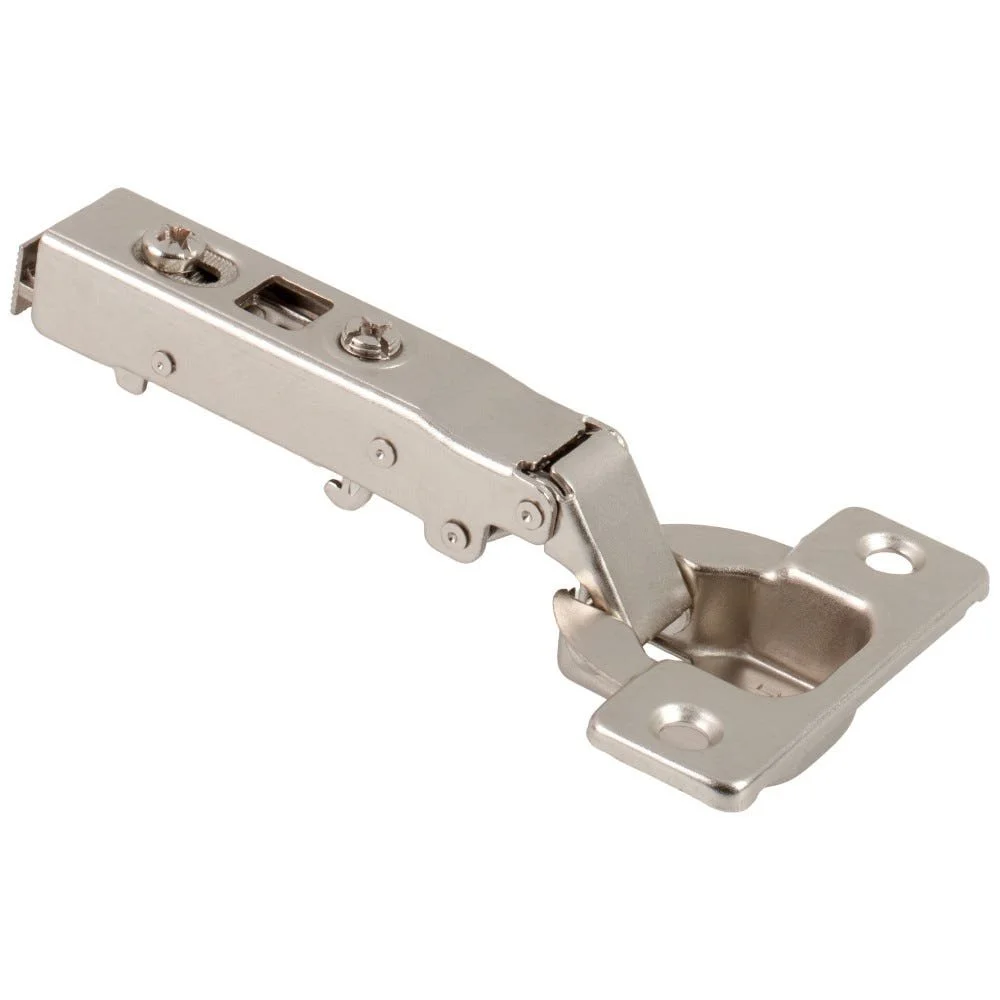

725.0534.25 — Screw-on — no dowels.
Sold individually. Mounting plates and optional installation components are sold separately. Confirm the plate and door boring before ordering.
