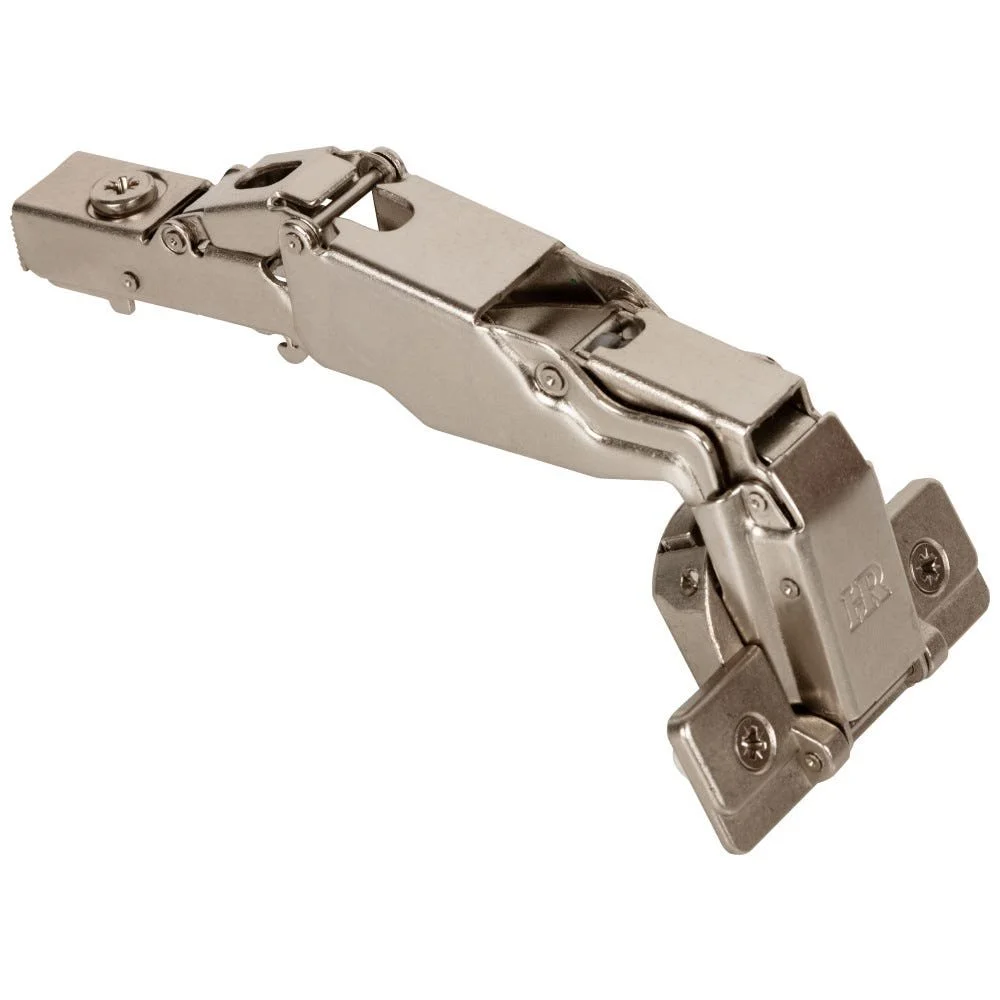

725 Series 165° Wide-Angle Self-Closing Cabinet Hinge

$10.58

Reach cabinet contents more comfortably with a 165° wide-opening concealed hinge. A heavy-duty closing spring and anti-sag linkage provide dependable door operation, with cam adjustment for accurate alignment.

Exact model 725.0M73.05; sold individually.
Self-closing action; full overlay with 0 mm crank.
35 mm hinge cup, 11.2 mm cup-bore depth and 45 mm mounting centers.
Press-in 8 mm dowels; 69 mm hinge length.
Overlay adjustment ±2 mm; depth adjustment +3 / −2 mm.
Polished nickel steel; compatible with 600 Series mounting plates.
Limited lifetime manufacturer warranty.

Mounting plates and other optional components are sold separately. Verify the correct plate, cabinet construction and door clearance before ordering.
