Built for doors that see frequent use, this commercial-grade European hinge combines a wider opening with a patented stacked linkage that helps reduce sag and side-to-side movement. Its dark nickel finish suits both commercial cabinetry and everyday residential installations.
125° opening, full overlay and a 0 mm crank.
Self-closing action with two-stop operation; steel construction.
Cam overlay adjustment +2/-2 mm and depth adjustment +3/-2 mm.
35 mm cup, 11.2 mm bore depth, 45 mm fixing centers and 68 mm length.
Compatible with 600 Series mounting plates, sold separately.
Choose press-in dowels, screw-on mounting or Lever-Top dowels for toolless installation and removal.
Sold individually. Confirm door preparation and mounting-plate height before ordering. Limited lifetime warranty; see document for terms.

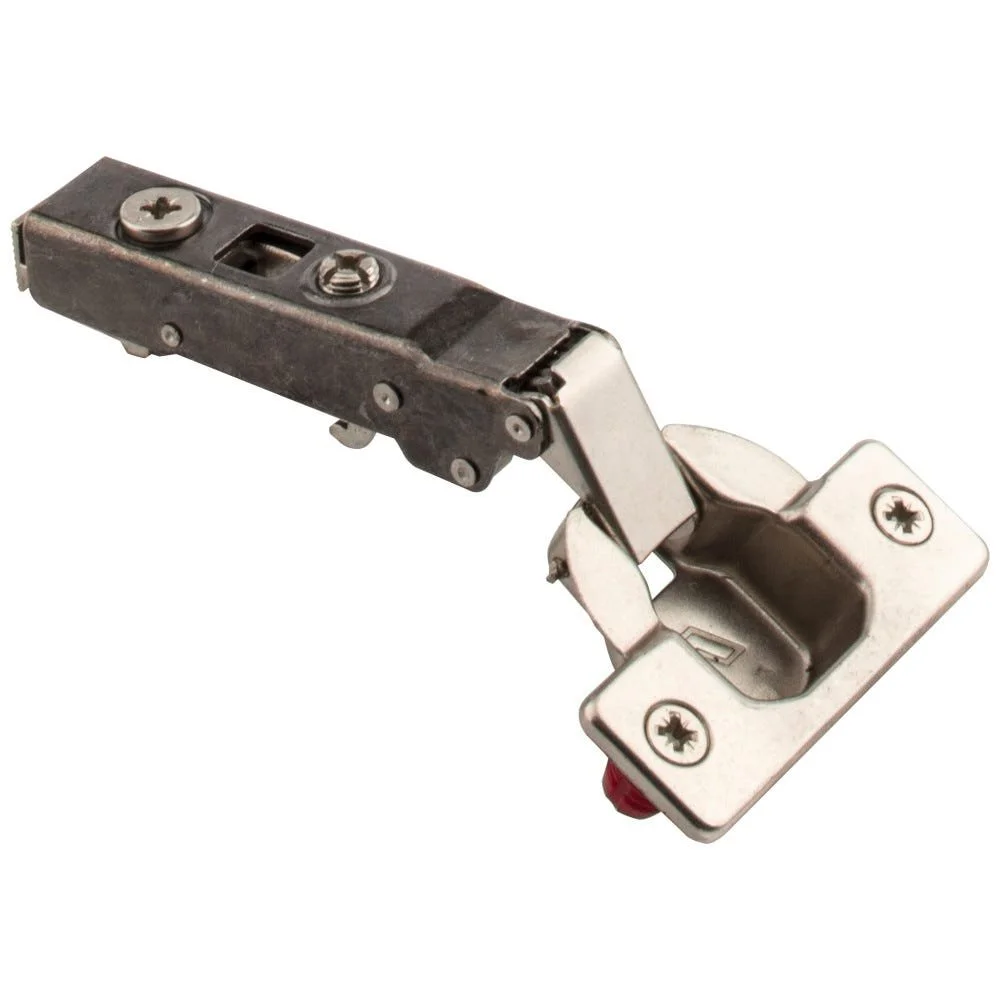

900.0U84.05 — Press-in 8 mm dowels; $7.09 each.

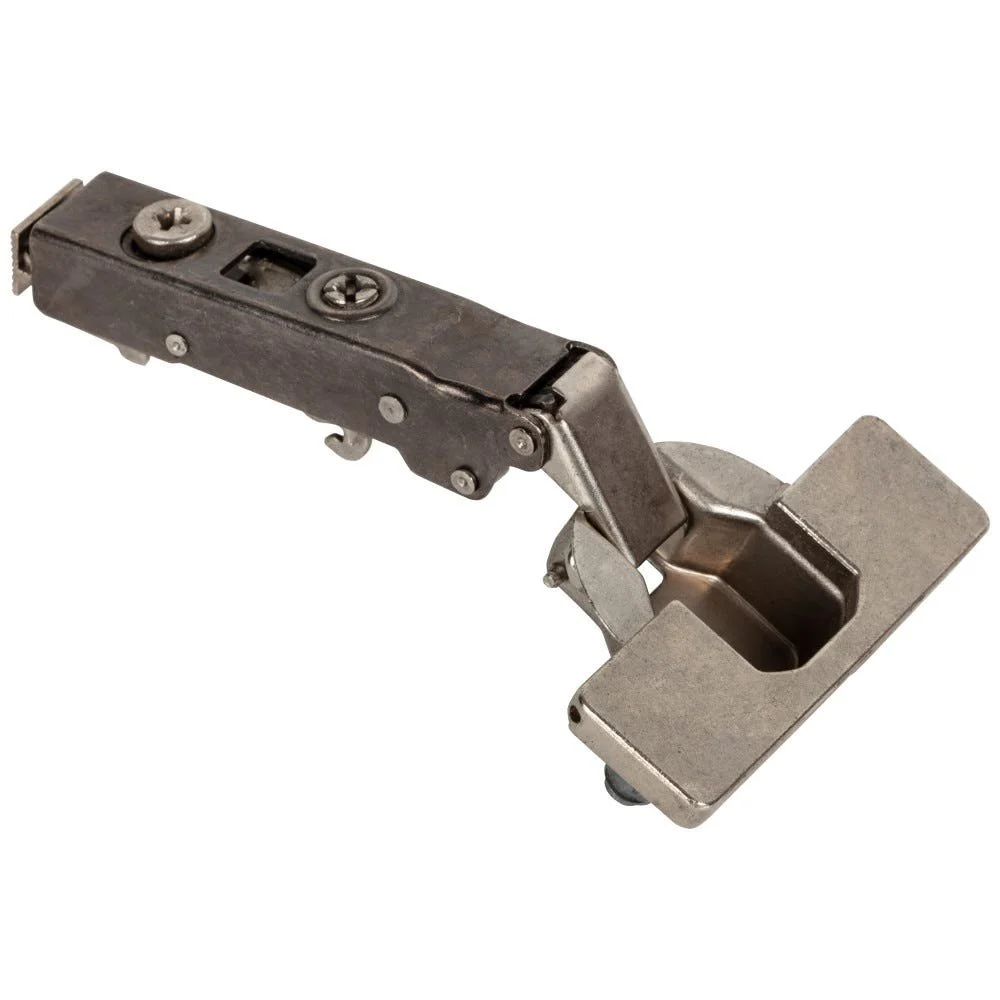

900.0U94.05 — Lever-Top Dowels; $8.46 each.

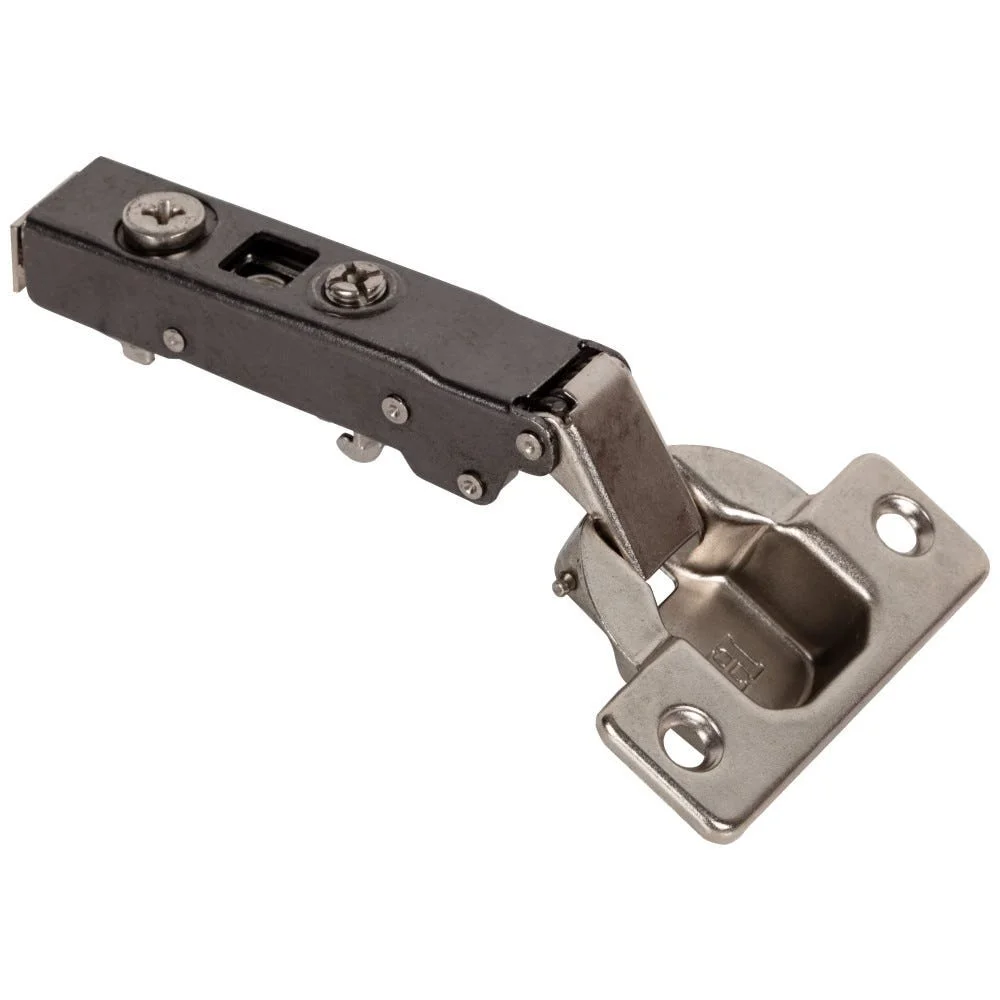

900.0U85.05 — Screw-on — no dowels; $6.30 each.
