Hinge Boring Machine Insertion Rams

Specialist insertion tooling for cabinet hinge boring machines. Select the exact ram model for the hinge series you use.

Specifications and compatibility

• LARM-110: insertion ram for 110-degree hinges.

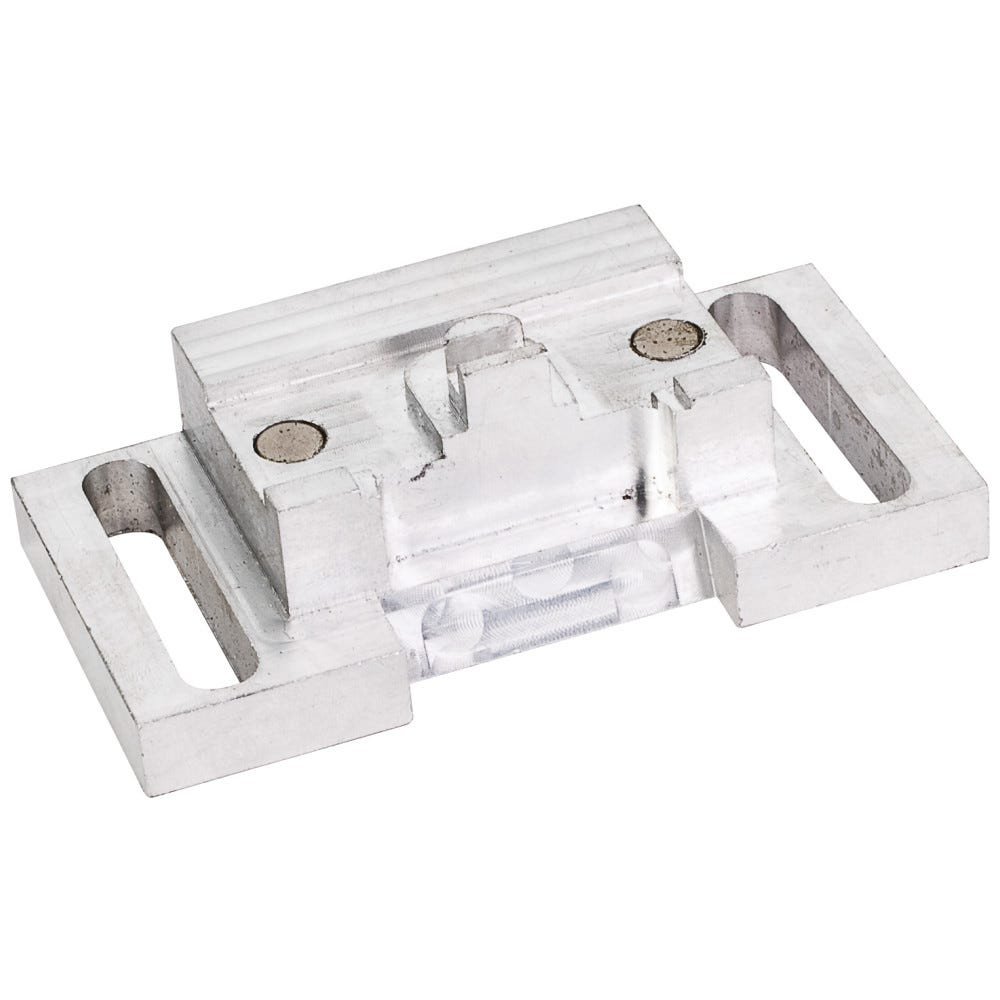

• RAM3386: for 3390 Series compact hinges; compatible only with machine model HRBORE220SP.

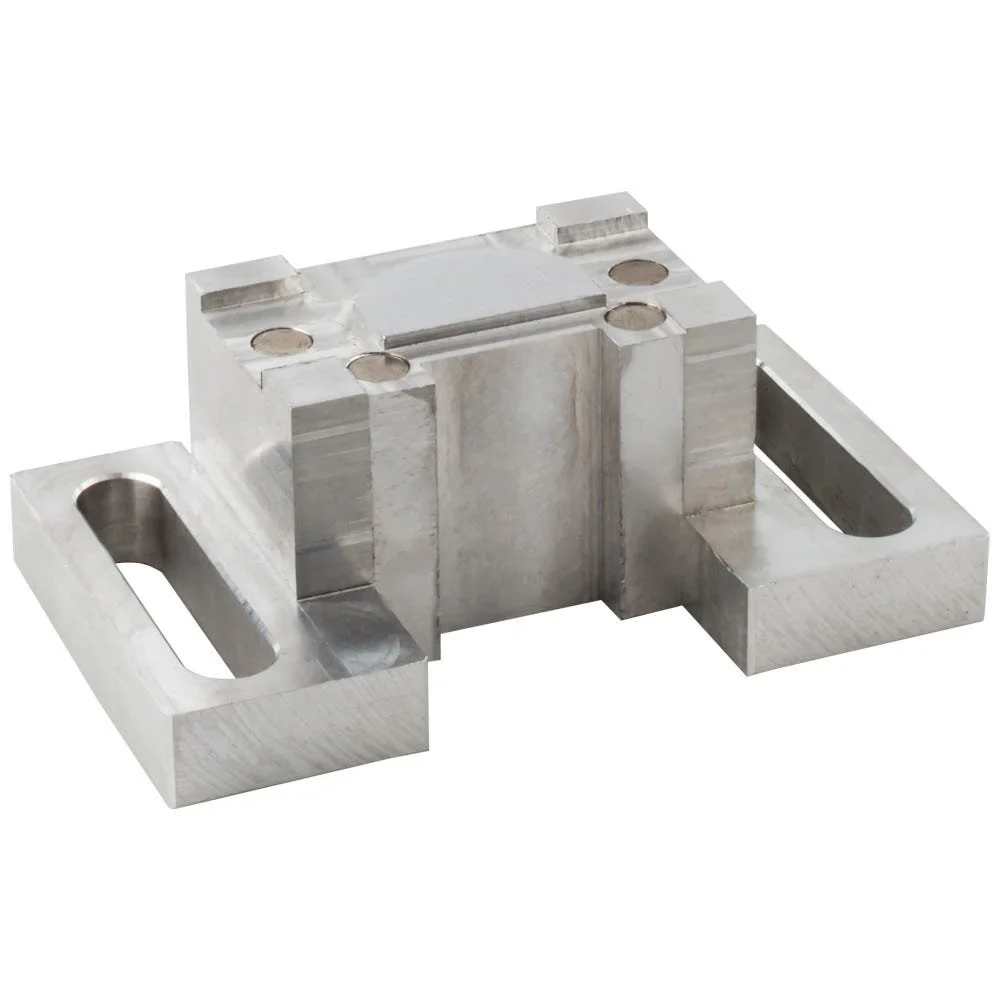

• LARM-5390: for 5390 and 4390 Series compact hinges.

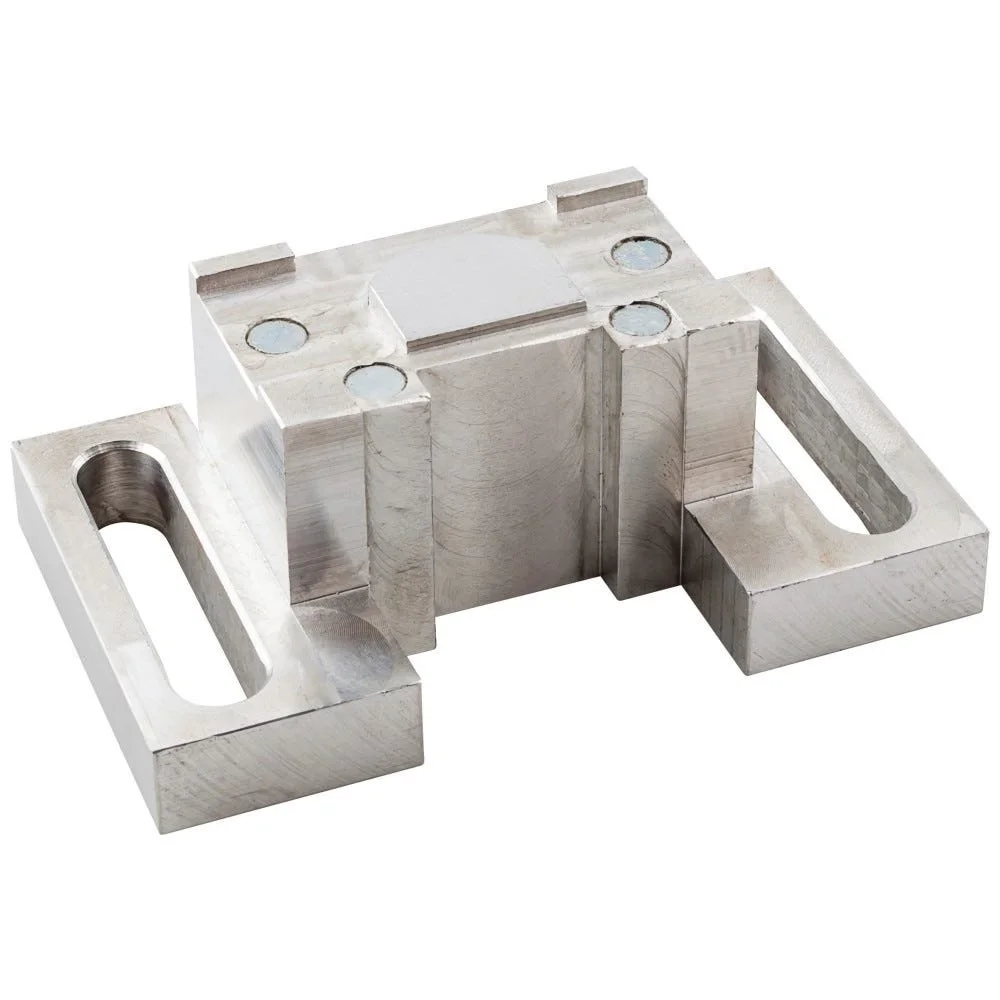

• LARM-7390: for 9390 and 8390 Series compact hinges.

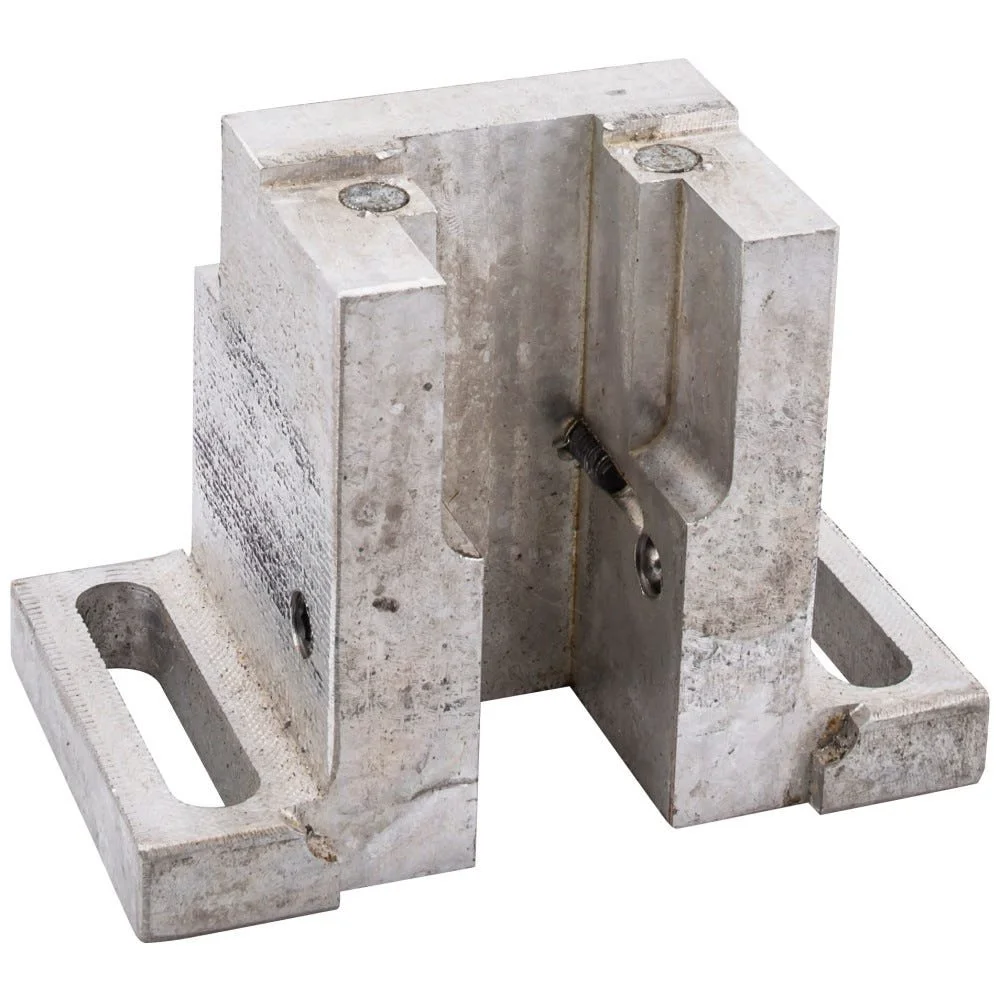

• LARM-165.SFT: for 165-degree hinges in the 700 and 900 Series.

• LARM-110, RAM3386, LARM-5390 and LARM-7390 use magnetic and ball-bearing catches to hold the hinge during insertion.

• Sold individually. The boring machine, bits and hinges are sold separately.

Models and pricing

• LARM-110 — 110° Hinge — LARM-110; $189.43 each.

• RAM3386 — 3390 Compact — RAM3386; $161.68 each.

• LARM-5390 — 5390 / 4390 Compact — LARM-5390; $216.59 each.

• LARM-7390 — 9390 / 8390 Compact — LARM-7390; $216.59 each.

• LARM-165.SFT — 165° 700 / 900 Series — LARM-165.SFT; $272.48 each.
