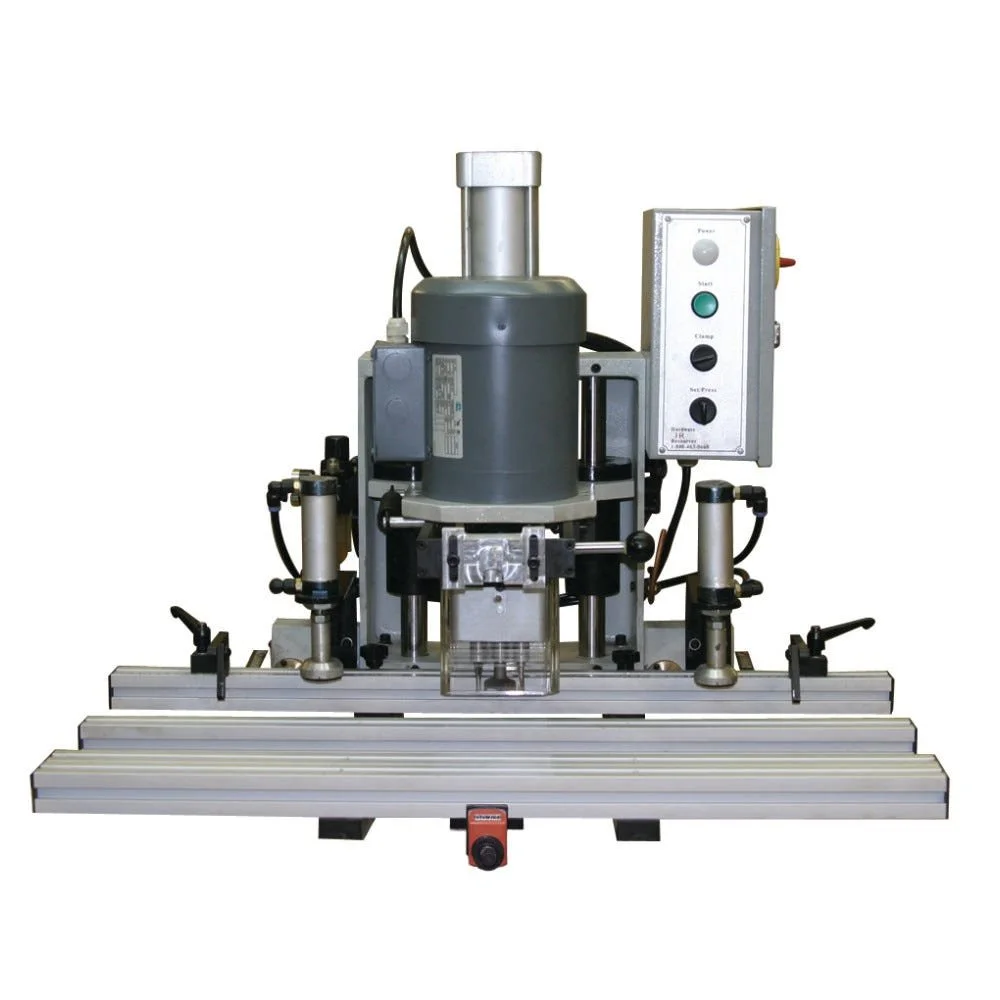

220V Single-Phase Cabinet Hinge Boring Machine

$7,783.09

A cabinet-shop hinge boring machine with single-handed operation, guided board positioning and adjustable movement for repeatable production work.

Specifications and compatibility

Exact model HRBORE220SP.
220V single-phase power; 1.5 HP motor rated at 3450 RPM.
Quick tab setting with a dial indicator and board placement guide.
Adjustable upward and downward movement speed.
Ships preassembled with bits and a long-arm European-hinge ram for 1750, 700, 725 and 500 Series hinges.
Factory guide specifies a compressed-air input of 100–120 psi and a regulated working setting of 90 psi (0.63 MPa).
Follow the included factory setup guide for power, air, clamp and boring-depth adjustments.
Additional insertion rams, replacement bits, hinges and cabinetry are sold separately.
