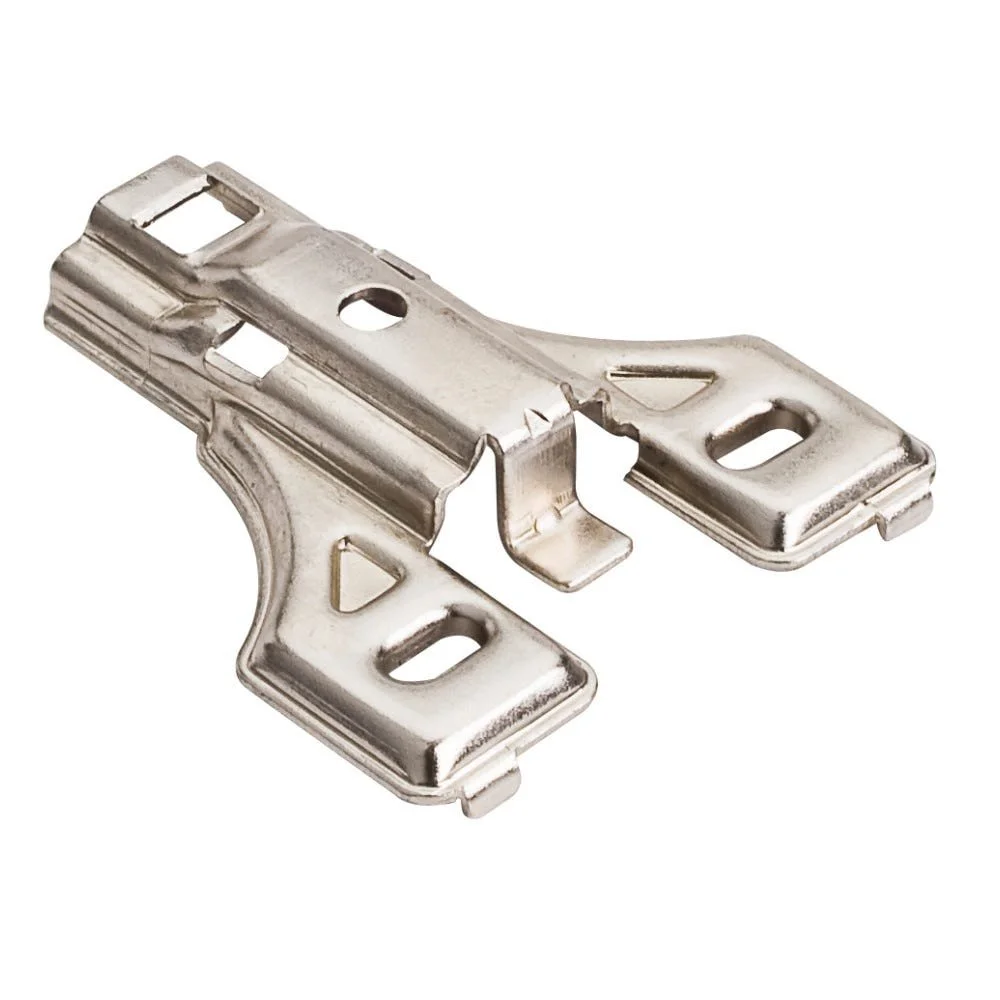

A compact, non-cam mounting plate for a compatible 500 Series European hinge on a face-frame cabinet. Choose this exact 3 mm steel plate when the hinge configuration calls for model 400.3457.75.
Standard-duty steel mounting plate; nominal plate height 3 mm.
Non-cam vertical adjustment of ±3.5 mm.
Face-frame design; consult the factory drawing for hole placement and overall profile.
Supplied without screws. Use #6 × 5/8-inch flat-head wood screws, sold separately.
For compatible 500 Series European hinges. Confirm the hinge and overlay requirements before ordering.
Sold individually. Hinges and cabinetry are sold separately.
$0.61 each.
