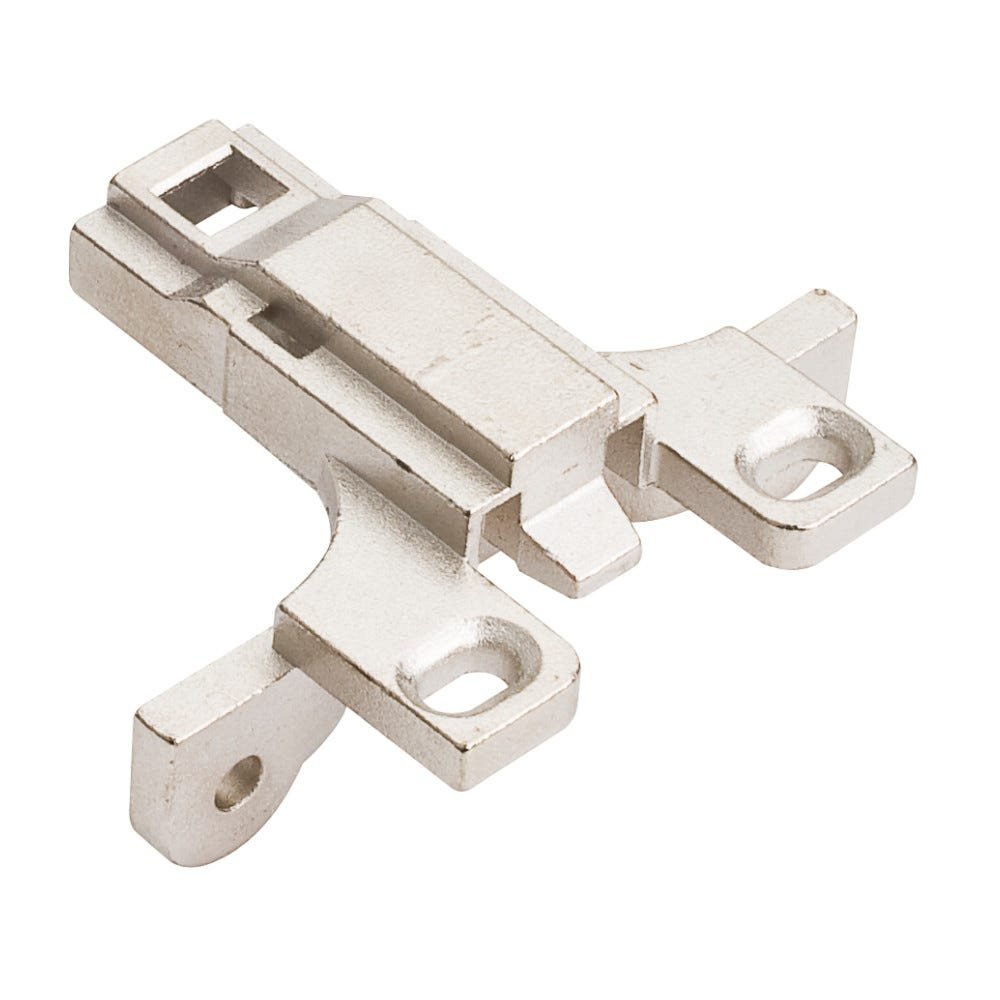

Use this wraparound mounting plate where the cabinet face frame calls for its specific mounting profile. Its heavy-duty zinc construction supports compatible 500 Series European hinges with screw-based height adjustment.
Exact model 400.3456.75.
3 mm nominal plate height; wraparound face-frame design.
Heavy-duty zinc with a polished nickel finish.
Non-cam vertical adjustment of ±3.5 mm.
Supplied without screws. Use the recommended #6 × 5/8-inch flat-head wood screws, sold separately.
Match the factory drawing to your frame, hinge and required overlay before installation.
Sold individually. Hinges and cabinetry are sold separately.
$2.41 each.
Use this wraparound mounting plate where the cabinet face frame calls for its specific mounting profile. Its heavy-duty zinc construction supports compatible 500 Series European hinges with screw-based height adjustment.
Exact model 400.3456.75.
3 mm nominal plate height; wraparound face-frame design.
Heavy-duty zinc with a polished nickel finish.
Non-cam vertical adjustment of ±3.5 mm.
Supplied without screws. Use the recommended #6 × 5/8-inch flat-head wood screws, sold separately.
Match the factory drawing to your frame, hinge and required overlay before installation.
Sold individually. Hinges and cabinetry are sold separately.
$2.41 each.
