400 Series Cam-Adjustable Mounting Plate for 125° European Hinges

Fine-tune hinge mounting height with a heavy-duty zinc plate specified for compatible 125° hinges in the 500 Series. Choose the nominal plate height required for your door overlay and cabinet preparation.

Fit and features

• Specified for compatible 125° 500 Series European hinges.
• Heavy-duty zinc construction with a polished nickel finish.
• Cam height adjustment of ±3.5 mm.
• Available in 0 mm and 3 mm nominal plate heights.
• Supplied without screws; #6 × 5/8-inch flat-head wood screws are recommended and sold separately.
• Confirm your exact hinge model, plate height and mounting preparation before ordering.
• Sold individually. Hinges and cabinetry are sold separately.

Models and options

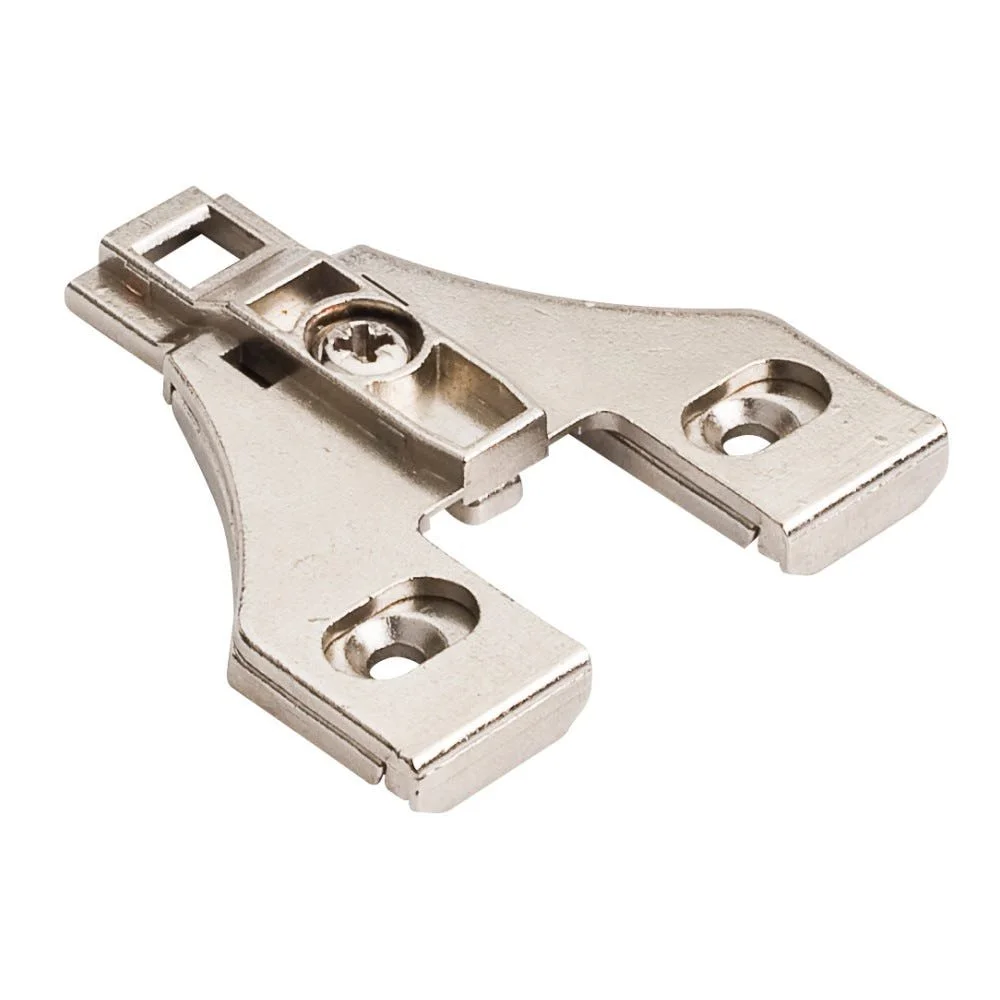

• 400.3723.75 — 0 mm nominal height; $1.71 each.

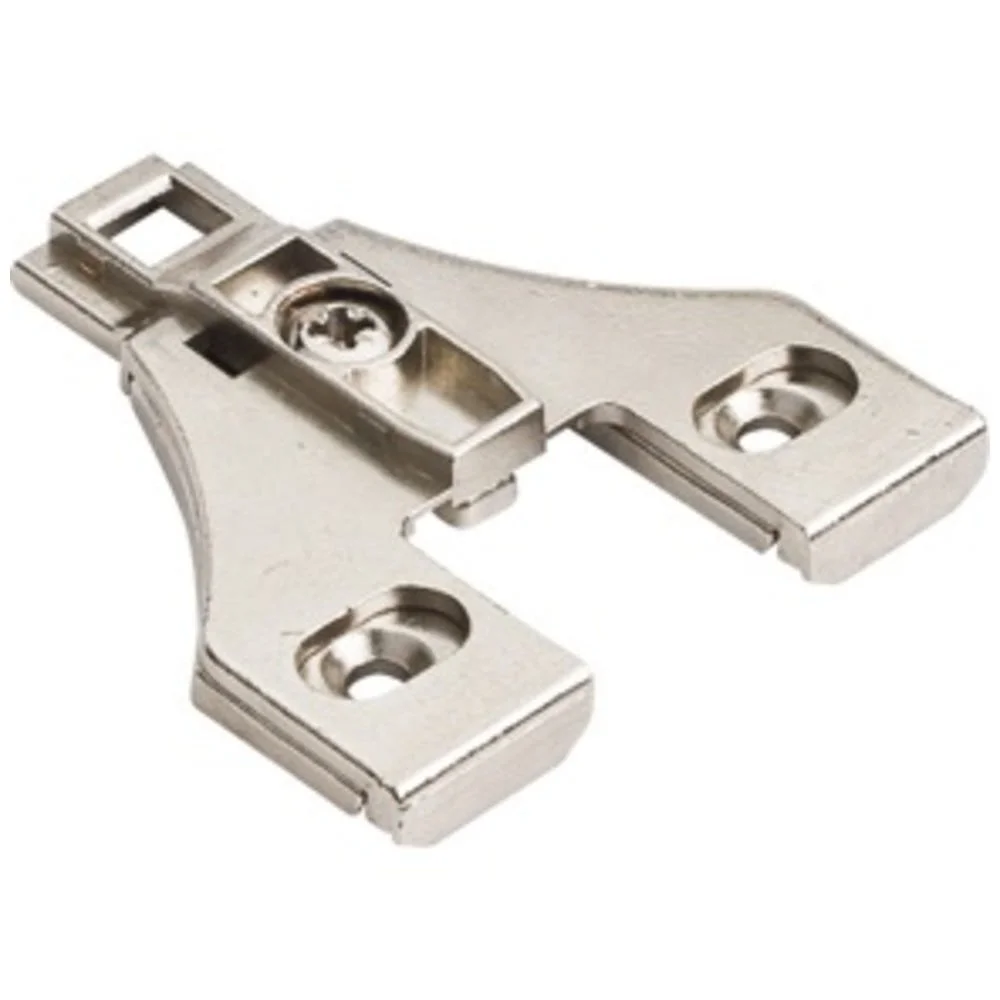

• 400.3724.75 — 3 mm nominal height; $1.78 each.

Product documents

Warranty (PDF)
