400 Series Face-Frame Mounting Plate for 125° European Hinges

Choose a face-frame plate specified for compatible 125° hinges in the 500 Series. These heavy-duty zinc plates provide screw-based vertical adjustment and a choice of nominal heights for your door-overlay calculation.

Fit and features

• Specified for compatible 125° 500 Series European hinges.

• Face-frame design with heavy-duty zinc construction and a polished nickel finish.

• Choose a nominal plate height of 0 mm, 3 mm or 6 mm.

• Non-cam height adjustment of ±3.5 mm.

• Supplied without screws. The recommended #6 × 5/8-inch flat-head wood screws are sold separately.

• Confirm the exact hinge model, frame preparation and overlay before ordering. Available drawings cover the 3 mm and 6 mm plates.

• Sold individually. Hinges and cabinetry are sold separately.

Models and options

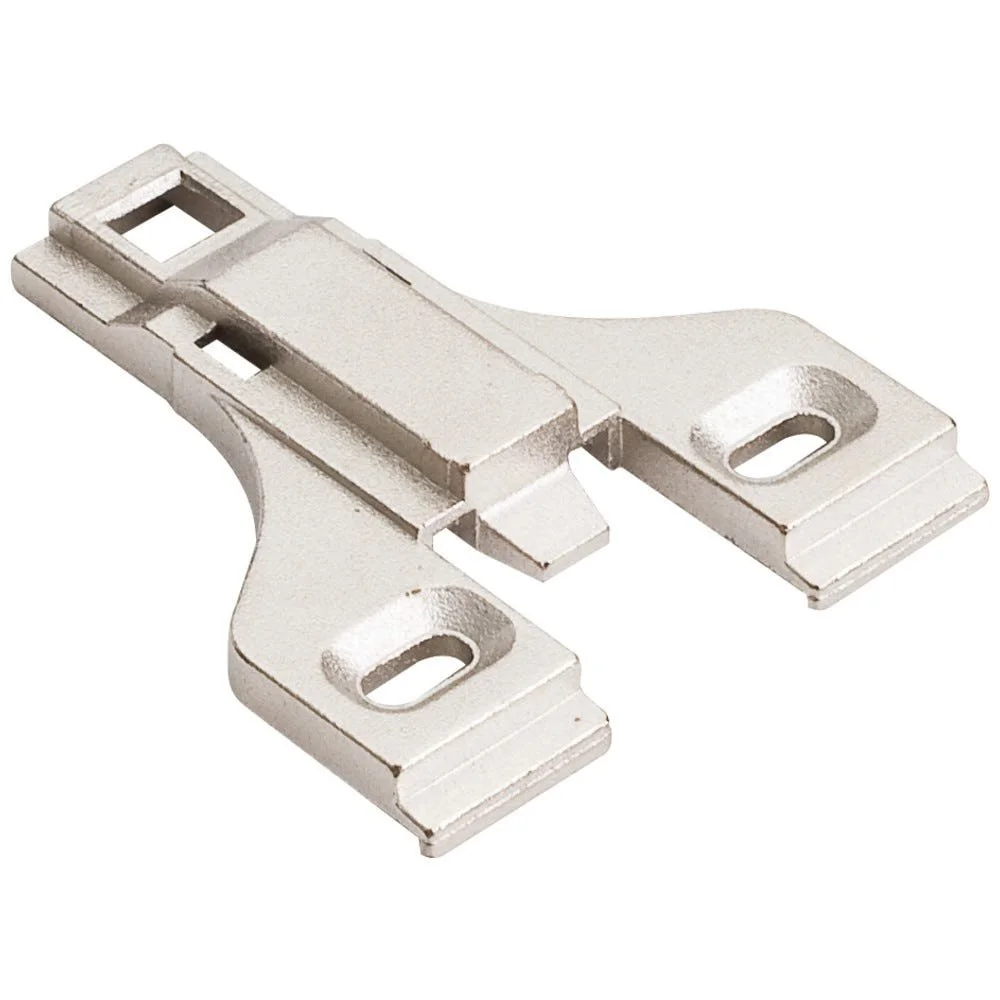

• 400.3713.75 — 0 mm nominal height; $1.10 each.

• 400.3714.75 — 3 mm nominal height; $1.46 each.

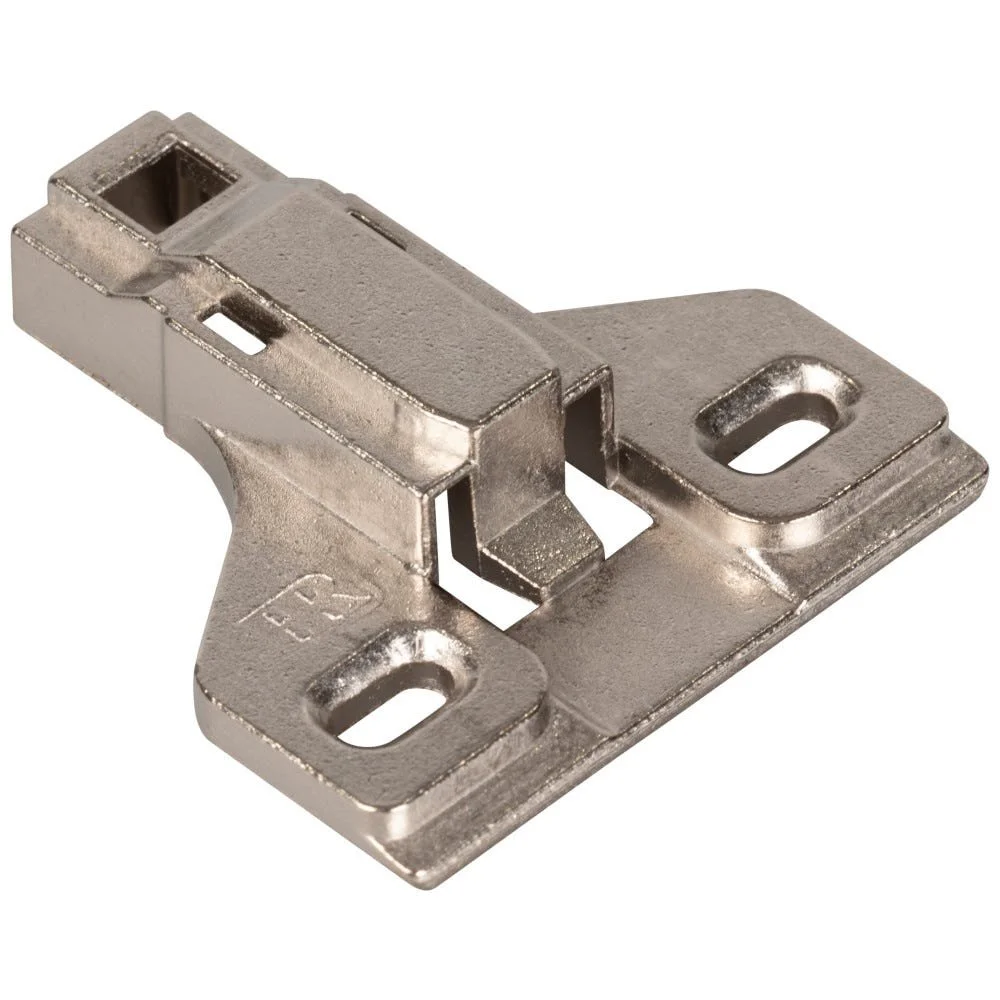

• 400.3715.75 — 6 mm nominal height; $1.49 each.

Product documents

Warranty (PDF)

• 3 mm face-frame plate drawing (PDF)

• 6 mm face-frame plate drawing (PDF)
