400 Series Heavy-Duty Cam-Adjustable Zinc Hinge Mounting Plate

Fine-tune cabinet-door alignment with a sturdy zinc mounting plate designed for compatible 500 Series European hinges. Choose the plate height required by your hinge and overlay calculation, then select preassembled Euro screws or a plate without screws.

Fit and features

• For compatible 500 Series European hinges in frameless cabinetry.

• Heavy-duty die-cast zinc construction with a polished nickel finish.

• Cam height adjustment of ±2 mm.

• Choose a nominal plate height of 0 mm or 3 mm. Plate height affects door overlay; match it to the hinge installation drawing.

• Euro-screw models include preassembled 6.3 × 15 mm Euro system screws. Models without screws recommend #6 × 5/8-inch flat-head wood screws, sold separately.

• Sold individually. Hinges, cabinetry and separately specified fasteners are not included.

Models and options

• 400.0R23.75 — 0 mm plate height, without screws; $1.67 each.

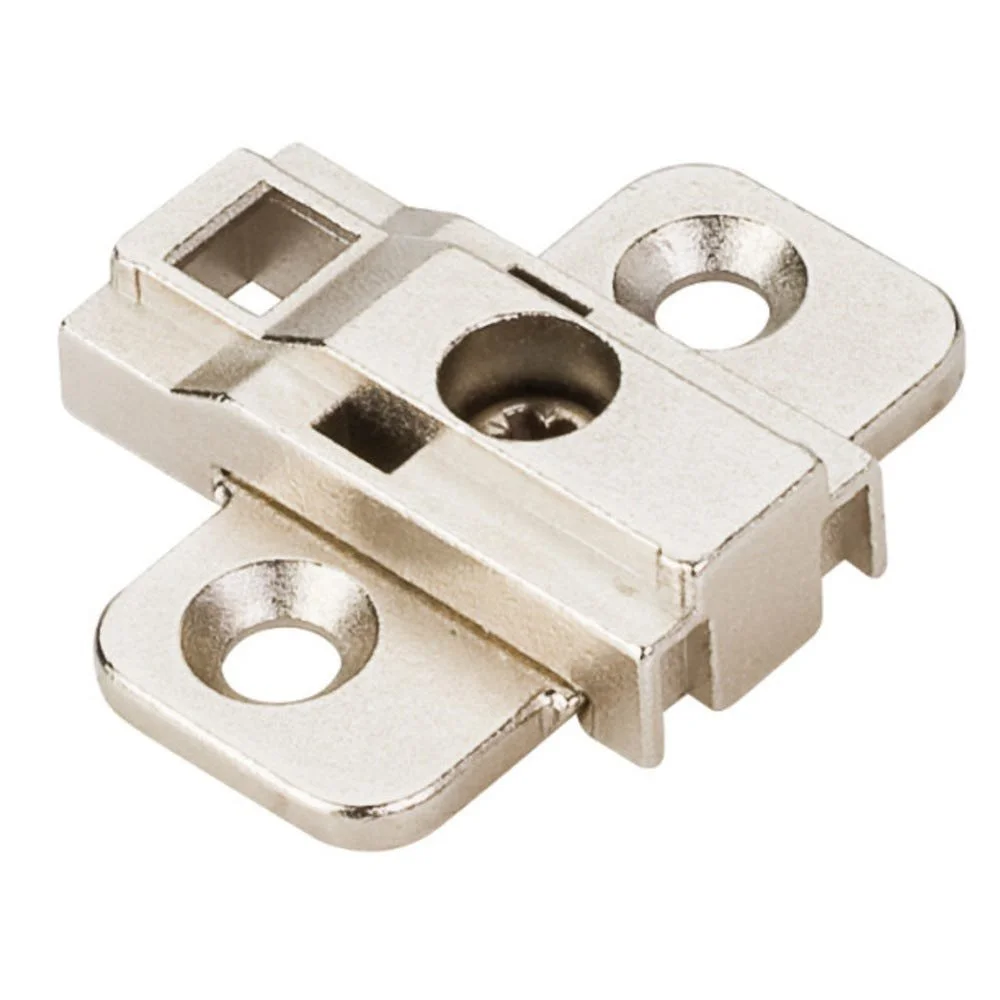

• 400.0R25.75 — 3 mm plate height, without screws; $1.75 each.

• 400.0P72.75 — 0 mm plate height, euro screws included; $1.94 each.

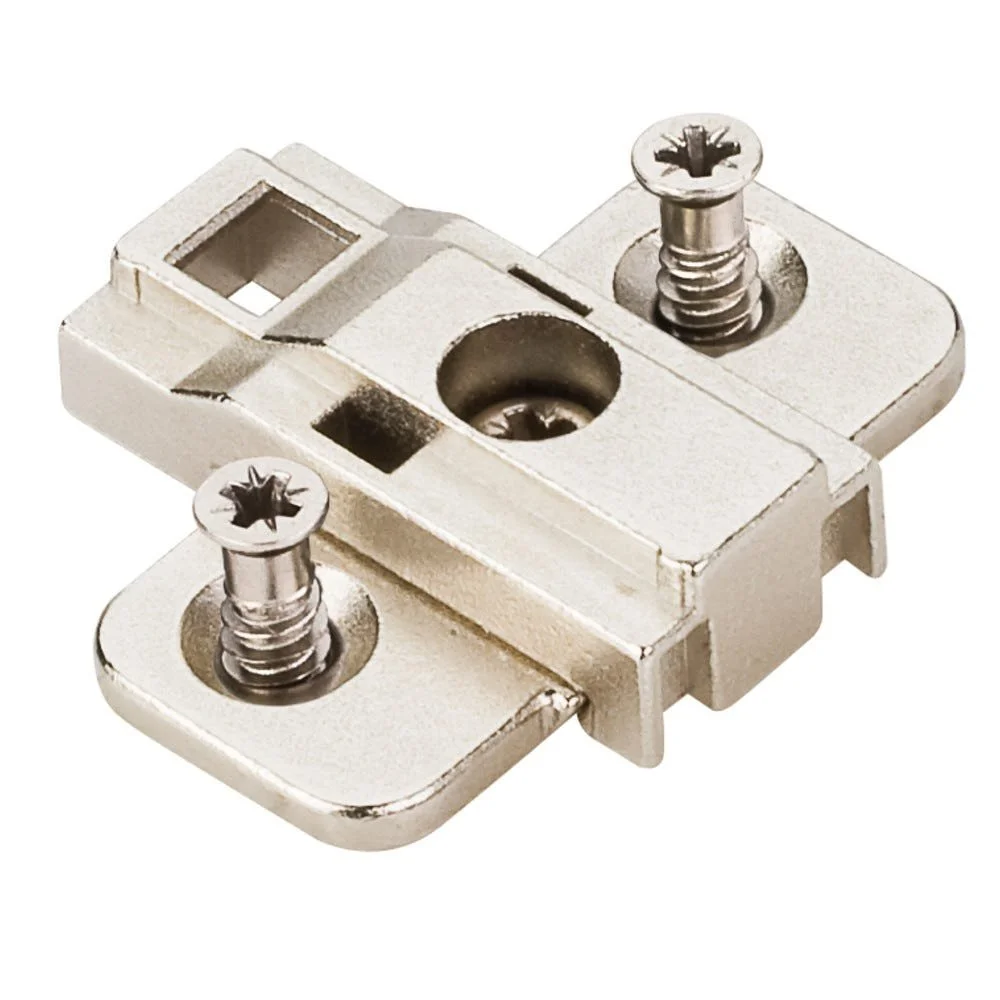

• 400.0P74.75 — 3 mm plate height, euro screws included; $1.96 each.

Product documents

Warranty (PDF)

Factory specifications and dimensions (PDF)
