400 Series Standard-Duty Non-Cam Steel Hinge Mounting Plate

Fit compatible 500 Series European hinges with a straightforward steel mounting plate and screw-based vertical adjustment. Choose the nominal plate height and fastening style that match your cabinet preparation.

Fit and features

• Standard-duty steel plate for compatible 500 Series European hinges.

• Polished nickel finish specified in the product details.

• Non-cam vertical adjustment of ±3 mm.

• Choose 0 mm or 3 mm nominal plate height to suit the required door overlay.

• Euro-screw versions include preassembled 6.3 × 15 mm screws. The 400.2118.75 version includes wood screws and 5 mm expansion dowels.

• Models without screws recommend #6 × 5/8-inch flat-head wood screws, sold separately.

• Euro-screw and no-screw plates measure approximately 52 × 40 mm; the dowel version measures 53 × 41 mm. Mounting centers are 32 mm; consult the matching factory drawing before drilling.

• Sold individually. Hinges and cabinetry are sold separately.

Models and options

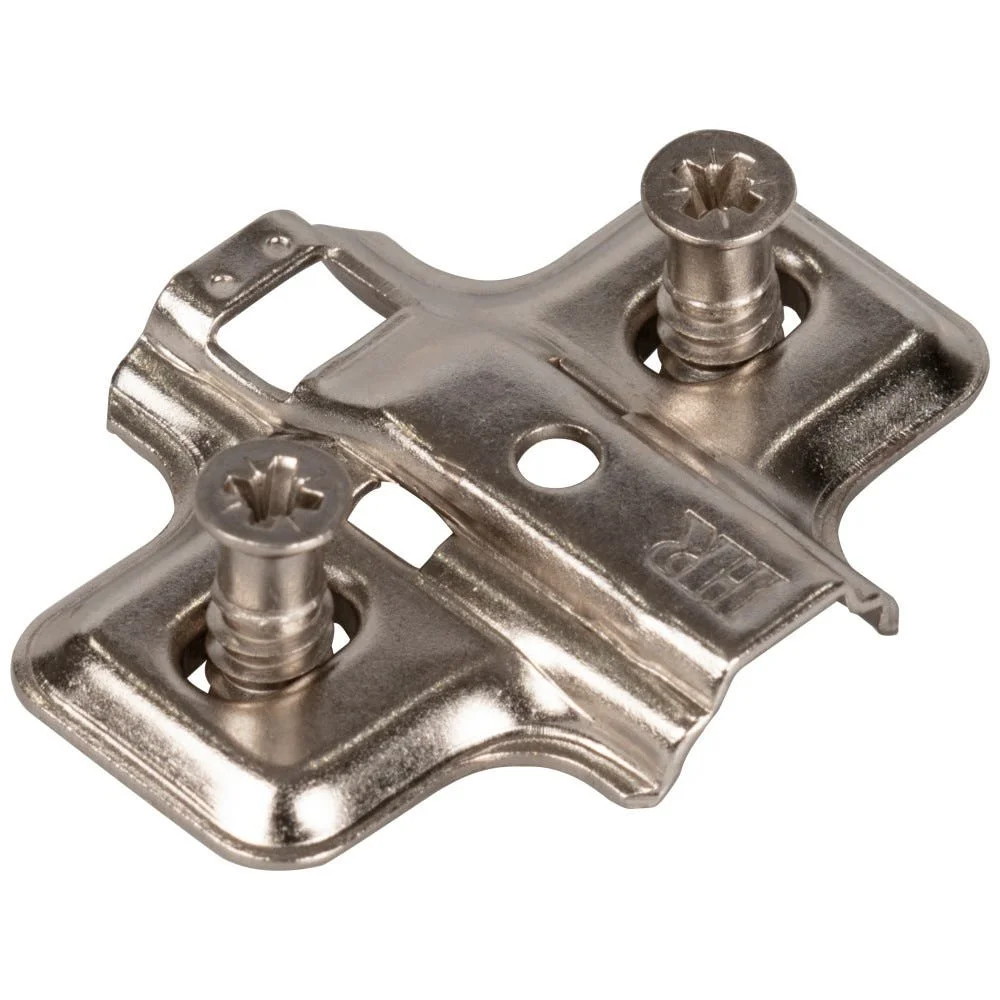

• 400.0118.75 — 0 mm plate height, euro screws included; $0.72 each.

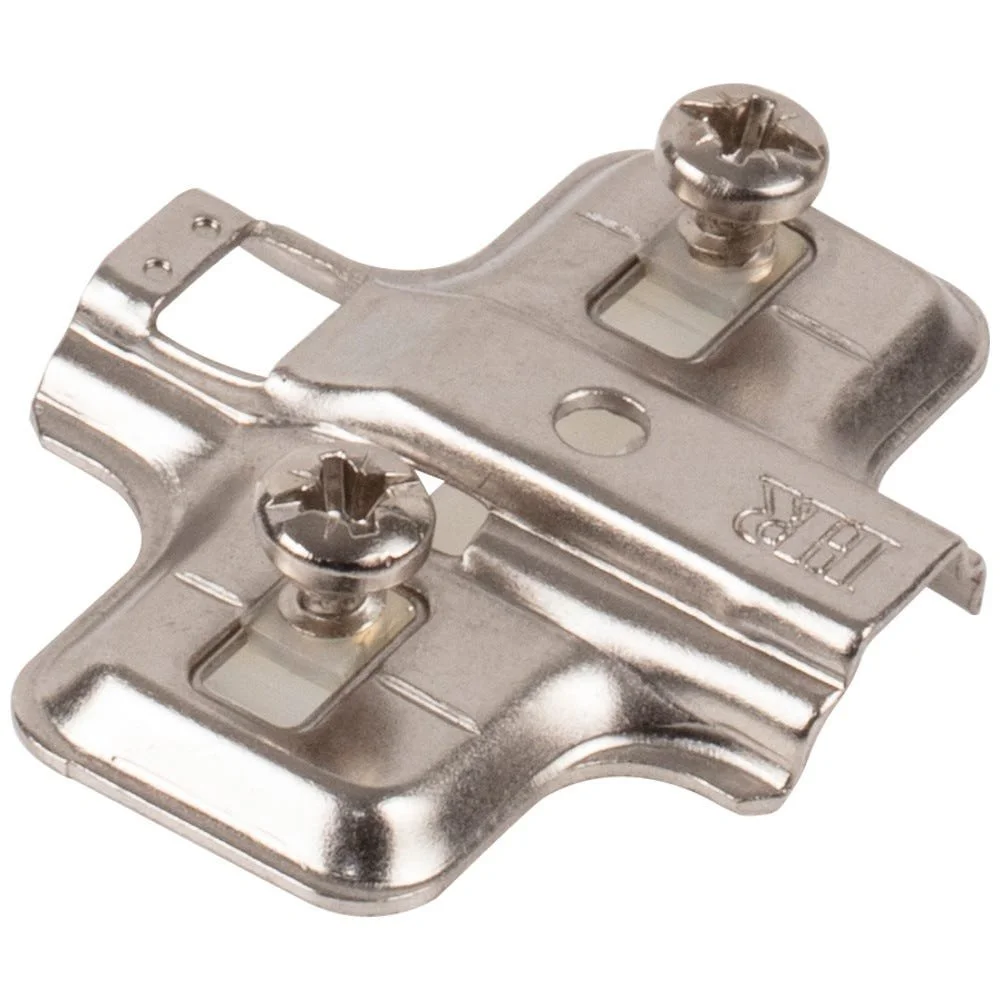

• 400.2118.75 — 0 mm plate height, wood screws + 5 mm dowels; $0.72 each.

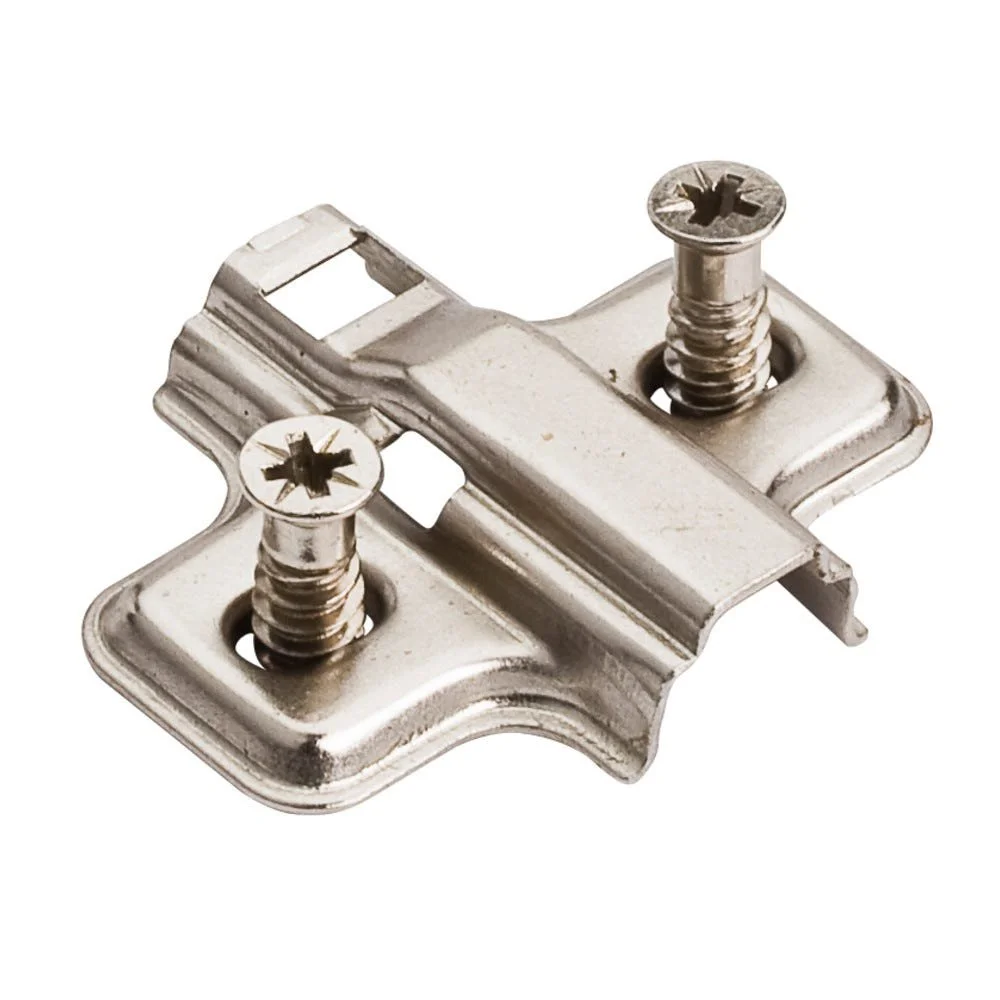

• 400.0119.75 — 3 mm plate height, euro screws included; $0.72 each.

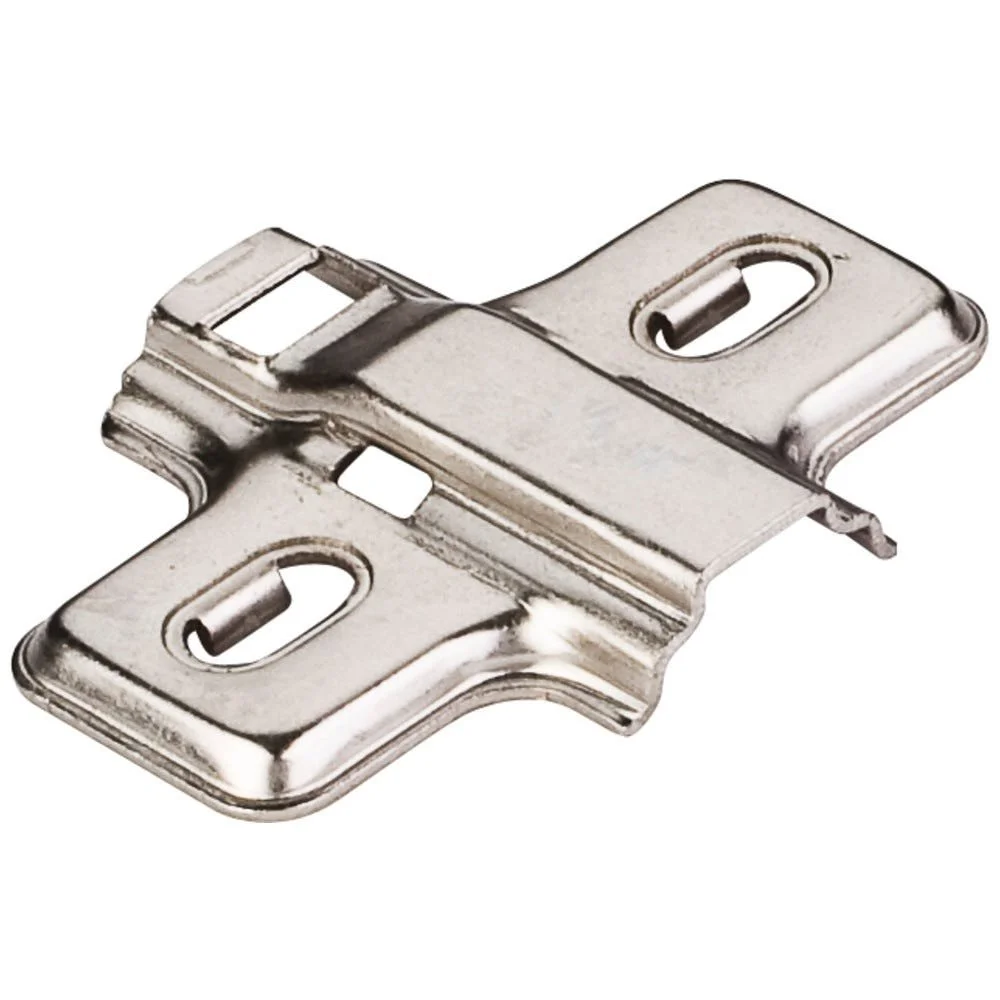

• 400.1233.75 — 0 mm plate height, without screws; $0.61 each.

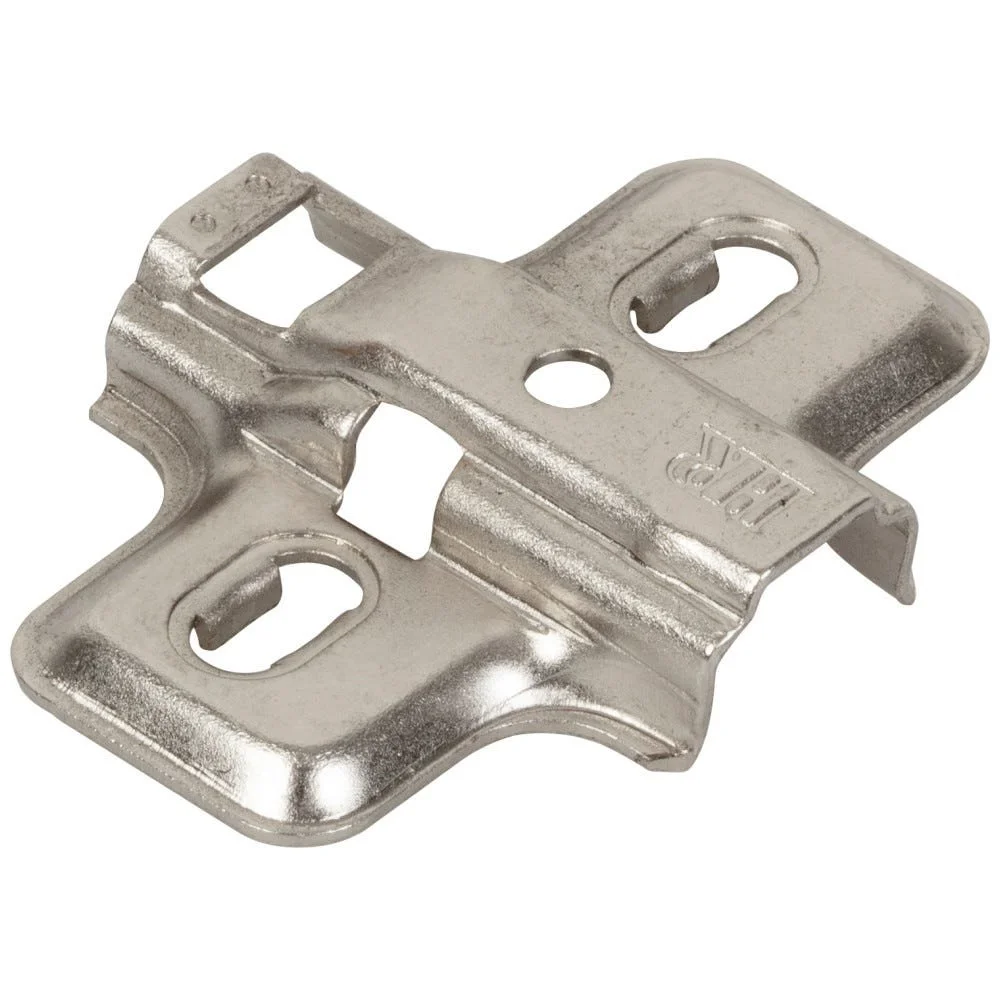

• 400.1234.75 — 3 mm plate height, without screws; $0.61 each.

Product documents

Warranty (PDF)

• 400.0118.75 / 400.0119.75 — Euro screws (PDF)

• 400.2118.75 — Wood screws and dowels (PDF)

• 400.1233.75 / 400.1234.75 — Without screws (PDF)
