Fine-tune a face-frame European hinge installation with a heavy-duty cam-adjustable mounting plate. Three nominal plate heights help you match the correct hinge and overlay configuration.
For compatible 700, 725, 900 and 1750 Series European hinges.
Heavy-duty zinc construction with a polished nickel finish, as specified in the factory engineering drawing.
Cam-adjustable vertical travel of ±3.5 mm.
64.4 × 60 mm overall footprint with 32 mm mounting-hole spacing.
Choose 0, 3 or 6 mm nominal plate height. Maximum overall heights are 7.1, 10.1 and 13.1 mm, respectively.
Supplied without screws. Use #6 × 5/8-inch flat-head wood screws, sold separately.
Sold individually. Hinges and cabinetry are sold separately. Confirm the required hinge/plate combination and hole placement before ordering.

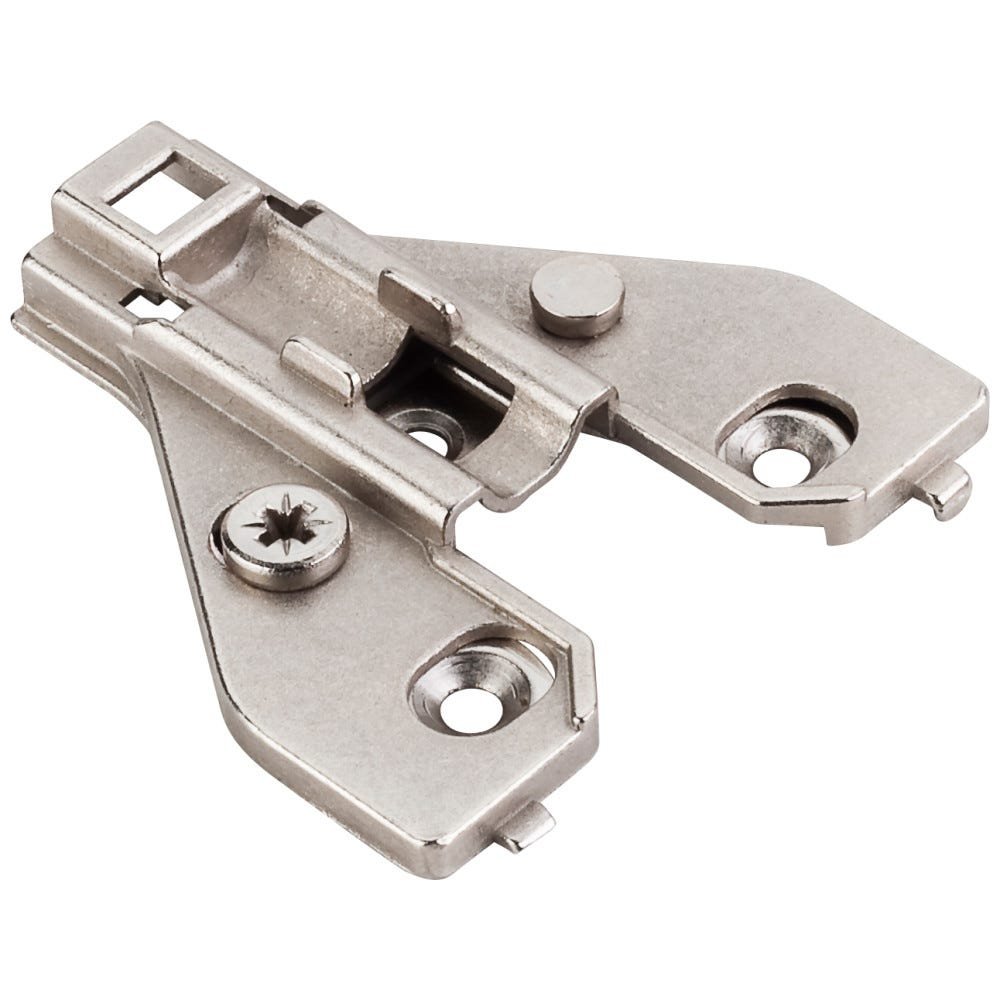

600.3553.65 — 0 mm; $1.87 each.
600.3554.65 — 3 mm; $1.91 each.

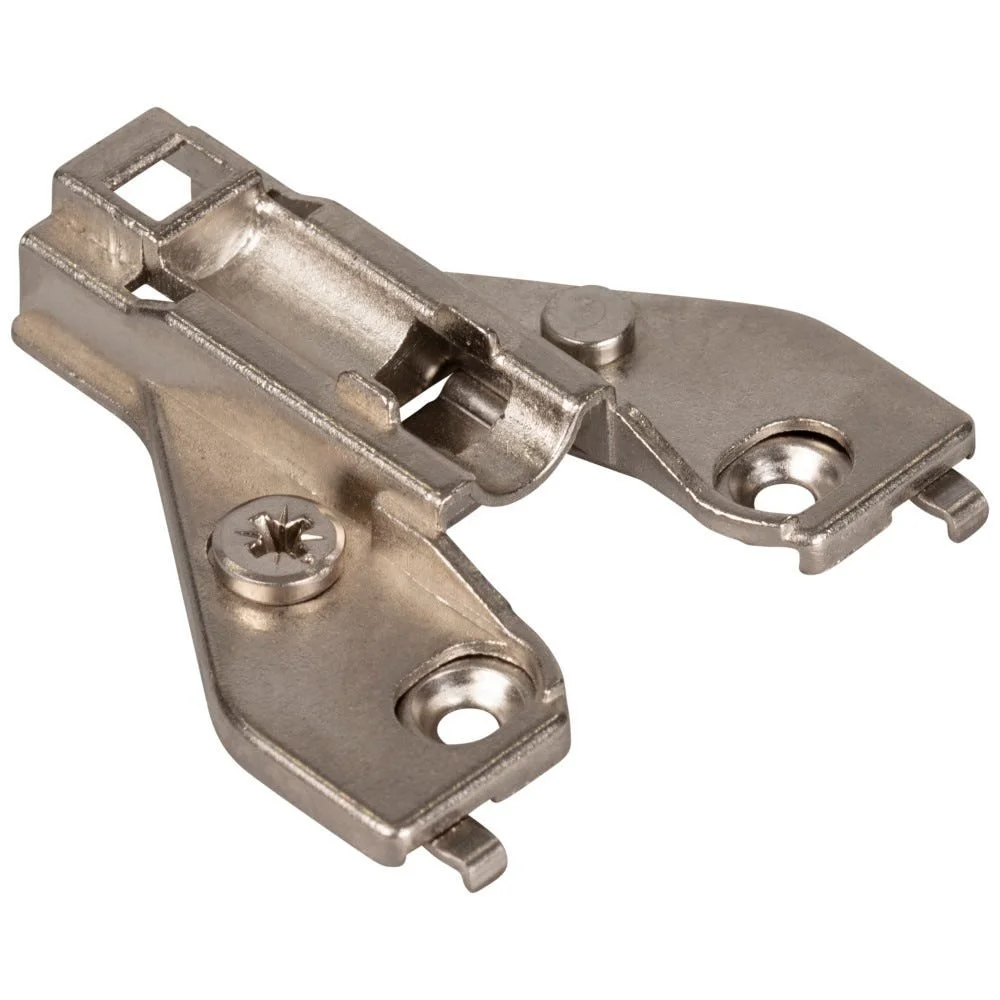

600.3555.65 — 6 mm; $2.38 each.
0, 3 and 6 mm cam-adjustable face-frame plate dimensions (PDF)
Fine-tune a face-frame European hinge installation with a heavy-duty cam-adjustable mounting plate. Three nominal plate heights help you match the correct hinge and overlay configuration.
For compatible 700, 725, 900 and 1750 Series European hinges.
Heavy-duty zinc construction with a polished nickel finish, as specified in the factory engineering drawing.
Cam-adjustable vertical travel of ±3.5 mm.
64.4 × 60 mm overall footprint with 32 mm mounting-hole spacing.
Choose 0, 3 or 6 mm nominal plate height. Maximum overall heights are 7.1, 10.1 and 13.1 mm, respectively.
Supplied without screws. Use #6 × 5/8-inch flat-head wood screws, sold separately.
Sold individually. Hinges and cabinetry are sold separately. Confirm the required hinge/plate combination and hole placement before ordering.
600.3553.65 — 0 mm; $1.87 each.
600.3554.65 — 3 mm; $1.91 each.
600.3555.65 — 6 mm; $2.38 each.
0, 3 and 6 mm cam-adjustable face-frame plate dimensions (PDF)
