Choose the specialty face-frame mounting configuration your European hinge installation requires. These two heavy-duty zinc plates have distinct profiles and adjustment mechanisms, clearly identified in the model selector and factory drawings.
For compatible 700, 725, 900 and 1750 Series European hinges.
Heavy-duty zinc construction with a polished nickel finish.
600.3459.65: 3 mm nominal-height wraparound plate with non-cam vertical adjustment of ±3.5 mm.

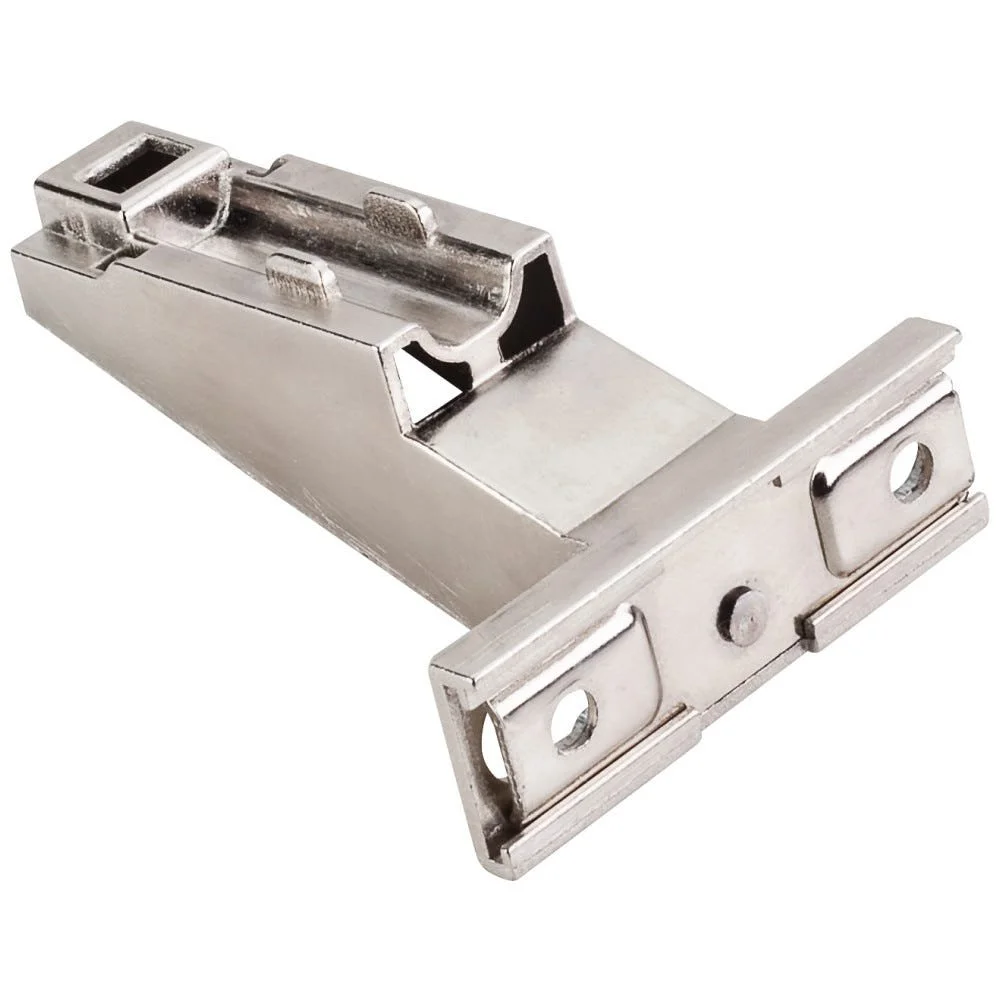

600.3458.65: 9 mm nominal-height face-frame plate with cam adjustment, as identified in the factory engineering drawing.
Supplied without screws; #6 × 5/8-inch flat-head wood screws are recommended and sold separately.
Plate heights are nominal mounting dimensions. Compare the model-specific drawings for the overall profile, hole placement and required cabinet fit.
Sold individually. Hinges and cabinetry are sold separately.
600.3459.65 — 3 mm — Wraparound Non-Cam; $2.99 each.
600.3458.65 — 9 mm — Cam Adjustable; $2.99 each.
