600 Series Standard-Duty Cam-Adjustable Steel Hinge Mounting Plate

Fine-tune the door height with convenient cam adjustment. These standard-duty steel mounting plates pair with compatible 700, 725, 900 and 1750 Series European hinges and offer four clearly labeled height-and-fastener choices.

Fit and features

• Steel construction with a polished nickel finish.

• Cam-adjustable vertical travel of ±2 mm.

• Choose 0 mm or 2 mm nominal plate height.

• Euro-screw versions include preassembled 6.3 × 15 mm Euro system screws.

• Versions without screws require #6 × 5/8-inch flat-head wood screws, sold separately.

• Confirm hinge compatibility, overlay requirements and hole placement using the factory drawings.

• Sold individually. Hinges and cabinetry are sold separately.

Models and options

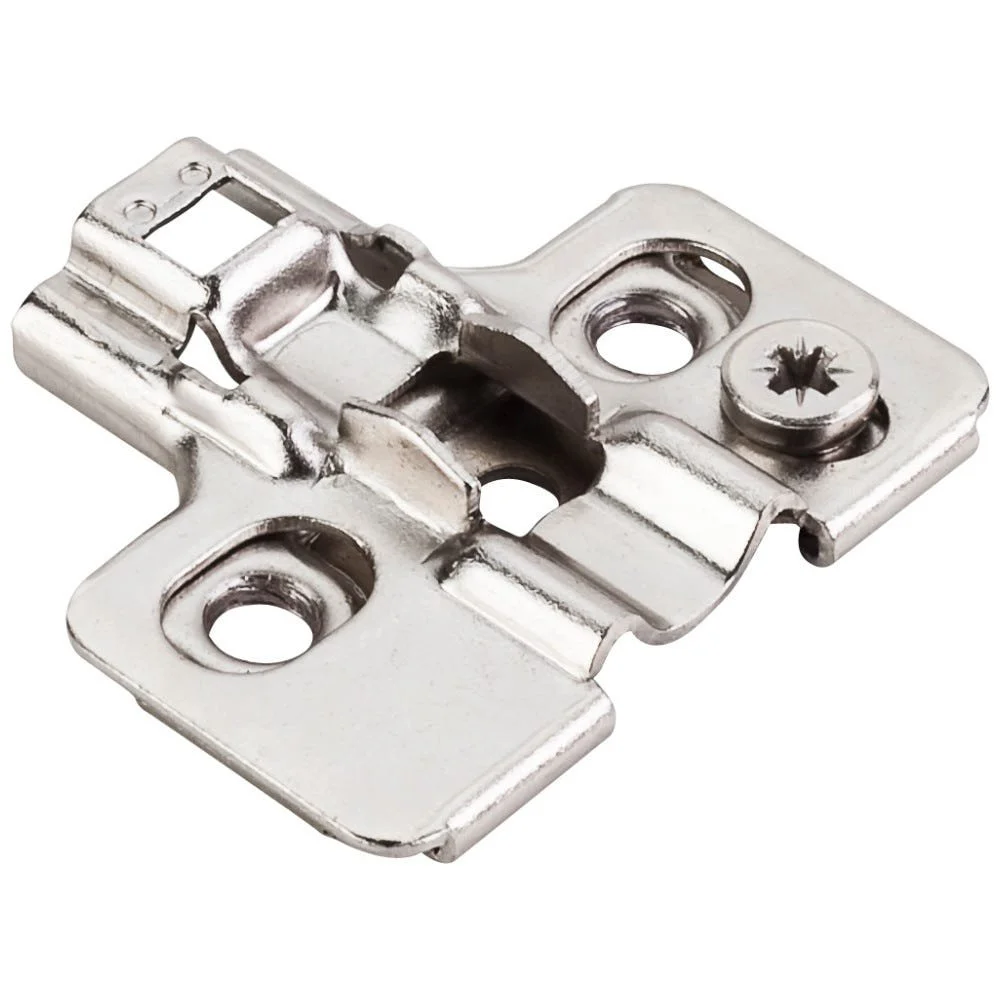

• 600.0R22.05 — 0 mm — Without Screws; $1.08 each.

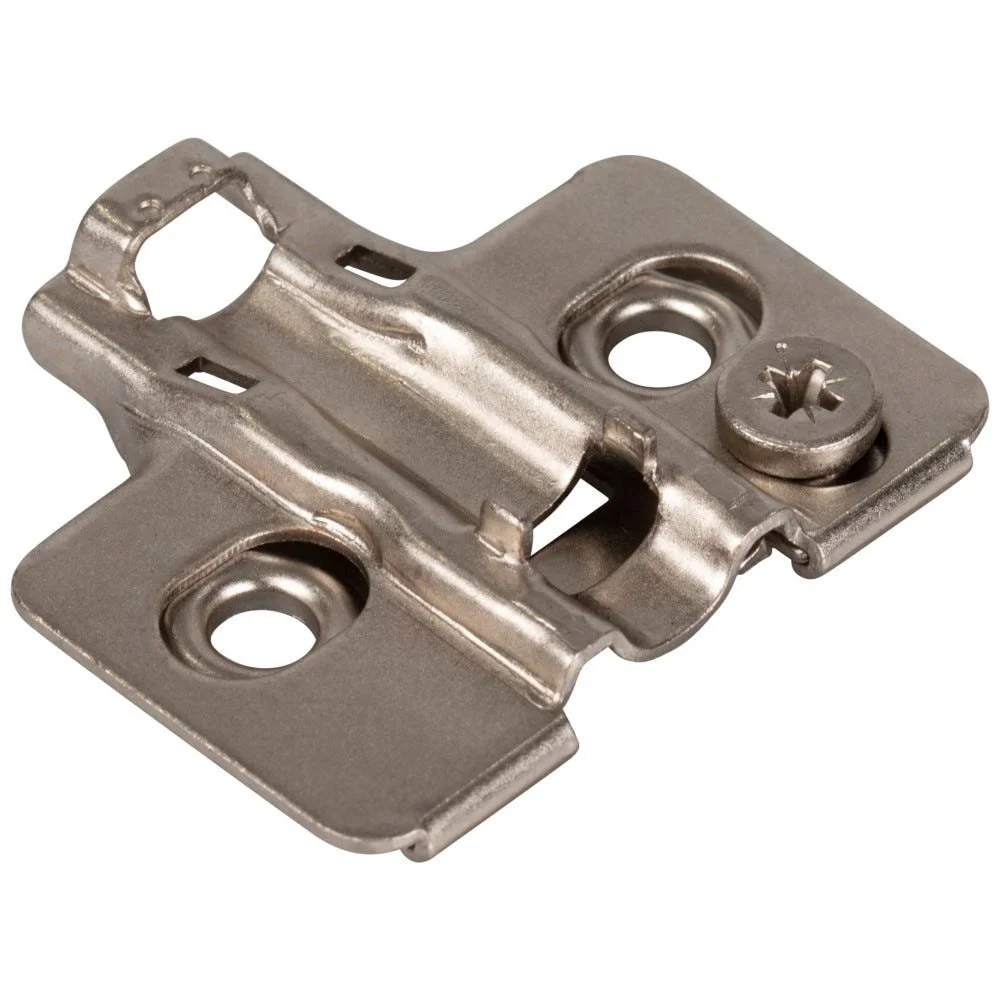

• 600.0R24.05 — 2 mm — Without Screws; $1.10 each.

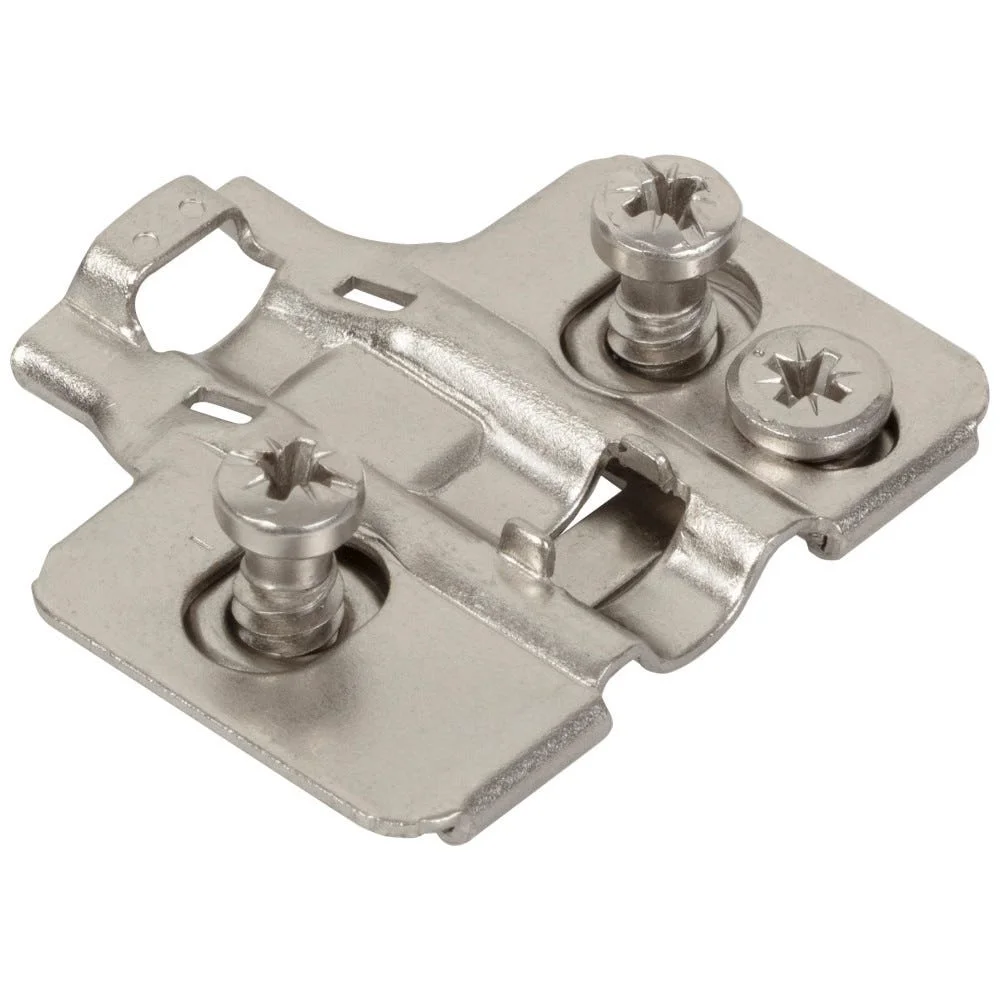

• 600.0P71.05 — 0 mm — Euro Screws Included; $1.19 each.

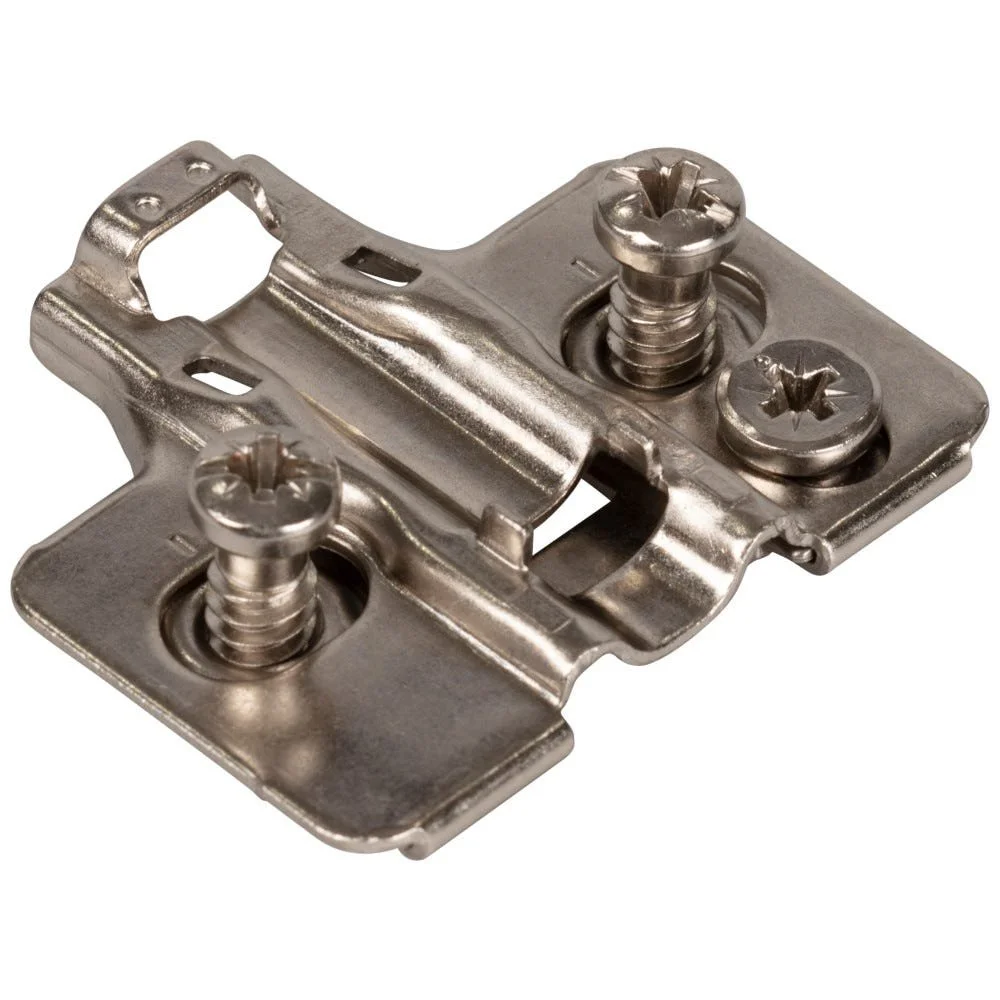

• 600.0P73.05 — 2 mm — Euro Screws Included; $1.22 each.

Product documents

Warranty (PDF)

600.0R22.05 dimensions and mounting drawing (PDF)

600.0R24.05 dimensions and mounting drawing (PDF)

600.0P71.05 dimensions and mounting drawing (PDF)

600.0P73.05 dimensions and mounting drawing (PDF)
