A practical steel mounting plate for a compatible European hinge on a face-frame cabinet. Choose the 0 mm or 3 mm nominal height required by your hinge configuration.
For compatible 700, 725, 900 and 1750 Series European hinges.
Standard-duty steel construction with a polished nickel finish.
Non-cam vertical adjustment of ±3.5 mm.
63.15 × 53.3 mm overall footprint; 32 mm mounting-hole spacing.
0 mm plate has a 7 mm maximum overall height; 3 mm plate has a 10 mm maximum overall height.
Supplied without screws. Use #6 × 5/8-inch flat-head wood screws, sold separately.
Sold individually. Hinges and cabinetry are sold separately. Verify the exact model and hole placement before ordering.

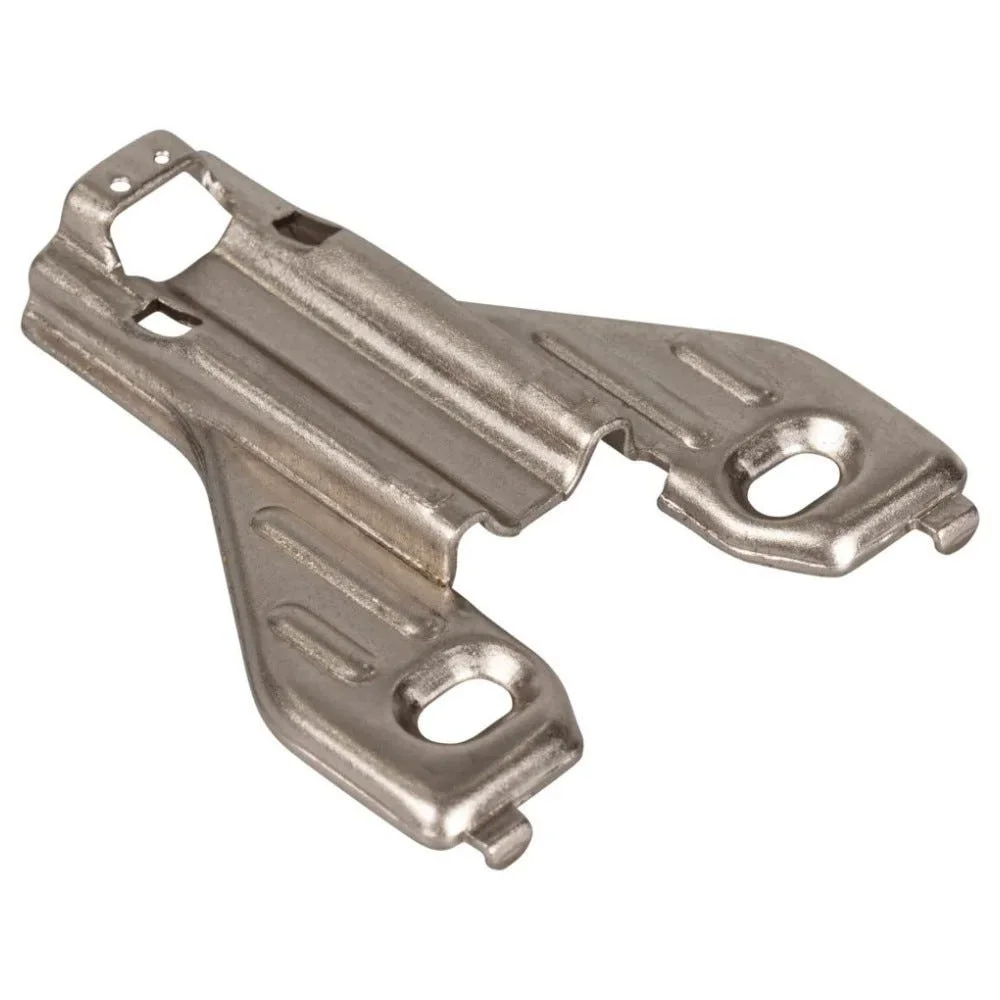

600.3456.65 — 0 mm; $0.72 each.

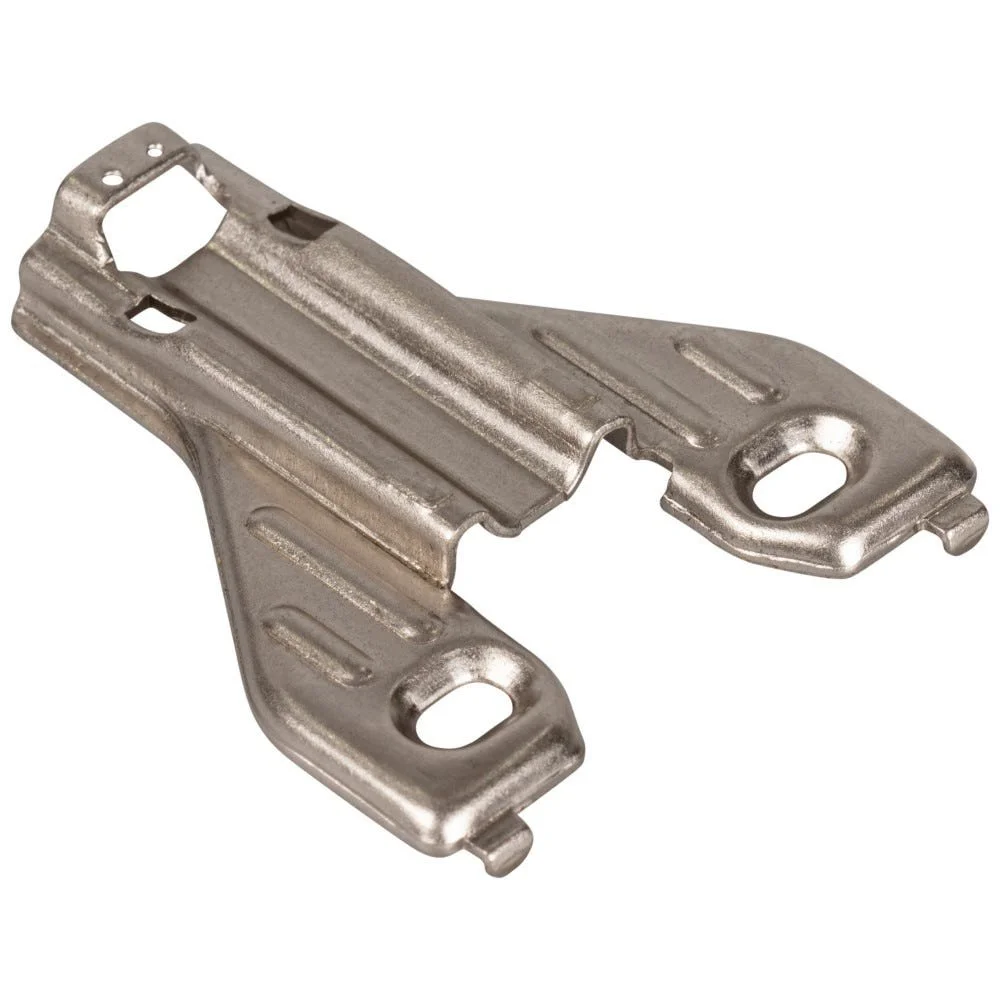

600.3457.65 — 3 mm; $0.76 each.
A practical steel mounting plate for a compatible European hinge on a face-frame cabinet. Choose the 0 mm or 3 mm nominal height required by your hinge configuration.
For compatible 700, 725, 900 and 1750 Series European hinges.
Standard-duty steel construction with a polished nickel finish.
Non-cam vertical adjustment of ±3.5 mm.
63.15 × 53.3 mm overall footprint; 32 mm mounting-hole spacing.
0 mm plate has a 7 mm maximum overall height; 3 mm plate has a 10 mm maximum overall height.
Supplied without screws. Use #6 × 5/8-inch flat-head wood screws, sold separately.
Sold individually. Hinges and cabinetry are sold separately. Verify the exact model and hole placement before ordering.
600.3456.65 — 0 mm; $0.72 each.
600.3457.65 — 3 mm; $0.76 each.
