600 Series Standard-Duty Non-Cam Steel Hinge Mounting Plate

from $0.52

Match your cabinet construction with the right mounting plate and fasteners. These standard-duty steel plates provide non-cam height adjustment for compatible 700, 725, 900 and 1750 Series European hinges.

Fit and features

Polished nickel finish; non-cam vertical adjustment of ±3 mm.
Choose a 0 mm or 2 mm nominal plate height and the exact fastening configuration.
Standard Euro-screw models include preassembled 6.3 × 15 mm Euro system screws.
The shortened-screw model includes 6.3 × 10 mm Euro screws for back-to-back hinge installation in 19 mm material.
The dowel model includes wood screws and 5 mm expansion dowels.
Models without screws require #6 × 5/8-inch flat-head wood screws, sold separately.
Sold individually. Hinges and cabinetry are sold separately. Confirm hinge/overlay requirements and hole placement before ordering.

Models and options

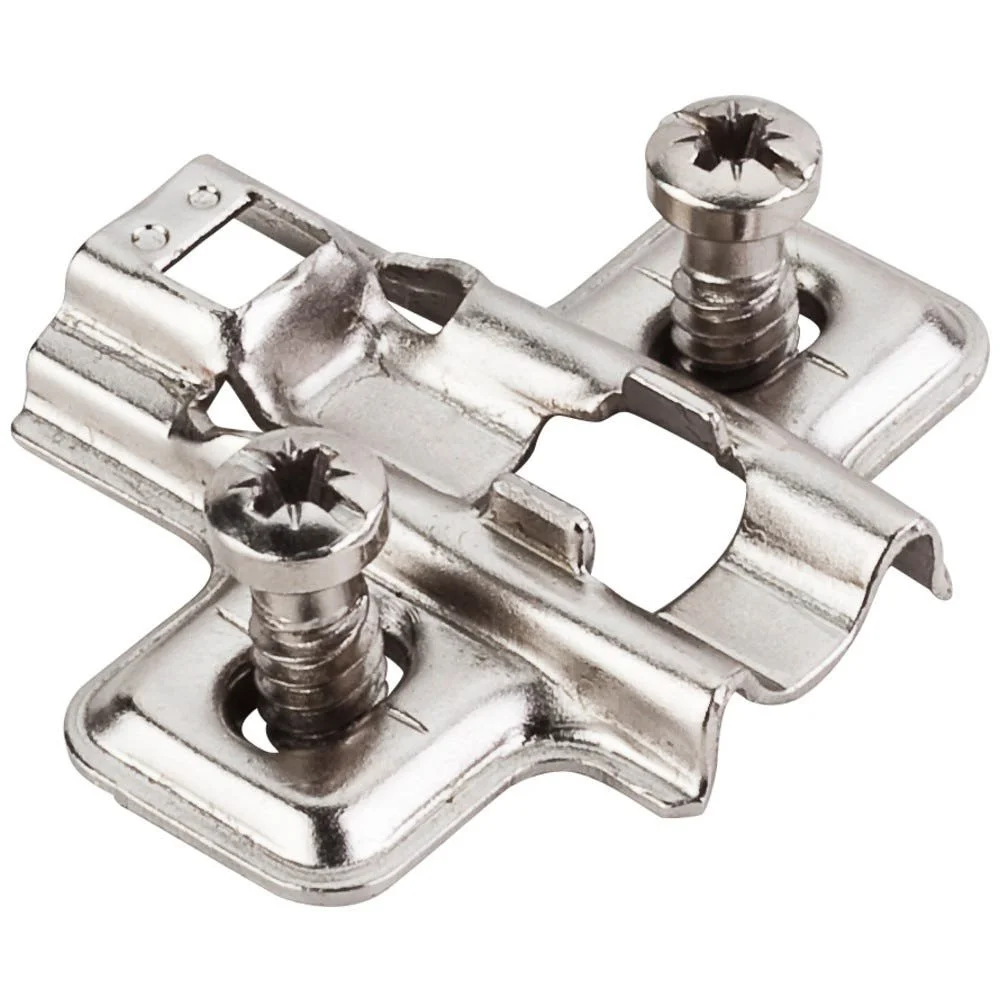

600.0118.05 — 0 mm — Euro Screws; $0.65 each.

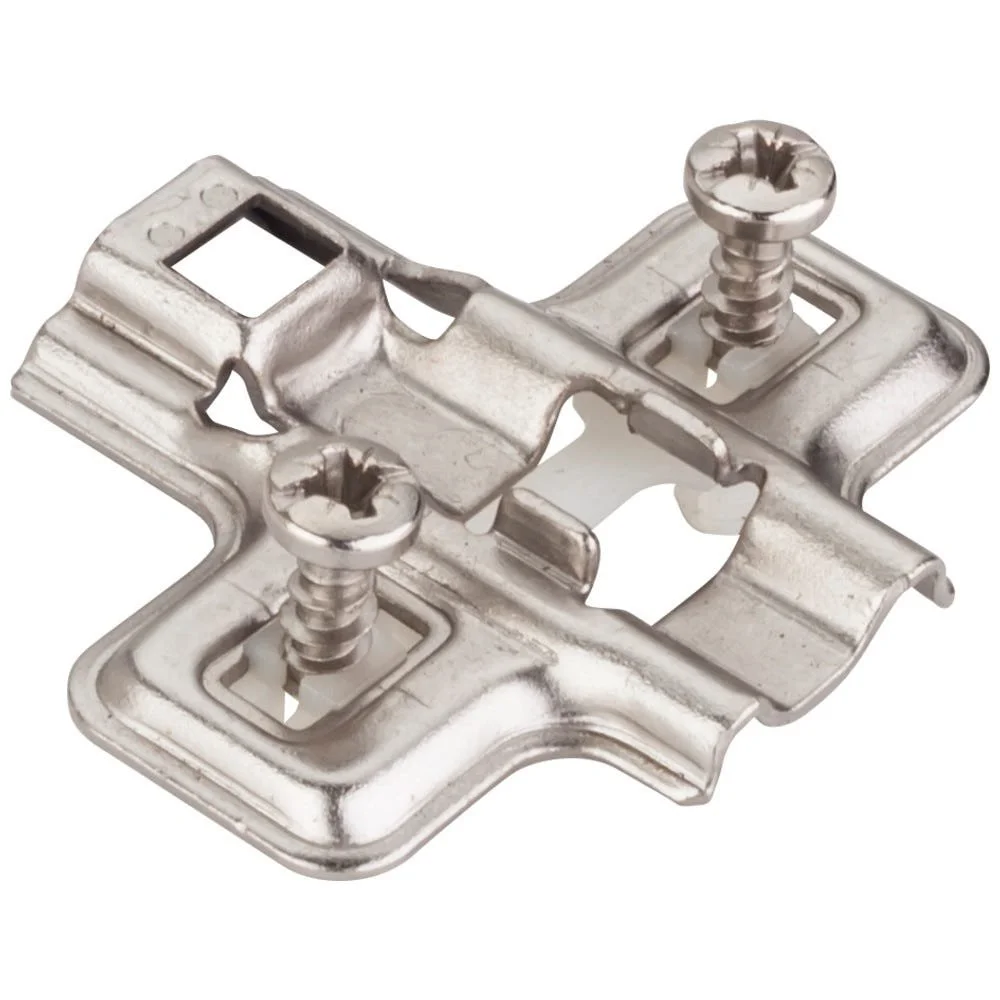

600.2118.05 — 0 mm — Wood Screws and 5 mm Dowels; $0.65 each.

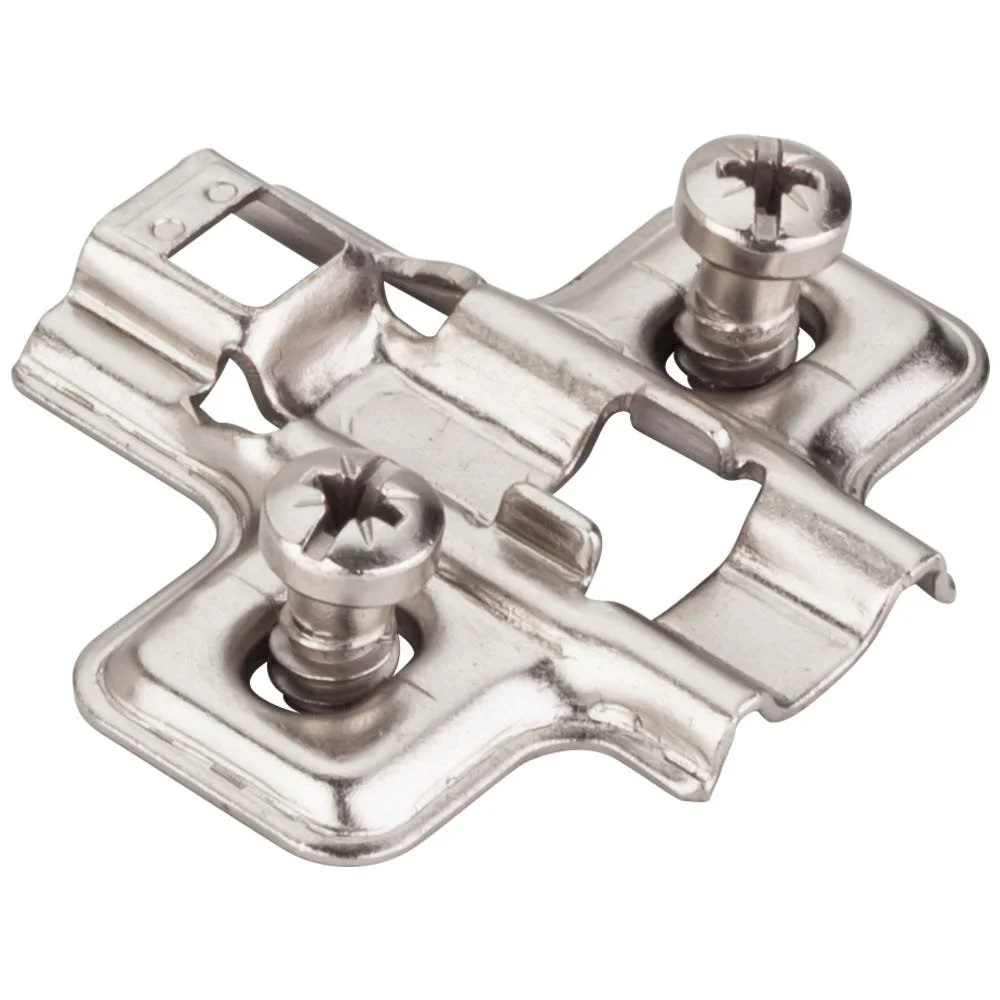

600.3118.05 — 0 mm — Short Euro Screws; $0.65 each.

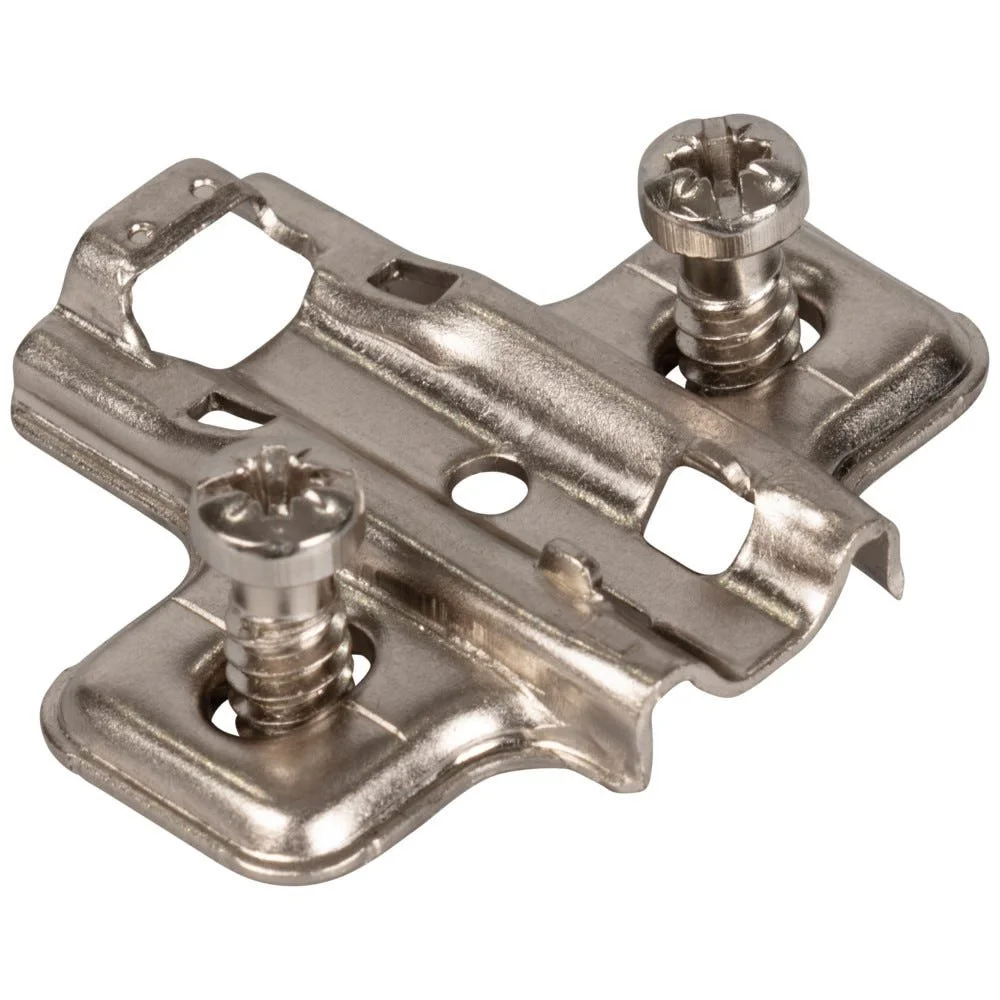

600.0119.05 — 2 mm — Euro Screws; $0.70 each.

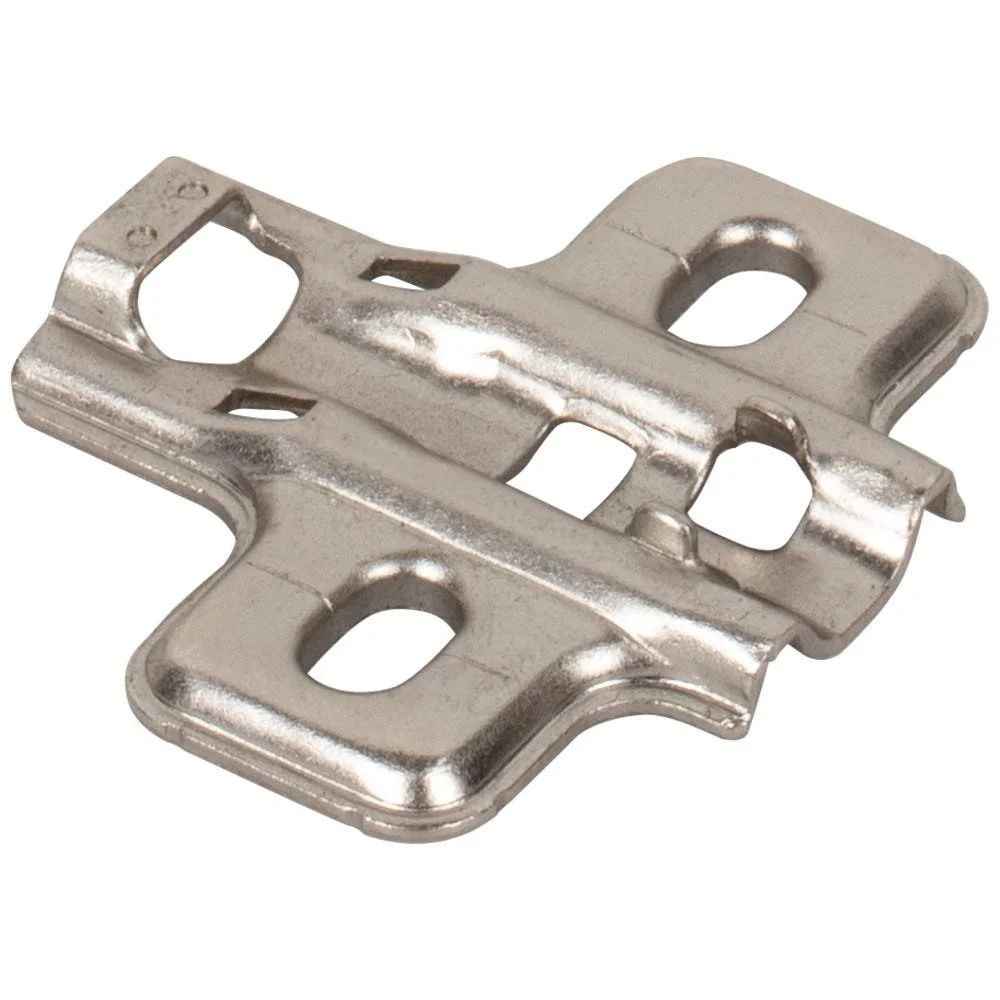

600.1233.05 — 0 mm — Without Screws; $0.52 each.

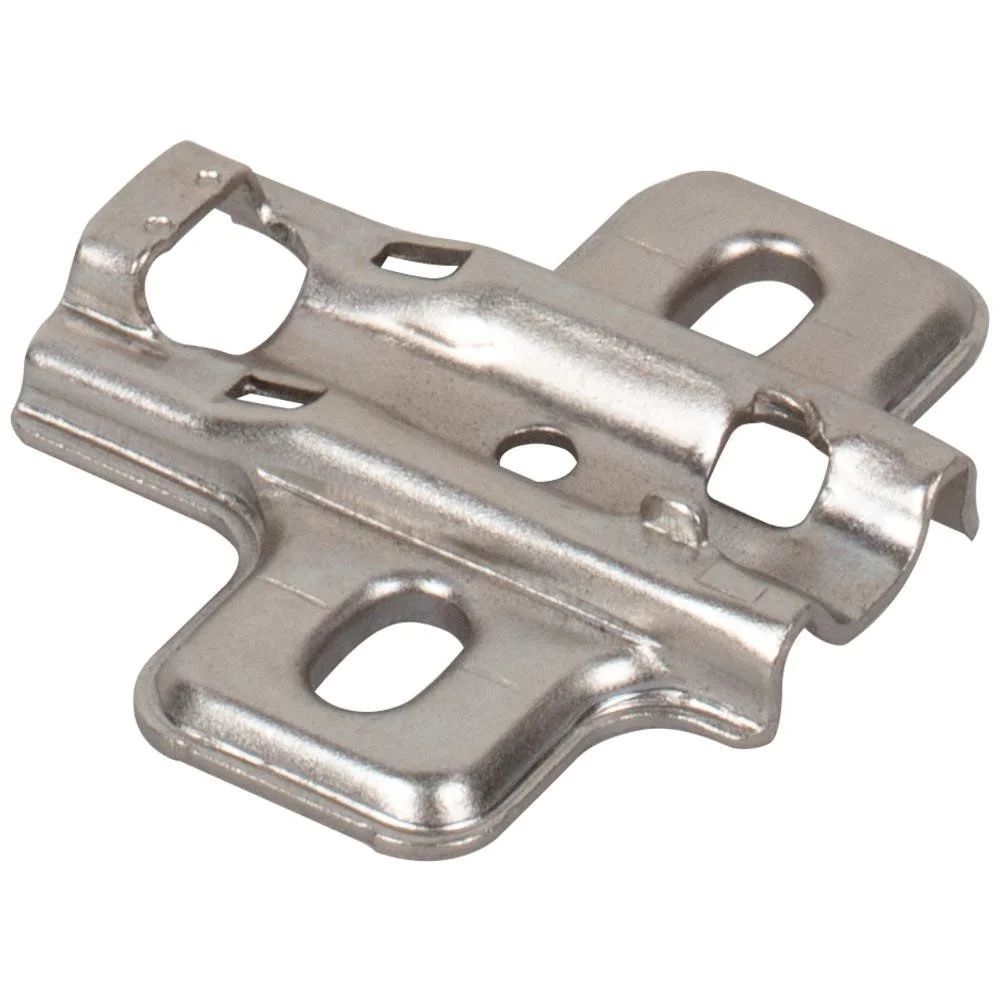

600.1234.05 — 2 mm — Without Screws; $0.52 each.

Product documents

Warranty (PDF)

600.0118.05 dimensions and mounting drawing (PDF)

600.2118.05 dimensions and mounting drawing (PDF)

600.3118.05 dimensions and mounting drawing (PDF)

600.0119.05 dimensions and mounting drawing (PDF)

600.1233.05 dimensions and mounting drawing (PDF)

600.1234.05 dimensions and mounting drawing (PDF)
