Five-Knuckle Non-Mortise Cabinet Hinge

A sturdy non-mortise hinge for institutional and commercial cabinetry, available in five finishes so the hardware can suit the installation.

Fit and features

• Five-knuckle construction with hospital tips and 2-3/4-inch overall height.

• 3/4-inch overlay; single pivot and non-demountable construction.

• 32 mm system hole pattern with a 37 mm setback.

• Slotted screw holes allow vertical and horizontal alignment.

• Conforms to ANSI/BHMA Grade 1 requirements.

• Steel construction. Choose the exact Almond, Black, Dull Nickel, Stainless Steel or White finish designation.

• Factory recommends stainless-steel #8 × 3/4-inch flat-head installation screws.

• Sold individually. Screws, tools, doors and cabinetry are sold separately.

Models and finishes

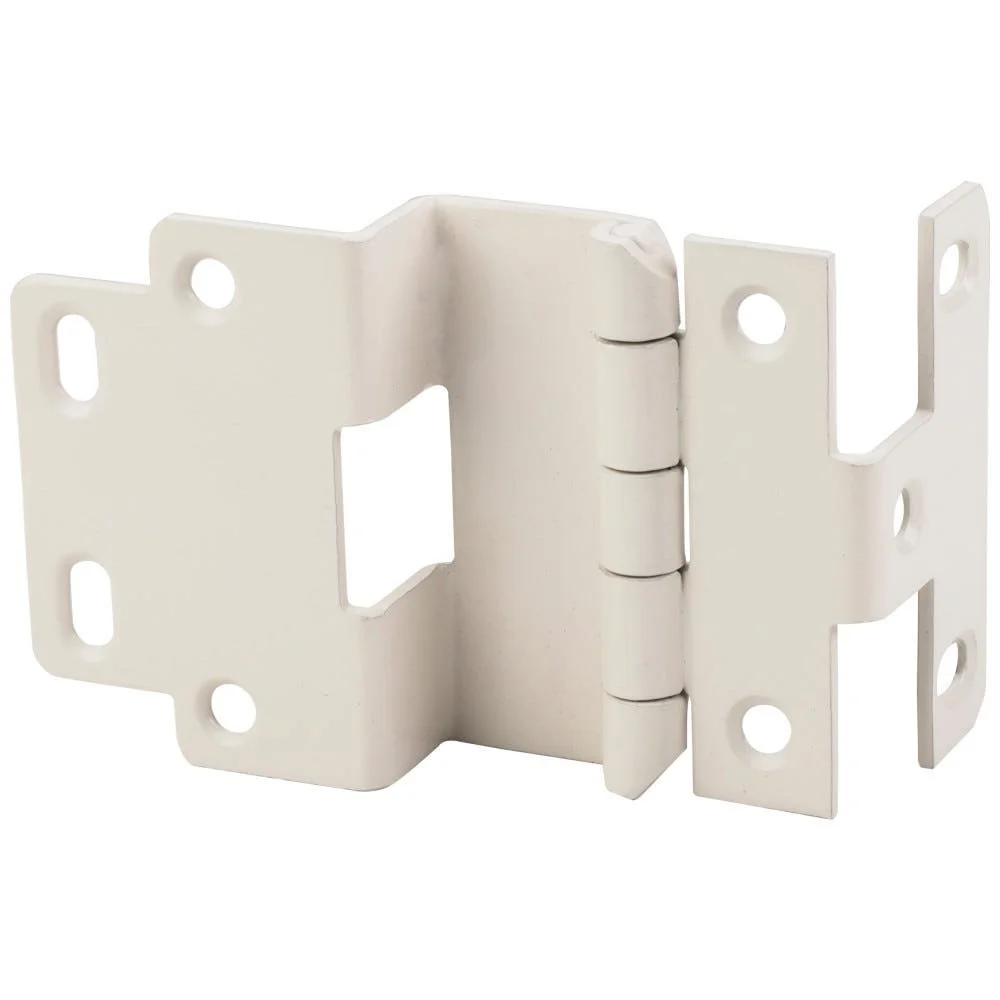

• HR0076AL — Almond; $7.09 each.

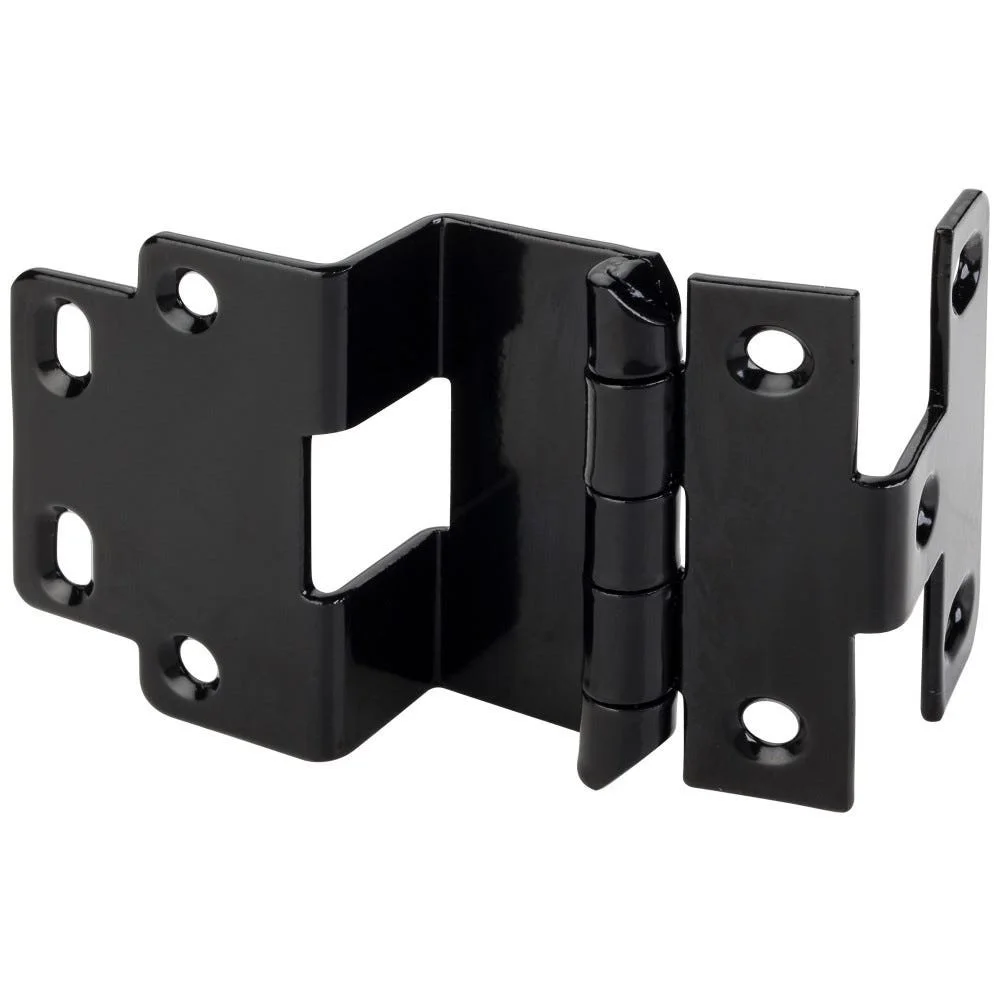

• HR0076BLK — Black; $6.77 each.

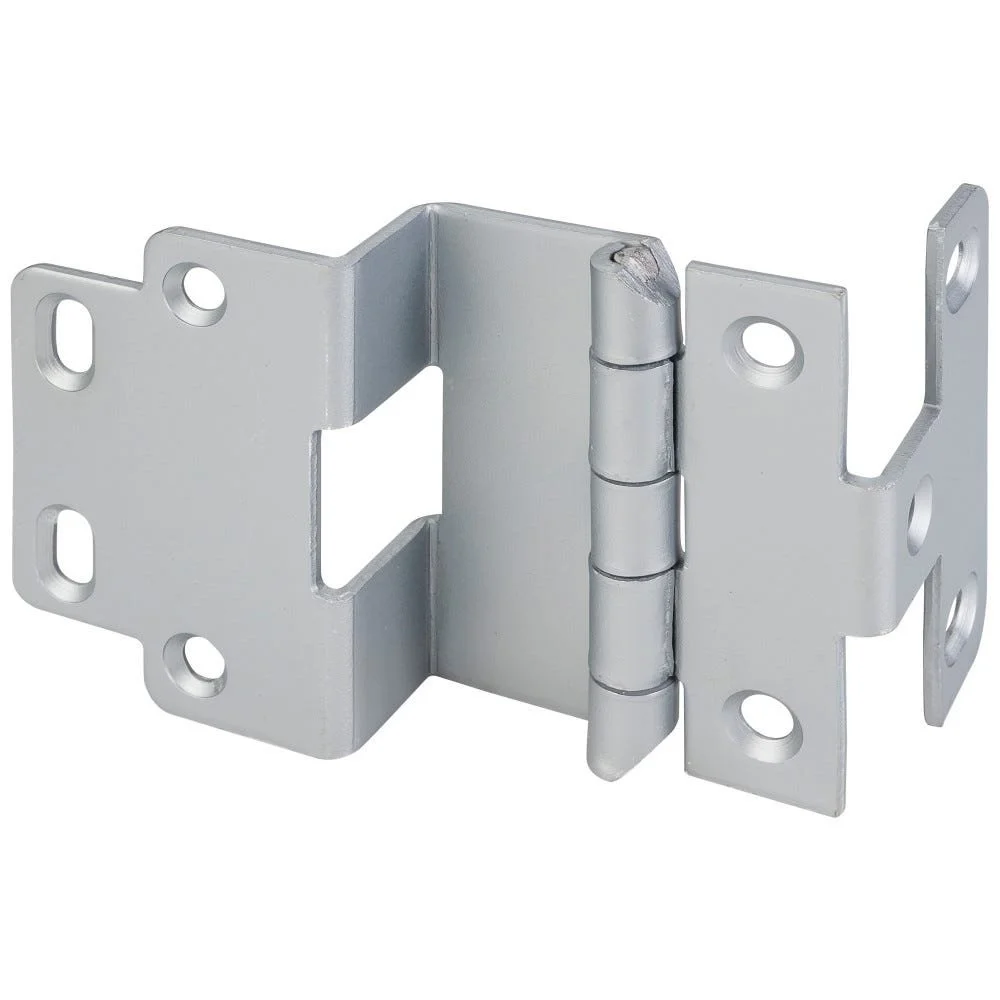

• HR0076 — Dull Nickel; $6.48 each.

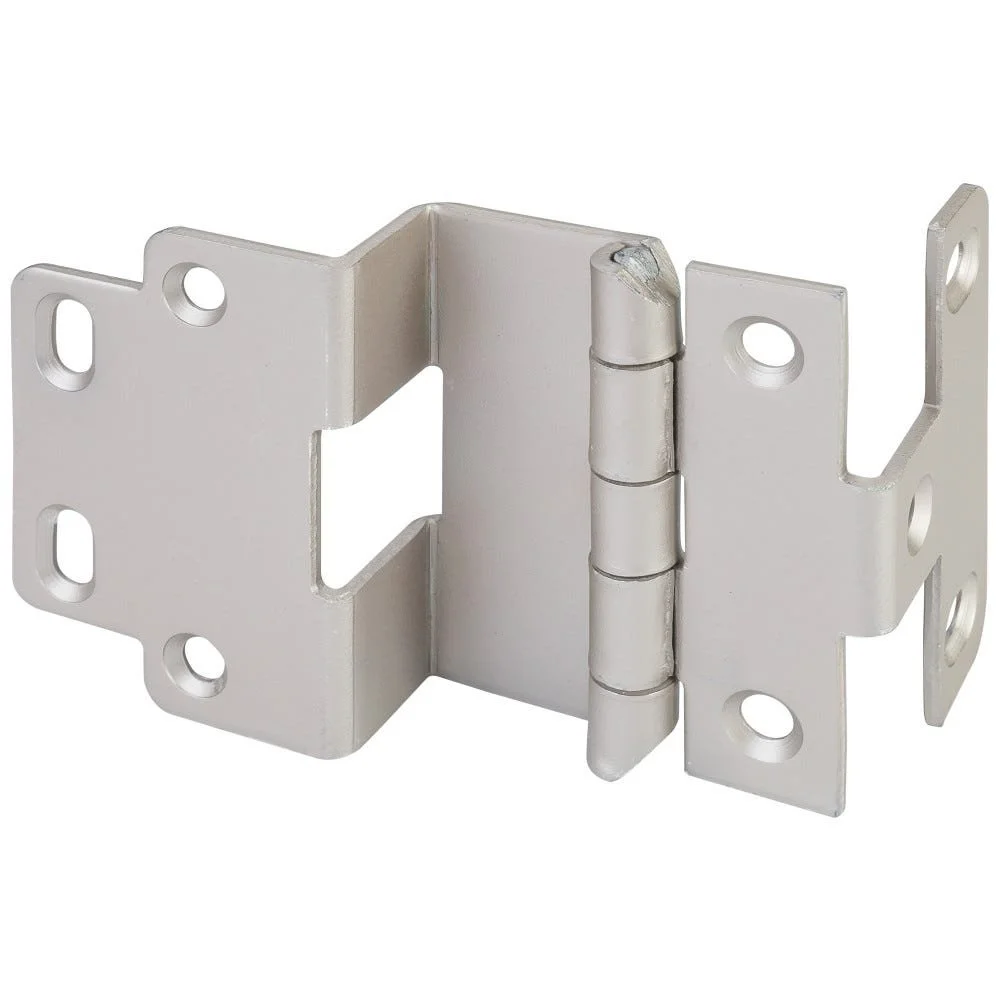

• HR0076SS — Stainless Steel; $25.63 each.

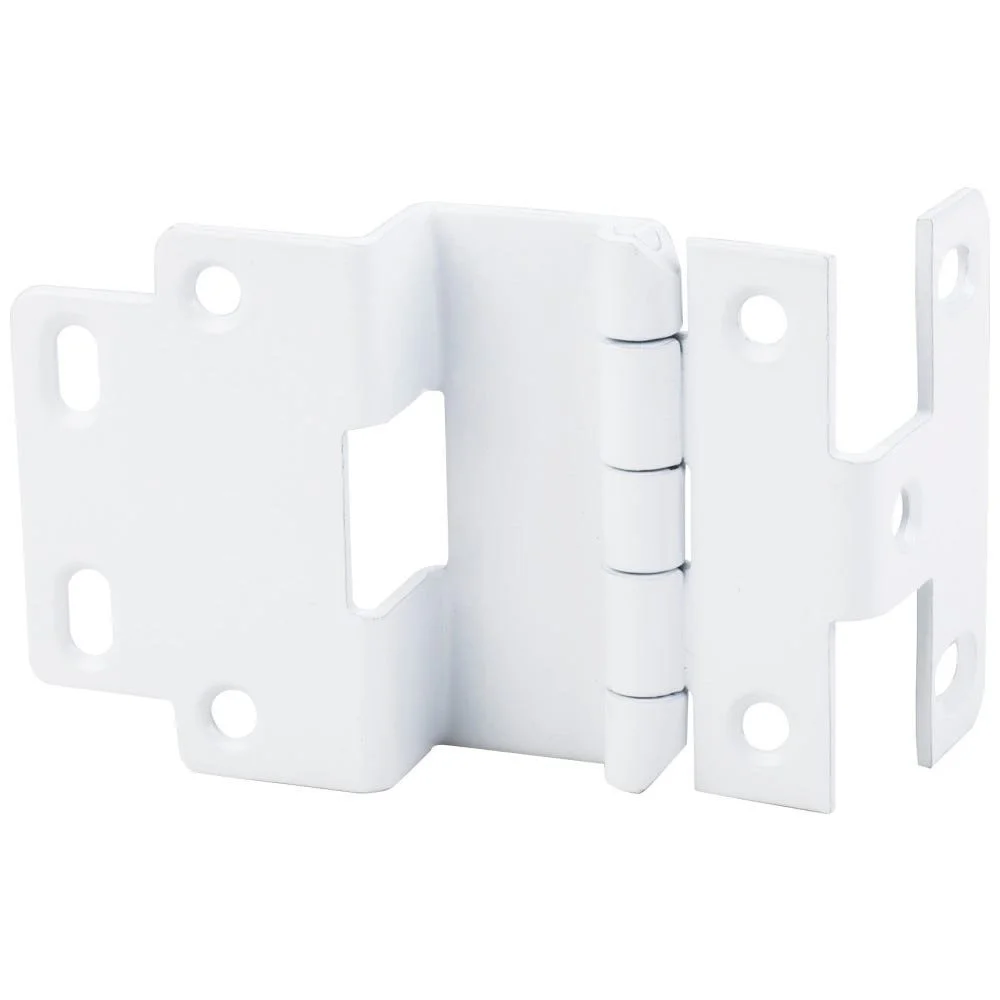

• HR0076WH — White; $5.69 each.

Product documents

Factory specifications and mounting drawing (PDF)

Warranty (PDF)
