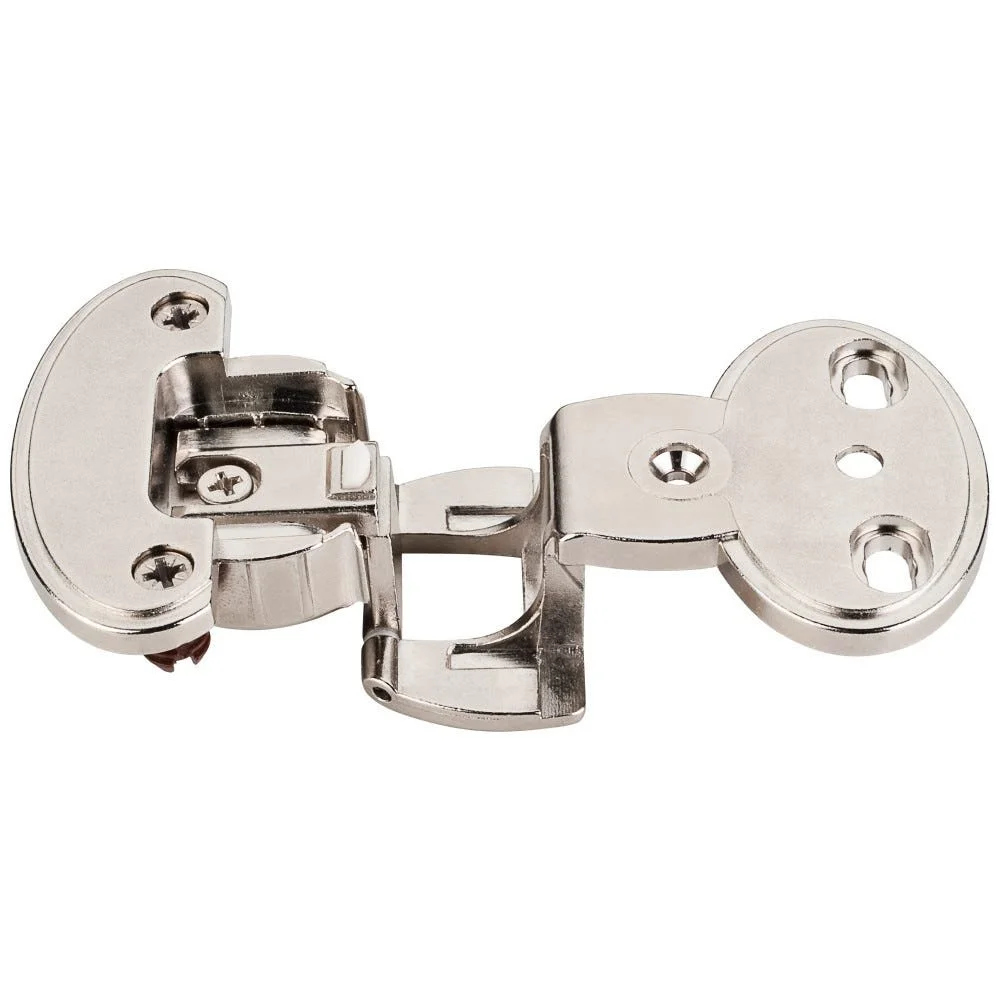

Single-Pivot Full-Overlay Institutional Cabinet Hinge

$19.87

A preassembled institutional hinge and plate with a positive-lock polymer catch, designed for full-overlay cabinet applications.

Fit and features

Exact model HR0086; single pivot and full-overlay application.
Two-dimensional adjustment.
Die-cast zinc wall base, arm and door base, confirmed by the factory bill of materials; Polished Nickel finish.
Cup ships with 8 mm dowels; hinge and plate are supplied preassembled.
Integrated polymer catch with positive lock.
Conforms to ANSI/BHMA Grade 1 requirements.
Use the exact factory drawing for mounting and clearance requirements.
Sold individually. Installation screws, tools, doors and cabinetry are sold separately.
