Combine a wide drawer with accessible lower storage in this MDI Inset base cabinet. Two recessed-panel doors and a full-width slab drawer sit flush within the surrounding face frame. This cabinet ships ready to assemble (RTA).
Sizes and configuration
B24: 24 inches wide × 34½ inches high × 25 inches deep.
B27: 27 inches wide × 34½ inches high × 25 inches deep.
B30: 30 inches wide × 34½ inches high × 25 inches deep.
B33: 33 inches wide × 34½ inches high × 25 inches deep.
B36: 36 inches wide × 34½ inches high × 25 inches deep.
Two inset recessed-panel doors, one full-width working slab-front drawer, and one adjustable half-depth shelf in every size.
Construction and hardware
⅝-inch plywood cabinet box with dovetail construction and a solid-wood face frame.
Solid-wood dovetail drawer boxes with plywood bottoms.
Soft-close, full-extension undermount drawer glides.
Soft-close, six-way adjustable door hinges.
Natural wood interior with a UV-cured finish.
Choose your finish
Available in Hazelnut Oak, Origami White, and Truffle Brown. Hazelnut Oak uses white oak for the door framing, with a veneered plywood center panel on recessed-panel doors. Truffle Brown uses birch. Natural grain and stain vary; Origami White has a painted finish.
The cabinet exterior matches the selected door finish. Stained cabinet exteriors use birch veneer, and the cabinet interior has a natural wood finish. Small natural-wood edges may be visible at the top and bottom. Optional decorative end panels, skins, and fillers are sold separately.
Assembly and installation planning
The RTA package provides the cabinet components, two doors, one drawer assembly, one adjustable half-depth shelf, hinges, and drawer glides for the selected configuration. Assembly and installation are required. Countertops, appliances, decorative knobs and pulls, fillers, and end panels are not included.
Account for the 25-inch cabinet depth, countertop overhang, and adjacent appliances in your layout. Install level, square, and securely anchored to keep inset fronts aligned with even gaps. Allow clearance beside walls and adjoining cabinets for the fronts to open fully. Use installation fasteners suitable for the wall construction.
Plan your MDI Inset kitchen
Explore the MDI Inset Collection and single-door and drawer base cabinets. For size or layout help, use the floating Connect with us widget. It is the fastest way to reach us and notifies the owner directly.

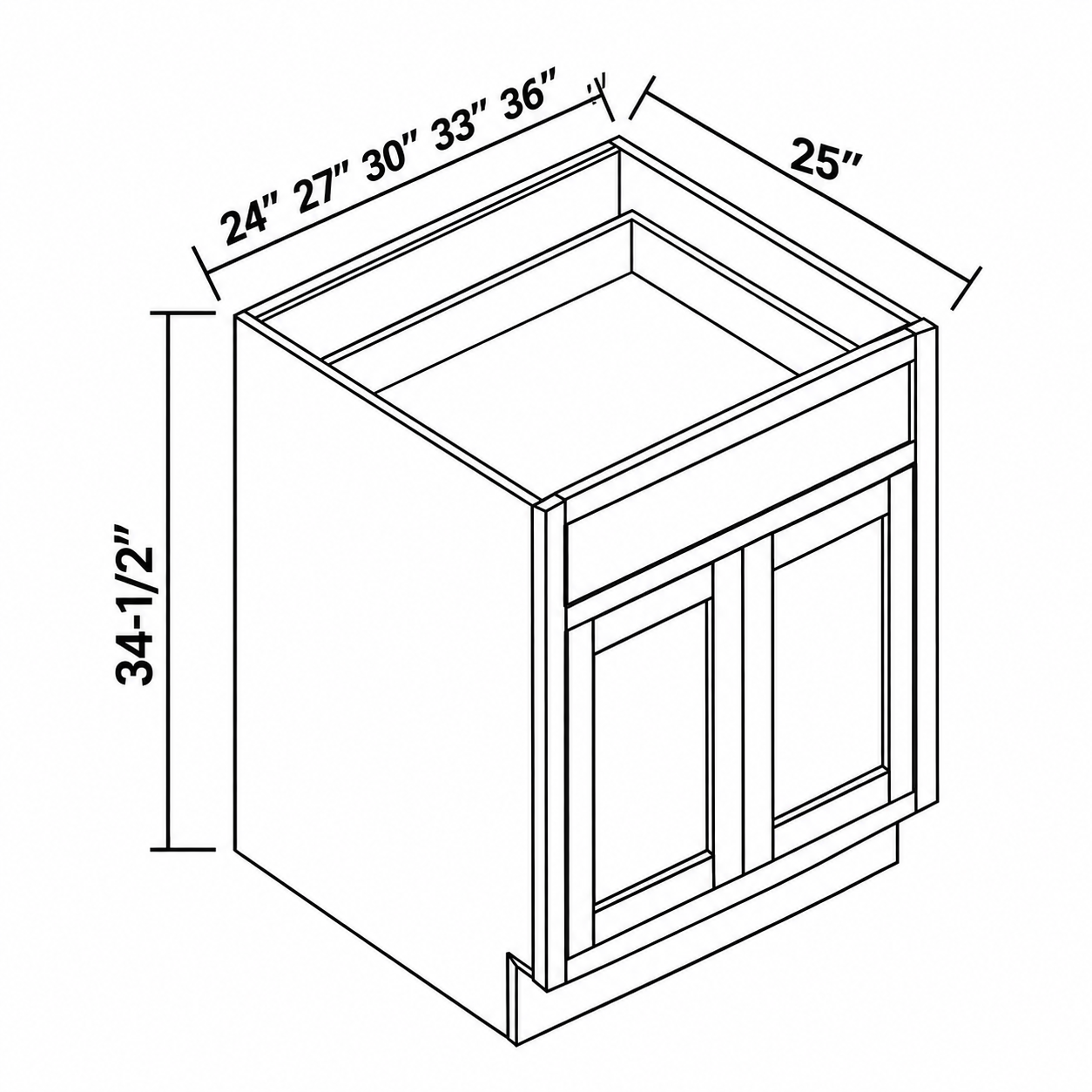

The Truffle Brown cabinet image shows a representative 30-inch cabinet with two inset doors and one slab drawer. The finish references show the complete Inset frame, drawer and door profile. Use the configuration drawing and selected size for the cabinet arrangement and dimensions. Wood grain, lighting, and screen settings can affect finish appearance.
