Access wide lower storage through a pair of full-height MDI Inset doors. Both recessed-panel fronts sit flush within the surrounding face frame. This cabinet ships ready to assemble (RTA).
Sizes and configuration
B24FHD: 24 inches wide × 34½ inches high × 25 inches deep.
B27FHD: 27 inches wide × 34½ inches high × 25 inches deep.
B30FHD: 30 inches wide × 34½ inches high × 25 inches deep.
B33FHD: 33 inches wide × 34½ inches high × 25 inches deep.
B36FHD: 36 inches wide × 34½ inches high × 25 inches deep.
Two uninterrupted full-height inset recessed-panel doors and one adjustable full-depth shelf. No drawers or false drawer fronts.
Construction and hardware
⅝-inch plywood cabinet box with dovetail construction and a solid-wood face frame.
Soft-close, six-way adjustable door hinges.
Natural wood interior with a UV-cured finish.
Choose your finish
Available in Hazelnut Oak, Origami White, and Truffle Brown. Hazelnut Oak uses white oak for the door framing, with a veneered plywood center panel on recessed-panel doors. Truffle Brown uses birch. Natural grain and stain vary; Origami White has a painted finish.
The cabinet exterior matches the selected door finish. Stained cabinet exteriors use birch veneer, and the cabinet interior has a natural wood finish. Small natural-wood edges may be visible at the top and bottom. Optional decorative end panels, skins, and fillers are sold separately.
Assembly and installation planning
The RTA package provides the cabinet components, two full-height doors, one adjustable full-depth shelf, and soft-close hinges for the selected configuration. Assembly and installation are required. Countertops, appliances, decorative knobs and pulls, fillers, and end panels are not included.
Account for the 25-inch cabinet depth, countertop overhang, and adjacent appliances in your layout. Install level, square, and securely anchored to keep inset fronts aligned with even gaps. Allow clearance beside walls and adjoining cabinets for the fronts to open fully. Use installation fasteners suitable for the wall construction.
Plan your MDI Inset kitchen
Explore the MDI Inset Collection and single-door and drawer base cabinets. For size or layout help, use the floating Connect with us widget. It is the fastest way to reach us and notifies the owner directly.

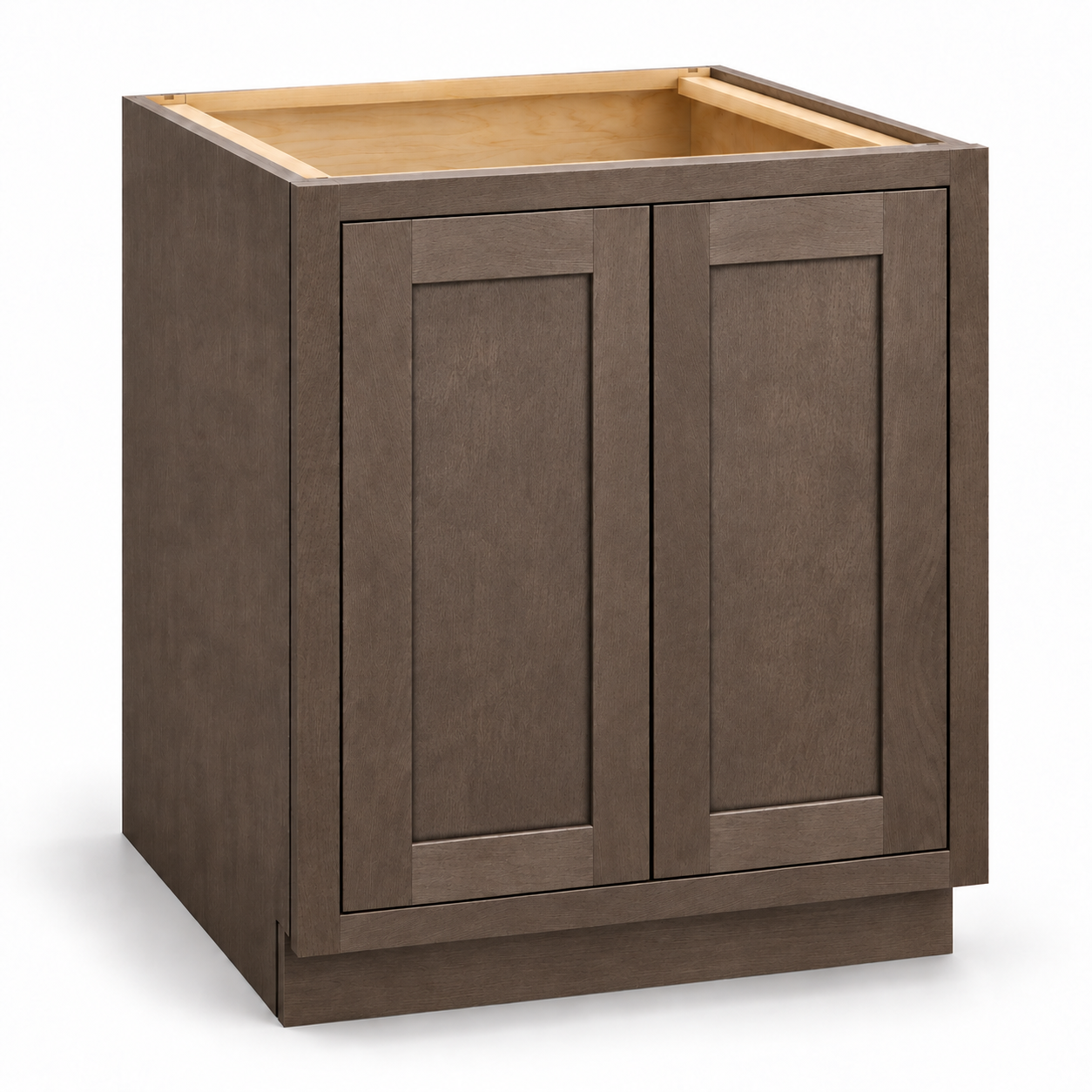

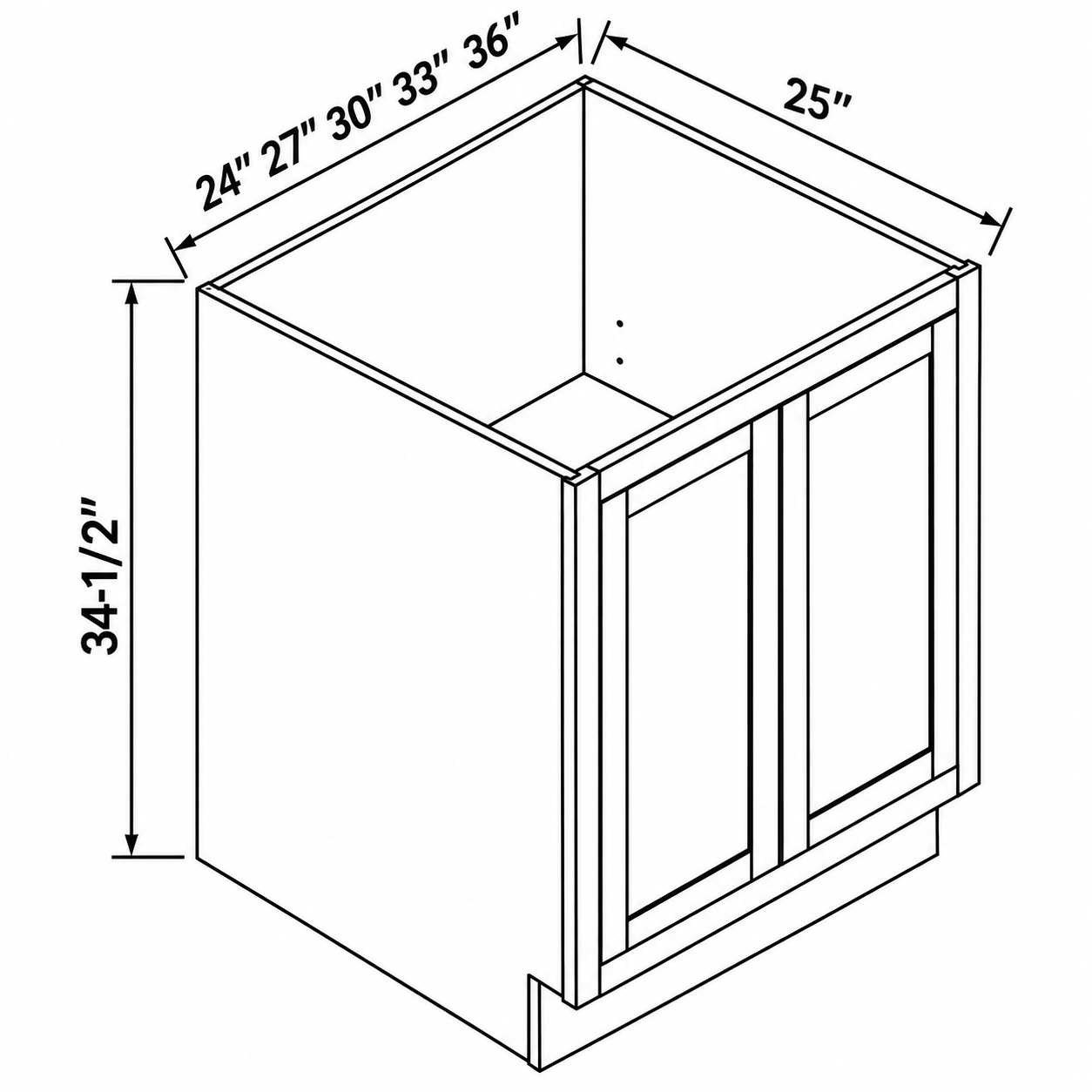

The Truffle Brown cabinet image shows a representative 30-inch-wide cabinet. The complete framed finish samples show the Inset frame, drawer and door profile as finish references. See the configuration drawing for this cabinet’s door and drawer arrangement; the selected size determines its dimensions. Wood grain, lighting, and screen settings can affect finish appearance.
