Coordinate exposed cabinet backs and finishing surfaces with Catalina back panels for the Catalina collection. Choose the panel size, surface profile, grain direction, and finish that fit your layout. Each selection is sold as one panel.
Compare the four back-panel models

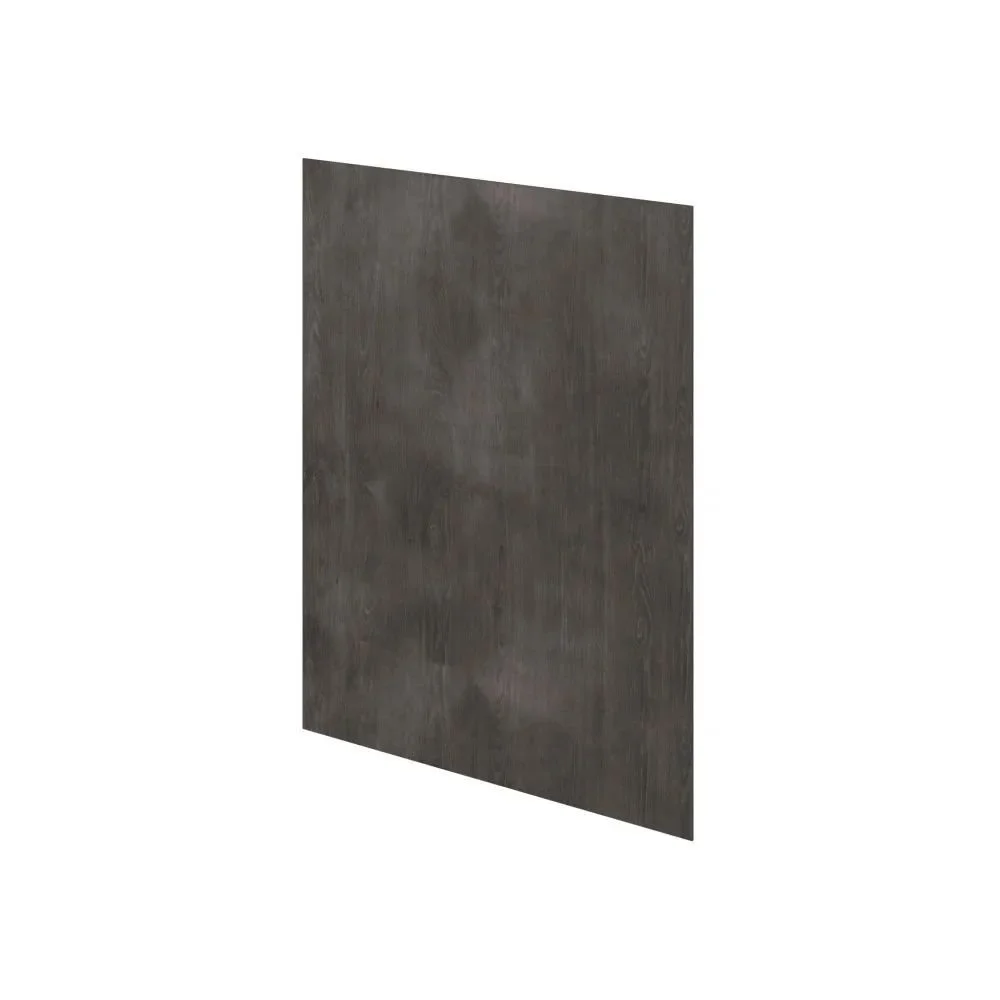

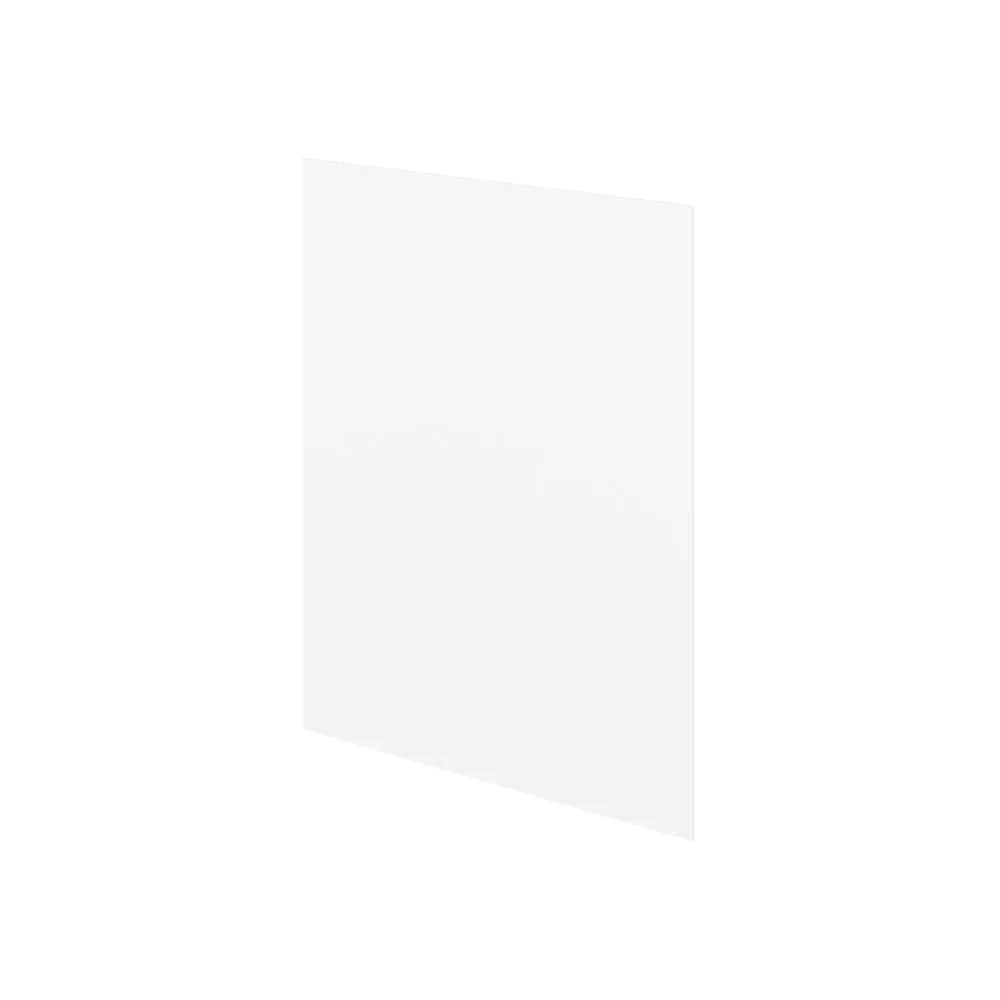

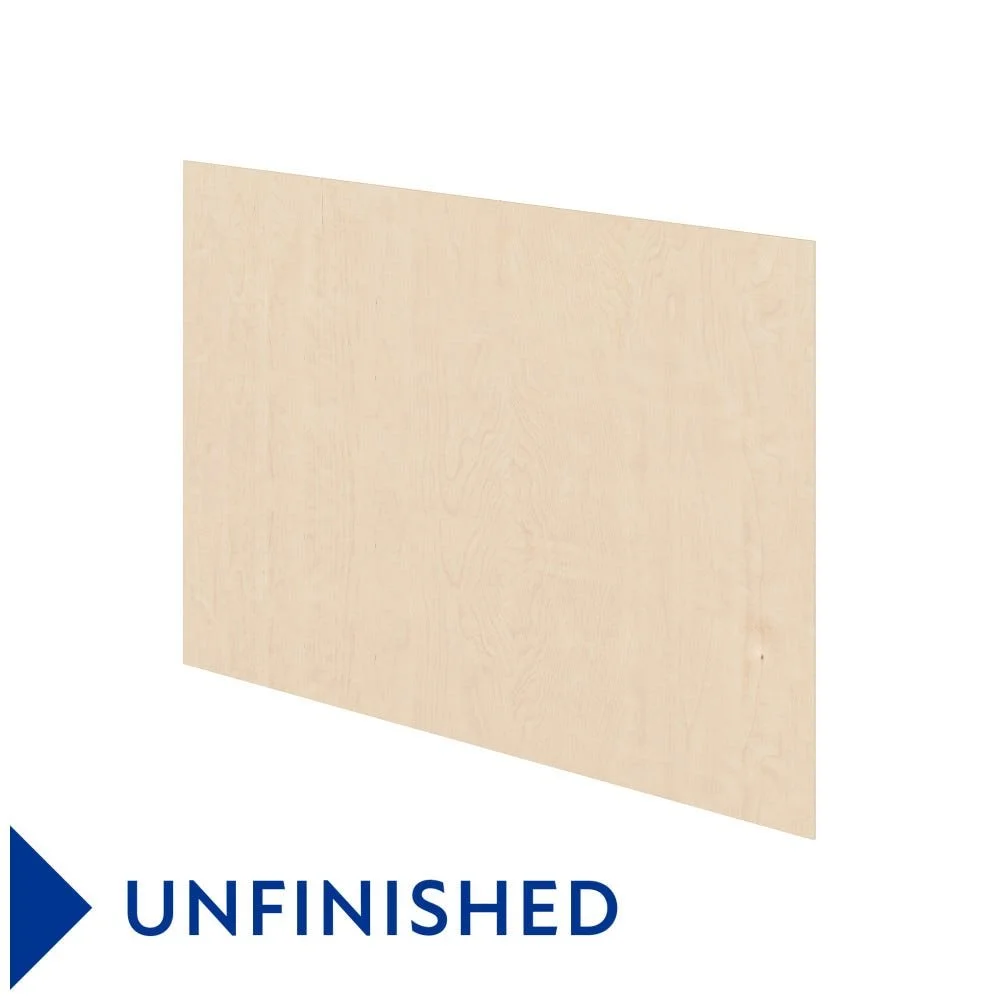

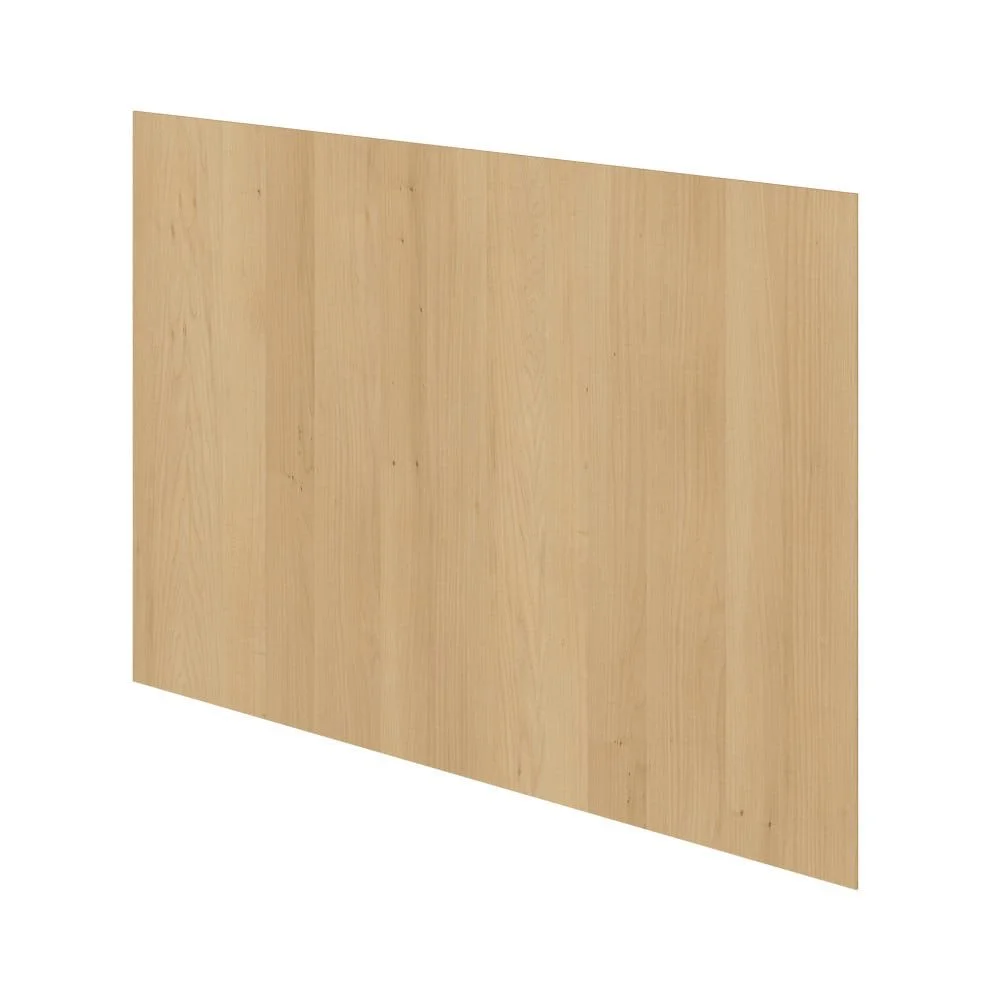

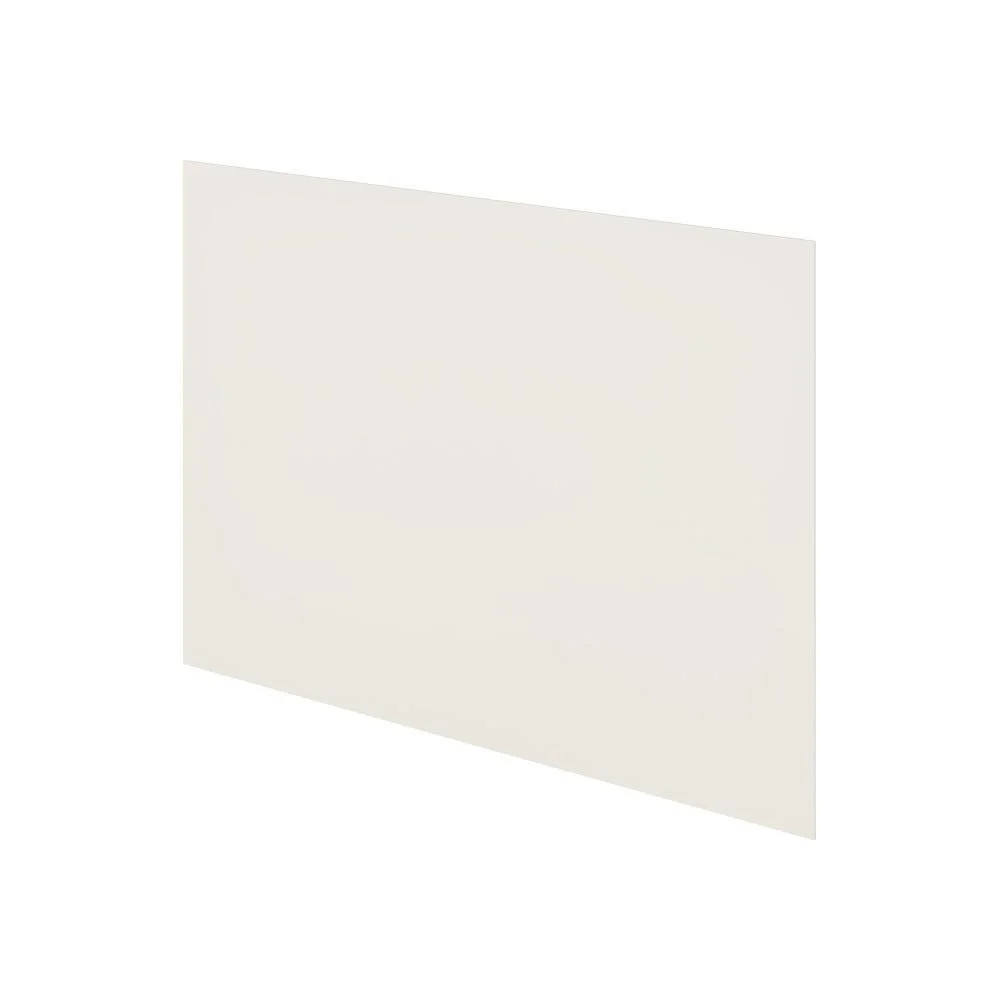

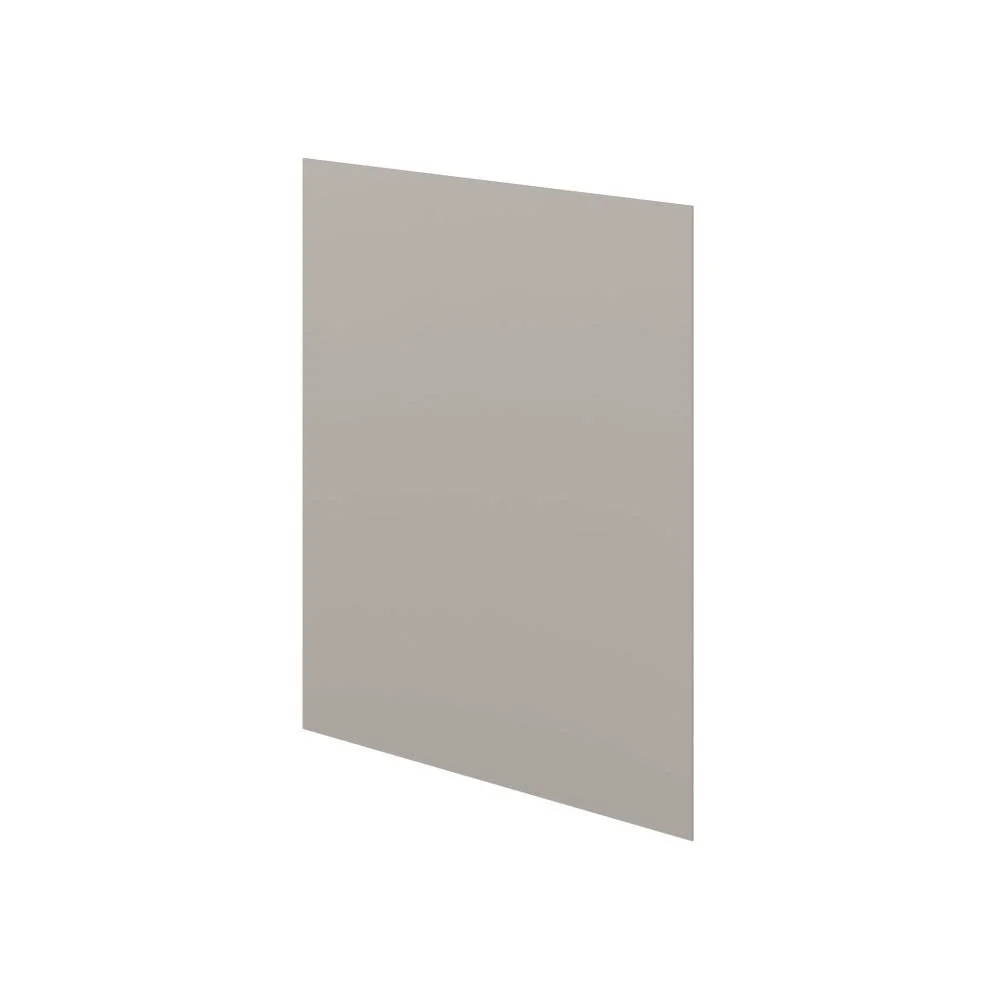

PV3648: 36 × 48 inches, flat panel with vertical grain.

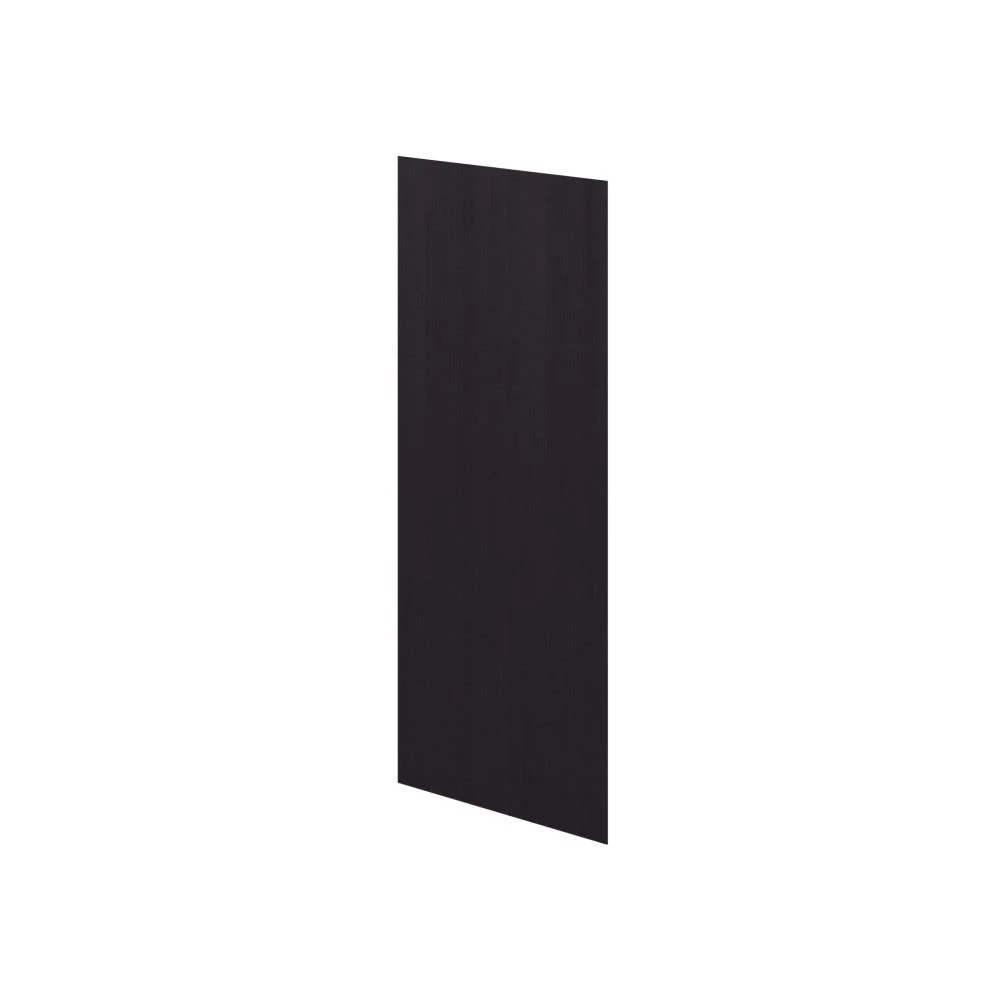

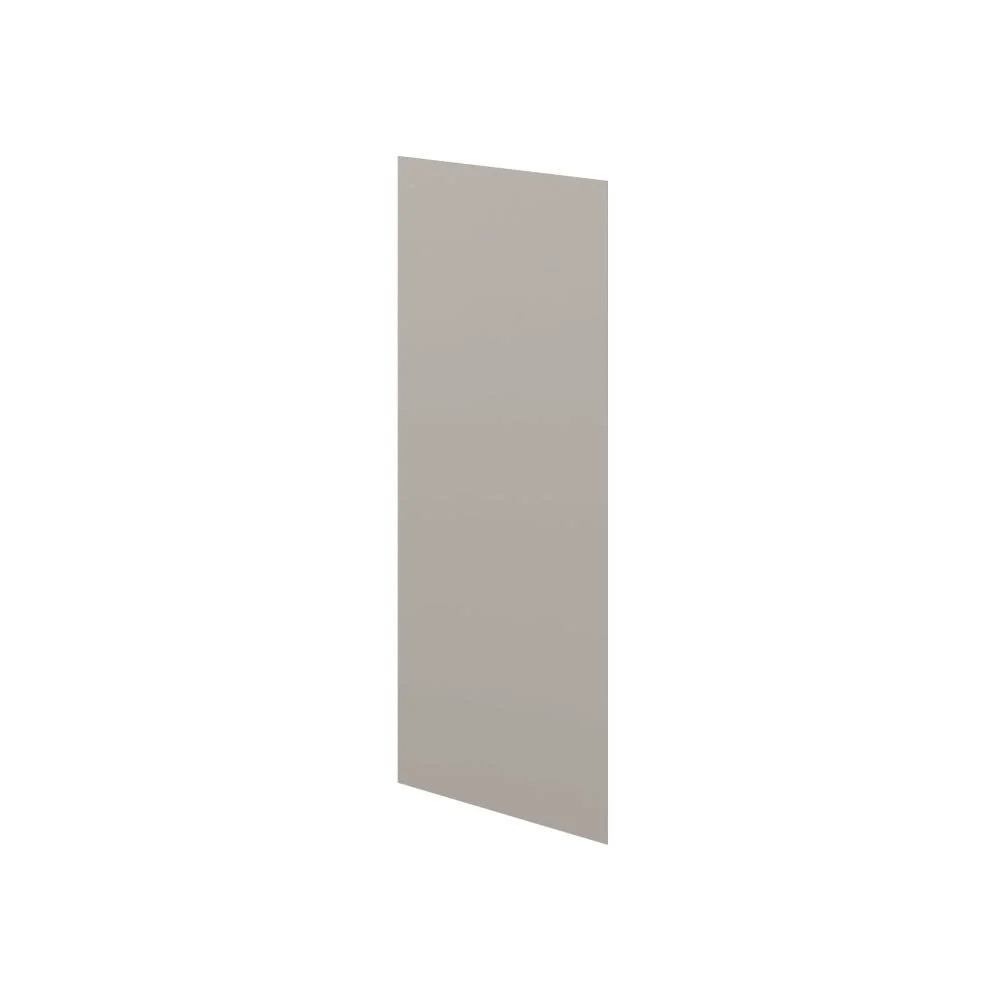

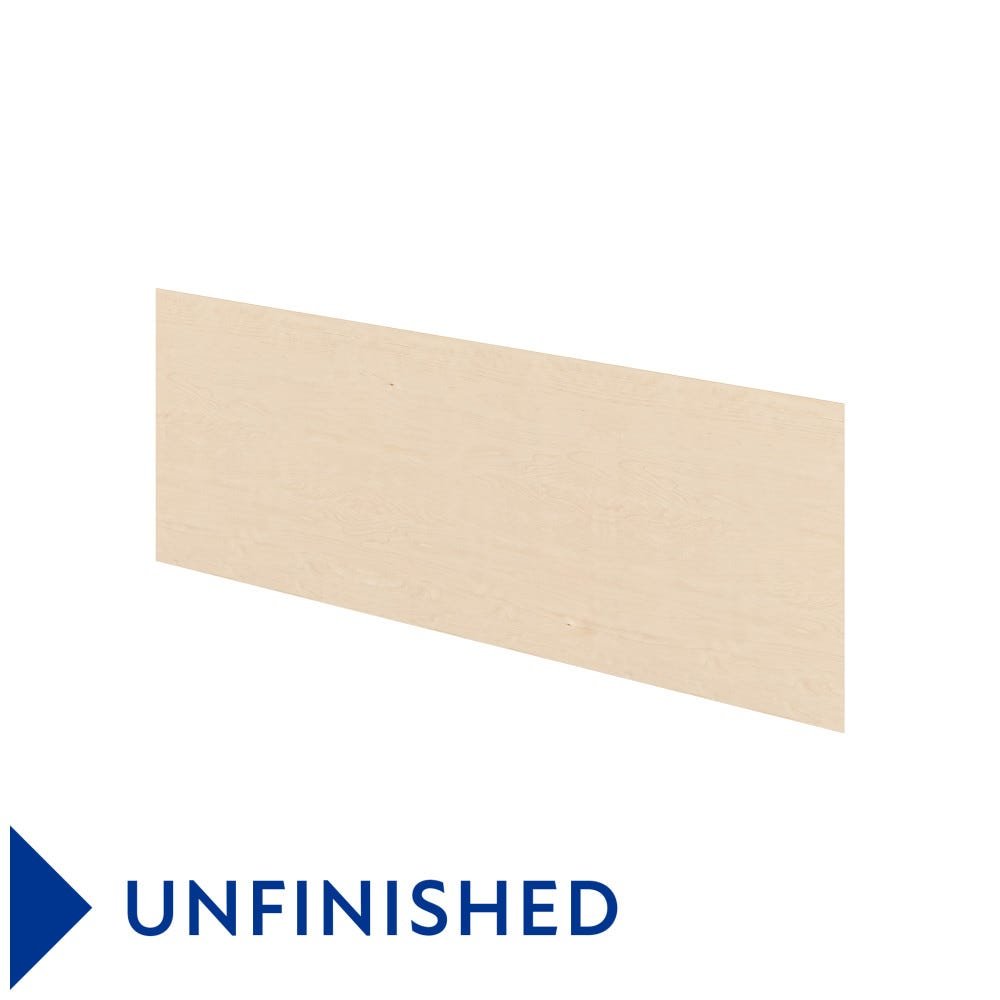

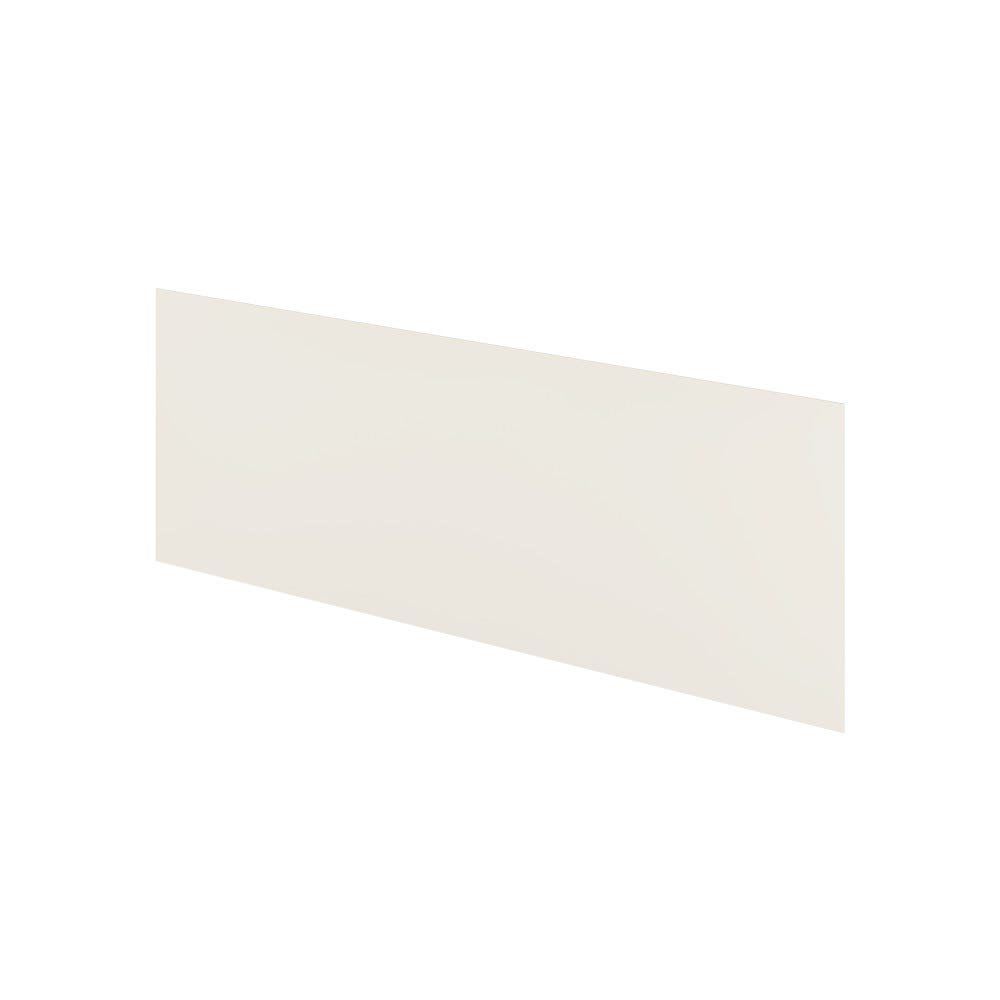

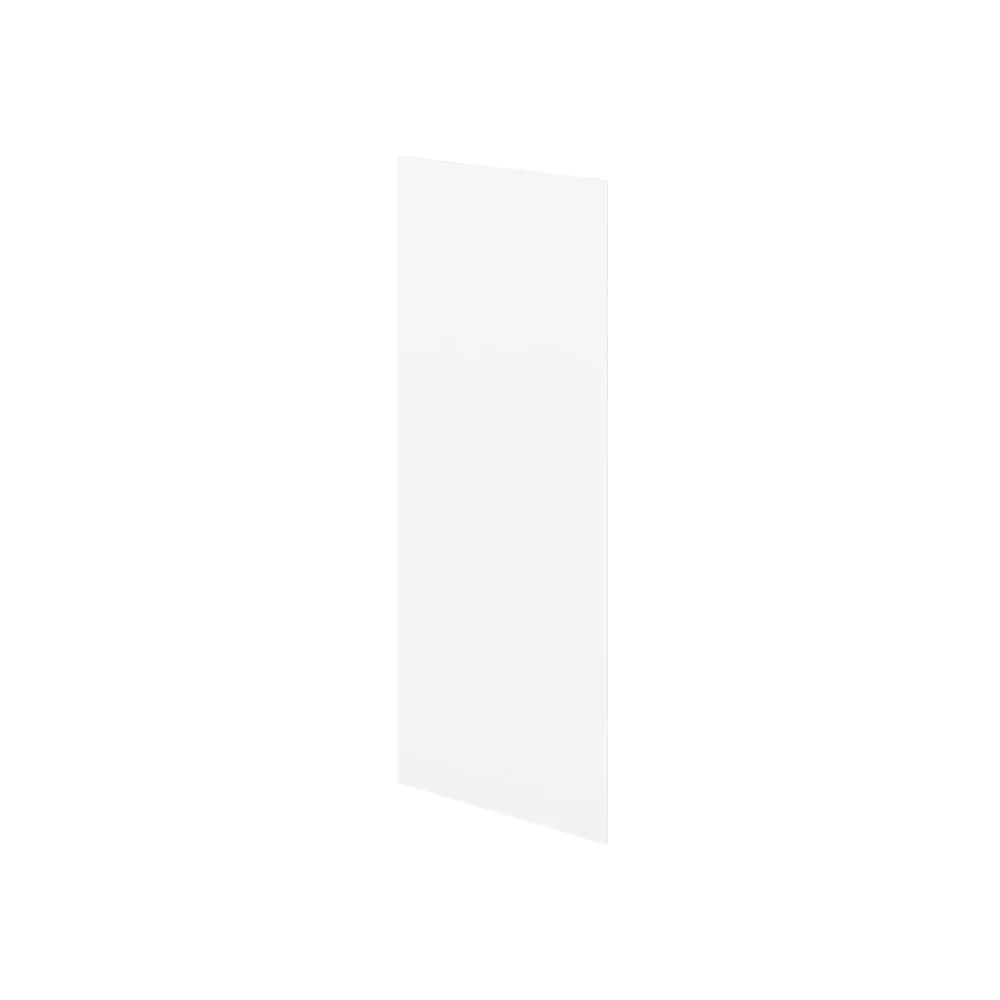

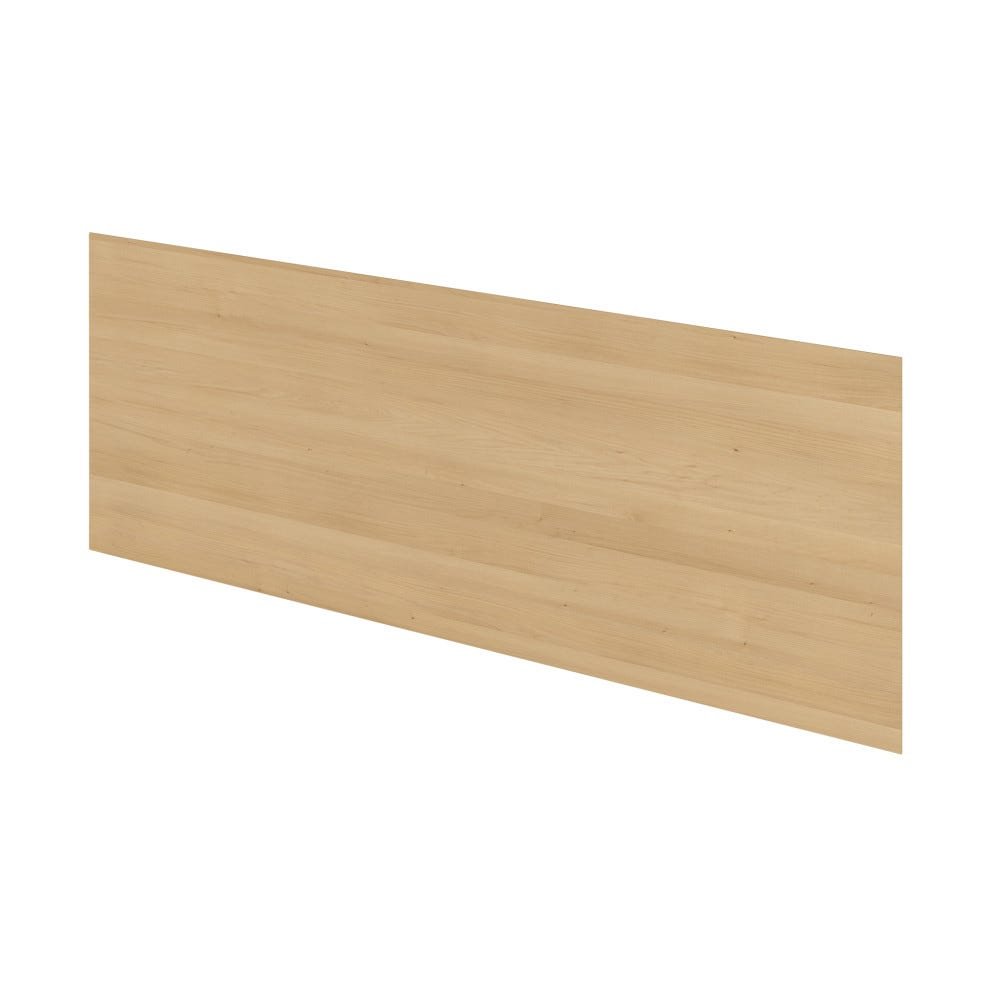

PH3696: 36 × 96 inches, flat panel with horizontal grain.

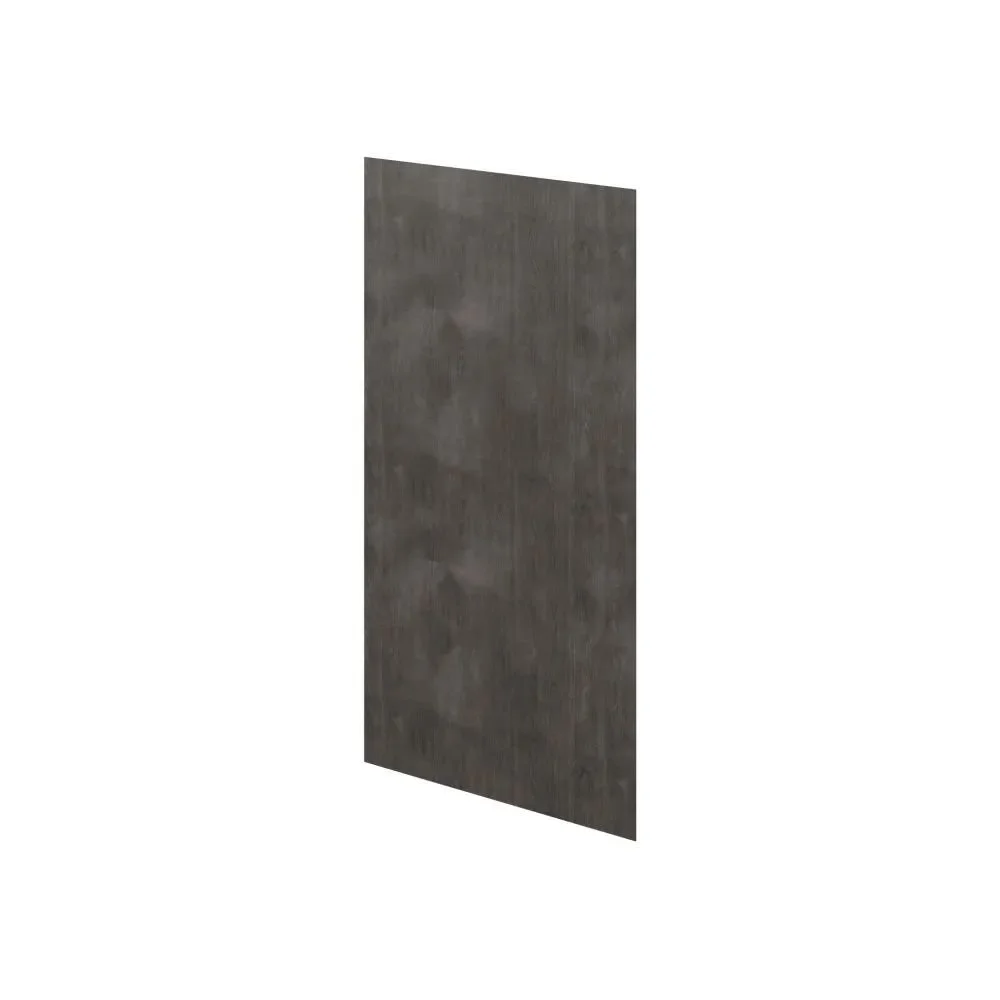

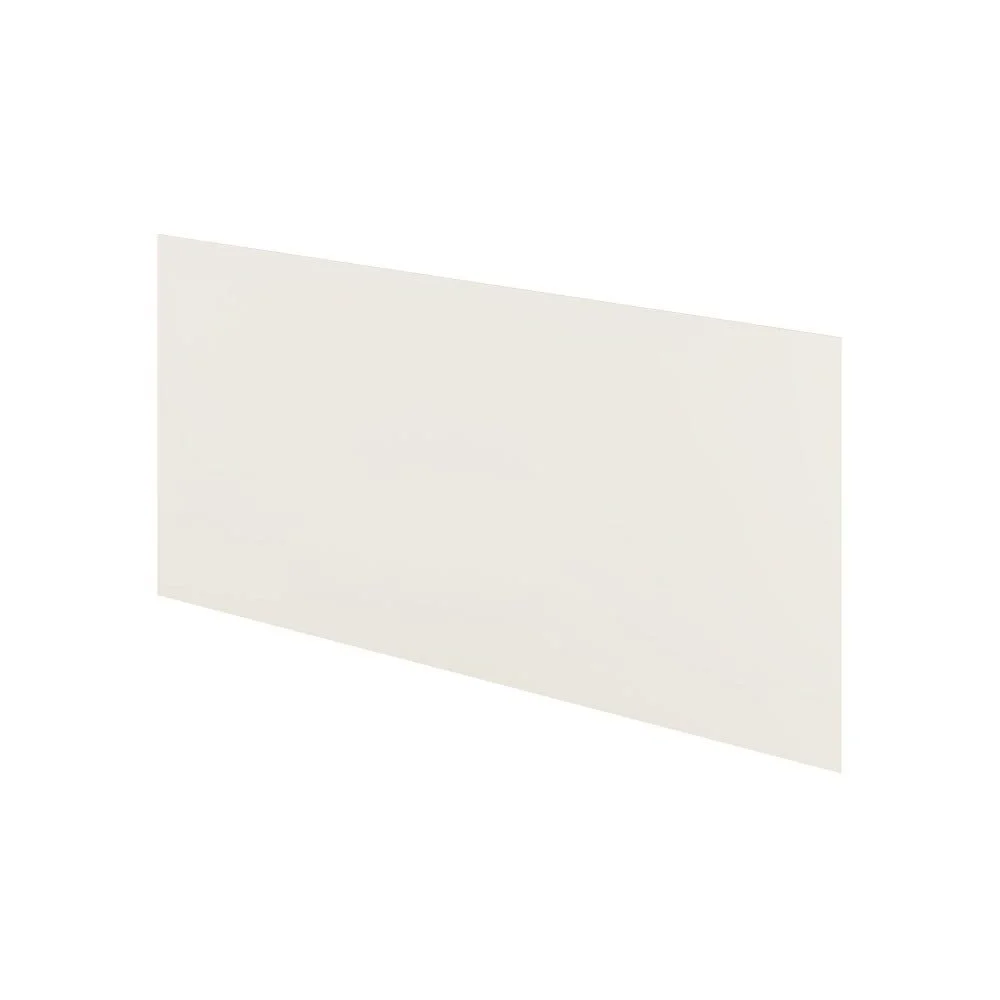

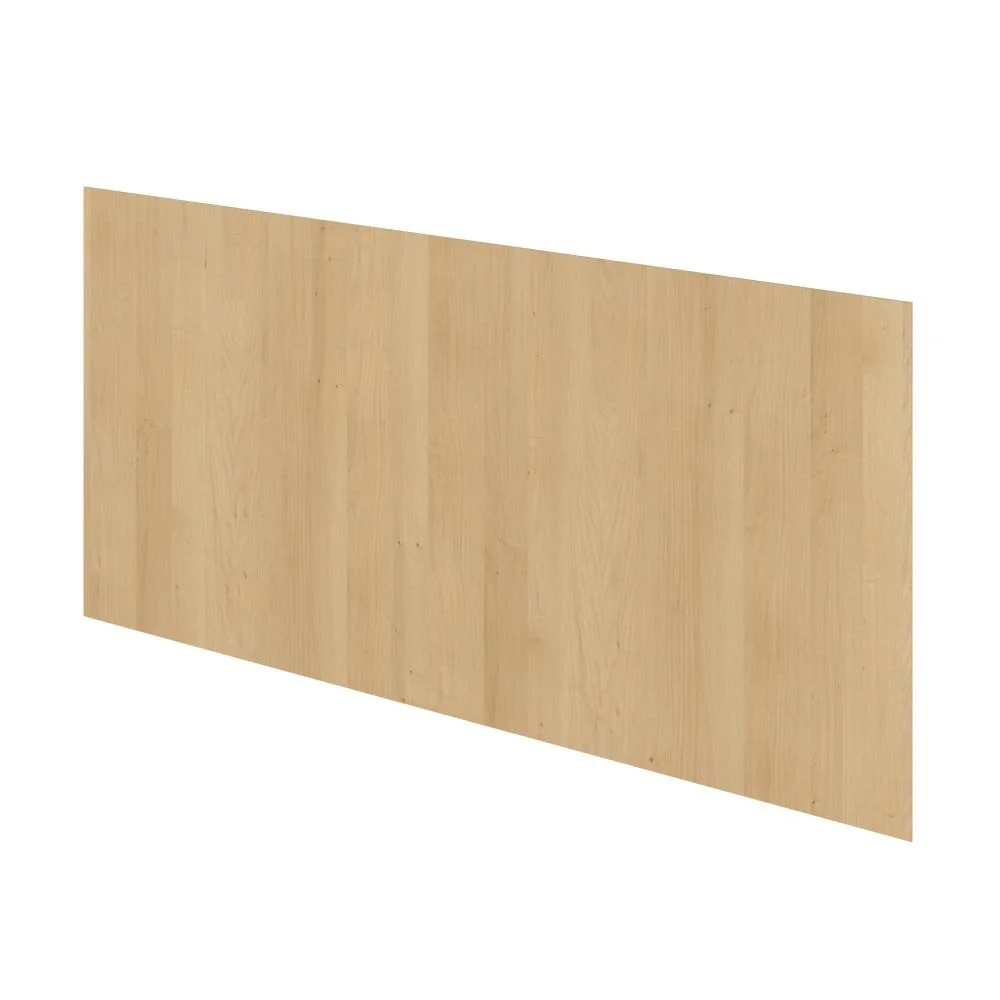

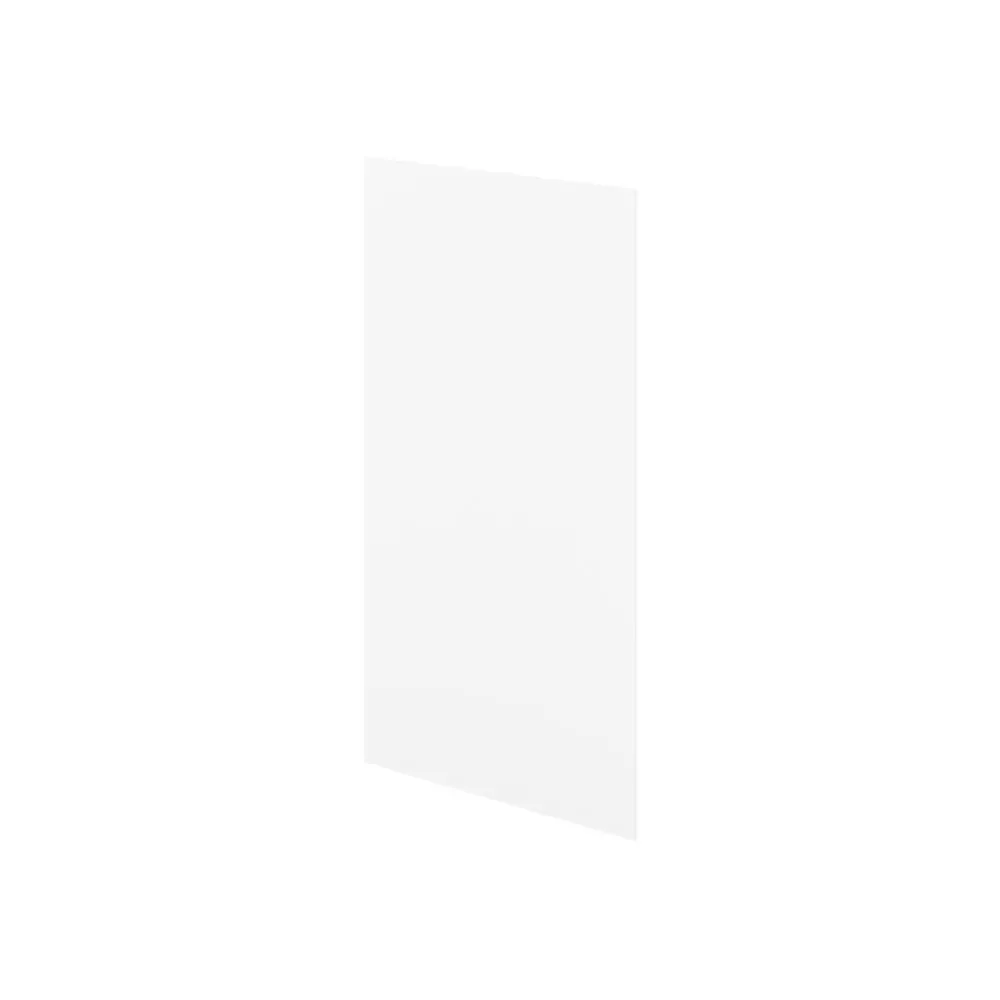

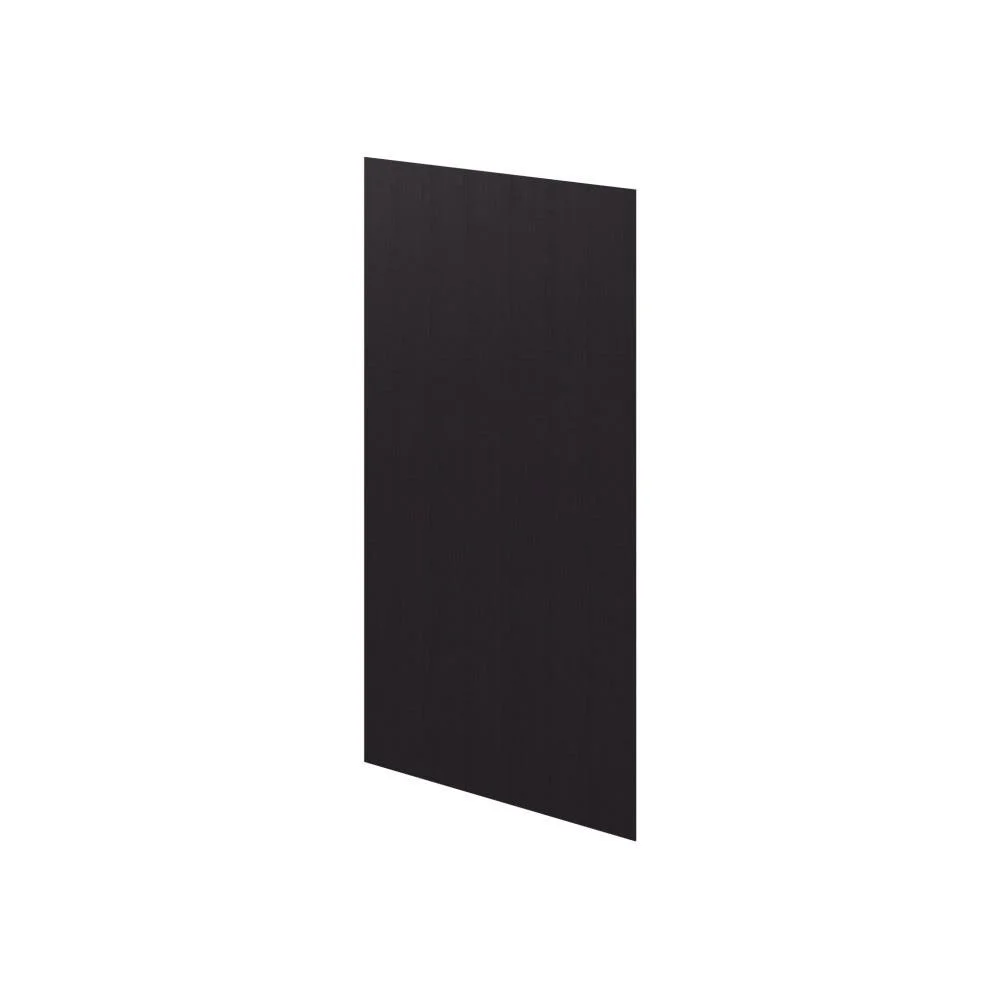

PV4896: 48 × 96 inches, flat panel with vertical grain.

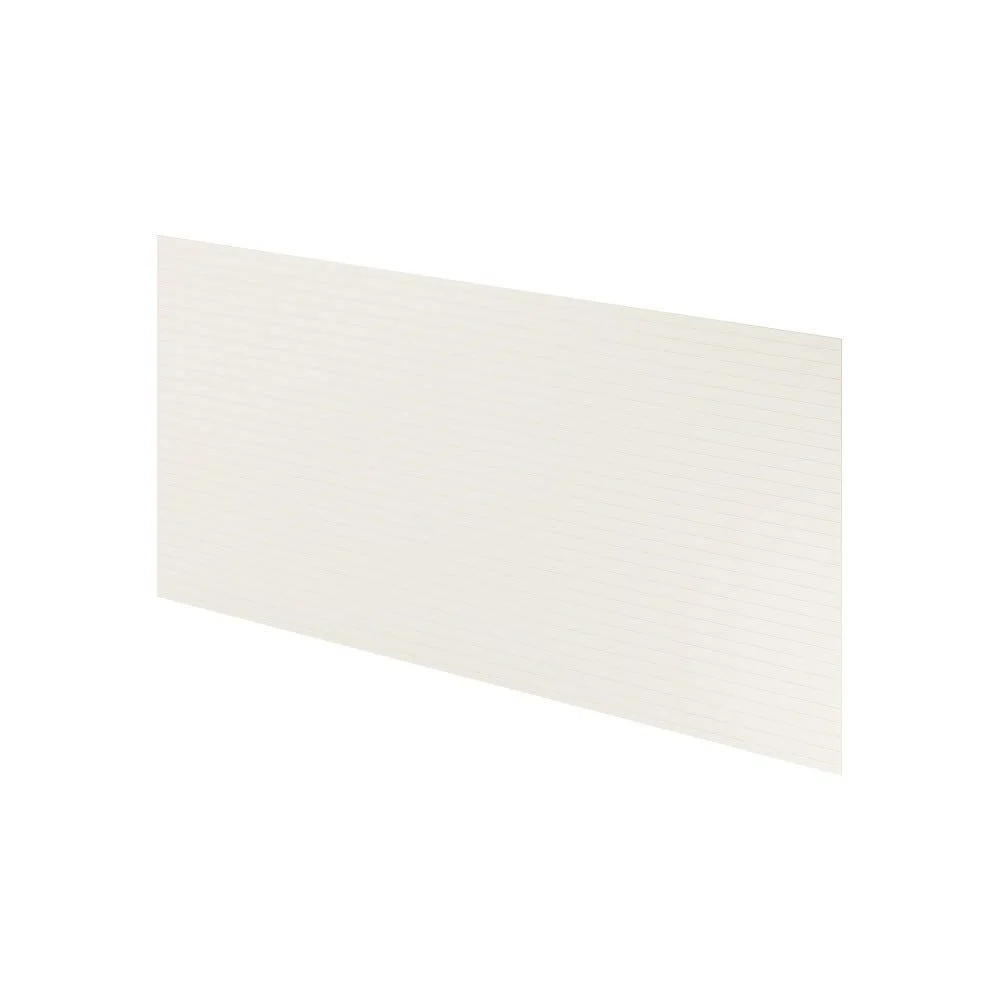

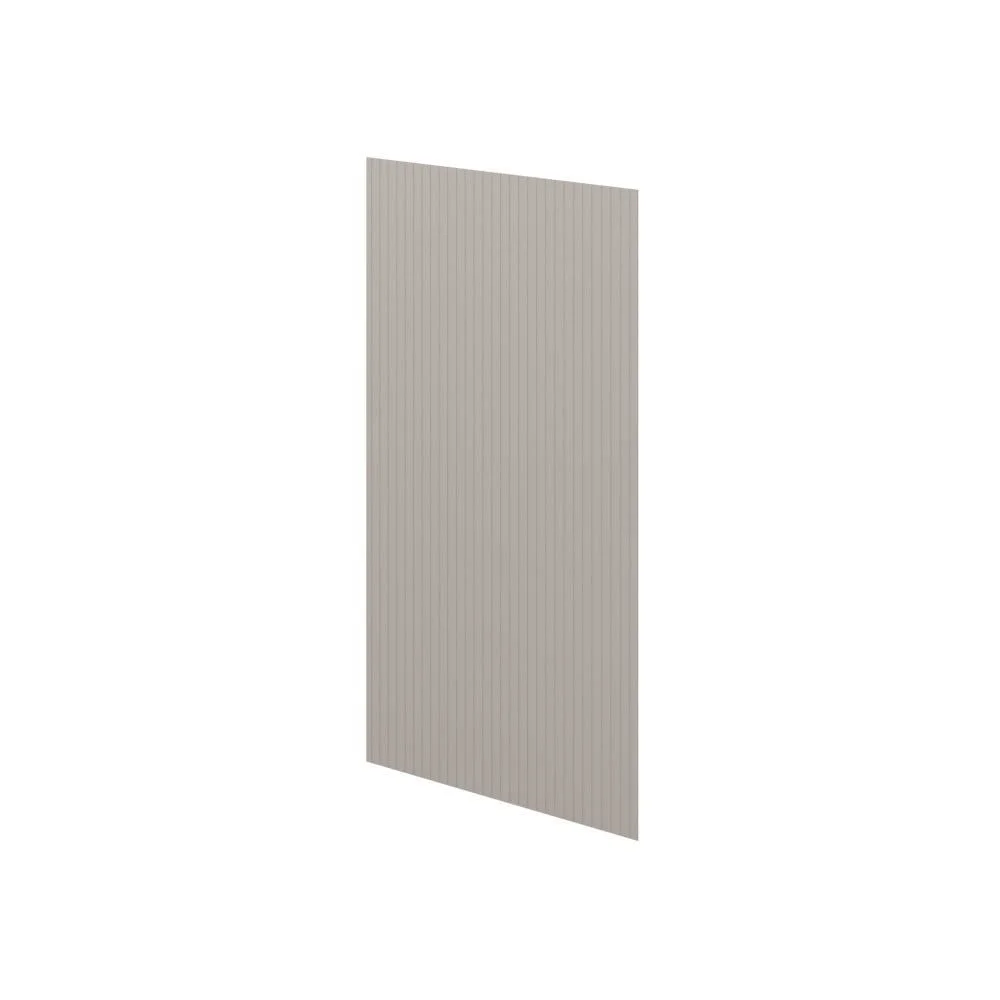

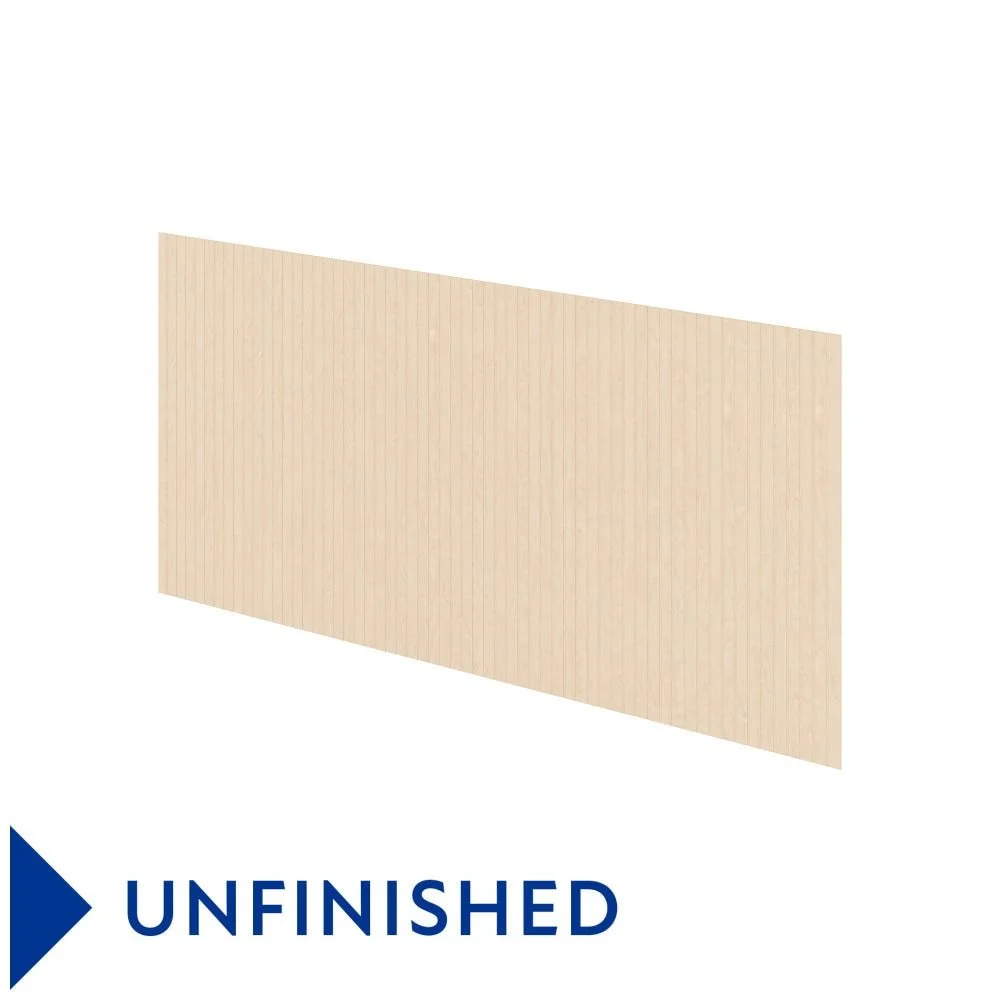

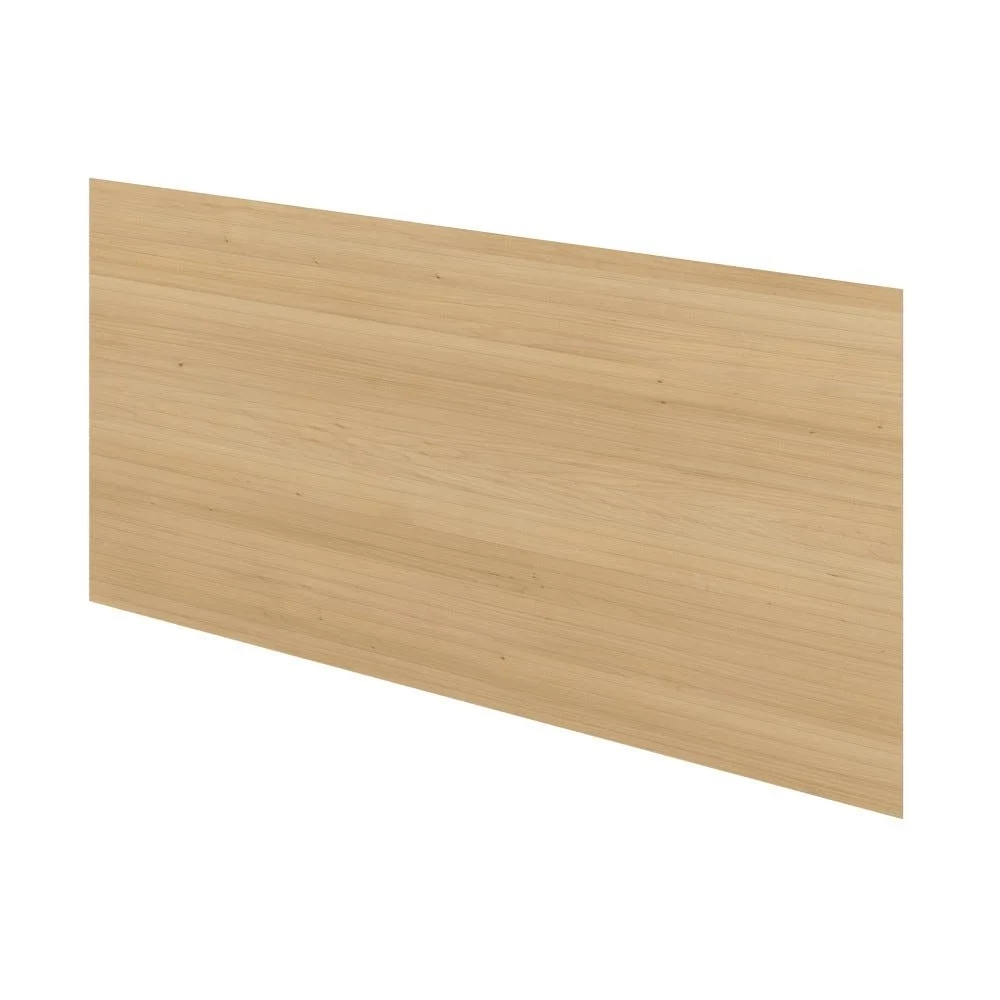

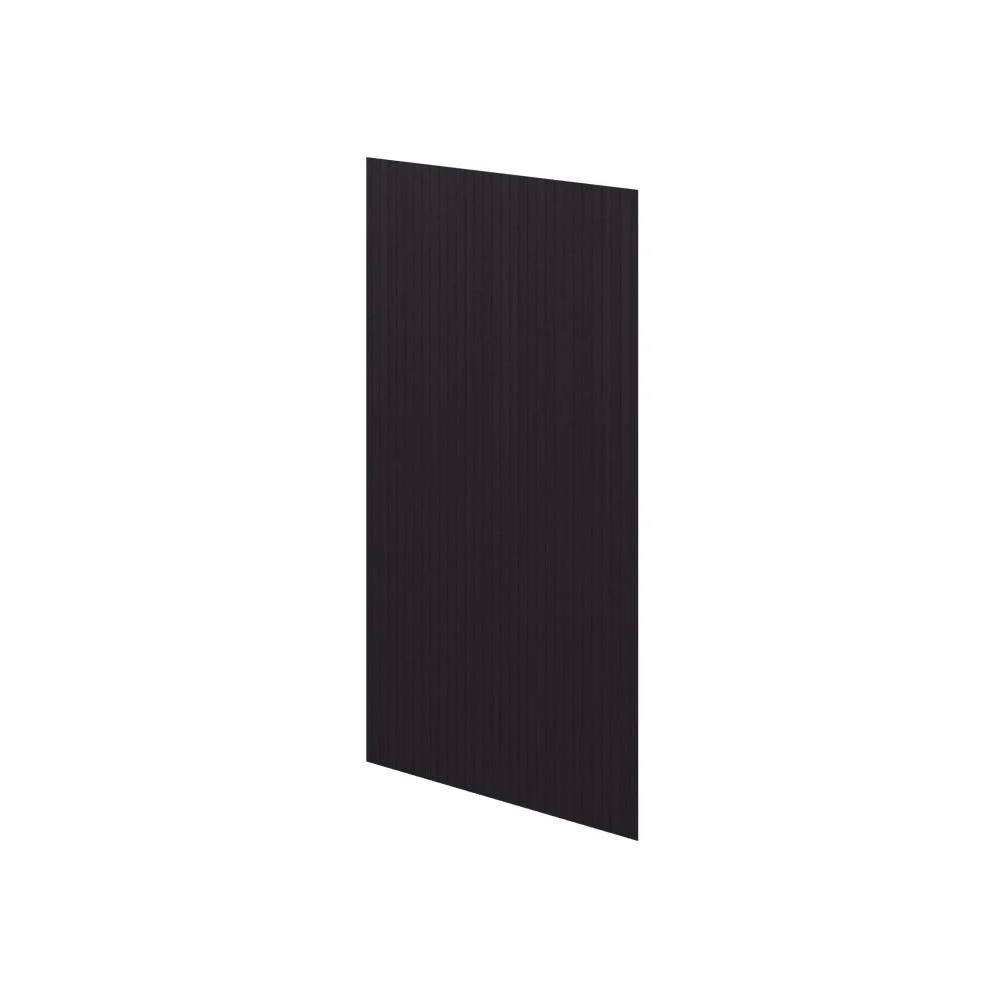

PBBH4896: 48 × 96 inches, beaded panel with horizontal grain.
Thickness and fit: These products are listed by Catalina as 1/4-inch panels. The linked manufacturer drawings show a 3/16-inch panel thickness. Confirm the current supplied thickness before planning a close-fitting groove, recess, or edge detail. Use the drawing for the selected model to check grain orientation and the beaded profile.
Which finishes are offered?

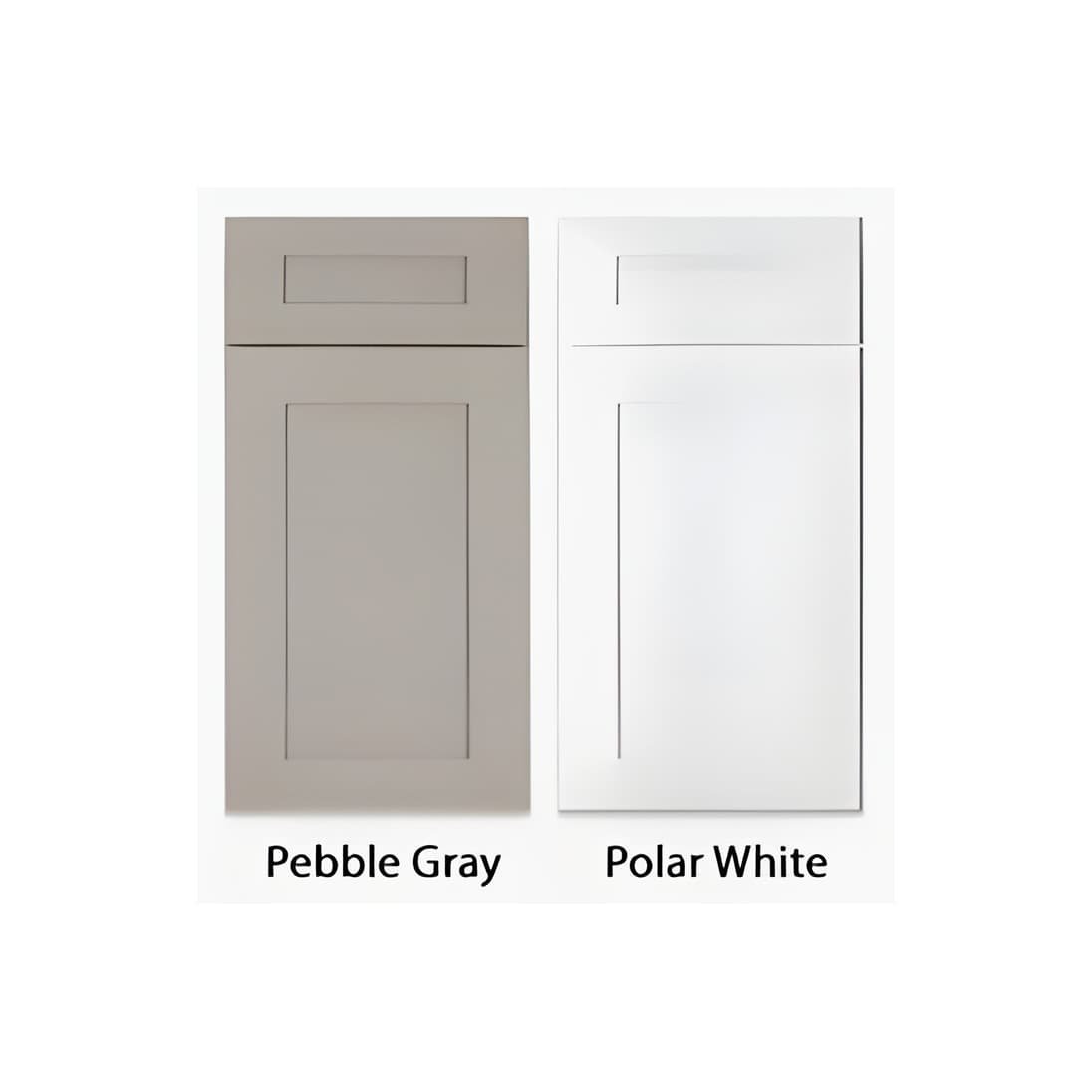

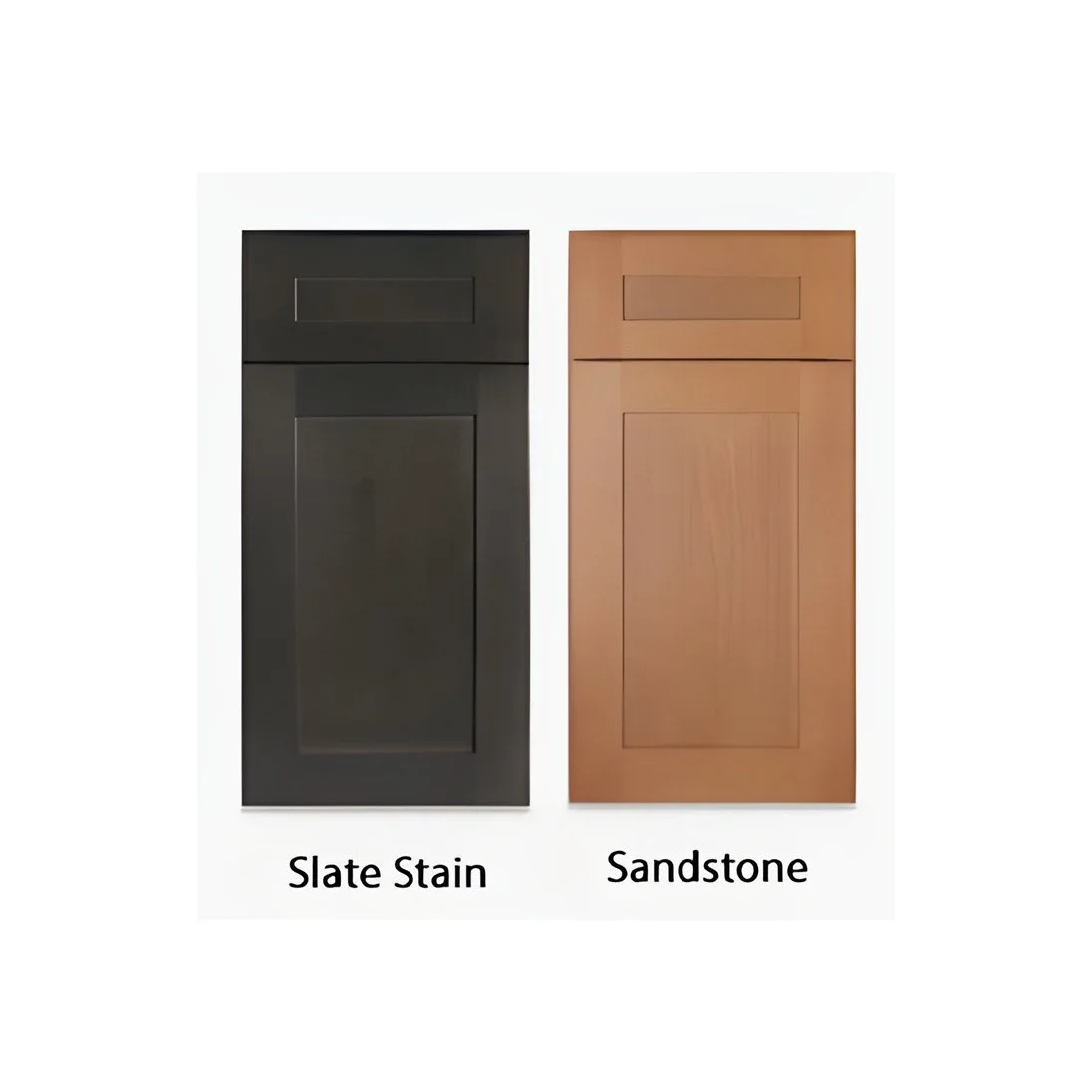

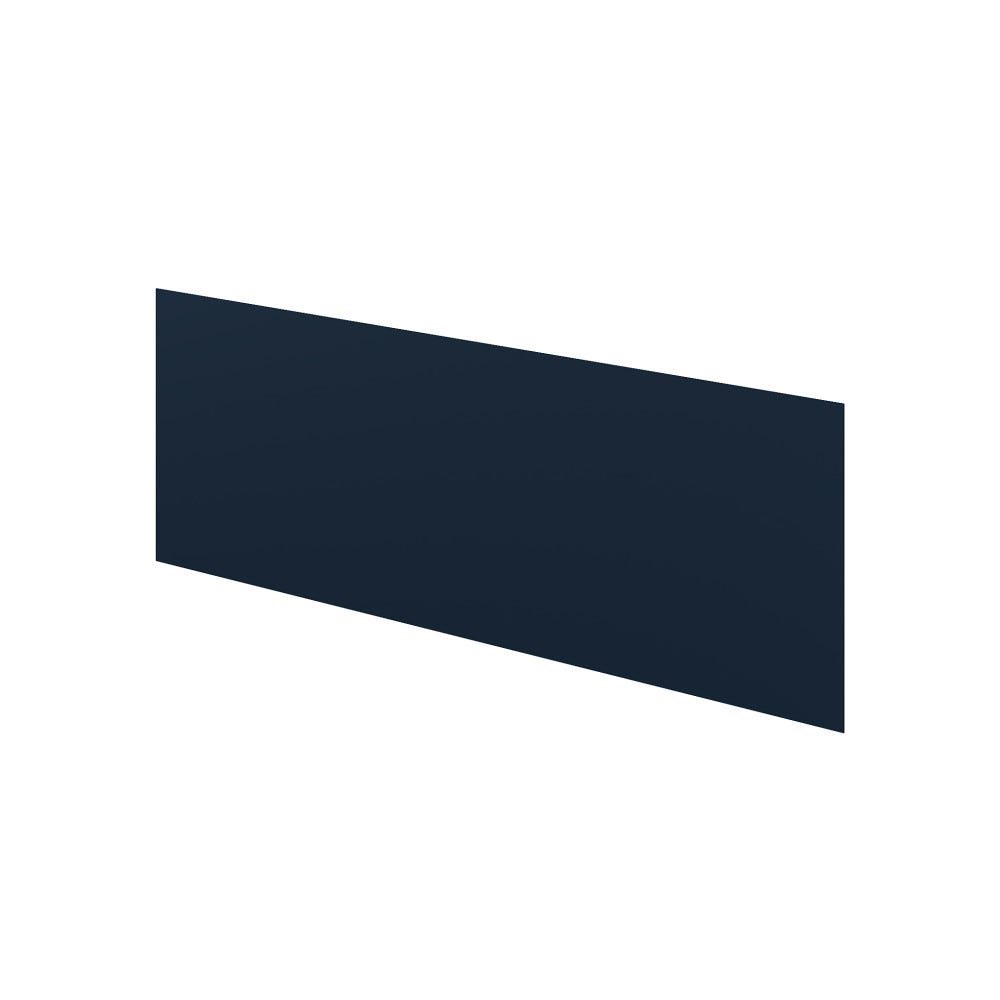

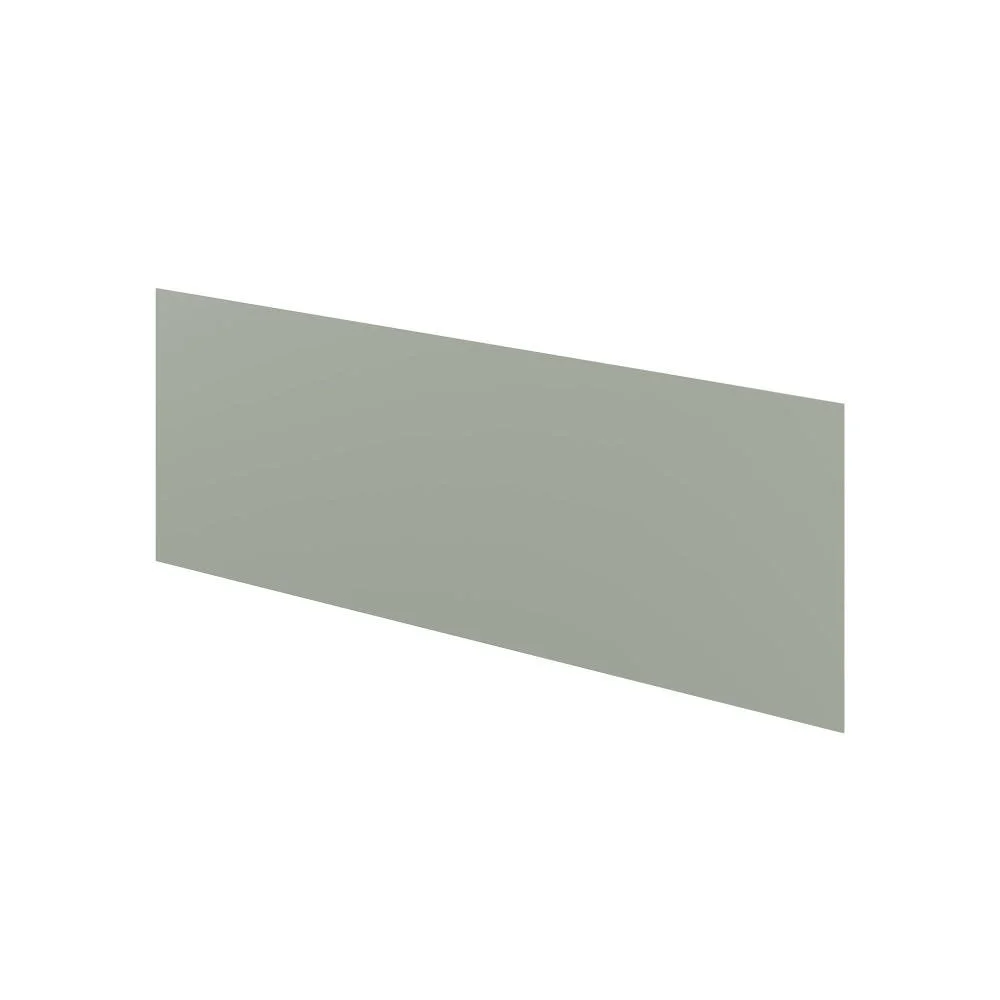

All four models are offered in Polar White, Shell White, Pebble Gray, Slate, Espresso, Sandstone, and Unfinished. Sage Green and Nautical Blue are offered only on PH3696, the 36 × 96-inch horizontal-grain flat panel. Those two finishes are not offered on the other three models.
Select the finish and model together before completing your cabinetry layout. For manufacturer part numbers, add -PWH (Polar White), -SW (Shell White), -PGRY (Pebble Gray), -SL (Slate), -ESP (Espresso), -SD (Sandstone), or -UF (Unfinished) to the model. PH3696 also offers -SG (Sage Green) and -NB (Nautical Blue).
Drawings and coordinating products
For a door-style finish on an exposed cabinet side, compare the Catalina base decorative end panel or wall decorative end panels. Browse the full Catalina collection or contact MDI for help matching panels to your layout.
