Filler overlay—not a regular filler. This decorative wood face installs over a separate regular filler to finish the front of a Catalina full-overlay cabinet layout. A regular filler closes the gap beside a cabinet; this overlay dresses the front of that filler. An overlay alone does not replace the regular filler needed to close the gap.
The model code is nominal. The 3-series overlays are actually 2-1/2 inches wide, and the 6-series overlays are 5-1/2 inches wide. Actual heights are 1/2 inch shorter than the nominal 30-, 36-, 42- or 96-inch size. All are 3/4 inch thick.
FO330: 2-1/2" W x 29-1/2" H x 3/4" T Filler Overlay.
FO336: 2-1/2" W x 35-1/2" H x 3/4" T Filler Overlay.
FO342: 2-1/2" W x 41-1/2" H x 3/4" T Filler Overlay.
FO396: 2-1/2" W x 95-1/2" H x 3/4" T Filler Overlay.
FO630: 5-1/2" W x 29-1/2" H x 3/4" T Filler Overlay.
FO636: 5-1/2" W x 35-1/2" H x 3/4" T Filler Overlay.
FO642: 5-1/2" W x 41-1/2" H x 3/4" T Filler Overlay.

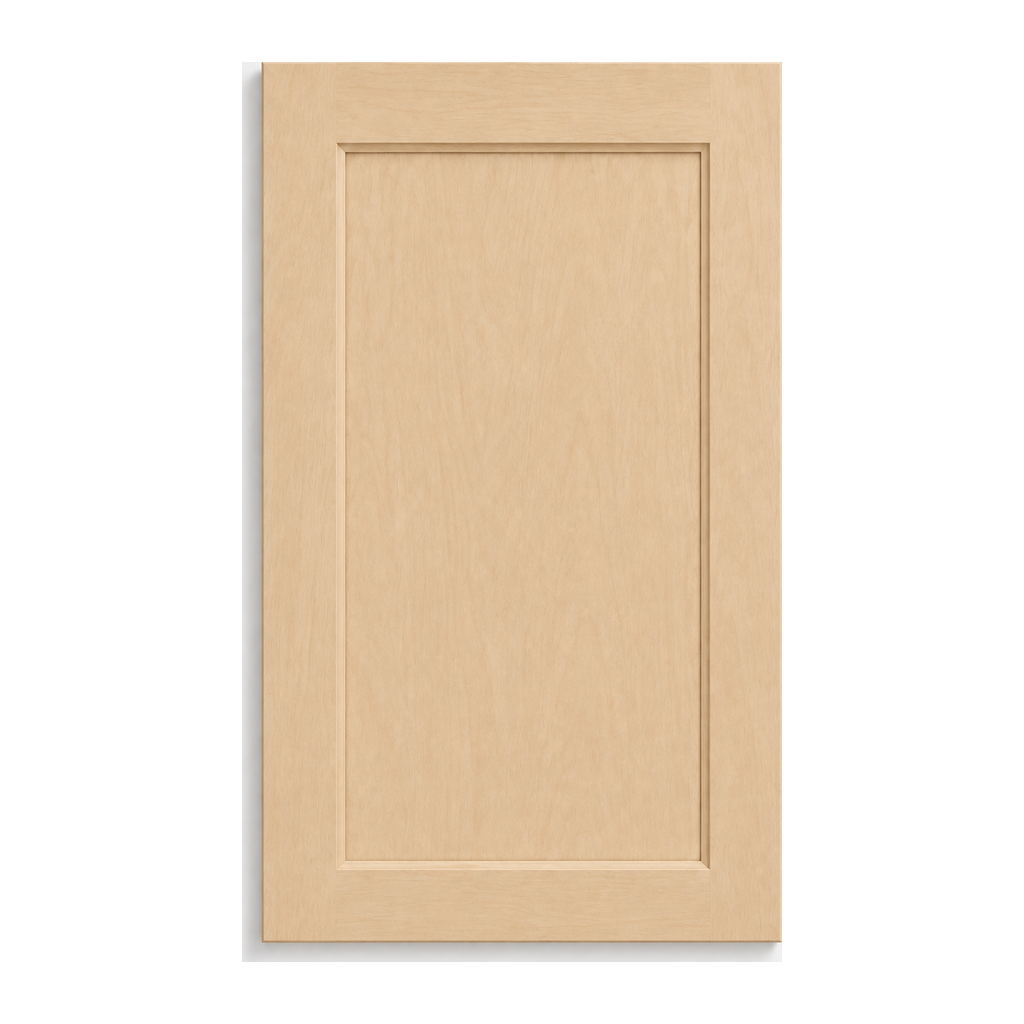

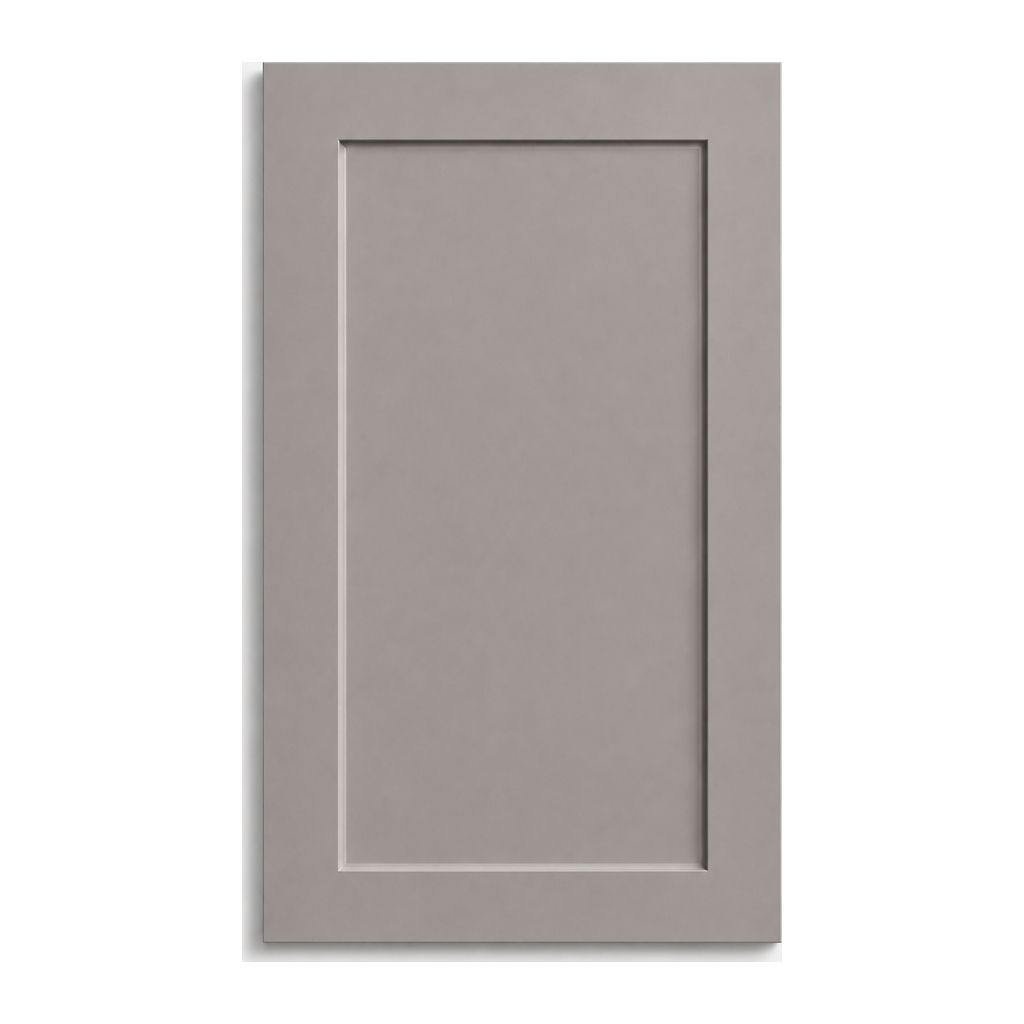

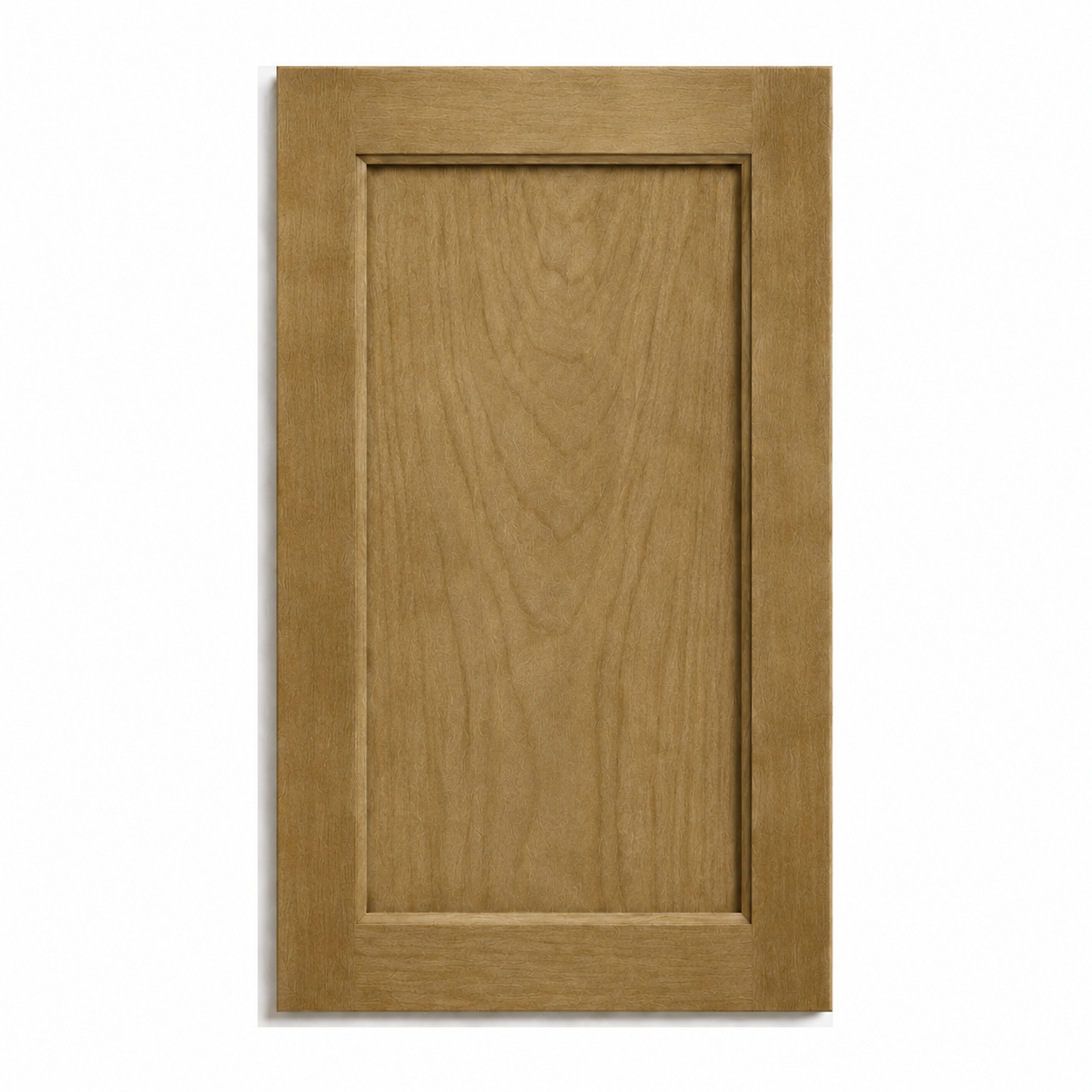

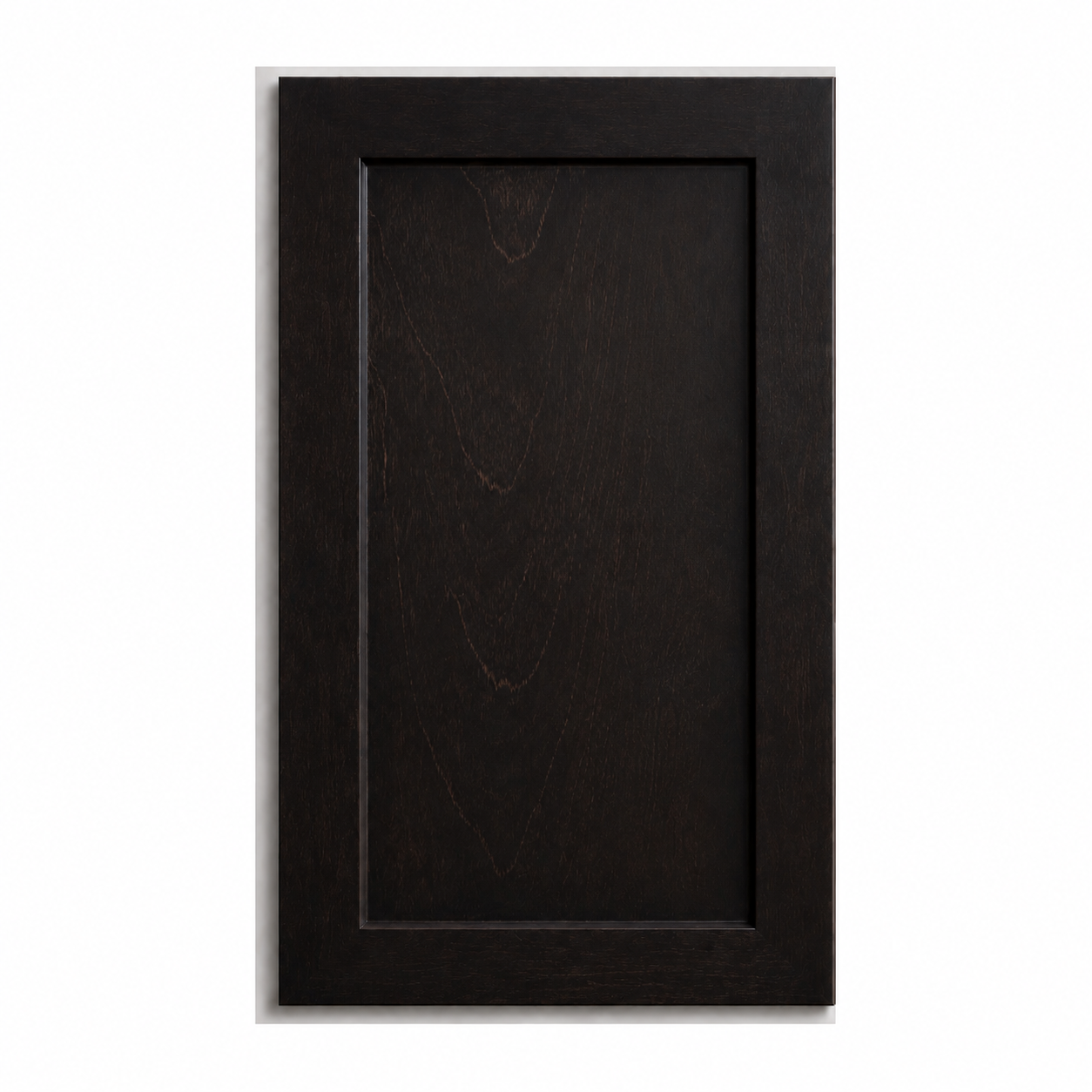

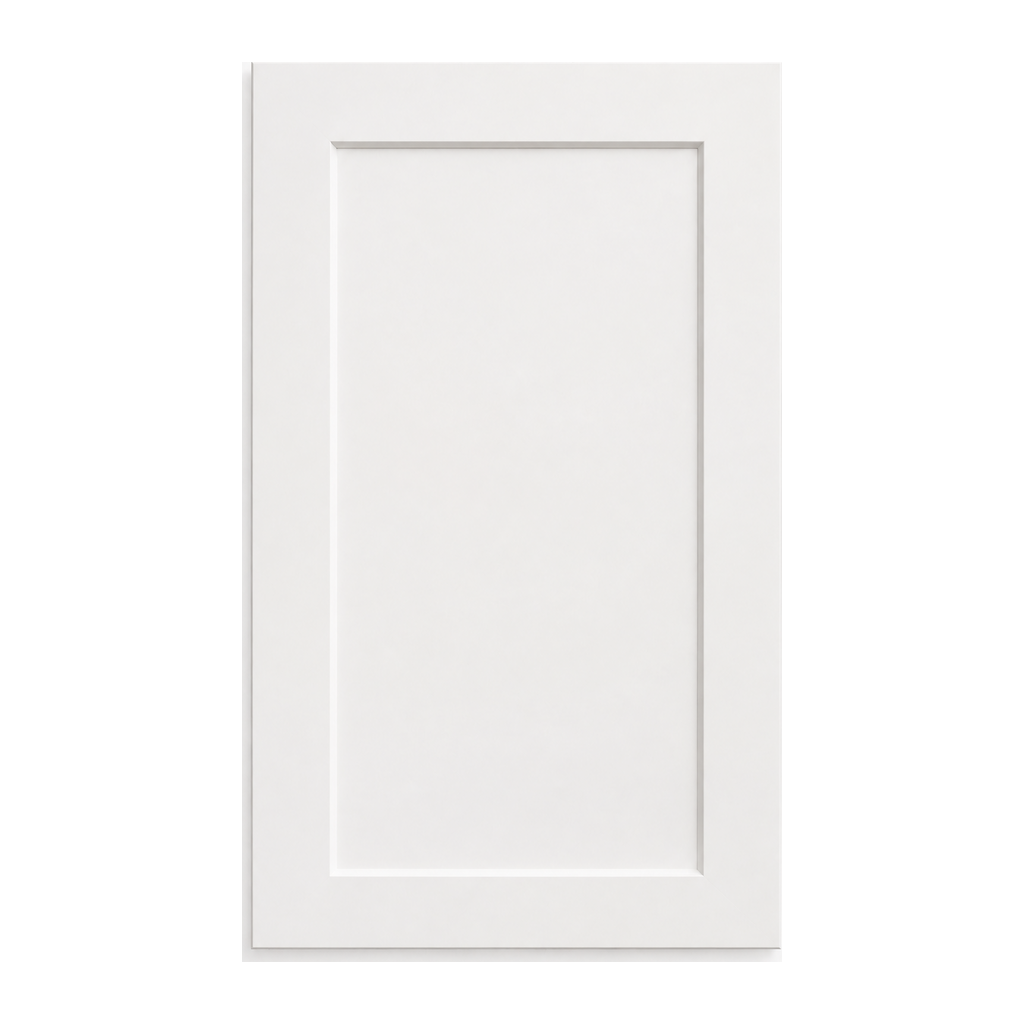

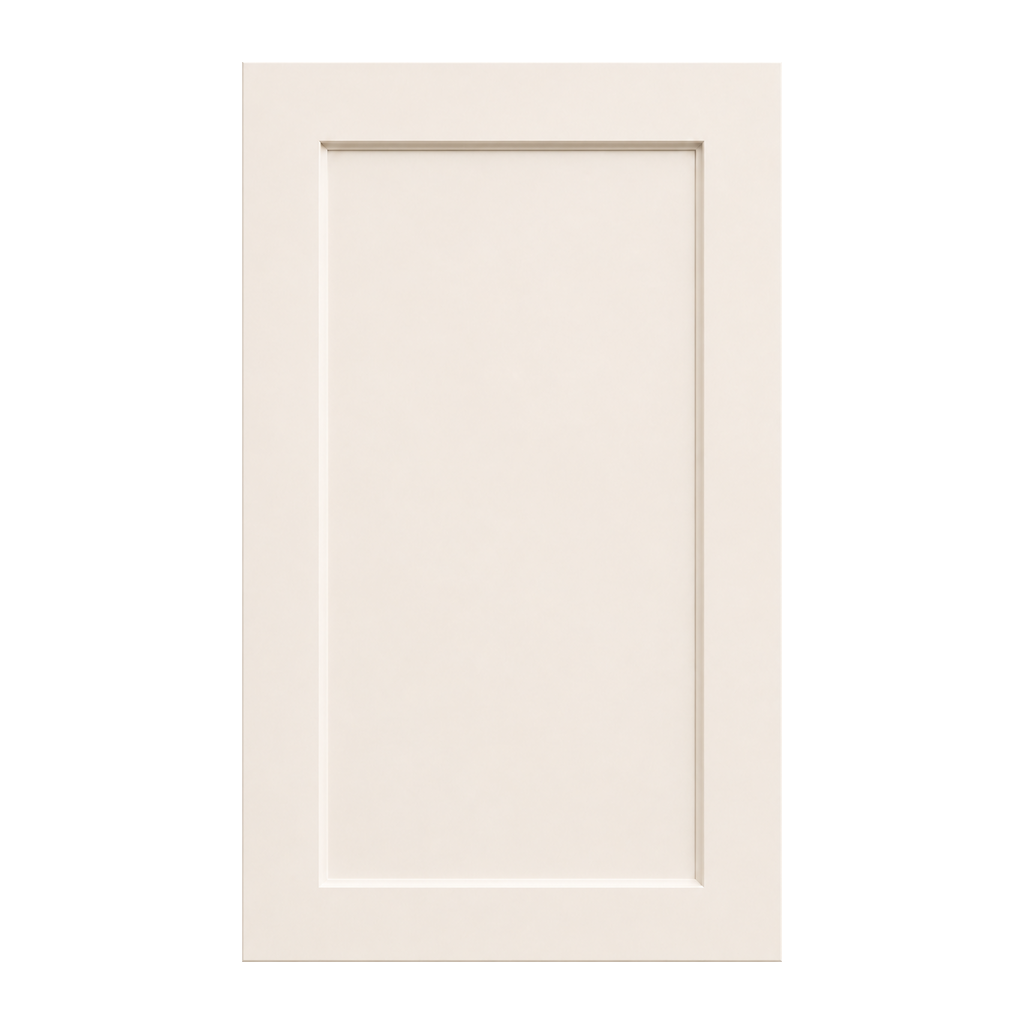

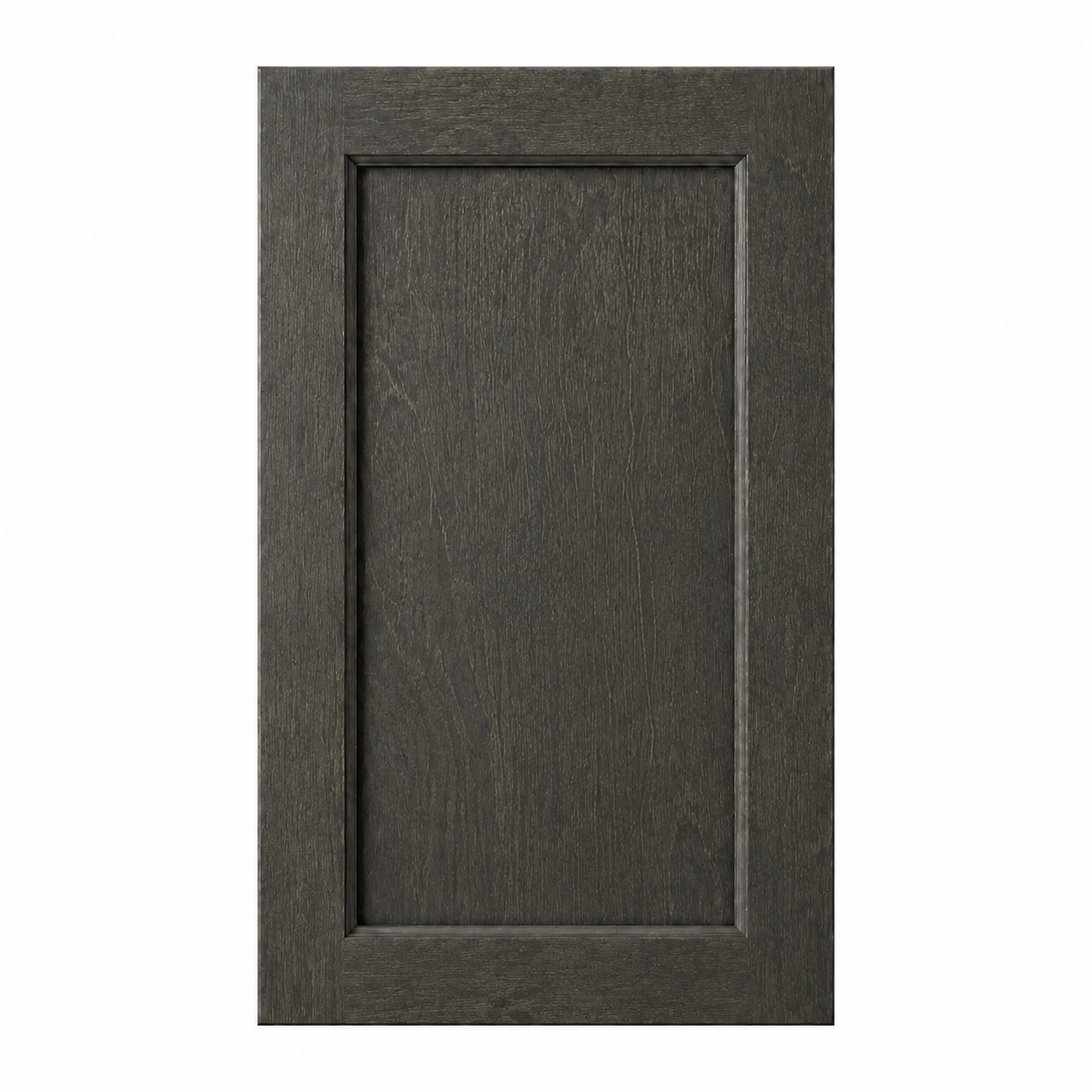

Polar White, Shell White, Pebble Gray, Slate, Espresso, Sandstone and Unfinished. Sage Green and Nautical Blue are not offered in this product family. Check the finish availability of each matching cabinet before completing your layout.

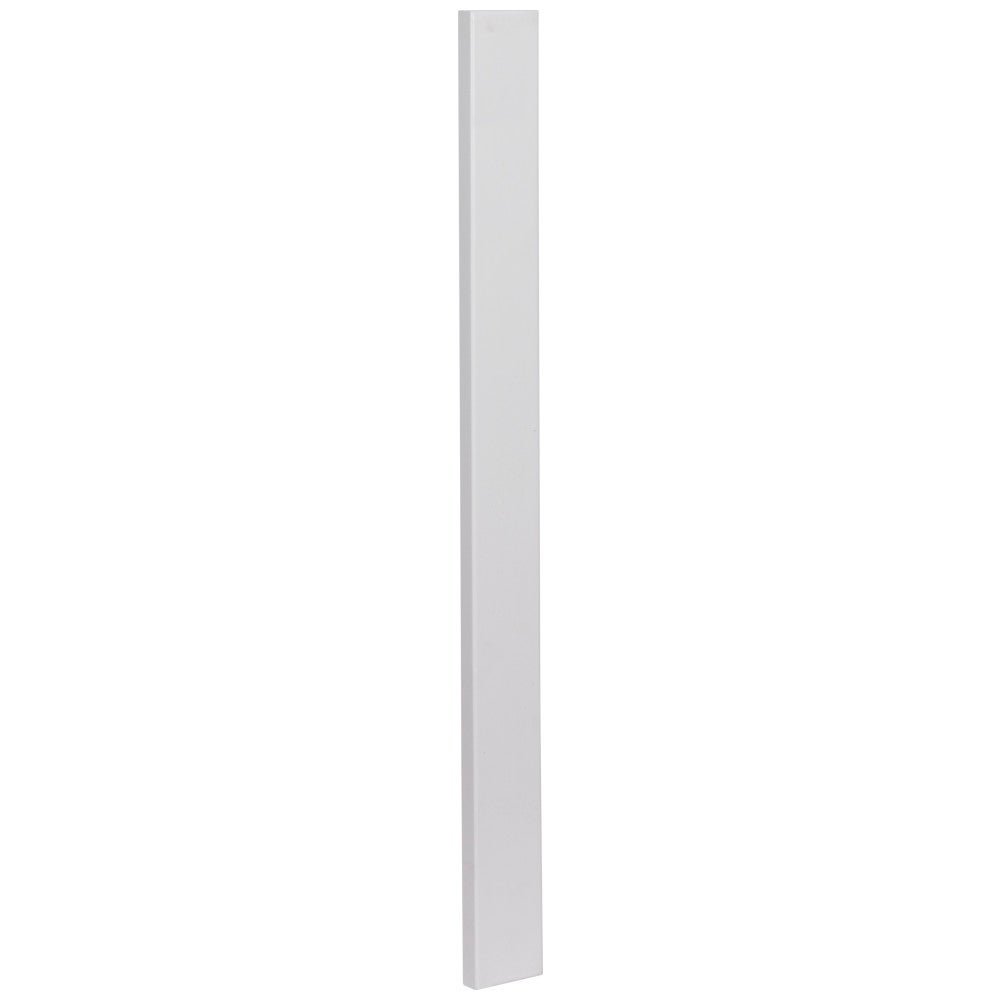

Sold individually. The underlying regular filler is not included and must be ordered separately. The main product image shows Polar White; the finish samples show the other available colors. Product dimensions describe the part, not its shipping package.
Compare plain 3-inch fillers, plain 6-inch fillers and fluted fillers. Browse the Catalina collection, or contact MDI Luxury Cabinetry for layout assistance.
