Catalina Universal Oven Cabinets combine a flexible appliance enclosure with two upper Shaker doors and one bottom drawer. These NorthPoint QuickBuild cabinets ship unassembled for on-site assembly.
Cabinet sizes (width × height × depth): OVD3384U: 33 × 84 × 24 inches; OVD3390U: 33 × 90 × 24 inches; OVD3396U: 33 × 96 × 24 inches. These are installed cabinet dimensions, not appliance cutout or carton dimensions.
Upper storage: The 84- and 90-inch cabinets have no adjustable upper shelf. The 96-inch cabinet includes one adjustable upper shelf.
Optional drawer configuration: The compatible Universal Oven Drawer Kit, part OVD33D, adds two drawers when using a smaller appliance. The kit is sold separately and must match the cabinet finish. The cabinet as listed includes one bottom drawer; the optional two-drawer kit is not included. Contact MDI to request the matching OVD33D kit and confirm your appliance layout.
Construction: Full-overlay Shaker doors, a ½-inch veneered plywood cabinet box, solid-birch face frame, ⅝-inch solid-wood dovetail drawer box, concealed soft-close hinges and full-extension undermount drawer slides.

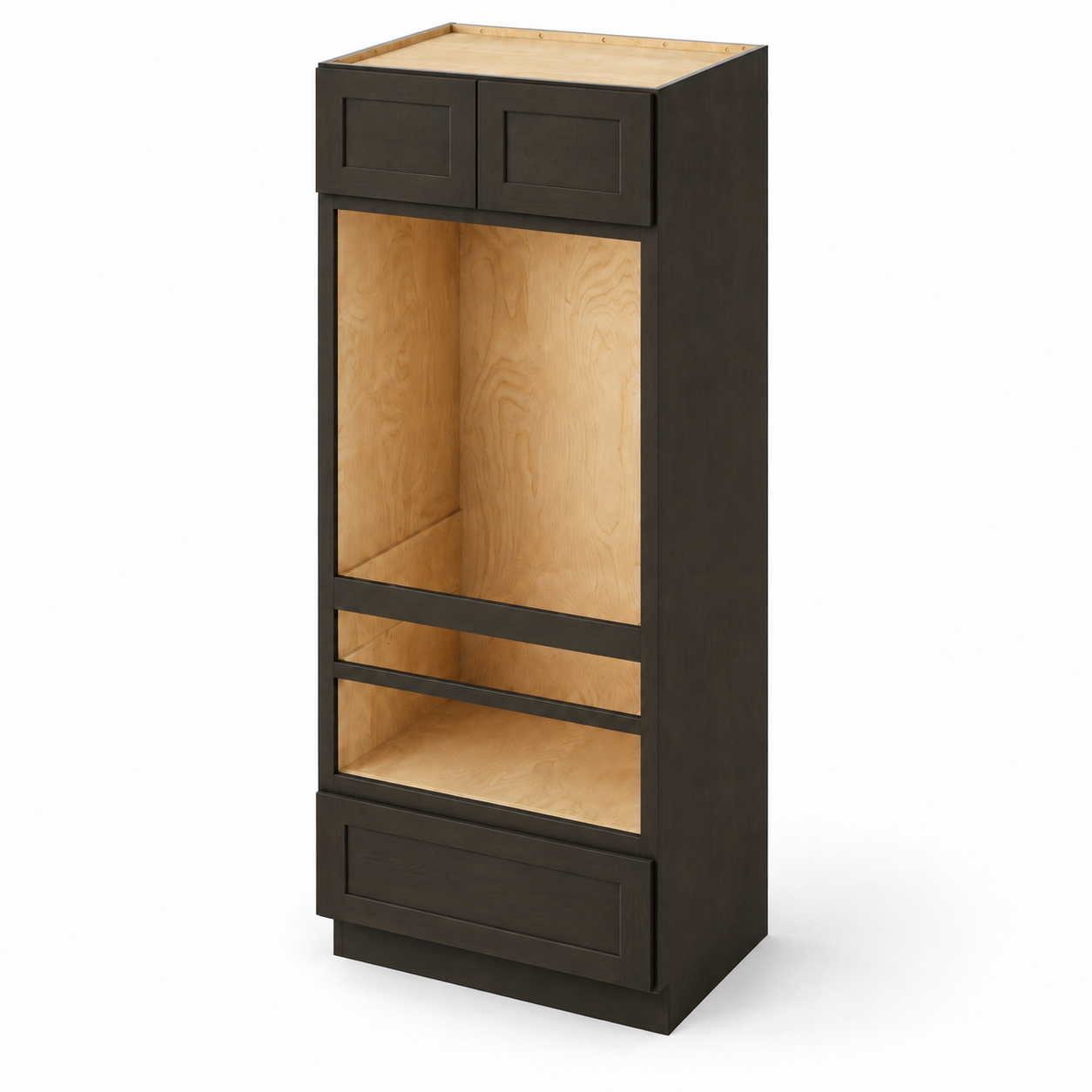

Available finishes: Polar White, Shell White, Pebble Gray, Slate, Espresso, Sandstone and Unfinished. Sage Green and Nautical Blue are not offered for this cabinet. The main image illustrates the 84-inch cabinet in Slate; upper-door height varies with cabinet height. Finish samples show the other available colors.
Confirm appliance fit before ordering. This Universal model can accommodate different oven layouts when configured according to the manufacturer’s instructions. Cabinet width alone does not establish compatibility. Check your appliance’s cutout, support and clearance requirements against the Universal oven cabinet specification drawing and assembly instructions. Appliances are not included.
Compare the separate Catalina Double Oven Cabinet, which uses the OVD33P overlay-panel option for a smaller appliance. Complete your layout with matching pantry cabinets, a microwave base cabinet, or the full Catalina Shaker collection. See the NorthPoint specification catalog, printed pages 48 and 91, for Universal dimensions and accessory availability.
