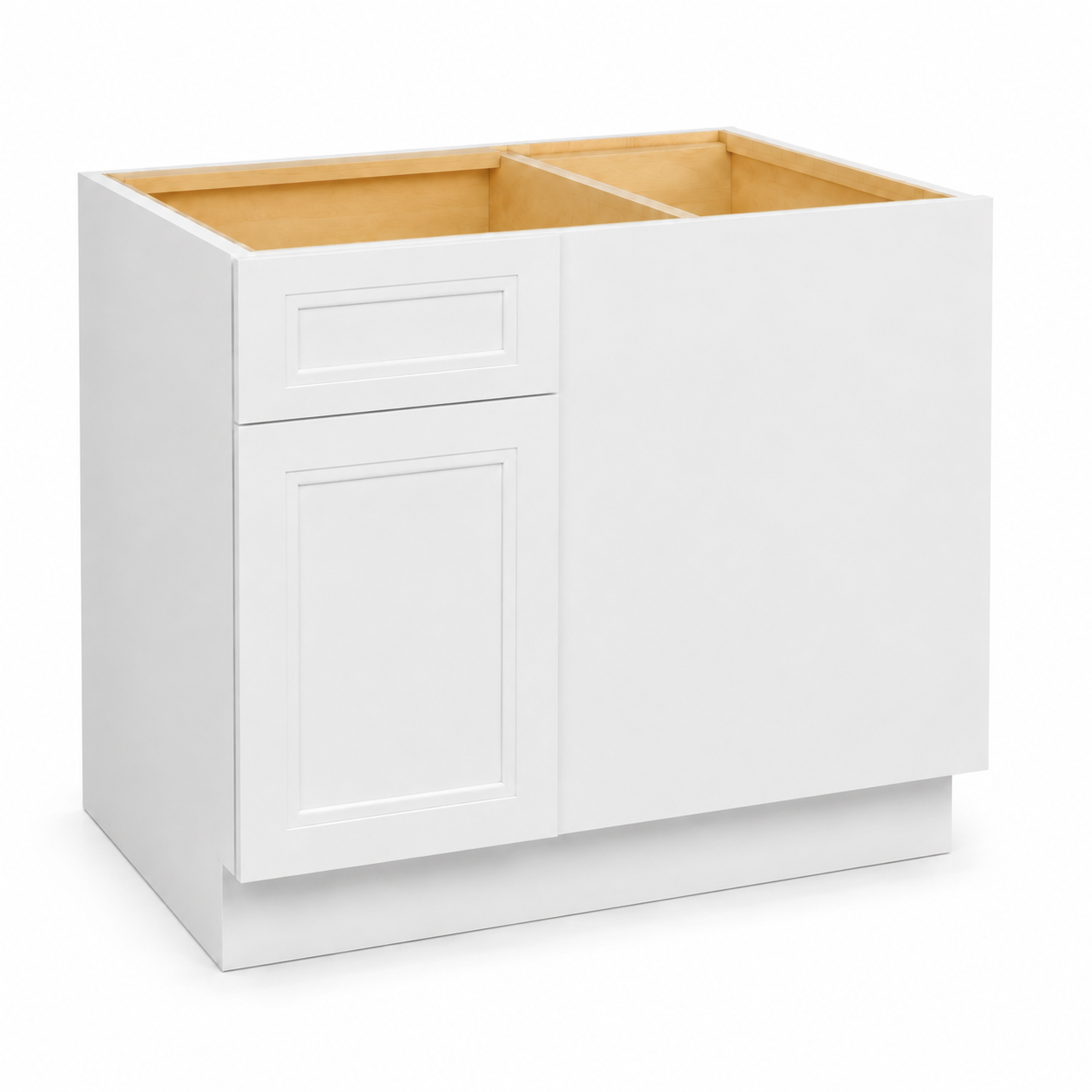

Use an Escada blind corner base to connect two cabinet runs while providing enclosed corner storage, a working drawer, and a coordinated door front. Ships ready to assemble (RTA).
Allow at least a 3-inch concealed gap behind the blind end at the wall where the cabinet runs turn the corner. This installation space lets the installer compensate for an out-of-square wall and gives the door room to swing properly. The gap is behind the blind end; it is separate from any visible filler needed between adjoining cabinet fronts.
Use the model-specific installation-space requirement when planning the cabinet run. If that requirement already includes the wall pull, do not add the same allowance twice. Some models require a larger pull than 3 inches; follow the listed installation range and confirm door, drawer, and handle clearance before fastening.
BBC36: 36 inches wide × 34½ inches high × 24 inches deep. Requires 39 inches of installation space.
BBC39: 39 inches wide × 34½ inches high × 24 inches deep. Requires 42 inches of installation space.
BBC42: 42 inches wide × 34½ inches high × 24 inches deep. Requires 45 inches of installation space.
One door, one drawer, and one shelf. Plan for the required installation space, which is wider than the cabinet itself.
½-inch plywood cabinet box with a solid wood face frame.
Full-overlay, five-piece Escada doors with solid wood stiles and rails and a plywood center panel.
Soft-close, six-way adjustable hinges.
⅝-inch solid wood dovetail drawer boxes with ½-inch plywood bottoms.
Full-extension, soft-close undermount drawer glides with six-way adjustment and matching Escada drawer fronts.
Natural wood veneer interior with a UV-cured finish; interior wood shade may vary.

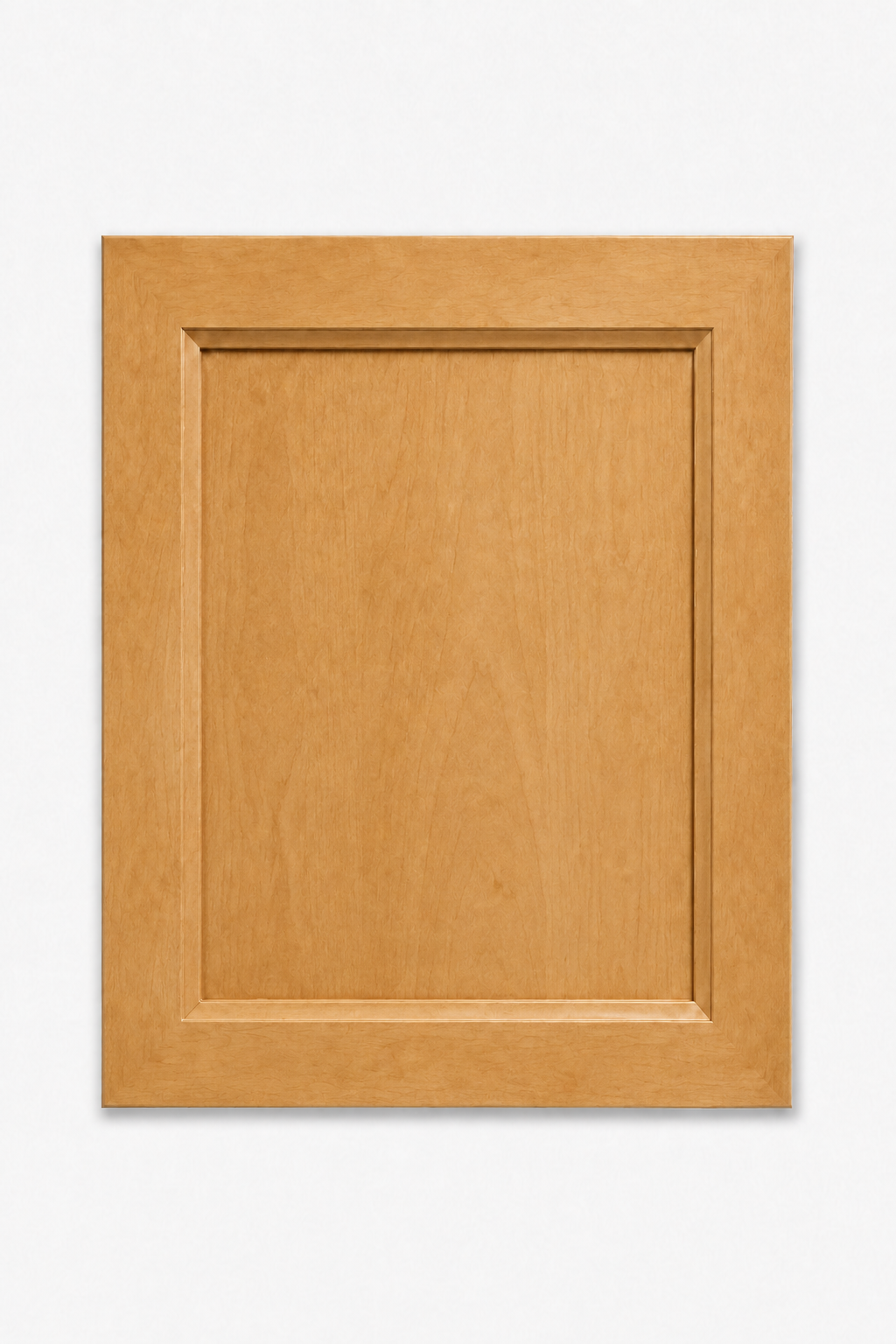

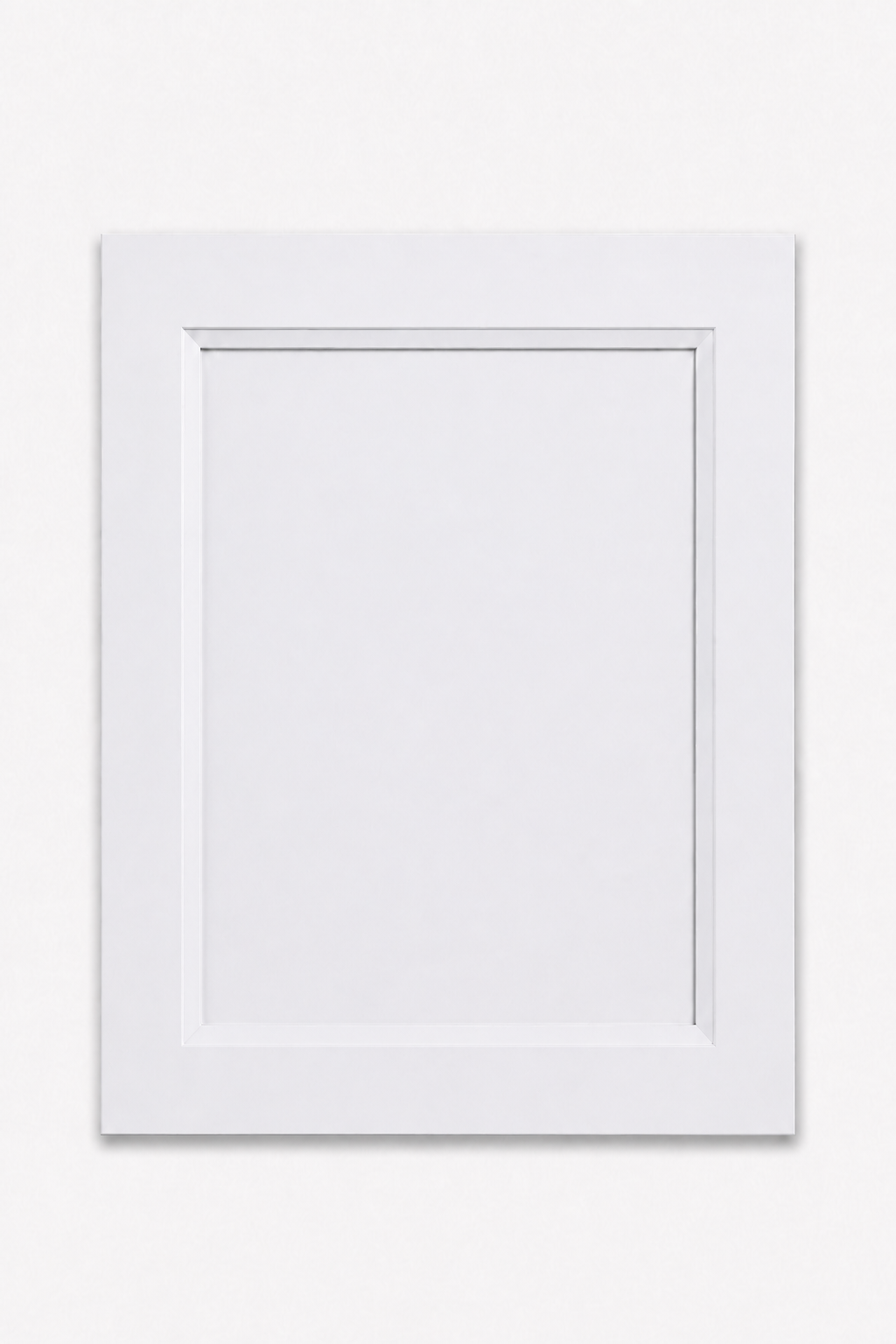

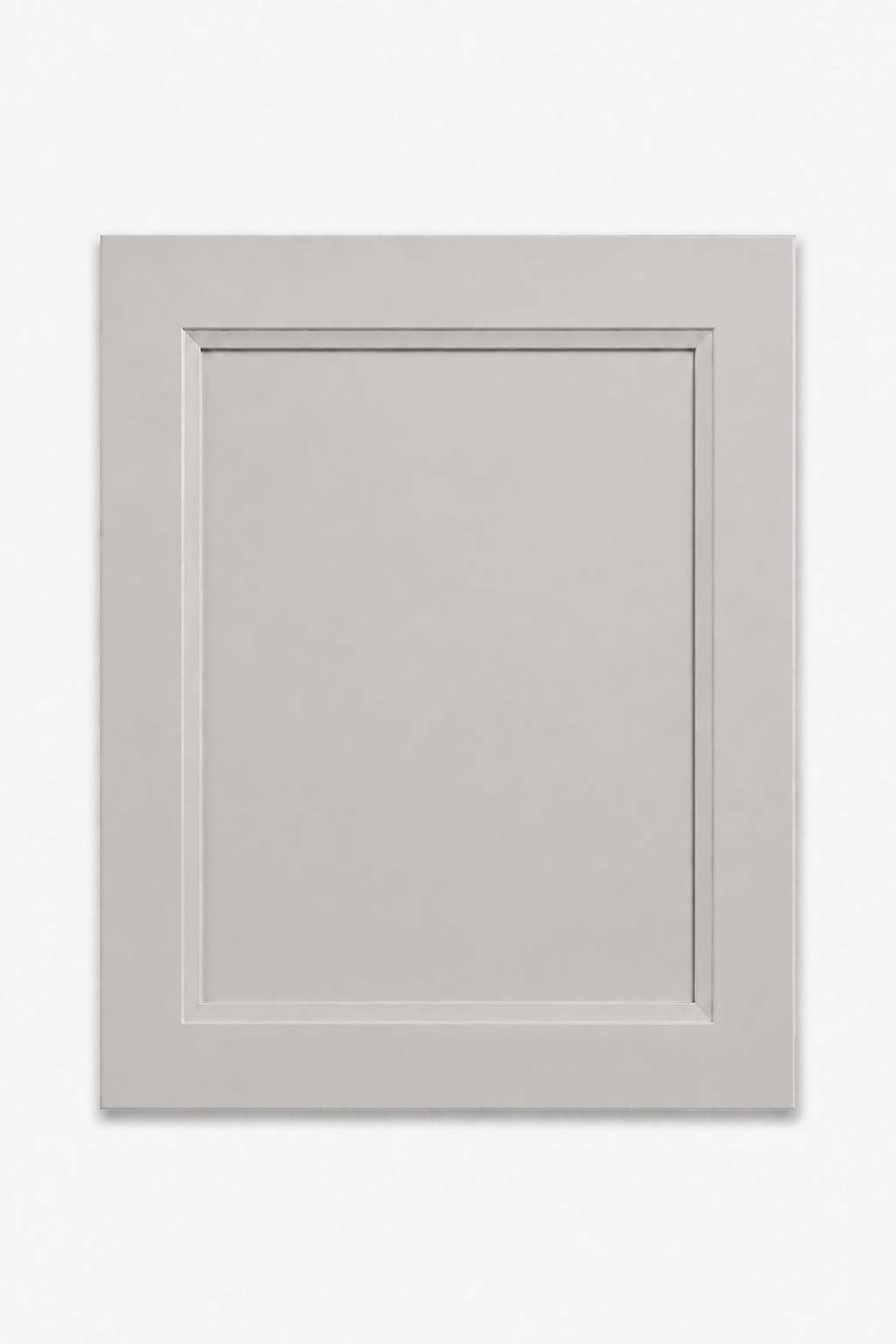

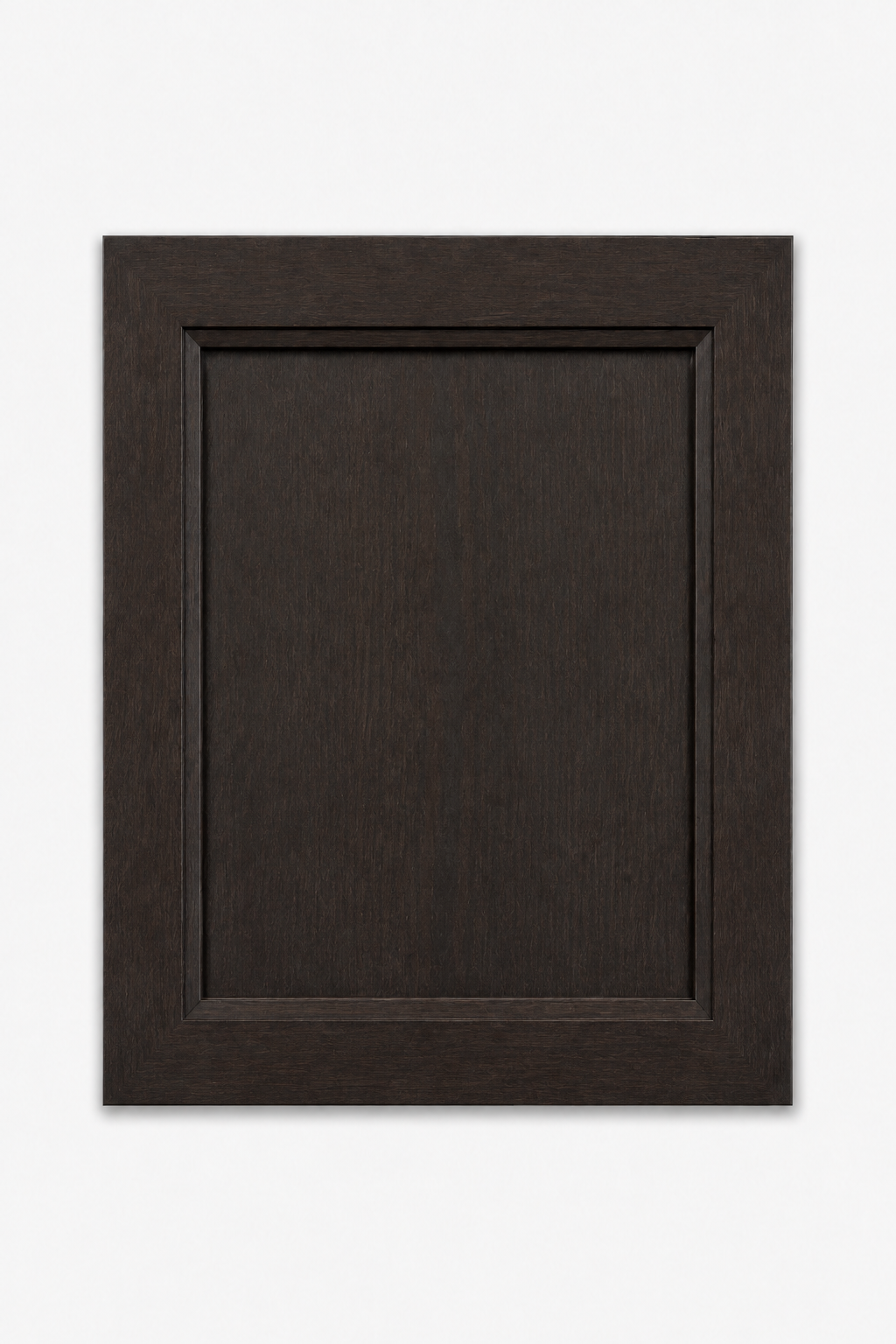

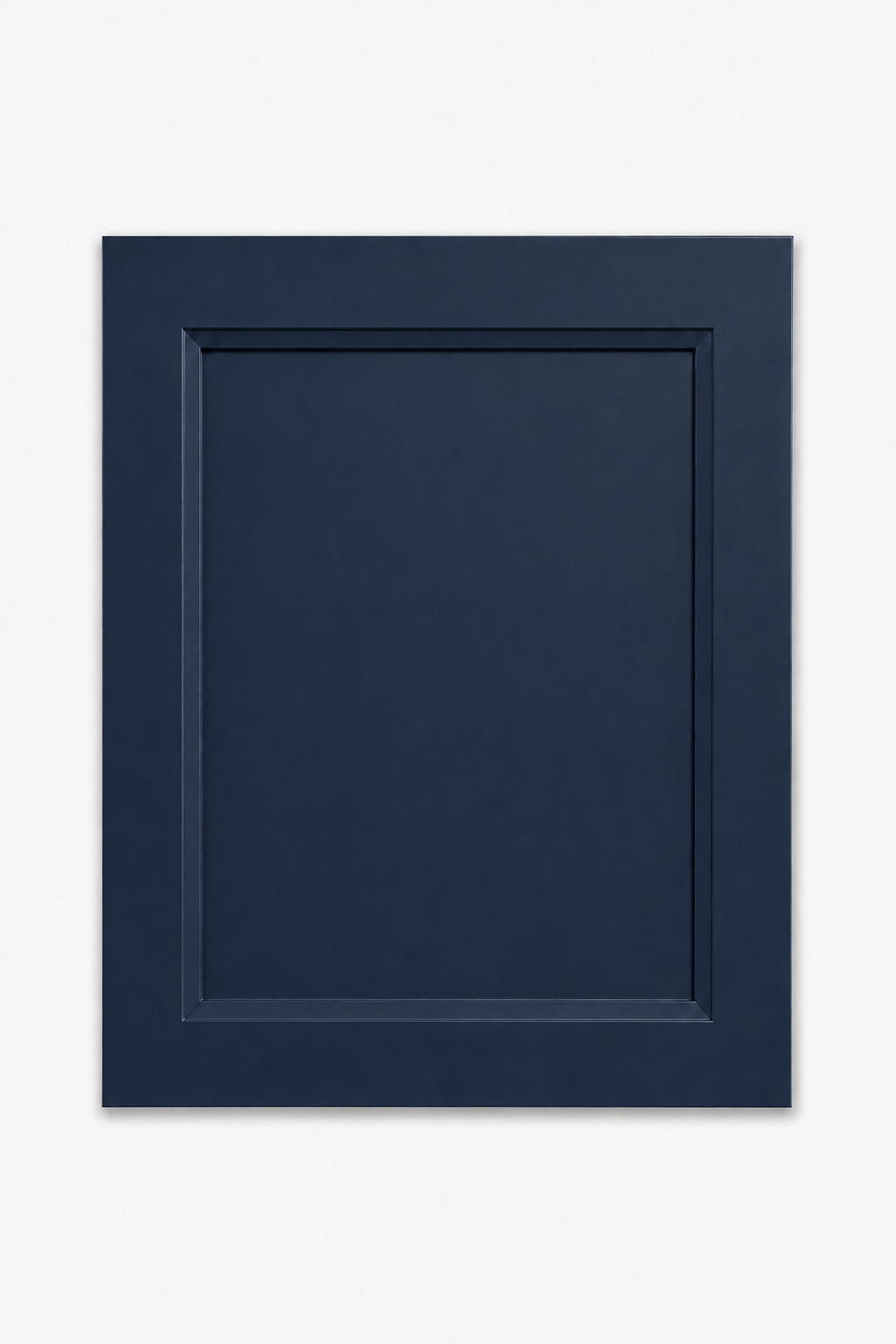

Available in White, Dove, Midnight Blue, Honey Maple, Vintage Wood. Honey Maple uses natural birch with a stained finish; natural grain and color variation are expected.
Honey Maple includes the matching box, hardware, face frame, and front components for assembly. The box has a natural exterior; add a matching skin or decorative end panel to finish any exposed cabinet side.
Check the corner layout, adjacent cabinet depth, filler allowance, and door-handle clearance before ordering. Do not size the installation opening from the cabinet width alone. Countertop and decorative handles are sold separately.
Coordinate this cabinet with corner fillers, easy reach corner bases, drawer bases.
Use an Escada blind corner base to connect two cabinet runs while providing enclosed corner storage, a working drawer, and a coordinated door front. Ships ready to assemble (RTA).
Allow at least a 3-inch concealed gap behind the blind end at the wall where the cabinet runs turn the corner. This installation space lets the installer compensate for an out-of-square wall and gives the door room to swing properly. The gap is behind the blind end; it is separate from any visible filler needed between adjoining cabinet fronts.
Use the model-specific installation-space requirement when planning the cabinet run. If that requirement already includes the wall pull, do not add the same allowance twice. Some models require a larger pull than 3 inches; follow the listed installation range and confirm door, drawer, and handle clearance before fastening.
BBC36: 36 inches wide × 34½ inches high × 24 inches deep. Requires 39 inches of installation space.
BBC39: 39 inches wide × 34½ inches high × 24 inches deep. Requires 42 inches of installation space.
BBC42: 42 inches wide × 34½ inches high × 24 inches deep. Requires 45 inches of installation space.
One door, one drawer, and one shelf. Plan for the required installation space, which is wider than the cabinet itself.
½-inch plywood cabinet box with a solid wood face frame.
Full-overlay, five-piece Escada doors with solid wood stiles and rails and a plywood center panel.
Soft-close, six-way adjustable hinges.
⅝-inch solid wood dovetail drawer boxes with ½-inch plywood bottoms.
Full-extension, soft-close undermount drawer glides with six-way adjustment and matching Escada drawer fronts.
Natural wood veneer interior with a UV-cured finish; interior wood shade may vary.
Available in White, Dove, Midnight Blue, Honey Maple, Vintage Wood. Honey Maple uses natural birch with a stained finish; natural grain and color variation are expected.
Honey Maple includes the matching box, hardware, face frame, and front components for assembly. The box has a natural exterior; add a matching skin or decorative end panel to finish any exposed cabinet side.
Check the corner layout, adjacent cabinet depth, filler allowance, and door-handle clearance before ordering. Do not size the installation opening from the cabinet width alone. Countertop and decorative handles are sold separately.
Coordinate this cabinet with corner fillers, easy reach corner bases, drawer bases.
