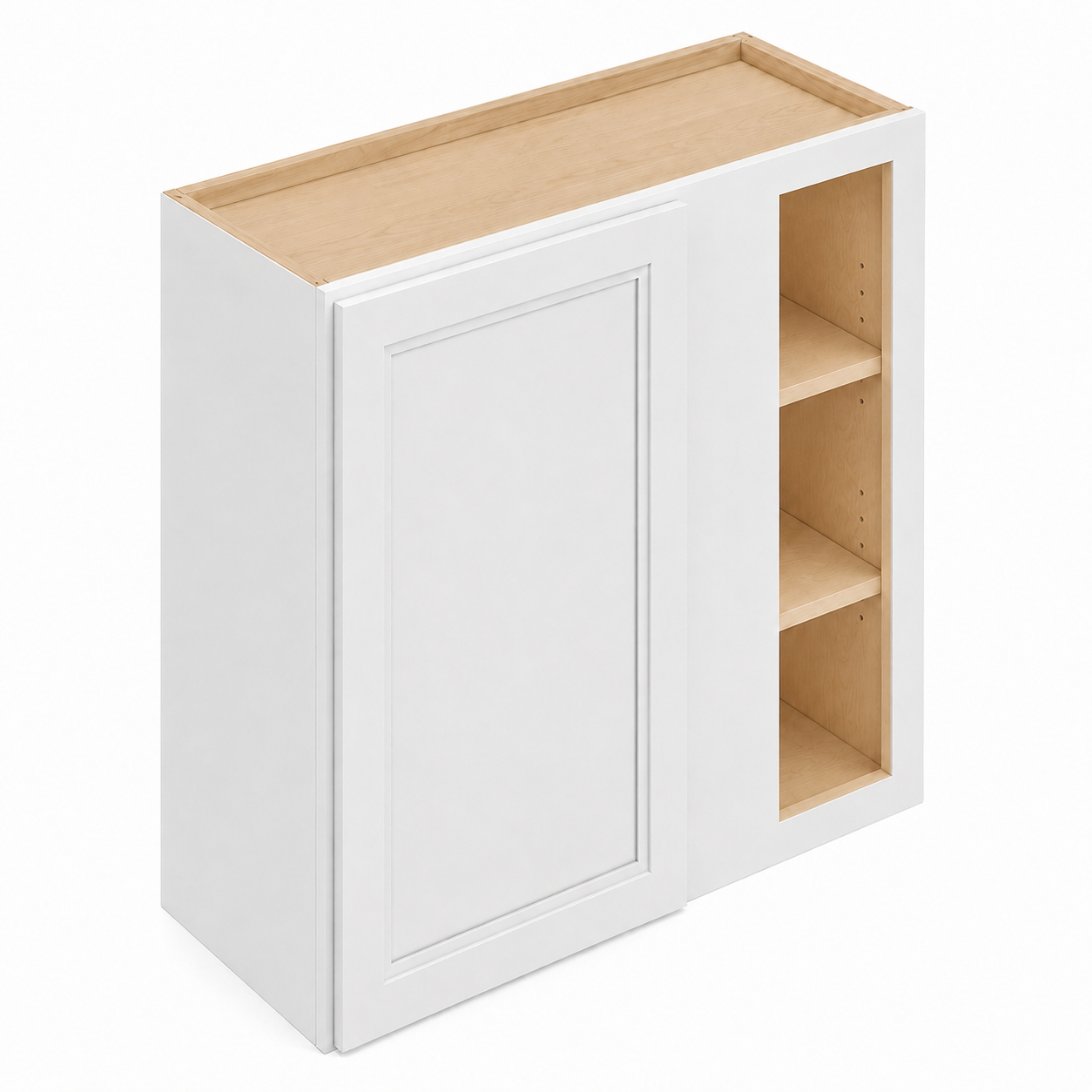

Use an Escada blind corner wall cabinet to connect two upper cabinet runs with enclosed corner storage and a matching full-overlay door. Ships ready to assemble (RTA).
Allow at least a 3-inch concealed gap behind the blind end at the wall where the cabinet runs turn the corner. This installation space lets the installer compensate for an out-of-square wall and gives the door room to swing properly. The gap is behind the blind end; it is separate from any visible filler needed between adjoining cabinet fronts.
27-inch cabinets: allow 30 inches of wall space. 36-inch cabinets: allow 39 inches of wall space. These allowances include the 3-inch concealed gap. Check the adjoining cabinet, handles, and corner layout before fastening.

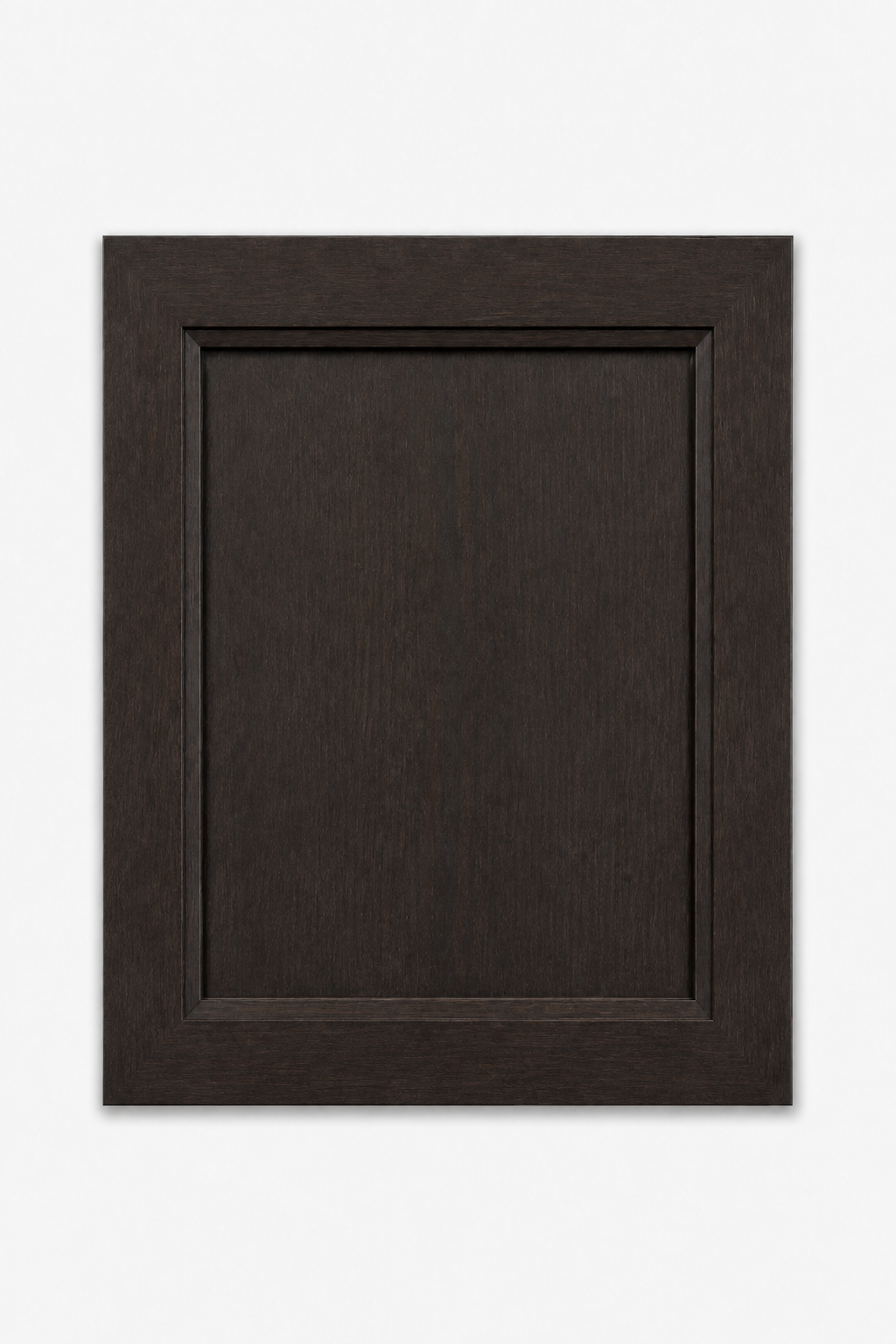

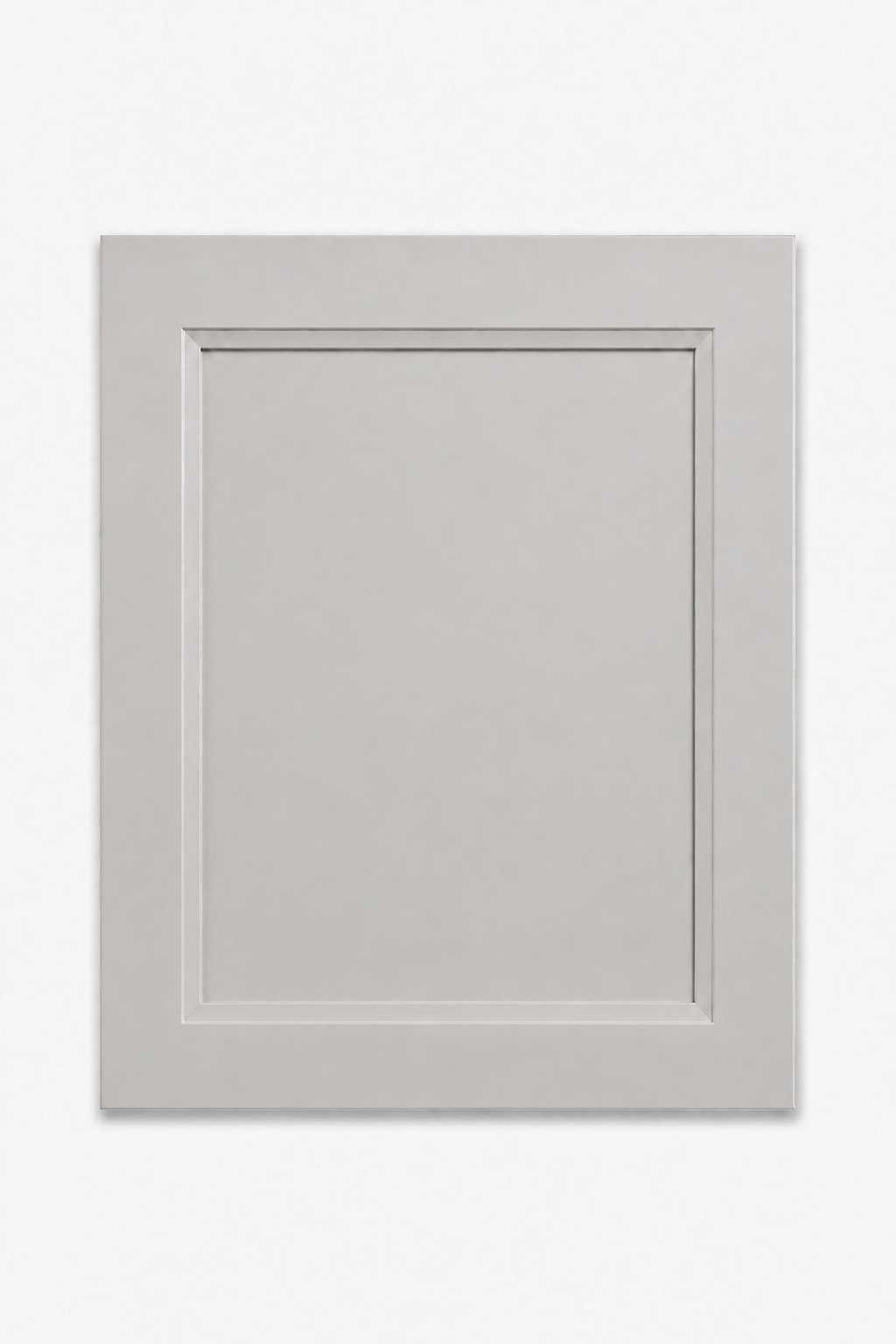

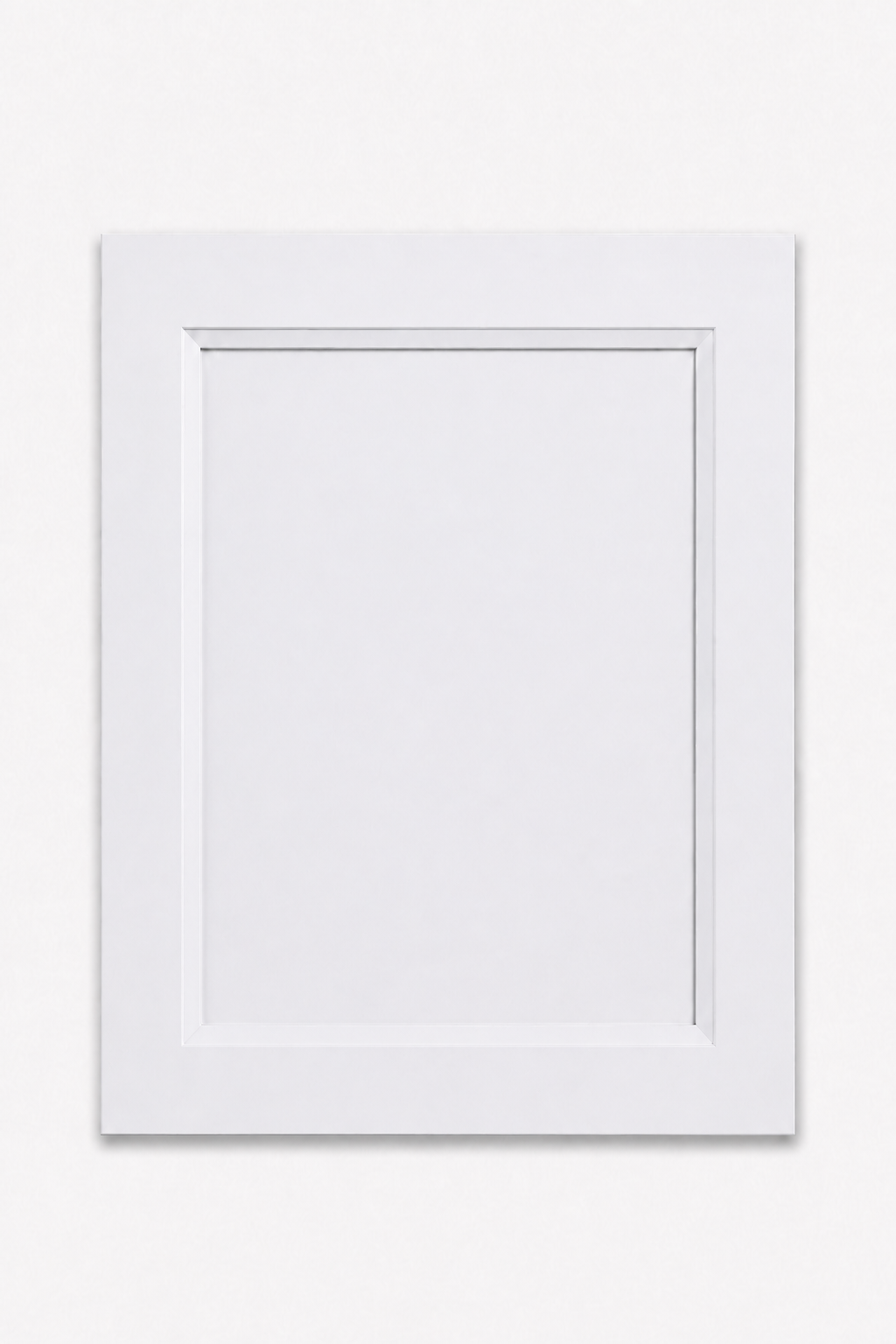

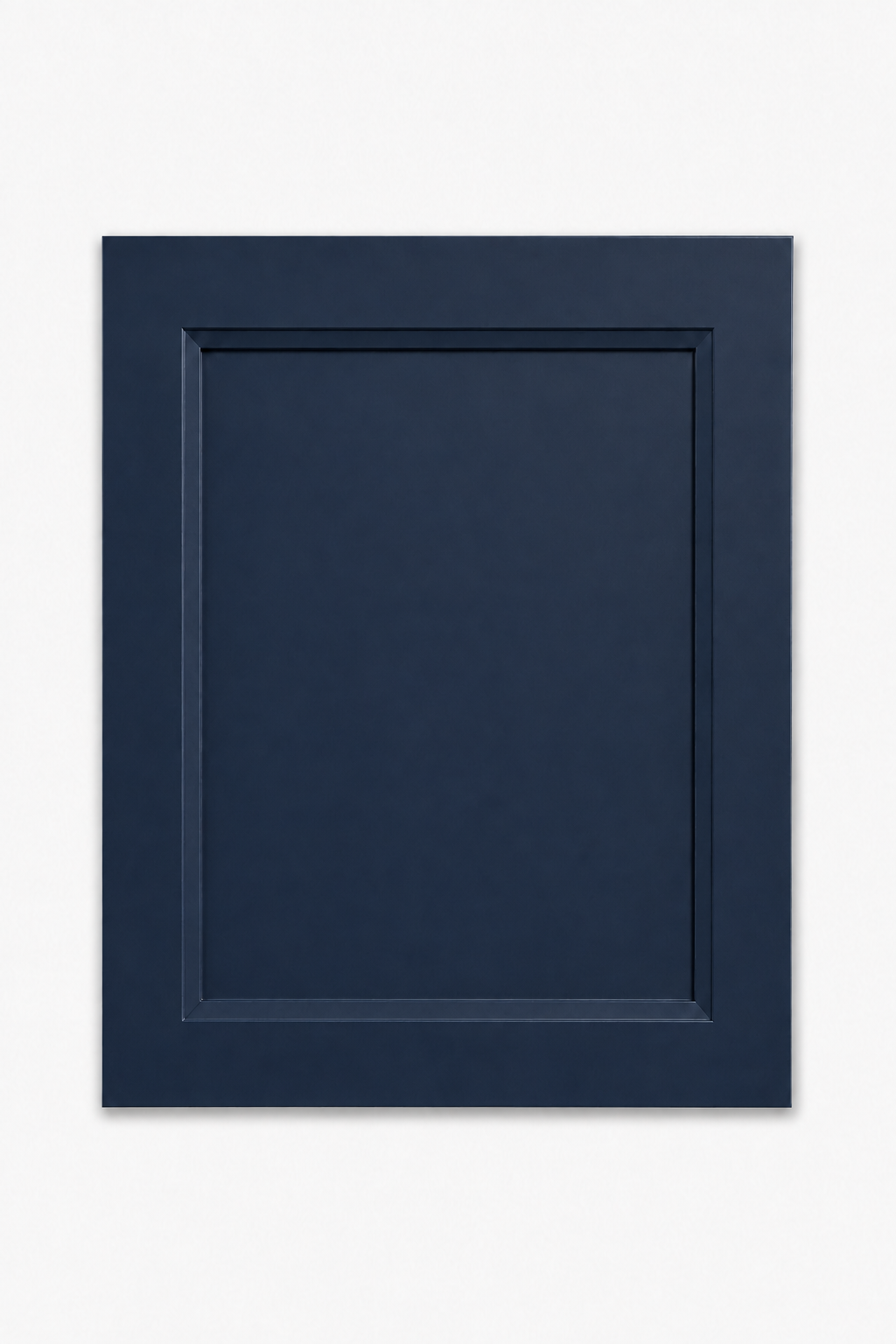

White and Dove offer both 27-inch and 36-inch widths. Vintage Wood offers 27-inch cabinets. Midnight Blue and Honey Maple offer 36-inch cabinets. All options are 12 inches deep. Choose the finish and model together when planning the corner.
White, Dove, and Vintage Wood — WBC2730: 27 inches wide × 30 inches high × 12 inches deep; one door and two shelves.
White, Dove, and Vintage Wood — WBC2736: 27 inches wide × 36 inches high × 12 inches deep; one door and two shelves.
White, Dove, and Vintage Wood — WBC2742: 27 inches wide × 42 inches high × 12 inches deep; one door and three shelves.
White, Dove, Midnight Blue, and Honey Maple — WBC3630: 36 inches wide × 30 inches high × 12 inches deep; one door and two shelves.
White, Dove, Midnight Blue, and Honey Maple — WBC3636: 36 inches wide × 36 inches high × 12 inches deep; one door and two shelves.
White, Dove, Midnight Blue, and Honey Maple — WBC3642: 36 inches wide × 42 inches high × 12 inches deep; one door and three shelves.
½-inch plywood cabinet box with a solid wood face frame.
Full-overlay, five-piece Escada door with solid wood stiles and rails and a plywood center panel.
Soft-close, six-way adjustable hinges.
Natural wood veneer interior with a UV-cured finish; interior wood shade may vary.

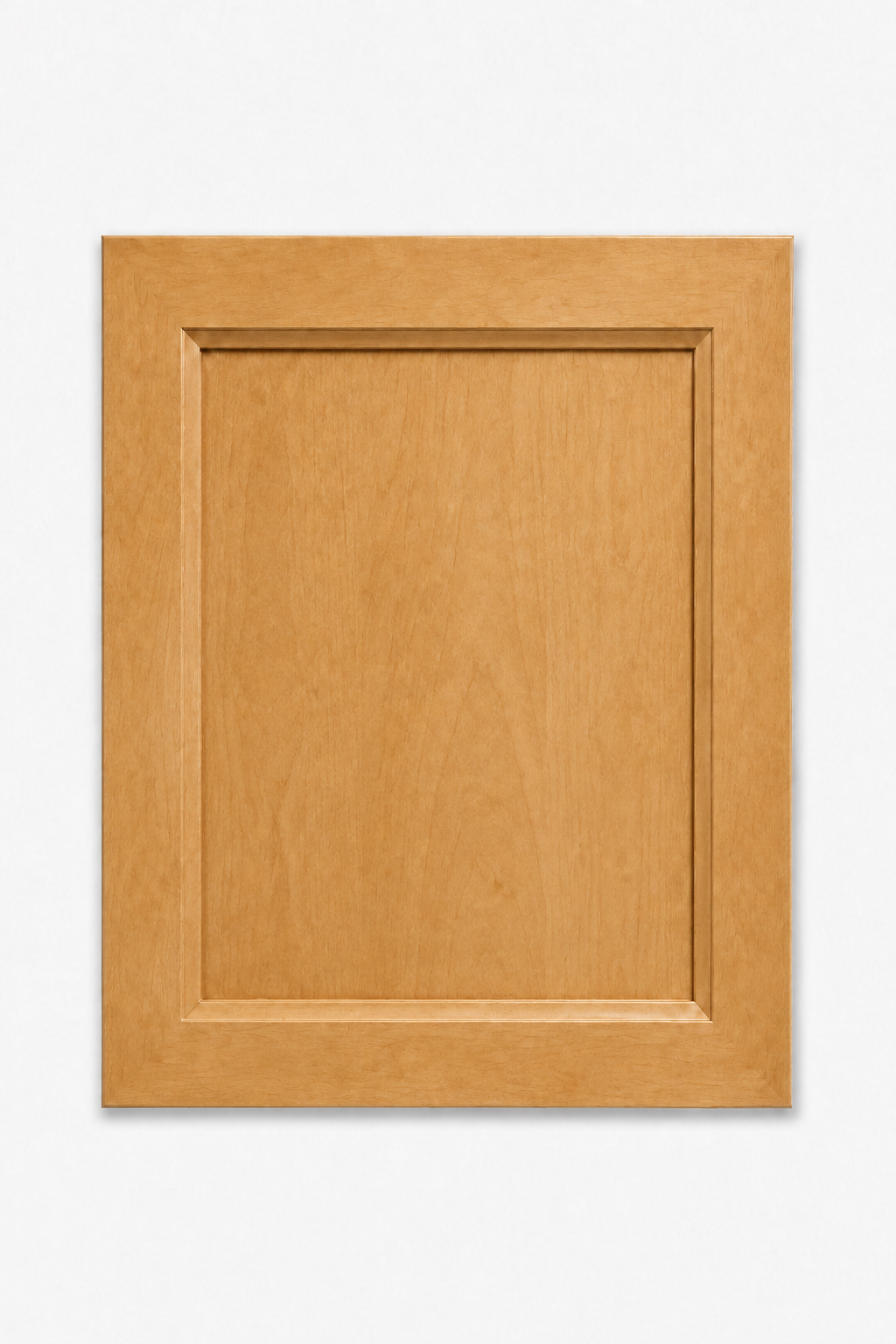

Honey Maple uses natural birch with a stained finish. Its matching box, hardware, face frame, and door components are included for assembly. Add a matching skin or decorative panel to finish exposed natural cabinet sides. Natural wood grain and stained color may vary.
Plan the corner using the exact cabinet width for your finish. Check the adjoining cabinet run, filler allowance, door swing, handle clearance, and wall support before installation. Cabinet width alone does not establish the complete corner-space requirement. Decorative handles are sold separately.
Coordinate with cabinet fillers, easy reach wall cabinets, and decorative wall end panels.
Use an Escada blind corner wall cabinet to connect two upper cabinet runs with enclosed corner storage and a matching full-overlay door. Ships ready to assemble (RTA).
Allow at least a 3-inch concealed gap behind the blind end at the wall where the cabinet runs turn the corner. This installation space lets the installer compensate for an out-of-square wall and gives the door room to swing properly. The gap is behind the blind end; it is separate from any visible filler needed between adjoining cabinet fronts.
27-inch cabinets: allow 30 inches of wall space. 36-inch cabinets: allow 39 inches of wall space. These allowances include the 3-inch concealed gap. Check the adjoining cabinet, handles, and corner layout before fastening.
White and Dove offer both 27-inch and 36-inch widths. Vintage Wood offers 27-inch cabinets. Midnight Blue and Honey Maple offer 36-inch cabinets. All options are 12 inches deep. Choose the finish and model together when planning the corner.
White, Dove, and Vintage Wood — WBC2730: 27 inches wide × 30 inches high × 12 inches deep; one door and two shelves.
White, Dove, and Vintage Wood — WBC2736: 27 inches wide × 36 inches high × 12 inches deep; one door and two shelves.
White, Dove, and Vintage Wood — WBC2742: 27 inches wide × 42 inches high × 12 inches deep; one door and three shelves.
White, Dove, Midnight Blue, and Honey Maple — WBC3630: 36 inches wide × 30 inches high × 12 inches deep; one door and two shelves.
White, Dove, Midnight Blue, and Honey Maple — WBC3636: 36 inches wide × 36 inches high × 12 inches deep; one door and two shelves.
White, Dove, Midnight Blue, and Honey Maple — WBC3642: 36 inches wide × 42 inches high × 12 inches deep; one door and three shelves.
½-inch plywood cabinet box with a solid wood face frame.
Full-overlay, five-piece Escada door with solid wood stiles and rails and a plywood center panel.
Soft-close, six-way adjustable hinges.
Natural wood veneer interior with a UV-cured finish; interior wood shade may vary.
Honey Maple uses natural birch with a stained finish. Its matching box, hardware, face frame, and door components are included for assembly. Add a matching skin or decorative panel to finish exposed natural cabinet sides. Natural wood grain and stained color may vary.
Plan the corner using the exact cabinet width for your finish. Check the adjoining cabinet run, filler allowance, door swing, handle clearance, and wall support before installation. Cabinet width alone does not establish the complete corner-space requirement. Decorative handles are sold separately.
Coordinate with cabinet fillers, easy reach wall cabinets, and decorative wall end panels.
