Narrow storage. Full visibility. Better cooking flow.

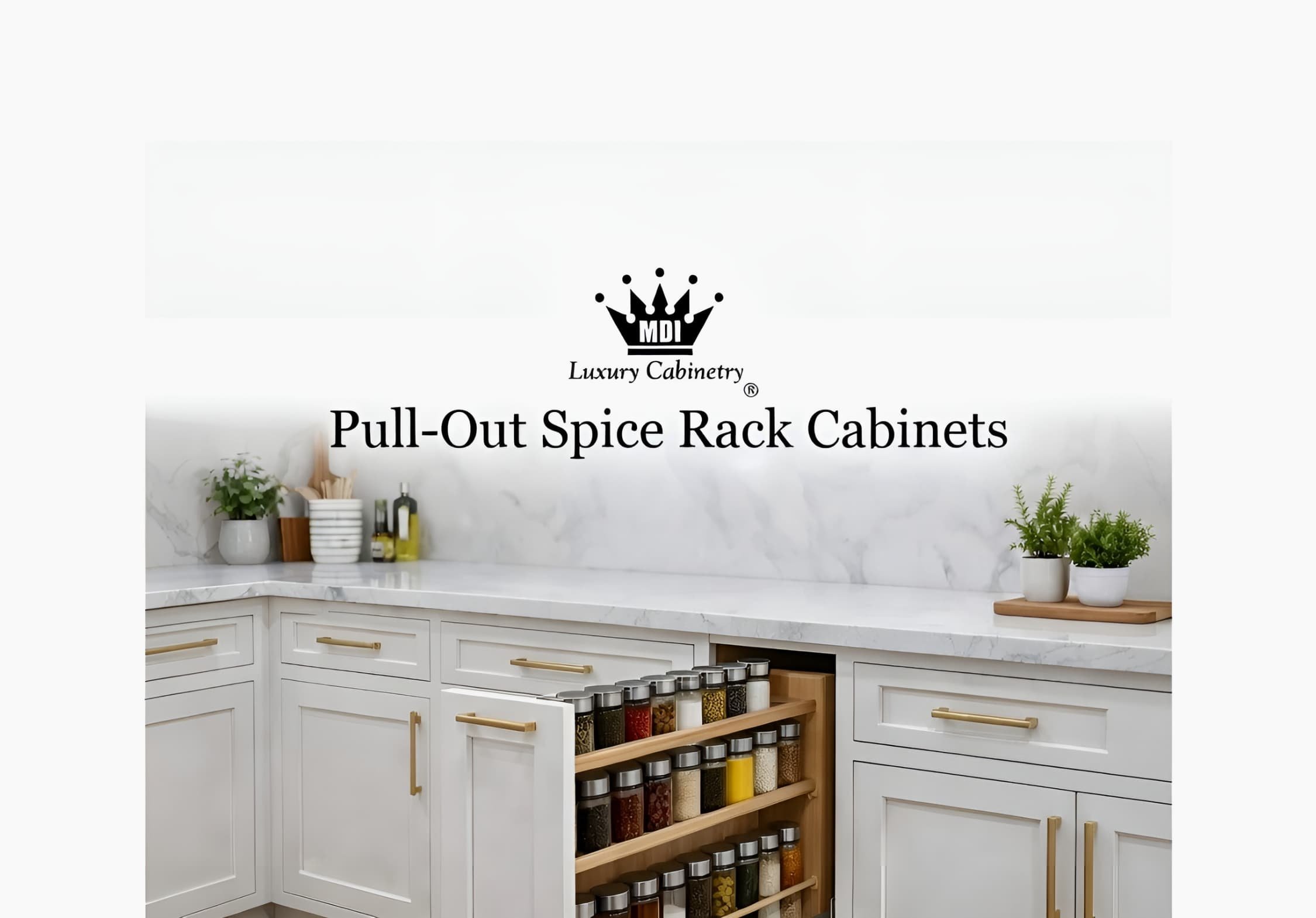

Pull-Out Spice Rack Cabinets
Bring spices, oils, vinegars, and cooking essentials into view with a narrow full-extension base pullout designed around real cabinet dimensions, stable storage, dependable slides, and the work zone it serves.
The front must close—and the rack must clear the box
A Pullout Is a Complete Cabinet Mechanism
A properly planned spice pullout travels straight out of its own dedicated cabinet opening. The door front attaches squarely to the leading end, aligns with neighboring fronts when closed, and never slides into the side of an adjacent drawer or cabinet.
MDI plans the cabinet opening, actual organizer dimensions, slide path, door-mount brackets, toe-kick relationship, shelf spacing, guard rails, load, and surrounding fillers together. A pretty rendering is not enough; the mechanism must fit and operate.
Dimensions That Must Agree
- Nominal cabinet width and clear interior opening
- Organizer width, depth, height, and slide projection
- Framed versus frameless cabinet construction
- Full-height opening versus a drawer-over-door base
- Door-front size, overlay, bracket adjustment, and handle
- Nearby fillers, range clearance, and pullout travel
Similar names. Different installation realities.
Three Pullout Types—and One Alternative
Some systems occupy a dedicated cabinet, some install between cabinets as a structural filler, and some retrofit inside an existing full-height base. They are not interchangeable.
Dedicated Base Pullout
A purpose-built narrow cabinet with its own box, full-height opening, organizer, slides, and matching door front. It is the cleanest solution when included in the original layout.
Base Filler Pullout
A structural organizer installed between cabinets rather than inside a normal box. It is primarily a new-kitchen or remodel component and requires correct attachment and furniture offsets.
Retrofit Cabinet Insert
An organizer sized for an existing full-height base opening. Clear width, depth, height, hinges, face-frame restrictions, and door attachment determine whether retrofit is possible.
Spice Drawer Alternative
A shallow drawer with angled or tiered inserts can outperform a narrow pullout when labels need to remain visible from above or the base layout cannot surrender a full-height opening.
Plan the contents before choosing the width
Spices and Bottles Need Different Shelf Geometry
Small Spice Jars
Short jars need close shelf spacing, low guard rails, and enough visibility to read labels. Too much depth can create double rows that hide ingredients and encourage expired duplicates.
Oils & Vinegars
Tall glass bottles need greater shelf height, stable bases, and guard rails positioned to prevent tipping without blocking removal. Weight concentrates quickly, so slide rating matters.
Extracts & Condiments
Small bottles benefit from adjustable shelves or grouped zones. Mixing tall oils with tiny extracts on one fixed shelf usually wastes vertical space and reduces visibility.
Cooking Tools
Wider pullouts may combine spices with utensils, cutting boards, or trays, but the organizer must be designed for those loads. A narrow rack should not become a catch-all that binds or rattles.
Planning rule: Buy or select the organizer before finalizing the cabinet schedule. Nominal cabinet size is not the same as usable opening or organizer size.
Convenient does not mean pressed against the range
Location, Heat & Daily Cooking Flow
A spice pullout is useful near the main prep and cooking zone, but placing oils and seasonings against a hot range can expose them to heat and shorten quality. The selected range, side clearances, cabinet material, fillers, countertop overhang, and cooking habits should guide the location.
The pullout also needs room to extend without entering an aisle conflict, striking an oven handle, or blocking the cook. Frequently used spices should be reachable from the working position, while bulk refills can remain in pantry storage.
Check the Work Zone
- Distance from range heat and splatter
- Door, oven, dishwasher, and aisle conflicts
- Handle clearance and comfortable pulling force
- Counter landing space near the pullout
- Lighting and label visibility
- Cleaning access around rails and shelves
Custom when needed. Collection-based when it fits.
Choose the Right Cabinet Path
Custom Pullout
Best when the opening, finish, shelf arrangement, bottle mix, frame construction, or architectural alignment calls for a made-to-fit solution.
Collection Accessory
A semi-custom or premium RTA pullout is a smart choice when the exact cabinet size, organizer, overlay, door style, finish, and installation requirements fit the plan.
Broader Pull-Out Storage
When the goal includes pots, pantry goods, trash, trays, or deep-cabinet access, use a purpose-designed roll-out or drawer system instead of forcing everything into a spice rack.
Plan it before the cabinet order
MDI Spice-Pullout Design Process
Inventory the Contents
List jar diameters, bottle heights, quantities, weights, label orientation, cooking frequency, and whether refills belong elsewhere.
Select the Pullout Type
Choose a dedicated base, structural filler pullout, retrofit insert, or spice drawer based on the actual cabinet and project stage.
Coordinate the Cabinet
Resolve opening size, organizer dimensions, slides, load, shelf spacing, door brackets, overlay, handle, fillers, toe kick, and neighboring fronts.
Review in 3D
Check the closed elevation, straight pullout travel, clearances, label visibility, and fully extended position before cabinetry and hardware are released.
Connect this feature to the whole kitchen
Spice Storage Should Support the Main Workflow
The best location connects prep, cooking, and landing space without exposing oils to unnecessary heat or making the cook cross an aisle. The pullout should place everyday ingredients at hand while keeping bulk containers and infrequent seasonings in pantry storage.
The door profile, finish, overlay, reveal, handle, toe kick, fillers, and neighboring cabinets must also align when the rack is closed. Useful interior hardware should never make the exterior elevation look accidental.
Continue to the Right MDI Page
Luxury Cabinets — compare custom, semi-custom, and premium RTA paths.
Luxury Kitchen Cabinets — plan the complete high-end kitchen.
Custom Kitchen Cabinetry — tailored layouts and architectural details.
Order Cabinets Online — begin a collection-based cabinet project.
Cabinetry Services — view the complete MDI service range.
Contact MDI — share the layout, storage needs, and project goals.
Pull-out spice-rack questions
Pull-Out Spice Rack Cabinet FAQs
What is a pull-out spice rack cabinet?
A pull-out spice rack cabinet is a narrow full-height base unit with an organizer that extends on slides, bringing spices, oils, vinegars, and small cooking essentials into view from both sides.
Is a filler pullout the same as a cabinet pullout?
No. A filler pullout is installed structurally between cabinets and is usually intended for a new kitchen or remodel. A cabinet pullout fits within its own cabinet box, while a retrofit insert must fit an existing clear opening.
What should be measured before ordering a spice pullout?
Confirm nominal cabinet width, clear opening width, interior depth and height, framed or frameless construction, organizer dimensions, slide projection, door overlay, bracket requirements, and nearby obstructions.
Should oils be stored beside the range?
A pullout can be convenient near the cooking zone, but oils and seasonings should not be exposed to excessive range heat. Location should account for the appliance, required clearances, fillers, splatter, and normal cooking habits.
Can MDI include a spice pullout in a 3D kitchen design?
Yes. MDI can incorporate the pullout into the kitchen design and review its cabinet size, closed elevation, straight travel path, full-extension position, adjacent clearances, shelf arrangement, fillers, and hardware in 3D.
Use the narrow space without inventing impossible geometry
Plan a Buildable Spice Pullout
Send MDI the cabinet layout, desired contents, and style direction. We will help determine the correct pullout type, cabinet size, organizer, and door treatment.
