Build a single wall oven into a tall Slim Shaker cabinet with three working drawers below the appliance area. The cabinet is 33 inches wide and comes in three overall heights. This cabinet ships ready to assemble (RTA).
OD3384: 33 inches wide × 84 inches high × 24 inches deep.
OD3390: 33 inches wide × 90 inches high × 24 inches deep.
OD3396: 33 inches wide × 96 inches high × 24 inches deep.
Single-oven opening with three lower drawers. The listed opening frame is 26½ inches wide × 24⅜ inches high.
½-inch plywood cabinet box with dovetail construction and a solid hardwood face frame.

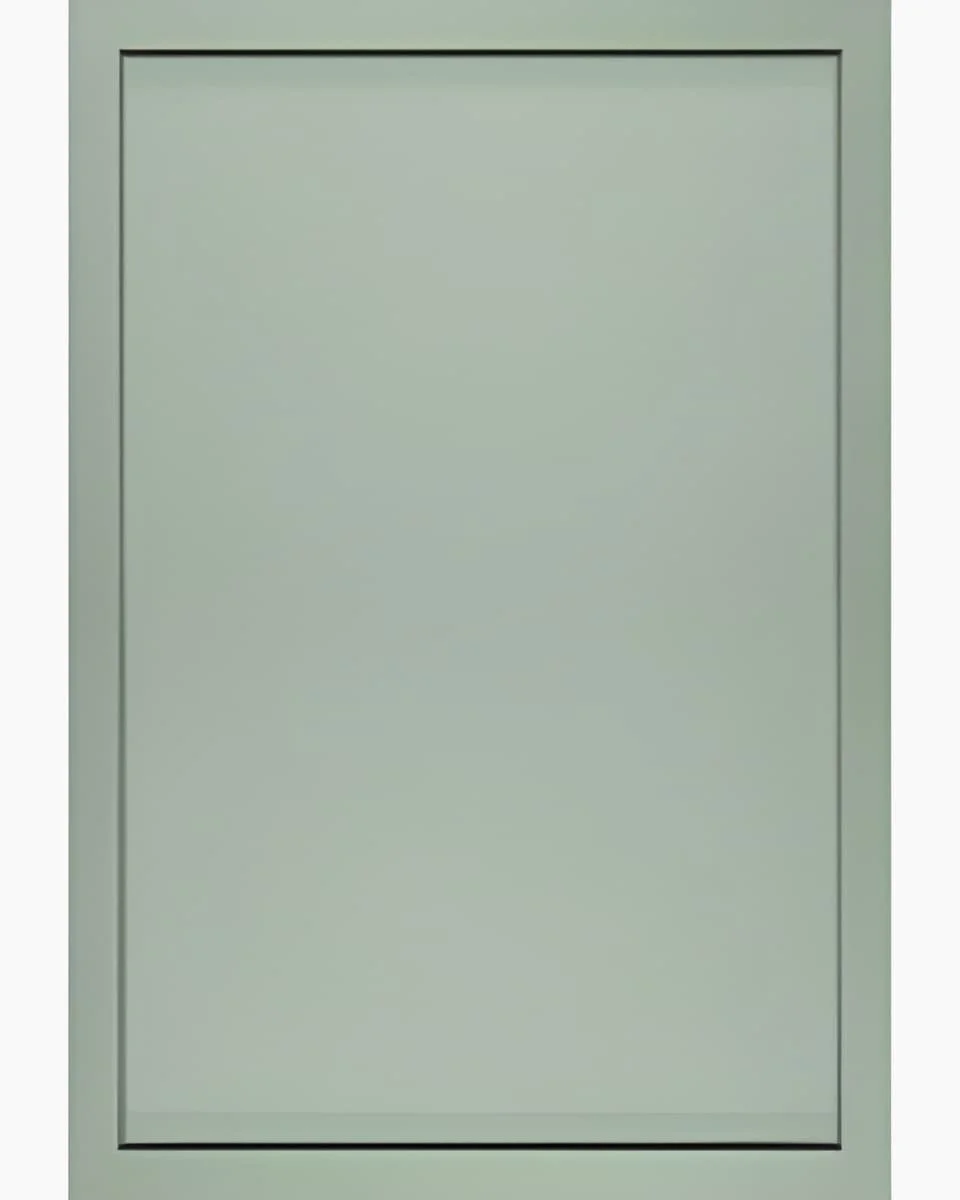

Full-overlay Slim Shaker doors with 0.60-inch rails and stiles, mortise-and-tenon construction and soft-close, six-way adjustable hinges.
Painted doors have HDF stiles, rails, and center panels. Cotton Oak doors have white oak stiles and rails with an HDF center panel faced in white oak veneer.
Working drawers use ⅝-inch solid wood dovetail boxes with ½-inch plywood bottoms and full-extension, soft-close undermount glides with six-way adjustment.
Five-piece drawer fronts match the Slim Shaker door profile.
Natural wood veneer interior with a UV-cured finish. Interior wood shade may vary.
Choose from Origami White, Jade Green, Lakeside Blue, Cotton Oak, Charcoal Black, Silver Gray. Cotton Oak has natural grain and stain variation. Its cabinet exterior uses birch veneer; add a matching skin or decorative end panel where you want an exposed cabinet side to match the oak door finish.
Check the exact oven’s cutout, support, ventilation, electrical, and clearance requirements before ordering. The listed frame opening is not a universal oven cutout. Allow ceiling and assembly clearance, and secure the tall cabinet to suitable structural support. Oven, countertop, and decorative pulls are not included.
Plan this cabinet with matching tall pantries, microwave base cabinets, decorative tall panels.
Build a single wall oven into a tall Slim Shaker cabinet with three working drawers below the appliance area. The cabinet is 33 inches wide and comes in three overall heights. This cabinet ships ready to assemble (RTA).
OD3384: 33 inches wide × 84 inches high × 24 inches deep.
OD3390: 33 inches wide × 90 inches high × 24 inches deep.
OD3396: 33 inches wide × 96 inches high × 24 inches deep.
Single-oven opening with three lower drawers. The listed opening frame is 26½ inches wide × 24⅜ inches high.
½-inch plywood cabinet box with dovetail construction and a solid hardwood face frame.
Full-overlay Slim Shaker doors with 0.60-inch rails and stiles, mortise-and-tenon construction and soft-close, six-way adjustable hinges.
Painted doors have HDF stiles, rails, and center panels. Cotton Oak doors have white oak stiles and rails with an HDF center panel faced in white oak veneer.
Working drawers use ⅝-inch solid wood dovetail boxes with ½-inch plywood bottoms and full-extension, soft-close undermount glides with six-way adjustment.
Five-piece drawer fronts match the Slim Shaker door profile.
Natural wood veneer interior with a UV-cured finish. Interior wood shade may vary.
Choose from Origami White, Jade Green, Lakeside Blue, Cotton Oak, Charcoal Black, Silver Gray. Cotton Oak has natural grain and stain variation. Its cabinet exterior uses birch veneer; add a matching skin or decorative end panel where you want an exposed cabinet side to match the oak door finish.
Check the exact oven’s cutout, support, ventilation, electrical, and clearance requirements before ordering. The listed frame opening is not a universal oven cutout. Allow ceiling and assembly clearance, and secure the tall cabinet to suitable structural support. Oven, countertop, and decorative pulls are not included.
Plan this cabinet with matching tall pantries, microwave base cabinets, decorative tall panels.
