Finish the cabinet base at the floor

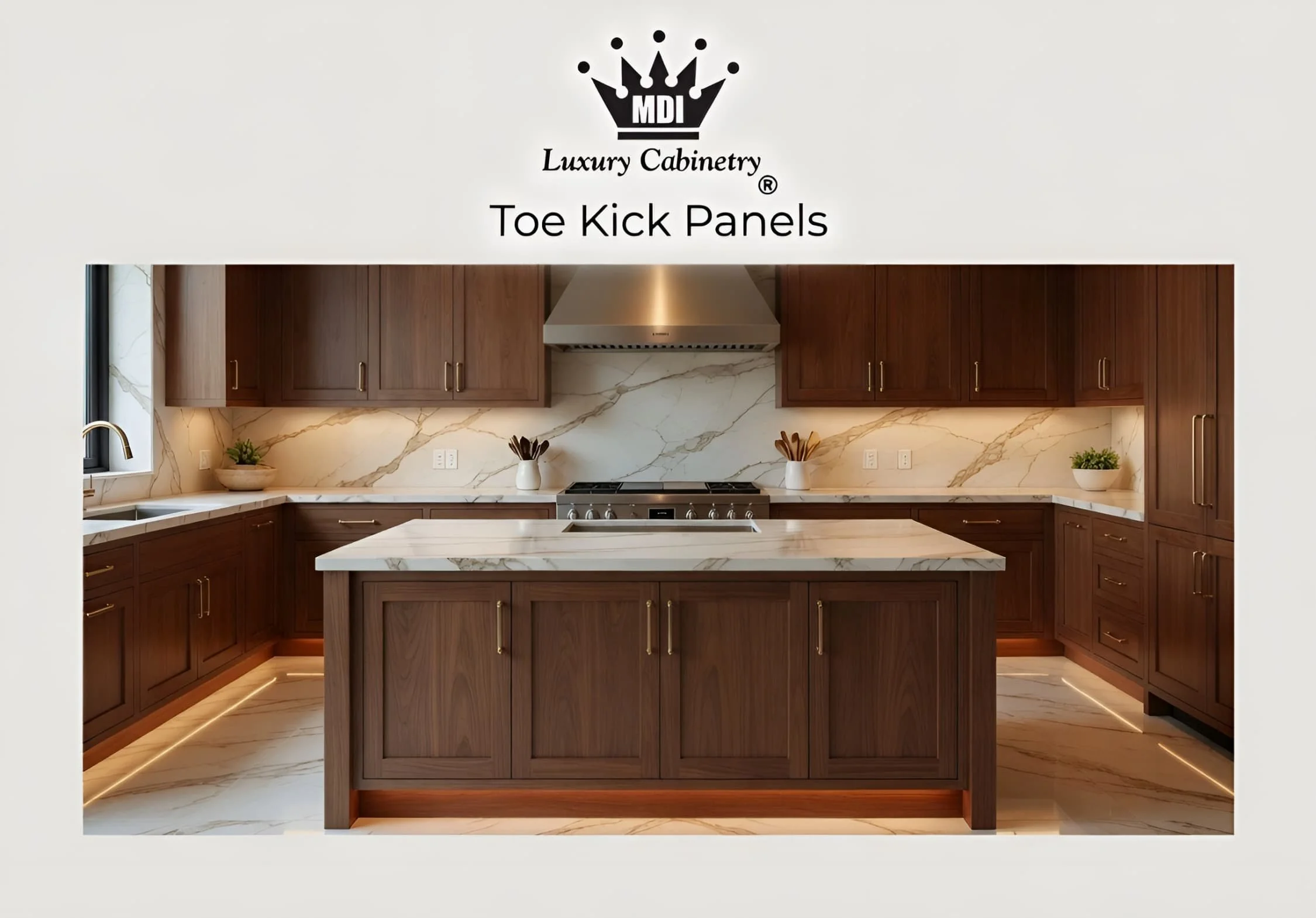

Toe-Kick Panels for Kitchen Cabinets
Coordinate toe-kick height, recess, material, seams, returns, flooring, and removable access so base cabinetry feels built in while remaining comfortable to stand against and practical to service.
The lowest cabinet detail affects every standing task
A Toe Kick Is Functional Cabinet Architecture
A cabinet toe kick is the recessed space beneath base cabinetry that gives feet room to move closer to the counter. The visible toe-kick panel or skin finishes that recessed structure and creates a continuous base line across the cabinet run.
Height, depth, material thickness, seams, corner returns, finished ends, flooring, and appliance conditions must be planned together. A toe kick that is too shallow, too tall, uneven, or poorly terminated can make an otherwise refined kitchen look patched together.
What the Toe Kick Must Resolve
- Comfortable foot clearance along working cabinet runs
- Level cabinet support above an imperfect floor
- Continuous finish across cabinet-box joints
- Clean returns at islands, ends, corners, and openings
- Flooring, baseboard, appliance, and panel transitions
- Access for leveling legs, utilities, lighting, and service
Separate the structure from the visible finish
Toe-Kick Structure, Skin and Finished Panel
The recessed base may be built into the cabinet box, formed by separate ladder bases, or supported by adjustable legs. A finished toe-kick skin or panel then covers the structural base and provides the visible cabinet-colored surface.
Integrated Cabinet Toe Kick
The cabinet side and floor create a recessed base condition as part of the box. A continuous finish panel can cover joints between adjoining cabinets.
Separate Ladder Base
A level platform is installed first, then cabinet boxes sit above it. This can simplify leveling and create a consistent recessed base across mixed cabinet widths.
Adjustable-Leg System
Cabinets are leveled on adjustable supports and the toe-kick panel attaches in front, often allowing the finished strip to be removed for service.
Dimensions affect comfort and appearance
Toe-Kick Height and Recess Depth
Toe-kick dimensions vary by cabinet line, countertop height, accessibility needs, appliance conditions, and project design. The recess should provide comfortable standing clearance without making the cabinets look unsupported or weakening the relationship between doors, floor, and counter.
The finished panel must stay within the intended recess. If it is installed flush with the cabinet fronts, the functional foot space disappears. If it sits too far back, the dark shadow can look accidental and the panel becomes difficult to clean.
Dimension Checks
- Finished counter height and cabinet-box height coordinated
- Recess deep enough for comfortable standing tasks
- Toe-kick height consistent across connected cabinet runs
- Panel thickness included in the final recess dimension
- Dishwasher and appliance bases aligned intentionally
- Accessibility requirements reviewed where applicable
The end condition makes the base look deliberate
Toe-Kick Returns, Islands and Exposed Cabinet Ends
A straight recessed line can terminate several ways. At an exposed cabinet side or island, the finished end panel may extend to the floor while the toe kick returns behind it. Another design may use a furniture base, recessed end, or wrapped plinth.
Finished End to the Floor
A full-height end panel conceals the side of the toe-kick recess and creates a clean furniture-style termination at the end of the run.
Island Toe-Kick Return
The recessed working sides can return cleanly into finished island ends, seating backs, waterfall stone, posts, or furniture-base details.
Inside and Outside Corners
Toe-kick skins, corner blocks, fillers, cabinet faces, and floor joints should meet without exposed raw edges, abrupt offsets, or trapped slivers.
The floor is part of the detail
Flooring, Moisture and Cleaning
Flooring Sequence
Tile, wood, resilient flooring, and floating floors have different installation and movement requirements. Cabinet bases and finish panels should be coordinated with the selected flooring system.
Moisture Exposure
Sink areas, dishwashers, refrigerators, pet stations, and cleaning routines can expose the toe-kick zone to water. Materials, finished edges, seams, and removable access should reflect that risk.
Continuous Cleaning Line
Minimize unnecessary seams, ledges, raw edges, and deep irregular recesses that collect debris or make the cabinet base difficult to wipe clean.
Appliances interrupt the cabinet base
Dishwashers, Refrigerators and Service Access
Dishwashers typically need their own removable lower access panel and cannot be blocked by a continuous cabinet toe-kick skin. Refrigerators may have factory ventilation or service grilles. Other appliances and utility zones can require removable or ventilated sections.
Toe-kick lighting, leveling legs, plumbing shutoffs, electrical components, floor transitions, and leak detection may also affect where panels can be permanent and where they should remain removable.
Access and Appliance Checklist
- Dishwasher service panel remains removable
- Refrigerator ventilation and factory grille remain open
- Leveling legs and attachment points remain reachable
- Lighting channels, drivers, and wiring have service access
- Plumbing or leak-detection components remain accessible
- Removable panel seams align with the cabinet layout
Coordinate upper and lower cabinet trim
Toe Kicks, Light Rail and the Complete Elevation
Toe kicks finish the lower edge of base cabinetry. Light rail can finish the underside of wall cabinets and conceal integrated lighting. Crown, fascia, or a reveal completes the top. Planning these boundaries together creates a cabinet elevation with consistent material, projection, and termination logic.
Explore Light-Rail Moulding or continue to custom kitchen cabinetry.
Plan the base before installation
Toe-Kick Panel Design Process
Confirm the Cabinet System
Identify integrated bases, ladder bases, adjustable legs, standard dimensions, available skins, finished panels, and attachment methods.
Measure Floor Conditions
Document level variation, flooring thickness, transitions, walls, islands, appliances, utilities, and exposed cabinet ends.
Map Returns and Access
Resolve corners, end panels, appliance interruptions, removable sections, lighting, ventilation, service access, and cleaning lines.
Release the Finish Details
Confirm toe-kick material, color, sheen, thickness, seams, grain, cuts, edge treatment, attachment, delivery, and installation sequence.
See How MDI Uses 3D Cabinet Design or compare cabinet collections.
Toe-kick panel questions
Toe-Kick Panels for Kitchen Cabinets FAQs
What is a kitchen cabinet toe kick?
A toe kick is the recessed space beneath base cabinetry that provides foot clearance while standing at the counter. A toe-kick panel or skin covers the visible structural base and creates a finished continuous line.
Should a toe-kick panel match the cabinets?
It often matches the cabinetry for a continuous built-in appearance, but some designs use a deliberate contrasting or shadow finish. The material and color should be coordinated across connected runs and termination points.
Should toe-kick panels be removable?
Removable sections are useful where access is needed for adjustable legs, lighting, utilities, leak detection, or appliance service. Permanent and removable sections should be planned before installation.
Does kitchen flooring go under the cabinets?
That depends on the flooring material, manufacturer requirements, project sequence, movement needs, appliance conditions, and cabinet installation method. The floor and cabinet plan should be coordinated before either is installed.
Can MDI show toe-kick returns and floor transitions in 3D?
Yes. 3D cabinet design can review toe-kick height, recess, end returns, islands, corners, finished panels, appliances, flooring transitions, lighting, and removable access sections.
Finish the cabinet base intentionally
Plan Toe-Kick Panels With the Cabinet Layout
Share the cabinet plan, flooring, appliance specifications, exposed ends, and design direction. MDI will help define the toe-kick details and next design step.
