Continue storage into a blind corner with one working slab drawer above a recessed-panel inset door. The blind portion extends behind the adjoining cabinet run, while the accessible front retains the MDI Inset profile. This cabinet ships ready to assemble (RTA).

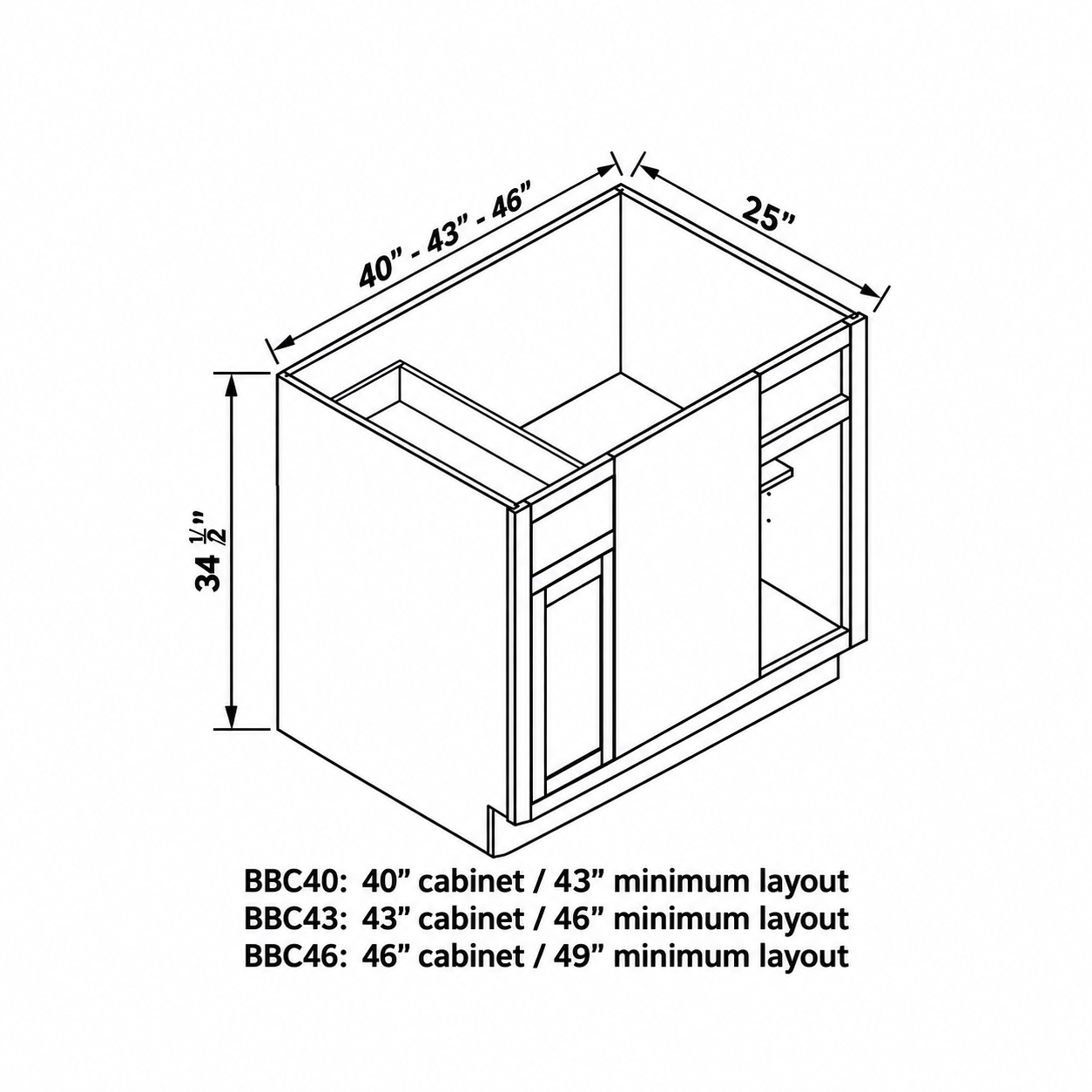

Sizes and configuration
BBC40: 40 inches wide × 34½ inches high × 25 inches deep.
BBC43: 43 inches wide × 34½ inches high × 25 inches deep.
BBC46: 46 inches wide × 34½ inches high × 25 inches deep.
One inset door, one upper working drawer and one adjustable half-depth shelf.
BBC40: 40-inch cabinet width; plan 43–46 inches of installation space.
BBC43: 43-inch cabinet width; plan 46–49 inches of installation space.
BBC46: 46-inch cabinet width; plan 49–52 inches of installation space.
Construction and hardware
⅝-inch plywood cabinet box with dovetail construction and a solid-wood face frame.
Solid-wood dovetail drawer box with a plywood bottom; full-extension, soft-close undermount drawer slides.
Soft-close inset door hardware.
Natural wood interior with a UV-cured finish.
Inset fronts sit within the surrounding face frame with narrow reveal gaps.
Choose your finish
Choose Hazelnut Oak, Origami White or Truffle Brown. Hazelnut Oak uses white oak framing with a veneered plywood center panel on recessed-panel fronts. Truffle Brown uses birch. Wood grain and stain vary naturally; Origami White has a painted finish.
The cabinet exterior matches the selected door finish. Stained cabinet exteriors use birch veneer, and the cabinet interior has a natural wood finish. Small natural-wood edges may be visible at the top and bottom. Optional decorative end panels, skins, and fillers are sold separately.
Layout and installation planning
Allow a concealed 3-inch gap at the blind end of the cabinet. This gap is included in the minimum installation spaces listed above. Use the selected model’s full installation range when laying out the corner, and account for the adjoining cabinet, fillers, handles and door swing. Confirm the corner orientation and accessible opening with the installer before assembly. The illustration shows one orientation for configuration reference.
The RTA package provides cabinet components, one door, one drawer, the adjustable half-depth shelf and door and drawer hardware. Assembly and installation are required. Countertop, decorative knobs and pulls, fillers and end panels are not included. Corner organizers and pullout accessories are not included.
Install the cabinet level, square and securely anchored to maintain the flush inset fronts and consistent reveals. Use installation fasteners suited to the wall construction. Plan countertop support and overhang with the installer.
Plan your MDI Inset kitchen
Explore the MDI Inset Collection and coordinating double-door and single-drawer base cabinets. For layout or size help, use the floating Connect with us widget. It is the fastest way to reach us and notifies the owner directly.

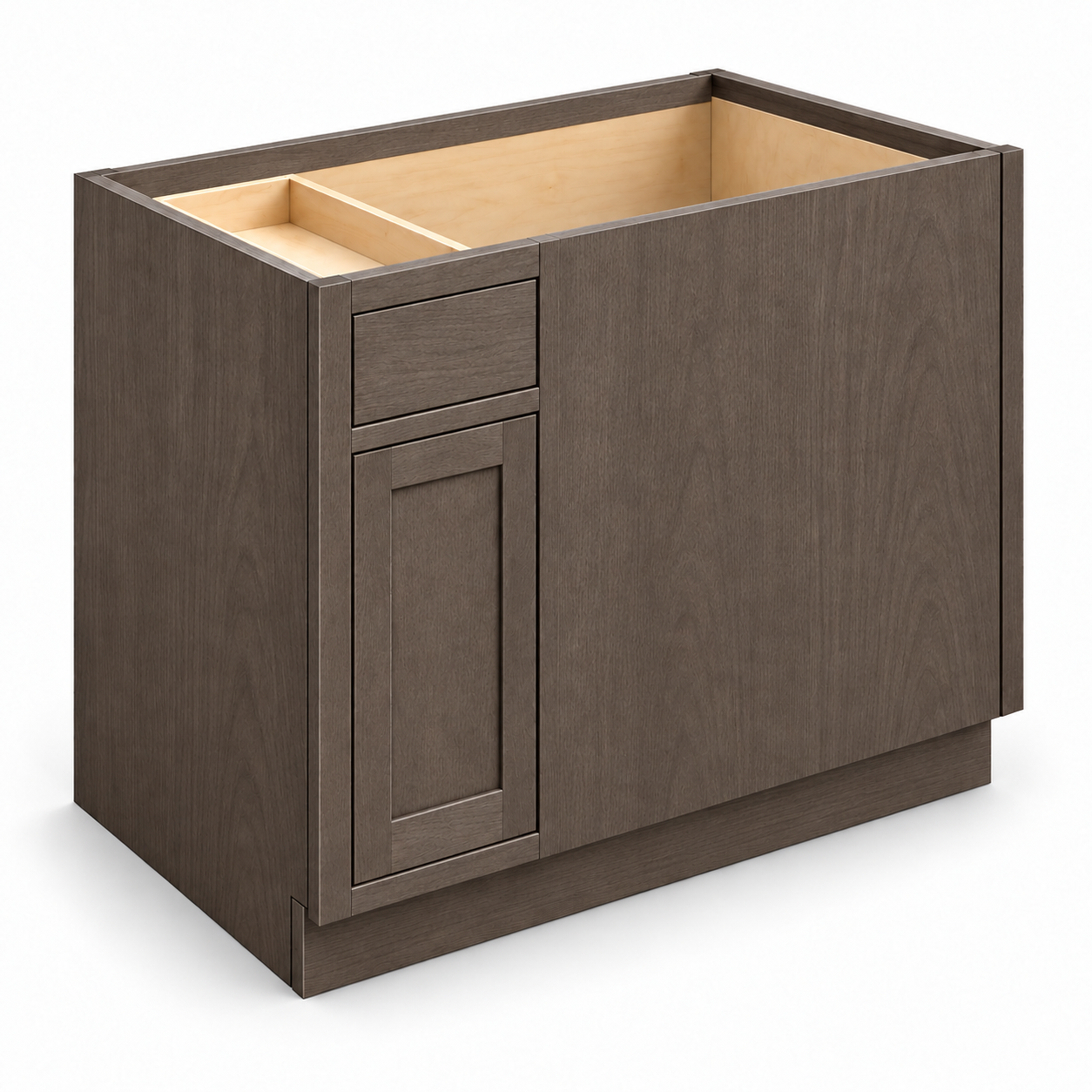

The Truffle Brown cabinet image shows a representative 40-inch-wide cabinet. The complete framed finish samples show the Inset frame, drawer and door profile as finish references. See the configuration drawing for this cabinet’s actual front arrangement; the selected size determines its dimensions. Wood grain, lighting, and screen settings can affect finish appearance.
