Integrate a microwave into your base-cabinet layout with an open appliance bay above a lower recessed-panel inset drawer. Choose the 27-inch or 30-inch cabinet to suit the planned appliance opening. This cabinet ships ready to assemble (RTA).
Sizes and configuration
BM27A: 27 inches wide × 34½ inches high × 25 inches deep.
BM30A: 30 inches wide × 34½ inches high × 25 inches deep.
One lower working drawer and an open microwave bay; no cabinet doors.

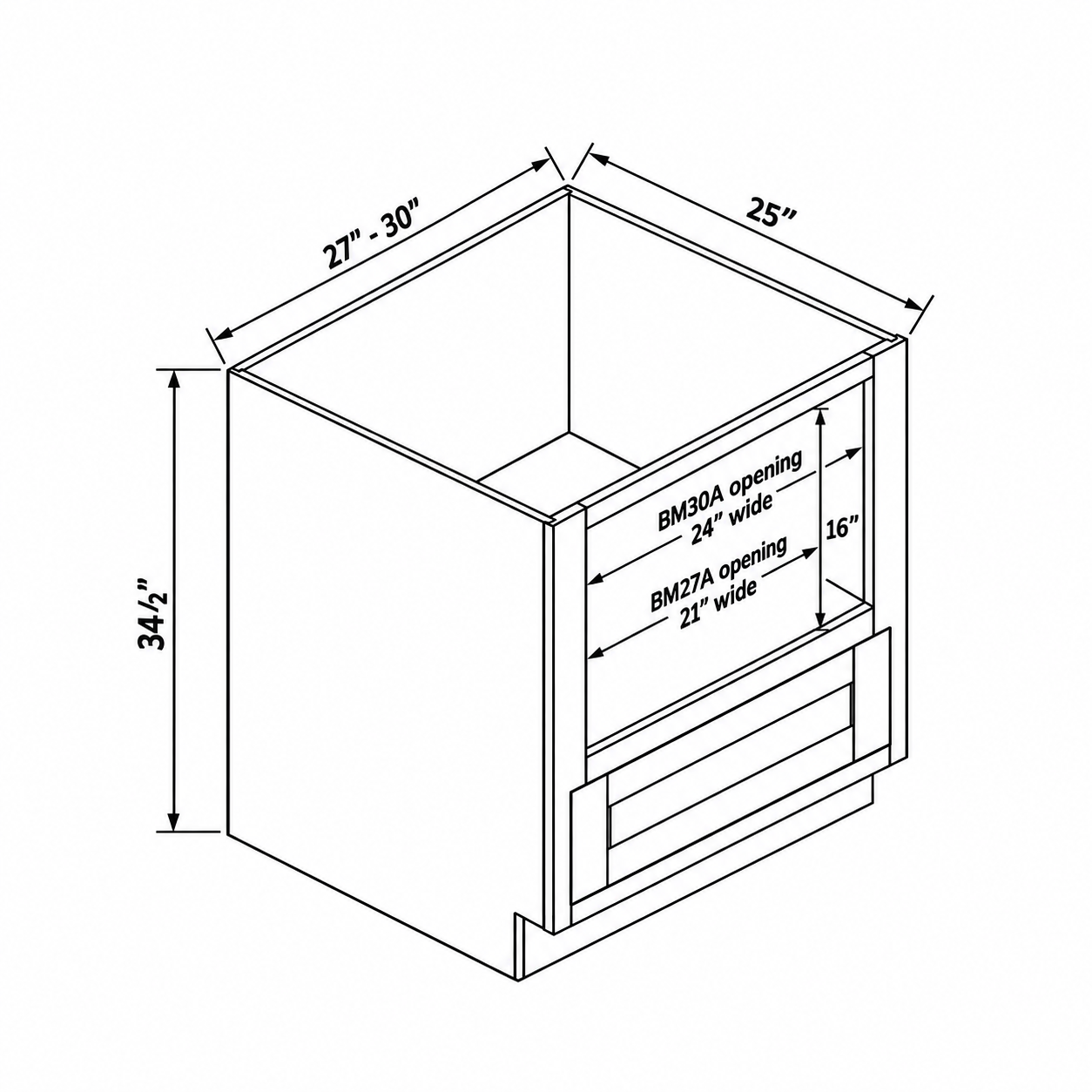

BM27A has a 21-inch-wide × 16-inch-high opening. BM30A has a 24-inch-wide × 16-inch-high opening.
Construction and hardware
⅝-inch plywood cabinet box with dovetail construction and a solid-wood face frame.
Solid-wood dovetail drawer box with a plywood bottom; full-extension, soft-close undermount drawer slides.
Concealed closed-compartment interiors and drawer boxes have a natural wood finish. Exposed interior surfaces of the open appliance bay match the selected exterior finish.
Inset fronts sit within the surrounding face frame with narrow reveal gaps.
Choose your finish
Choose Hazelnut Oak, Origami White or Truffle Brown. Hazelnut Oak uses white oak framing with a veneered plywood center panel on recessed-panel fronts. Truffle Brown uses birch. Wood grain and stain vary naturally; Origami White has a painted finish.
The cabinet exterior matches the selected door finish. Stained cabinet exteriors use birch veneer, and concealed closed-compartment interiors have a natural wood finish. Exposed interior surfaces of the open appliance bay match the selected exterior finish. Small natural-wood edges may be visible at the top and bottom. Optional decorative end panels, skins, and fillers are sold separately.
Layout and installation planning
The listed opening is the cabinet frame opening, not a guarantee that a microwave will fit. Confirm the appliance manufacturer’s requirements for installation type, ventilation, clearance, electrical access, trim kit and support before ordering. Compare the complete appliance dimensions and installation instructions with the cabinet drawing. Use only an appliance approved by its manufacturer for the intended installation.
The RTA package provides cabinet components, the lower drawer and drawer hardware. Assembly and installation are required. Countertop, decorative knobs and pulls, fillers and end panels are not included. Microwave, trim kit, electrical components and other appliance accessories are not included.
Install the cabinet level, square and securely anchored to maintain the flush inset fronts and consistent reveals. Use installation fasteners suited to the wall construction. Plan countertop support and overhang with the installer.
Plan your MDI Inset kitchen
Explore the MDI Inset Collection and coordinating double-door and single-drawer base cabinets. For layout or size help, use the floating Connect with us widget. It is the fastest way to reach us and notifies the owner directly.

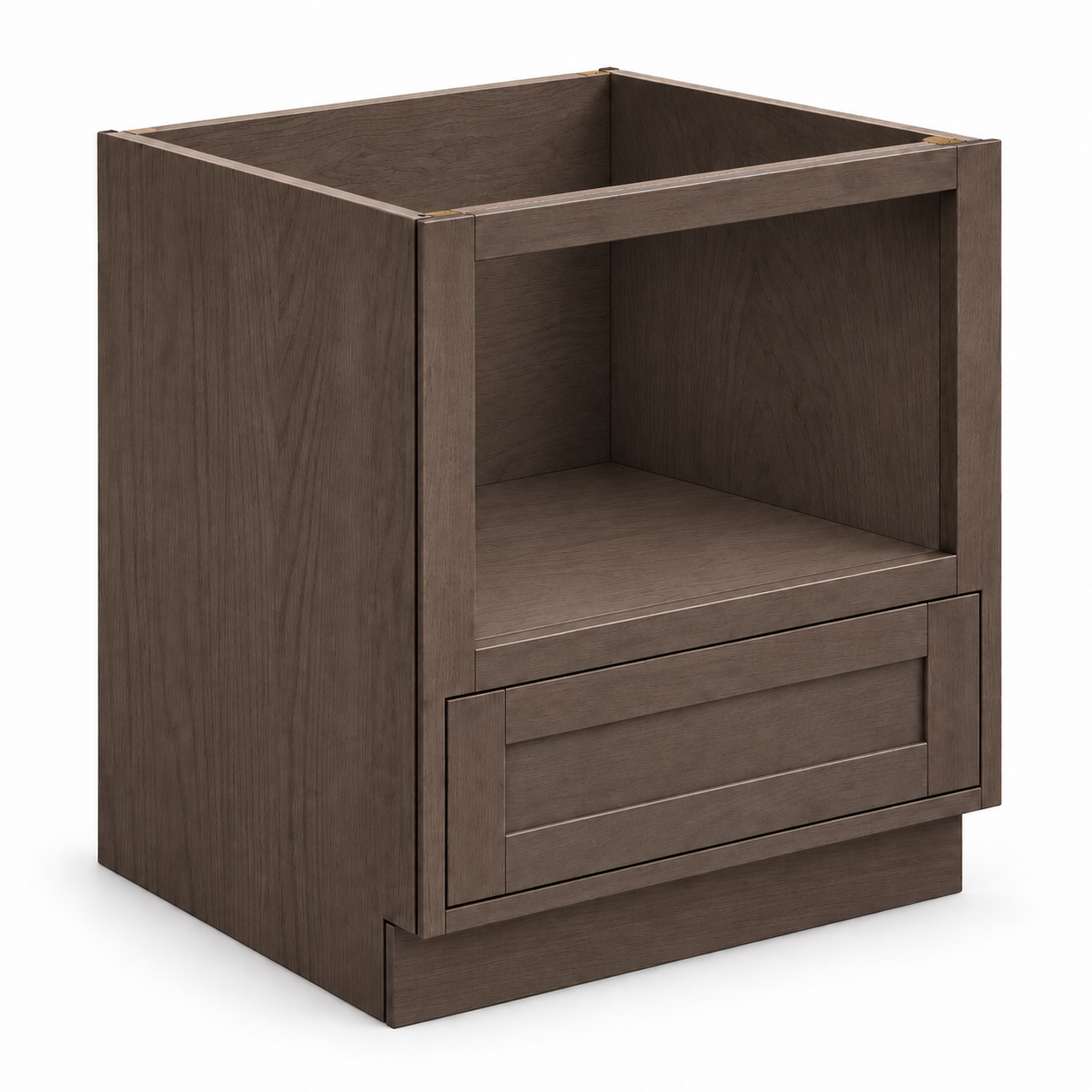

The Truffle Brown cabinet image shows a representative 27-inch-wide cabinet. The complete framed finish samples show the Inset frame, drawer and door profile as finish references. See the configuration drawing for this cabinet’s actual front arrangement; the selected size determines its dimensions. Wood grain, lighting, and screen settings can affect finish appearance.
